How To Check Fuel Injectors With Ohm Meter

Is your engine sputtering, idling rough, or suffering from a noticeable drop in fuel economy? One culprit behind these common automotive woes could be a malfunctioning fuel injector. While a full diagnostic scan is always recommended, checking your fuel injectors with an ohm meter is a straightforward test that can quickly help you identify a potential problem. This guide will walk you through the process, explaining the underlying principles and providing the knowledge you need to confidently perform this diagnostic check.

The Case of the Hesitant Hatchback

Imagine this: You're driving your trusty hatchback, and suddenly it starts feeling sluggish. Acceleration is uneven, and the engine seems to be misfiring, especially at lower speeds. The check engine light flickers ominously. You suspect a fuel delivery issue, but where do you start? This is a perfect scenario for using an ohm meter to assess your fuel injectors. While it won't pinpoint the *exact* cause of the problem (a clogged injector, for example, might test fine electrically), it will quickly reveal if an injector's coil is open or shorted, indicating a definite failure. It's a crucial first step in the troubleshooting process.

How Fuel Injectors Work: An Electrical and Mechanical Symphony

To understand how to test a fuel injector with an ohm meter, it's essential to grasp the basic principles of their operation. A fuel injector is essentially a sophisticated, electronically controlled valve. Here's a simplified breakdown:

The Electronic Command: The engine control unit (ECU), the car's "brain," determines the precise amount of fuel needed for optimal combustion based on various sensor inputs (engine speed, throttle position, air intake, etc.).
The Electrical Pulse: The ECU sends an electrical pulse to the fuel injector.
The Solenoid Activation: Inside the injector, a solenoid coil is energized by this electrical pulse. This coil creates a magnetic field.
The Valve Opens: The magnetic field pulls a pintle (a small, needle-shaped valve) away from its seat.
Fuel Injection: With the pintle lifted, pressurized fuel is sprayed into the intake manifold or directly into the combustion chamber (depending on the type of injection system).
The Valve Closes: When the ECU stops sending the electrical pulse, the magnetic field collapses, and a spring forces the pintle back onto its seat, stopping the fuel flow.

The resistance of the solenoid coil is a critical parameter. If the coil is broken (open circuit), the current can't flow, and the injector won't open. If the coil is shorted (very low resistance), excessive current can flow, potentially damaging the ECU and preventing the injector from functioning correctly. This is where the ohm meter comes in.

Testing with an Ohm Meter: A Step-by-Step Guide

Now, let's get to the practical part:

Tools You'll Need:

A digital multimeter (DMM) with ohm setting.
Your vehicle's repair manual (or reliable online resources for injector resistance specifications).
Basic hand tools (socket set, pliers) to access the fuel injectors.
Safety glasses and gloves.

Procedure:

Safety First: Disconnect the negative terminal of your car's battery. This is crucial to prevent accidental shorts and ensures your safety.
Locate the Fuel Injectors: Consult your vehicle's repair manual to identify the location of the fuel injectors. They are typically mounted on the fuel rail, which delivers fuel to each cylinder.
Disconnect the Electrical Connectors: Carefully disconnect the electrical connectors from each fuel injector. These connectors usually have a clip that needs to be released.
Set Your Multimeter: Turn on your multimeter and set it to the "ohms" (Ω) setting. Choose a suitable range; if you're unsure, start with a higher range and gradually decrease it for a more accurate reading. Most injectors have a resistance value in the 10-20 Ohm range.

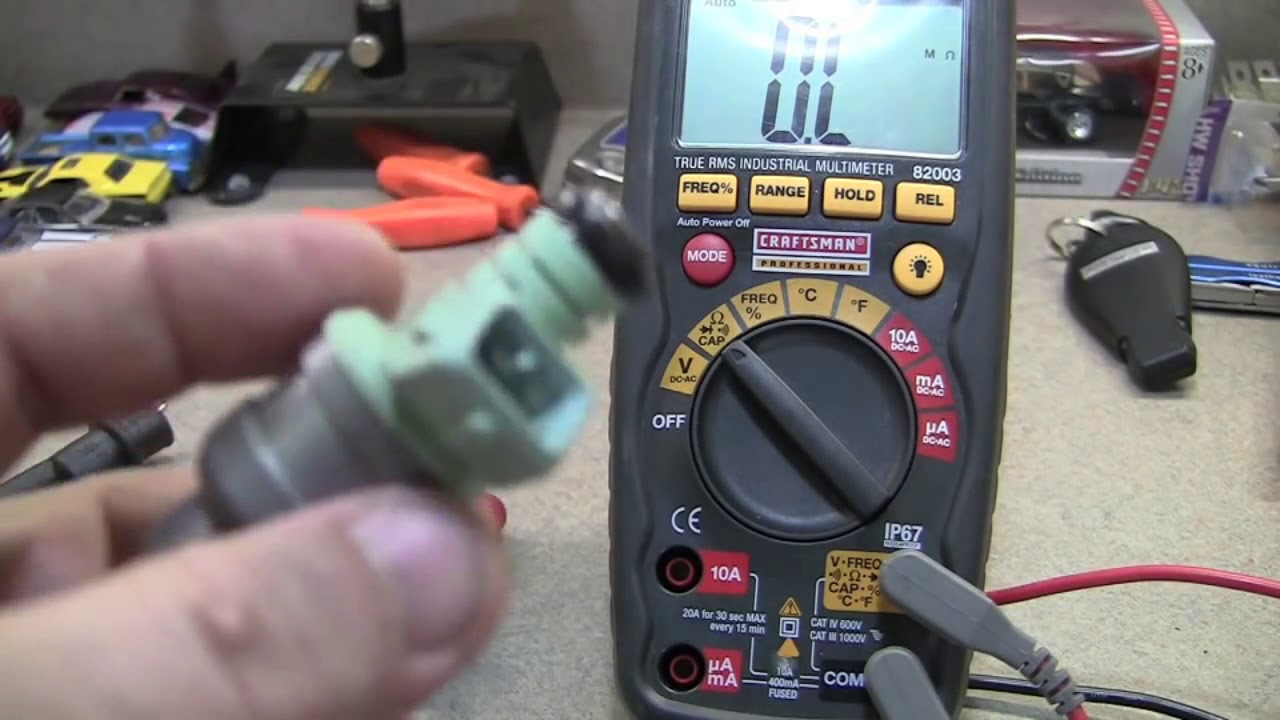

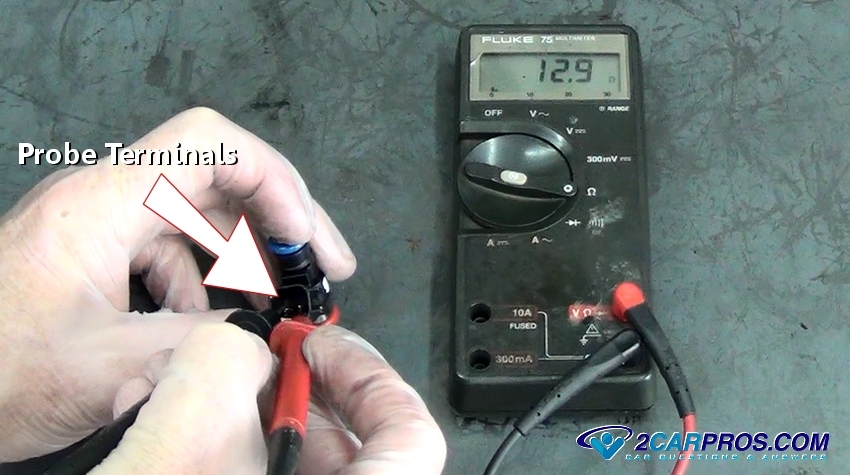

Connect the Test Leads: Touch the multimeter's test leads to the two terminals on the fuel injector's electrical connector. It doesn't matter which lead goes to which terminal.

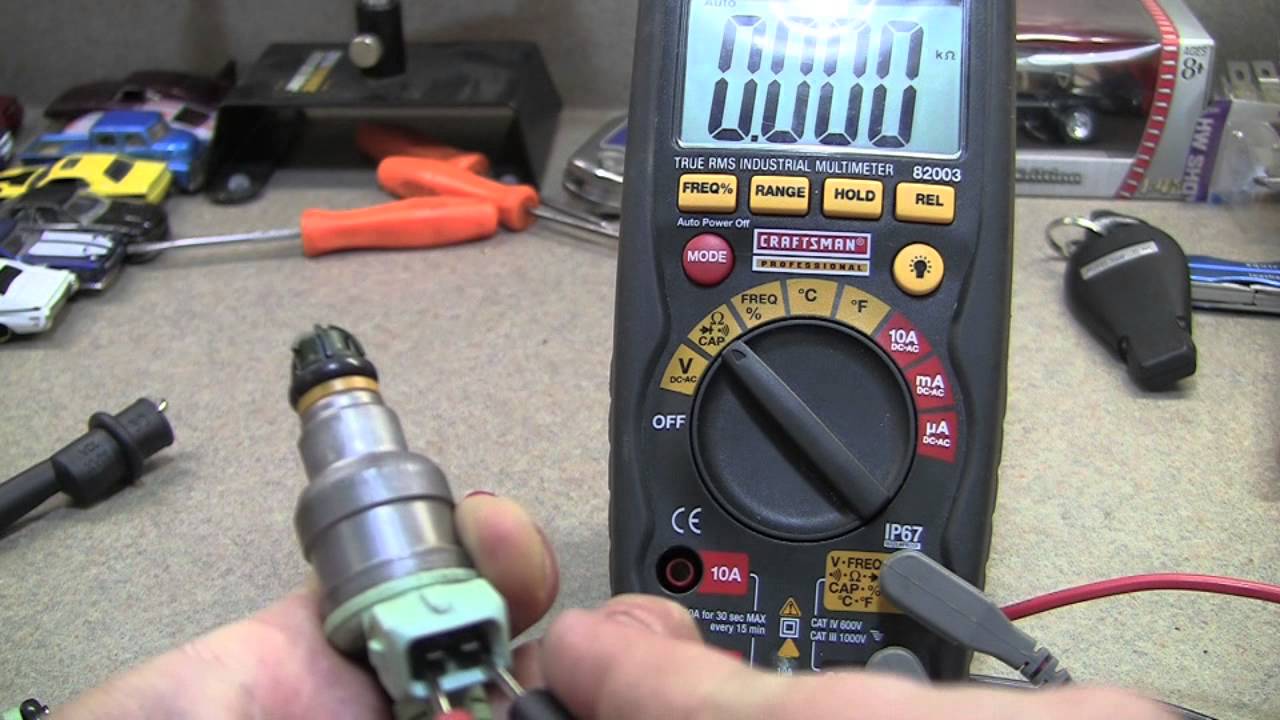

Read the Resistance: Observe the resistance reading on the multimeter's display. Note down the reading for each injector.
Compare to Specifications: Compare the resistance reading for each injector to the specifications provided in your vehicle's repair manual or a reliable online source.
Analyze the Results:
- Normal Reading: If the resistance is within the specified range, the injector's coil is likely in good condition.

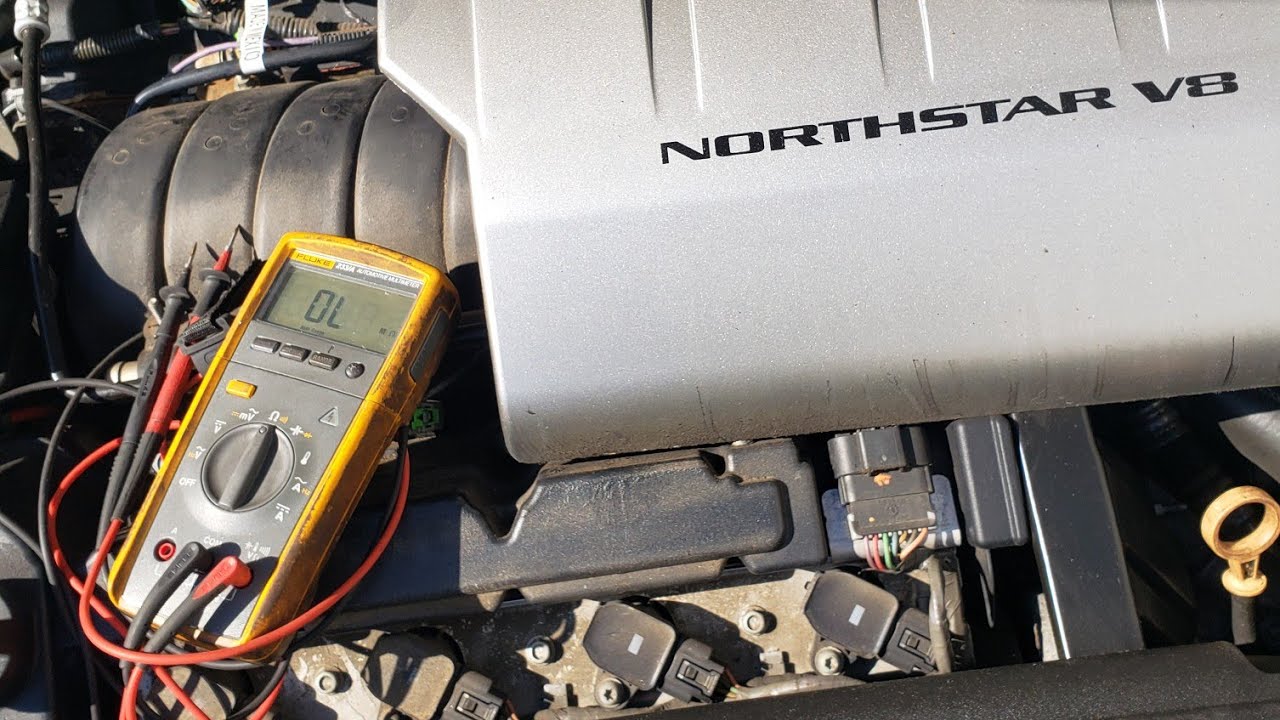

- Open Circuit (Infinite Resistance): If the multimeter displays "OL" (Overload) or a very high resistance value, it indicates an open circuit within the injector's coil. The injector is definitely faulty.
- Short Circuit (Very Low Resistance): If the multimeter displays a very low resistance value (close to zero), it indicates a short circuit within the injector's coil. The injector is also faulty.
- Significant Variance: If the resistance readings vary significantly between injectors, it suggests that some injectors may be degrading and not performing optimally.
Reassemble: Once you've completed the testing, reconnect the electrical connectors to the fuel injectors and reconnect the negative battery terminal.

Pros and Cons of Using an Ohm Meter for Fuel Injector Testing

Pros:

Simple and Quick: It's a relatively easy and fast test to perform.
Inexpensive: Requires only a basic multimeter, a tool most DIY mechanics already own.
Identifies Obvious Failures: Effectively detects open or shorted injector coils.

Cons:

Limited Diagnostic Capability: Cannot detect other common issues, such as clogged injectors, leaks, or mechanical failures of the pintle.
Resistance Specifications Required: You need the correct resistance specifications for your vehicle's injectors to interpret the results accurately.
Doesn't Guarantee Proper Function: An injector within the resistance spec can still be faulty or clogged. It confirms electrical integrity but not mechanical function.

Manufacturer Examples and Typical Resistance Values

Injector resistance varies depending on the manufacturer and the type of injector. Here are some general examples (always consult your vehicle's repair manual for specific values):

Bosch: Commonly used in European vehicles (BMW, Mercedes-Benz, Audi, VW). Resistance values typically range from 12 to 17 ohms.
Denso: Widely used in Japanese vehicles (Toyota, Honda, Nissan). Resistance values are often in the 11 to 14 ohms range.
Delphi: Used in many American vehicles (GM, Ford, Chrysler). Resistance values can vary more widely, often falling between 12 and 18 ohms.
High-Impedance Injectors (Saturated Injectors): These are the most common type and generally have resistance values between 10 and 20 ohms.
Low-Impedance Injectors (Peak-and-Hold Injectors): Less common in modern vehicles, these injectors typically have much lower resistance values, often between 2 and 5 ohms. These injectors often require a ballast resistor in the fuel injection circuit.

Real-World Insights and Recommendations

While checking fuel injectors with an ohm meter is a valuable diagnostic step, remember that it's just one piece of the puzzle. If your injector resistance tests within the specified range, but you're still experiencing engine problems, further investigation is necessary.

Consider these additional checks:

Fuel Pressure Test: Ensure that the fuel pump is delivering adequate pressure to the fuel rail.
Injector Cleaning: Clogged injectors can often be cleaned professionally using specialized equipment. You can also try fuel injector cleaners added to the fuel tank, but their effectiveness can vary.
Injector Flow Testing: This test measures the actual amount of fuel being injected by each injector. It's a more precise way to assess injector performance.
Visual Inspection: Check the injectors for any signs of physical damage, leaks, or corrosion.
Listen with a Screwdriver Stethoscope: Place the handle of a long screwdriver to your ear, and the tip on the injector body to listen for the faint click of the injector working.

When to Replace Injectors:

Open or short circuit detected by the ohm meter.
Significant performance degradation, even after cleaning and other diagnostic tests.
Physical damage or leaks.

By combining the ohm meter test with other diagnostic techniques and a thorough understanding of your vehicle's fuel system, you can effectively troubleshoot fuel injector problems and keep your engine running smoothly. Remember to always consult your vehicle's repair manual and prioritize safety when working on your car.
