How To Check Transmission Fluid In Nissan Rogue

Maintaining your Nissan Rogue's transmission is crucial for its longevity and smooth operation. One of the most important maintenance tasks is regularly checking the transmission fluid level and condition. This article will guide you through the process, assuming you have some experience working on cars.

Why Check Your Transmission Fluid?

Your Rogue's transmission relies on automatic transmission fluid (ATF) for several critical functions: lubrication of internal components, cooling to prevent overheating, hydraulic pressure to engage gears, and friction modification to ensure smooth shifting. Low or degraded ATF can lead to a range of problems, including slipping gears, harsh shifting, overheating, and ultimately, complete transmission failure. A new transmission can cost thousands of dollars, making regular fluid checks a worthwhile preventative measure.

Nissan Rogue Transmission Background

The Nissan Rogue, particularly models from the late 2000s onwards, primarily utilize a Continuously Variable Transmission (CVT). Unlike traditional automatic transmissions with fixed gear ratios, a CVT uses a belt or chain running between two variable-diameter pulleys to provide an infinite range of gear ratios. This design aims to optimize engine efficiency and fuel economy. However, CVTs have unique fluid requirements and maintenance considerations compared to conventional automatics. It's very important to verify the proper fluid type for your vehicle.

CVT Fluid Considerations

Because of the unique design and internal components, CVTs are more sensitive to fluid condition than a traditional transmission. Contaminated fluid can damage the belt, pulleys, and other internal parts. The fluid used in a Nissan Rogue CVT must meet specific requirements to ensure proper operation and longevity.

Technical Breakdown: How to Check the Transmission Fluid

Checking the transmission fluid in a Nissan Rogue can be a little different depending on the model year. Some models have a dipstick, while others require a more involved process using a fill port and overflow tube. We will cover both scenarios.

Scenario 1: Models with a Dipstick

While less common on newer Rogue models, some may still have a dipstick. The dipstick is typically located in the engine bay, often near the transmission itself. Refer to your owner's manual for the precise location.

1. Warm Up the Engine: The transmission fluid needs to be at operating temperature for an accurate reading. Drive the car for about 15-20 minutes to warm it up. Important: Ensure the vehicle is parked on a level surface.
2. Locate the Dipstick: Identify the transmission fluid dipstick. It will usually be marked with a symbol or label indicating "Transmission Fluid." It often has a brightly colored handle (yellow or orange) to distinguish it from the engine oil dipstick.

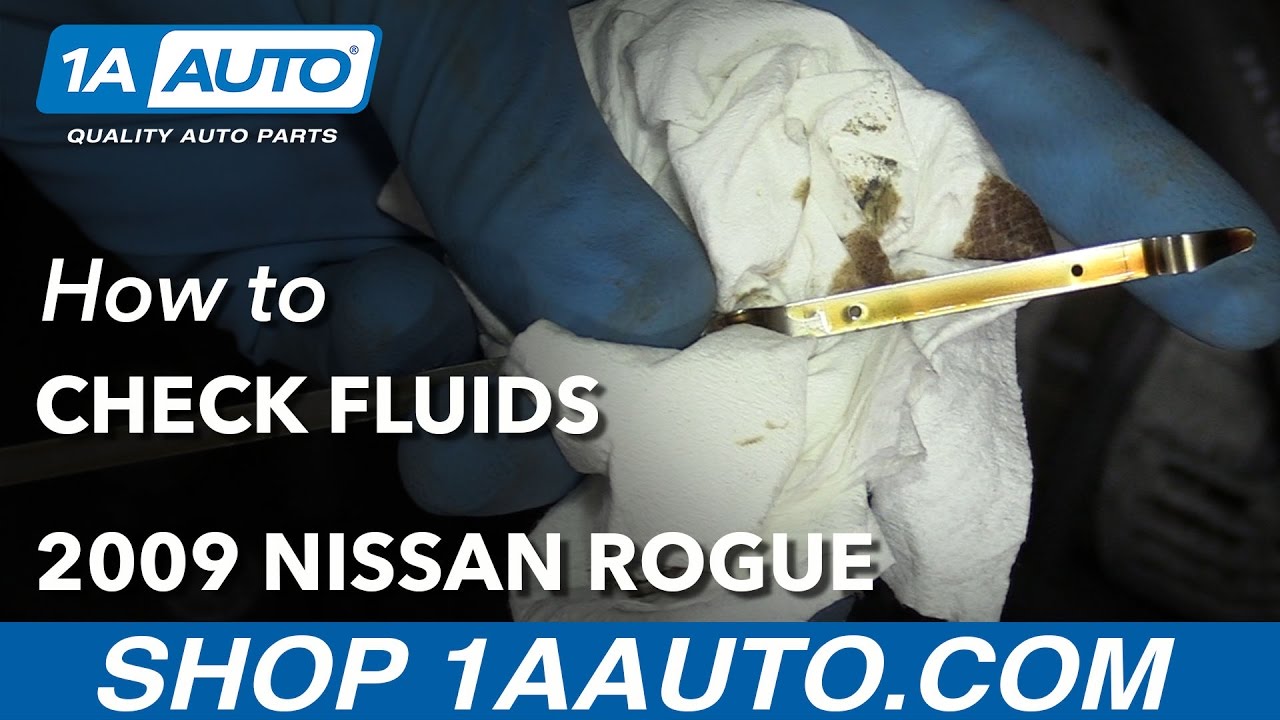

3. Remove and Wipe: Carefully pull the dipstick out of its tube. Use a clean, lint-free rag to wipe the dipstick completely clean. This removes any old fluid and debris.
4. Re-insert and Check: Fully re-insert the dipstick into the tube, ensuring it's seated correctly. Then, pull it out again.
5. Read the Fluid Level: Observe the fluid level on the dipstick. It should be between the "MIN" and "MAX" (or "COLD" and "HOT") marks. If the engine is at operating temperature use the "HOT" marks. The 'COLD' marks are for when the engine is cool to cold. If the fluid is below the 'MIN' mark, you need to add fluid.
6. Inspect the Fluid Condition: Examine the color and smell of the fluid. Healthy ATF should be a clear red or pink color. If it's dark brown or black, or smells burnt, it indicates the fluid is degraded and needs to be changed. Look for any metal particles or debris which indicates mechanical damage.

Scenario 2: Models without a Dipstick (Most Common)

Many newer Nissan Rogues, especially those with CVTs, do not have a traditional dipstick for checking the transmission fluid level. Instead, they have a fill port and an overflow tube. This procedure requires a little more patience and equipment.

Tools and Materials Required:

• Jack and jack stands
• Socket set
• Torque wrench
• Fluid pump or funnel with a long tube
• Drain pan
• Nissan CVT fluid (NS-3 or equivalent, confirm correct type for your vehicle)
• New drain plug washer (recommended)
• Gloves and safety glasses

1. Safety First: Park the vehicle on a level surface, engage the parking brake, and chock the rear wheels. Loosen the lug nuts on the front wheels.
2. Raise the Vehicle: Jack up the front of the vehicle and securely support it with jack stands. Never work under a vehicle supported only by a jack.

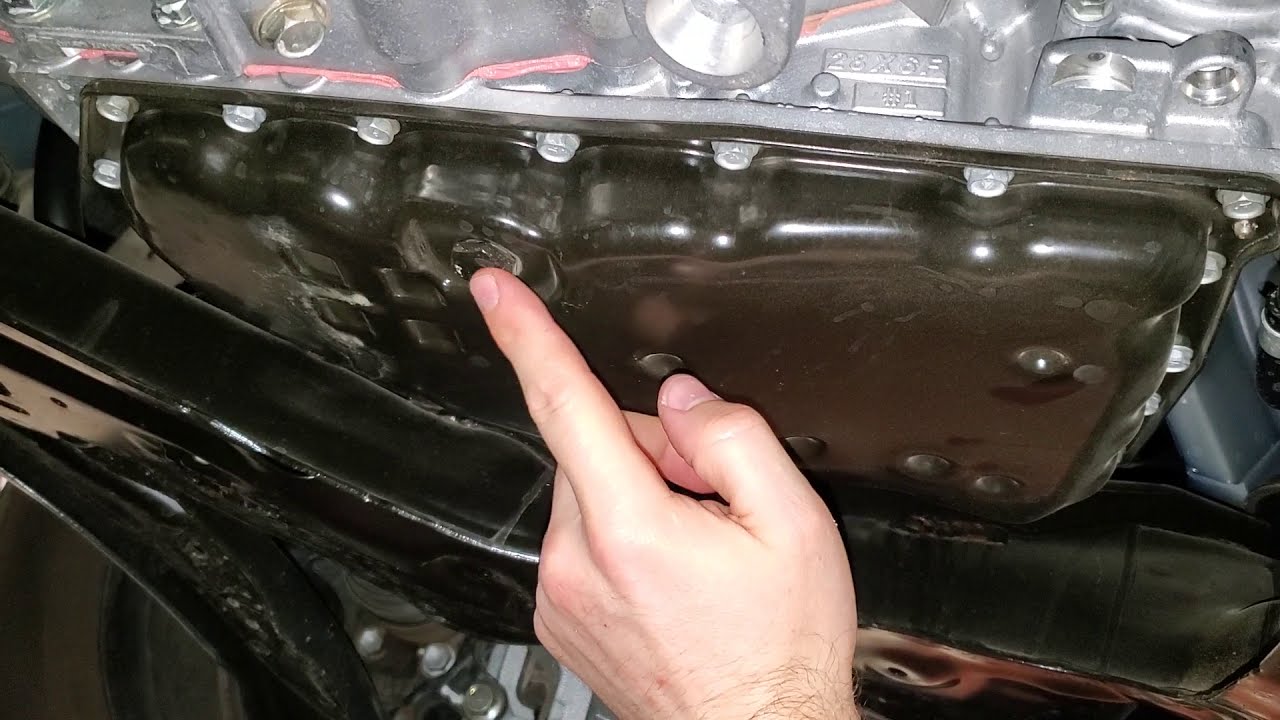

3. Locate the Fill and Drain Plugs: The fill and drain plugs are located on the side of the transmission. Refer to your service manual or online resources for the exact location on your specific model year. The fill plug is usually higher than the drain plug.
4. Remove the Drain Plug: Place a drain pan under the transmission. Using the correct socket size, carefully remove the drain plug. Allow the excess fluid to drain until it stops dripping.
5. Reinstall the Drain Plug: Once the fluid has stopped draining, install a new drain plug washer (recommended) and tighten the drain plug to the manufacturer's specified torque using a torque wrench. Do not overtighten!
6. Remove the Overflow Tube: Inside the drain plug hole, you'll find the overflow tube. Remove this with the correct size hex key.

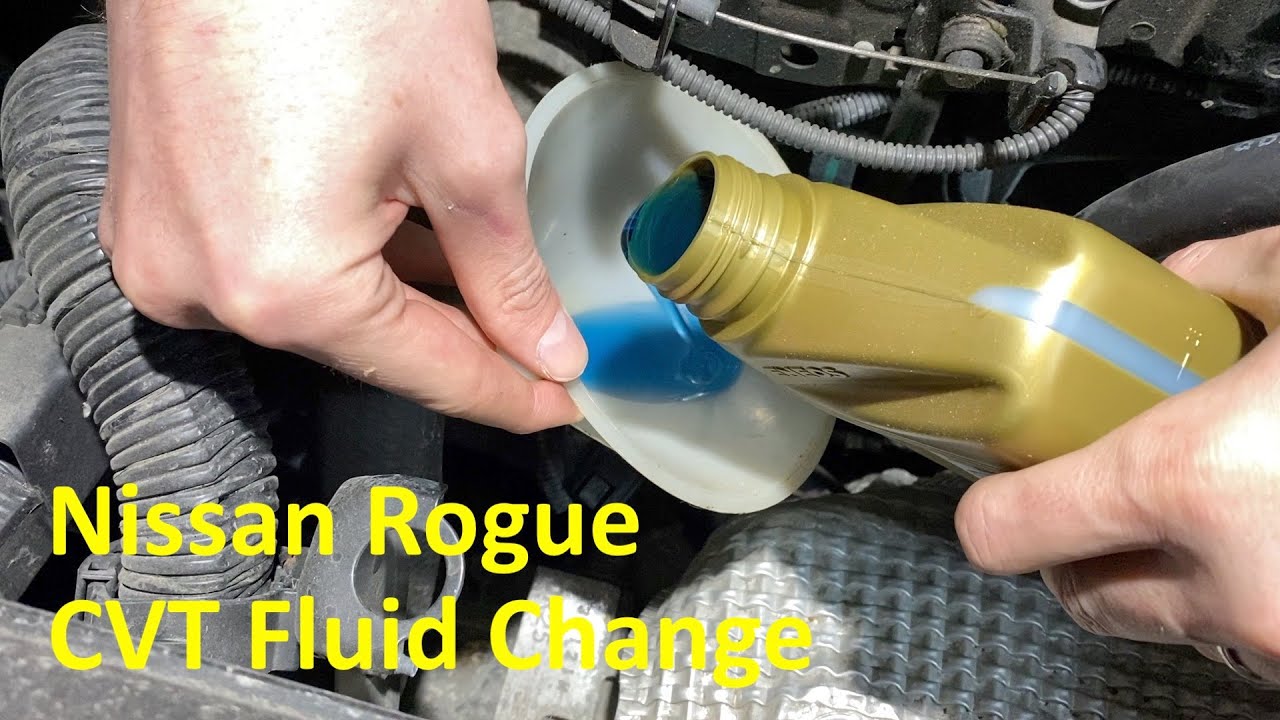

7. Fill the Transmission: Locate the fill plug. Remove the fill plug. Using a fluid pump or funnel and tube, slowly add new Nissan CVT fluid (NS-3 or equivalent) through the fill hole. It's best to start with slightly less than you think you'll need, as you can always add more.
8. Start the Engine and Warm Up: Reinstall the fill plug loosely. Lower the vehicle until the wheels touch the ground. Start the engine and let it idle until the transmission fluid reaches the specified temperature (usually around 35-45°C or 95-113°F). Use a scan tool capable of reading transmission fluid temperature to monitor this.
9. Check the Fluid Level: With the engine running and the transmission at the correct temperature, raise the vehicle again and support it with jack stands. Remove the drain plug again (you previously removed the overflow tube). If fluid trickles out, the fluid level is correct. If no fluid comes out, add more fluid through the fill hole until it does.
10. Reinstall Overflow Tube and Drain Plug: Once fluid is trickling out, reinstall the overflow tube and then the drain plug with a new washer, torquing it to the manufacturer's specification.
11. Reinstall Fill Plug: Tighten the fill plug to the manufacturer's specified torque.
12. Final Check: Lower the vehicle, and check for any leaks around the drain and fill plugs.

Common Issues and Maintenance Concerns

• Fluid Degradation: CVT fluid degrades over time due to heat and friction. Regular fluid changes (typically every 30,000-60,000 miles, depending on driving conditions) are essential for maintaining optimal performance.

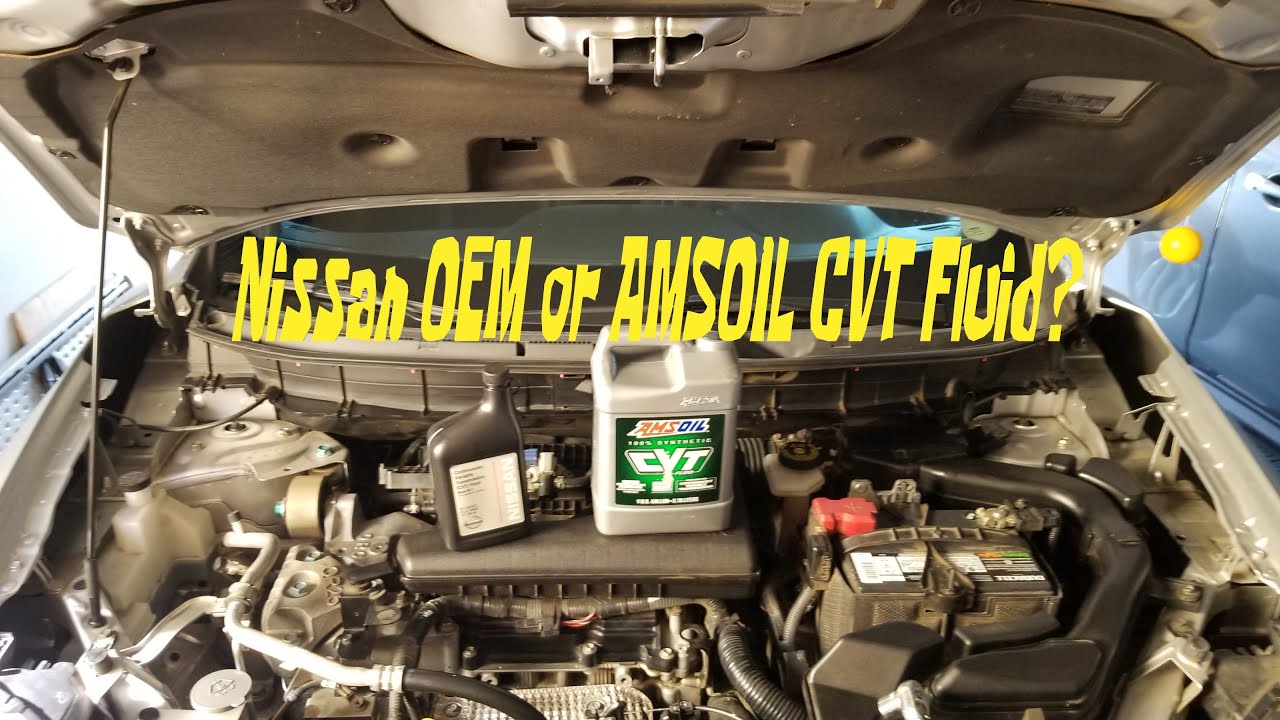

• Incorrect Fluid Type: Using the wrong type of transmission fluid can cause severe damage to the CVT. Always use the fluid specified by Nissan (NS-3 or equivalent, confirm your vehicle's requirement).
• Overfilling/Underfilling: Both overfilling and underfilling the transmission can lead to problems. Follow the proper procedure and measurements carefully.
• Overheating: CVTs can be prone to overheating, especially under heavy load (towing, prolonged high-speed driving). Consider installing an auxiliary transmission cooler if you frequently experience these conditions.

Do's and Don'ts / Best Practices

Do's:

• Do consult your owner's manual for the correct fluid type and service intervals.
• Do use only genuine Nissan CVT fluid (NS-3 or equivalent) or a reputable equivalent.
• Do ensure the vehicle is level when checking or changing the fluid.
• Do use a torque wrench to tighten the drain and fill plugs to the correct specifications.
• Do dispose of used transmission fluid properly (recycle it at an auto parts store or recycling center).
• Do warm up the engine and transmission to the correct temperature before checking the fluid level.

Don'ts:

• Don't overfill or underfill the transmission.
• Don't use generic automatic transmission fluid in a CVT.
• Don't ignore signs of transmission problems (slipping, harsh shifting, noises).
• Don't work under a vehicle supported only by a jack.
• Don't overtighten the drain and fill plugs.
• Don't assume all Rogues have the same transmission fluid check procedure; consult your owner's manual.

Conclusion

Regularly checking your Nissan Rogue's transmission fluid is a simple yet crucial maintenance task that can significantly extend the life of your transmission. Whether your Rogue has a dipstick or requires the overflow tube method, understanding the process and following best practices will help you keep your CVT running smoothly. If you're not comfortable performing these tasks yourself, it's always best to consult a qualified mechanic.
