How To Check Transmission Fluid With Dipstick

Is your car shifting rough, slipping between gears, or making strange noises? One of the first things you should check is your transmission fluid level and condition. Low or dirty transmission fluid can cause a multitude of problems, and fortunately, it's relatively easy to diagnose and often correct using the dipstick method. We'll walk you through the process of how to check your transmission fluid, what to look for, and what steps to take if you find a problem. Maintaining proper transmission fluid levels is crucial for the longevity and performance of your transmission, which can save you from expensive repairs down the road.

Symptoms of Low or Dirty Transmission Fluid

Recognizing the symptoms of transmission fluid issues early can help you prevent more significant damage. Here are some common indicators that your transmission fluid needs attention:

Slipping Gears: This is perhaps the most common symptom. You'll accelerate, and the engine will rev up, but the car won't accelerate proportionally. It feels like the transmission is struggling to find the right gear.
Rough or Hard Shifting: Gear changes may feel jerky, delayed, or accompanied by a noticeable clunk.
Delayed Engagement: When you shift into drive or reverse, there might be a noticeable delay before the car starts moving.
Unusual Noises: Whining, humming, or clunking sounds coming from the transmission area, especially during gear changes.
Transmission Warning Light: Some vehicles have a specific warning light for transmission issues, while others may use the general "check engine" light. Always scan your vehicle for codes if the light is illuminated.
Difficulty Shifting: The gear selector lever may feel stiff or difficult to move into the desired gear.
Overheating: The transmission can overheat due to increased friction caused by inadequate lubrication. You might notice a burning smell.
Fluid Leaks: Look for reddish-brown fluid under your car, typically near the center or front of the vehicle.

Root Cause: Why Transmission Fluid Problems Occur

Understanding the root cause of transmission fluid problems is key to preventing them in the future. Here are the main culprits:

Normal Wear and Tear: Over time, transmission fluid degrades due to heat, friction, and pressure. This degradation reduces its lubricating properties and can lead to sludge buildup.
Leaks: Seals, gaskets, and O-rings can deteriorate over time, causing transmission fluid to leak. Common leak locations include the transmission pan, input shaft seal, and output shaft seal.
Overheating: Excessive heat breaks down the fluid's additives, leading to a loss of viscosity and lubrication. Overheating can be caused by towing heavy loads, aggressive driving, or a malfunctioning cooling system.
Contamination: Dirt, debris, and coolant can contaminate the transmission fluid, reducing its effectiveness and causing abrasive wear on internal components.
Infrequent Fluid Changes: Neglecting scheduled transmission fluid changes allows contaminants and degraded fluid to accumulate, accelerating wear and tear on the transmission.

Consequences of Ignoring Transmission Fluid Issues

Ignoring transmission fluid problems can have severe consequences for your vehicle. A neglected transmission can quickly lead to:

Increased Wear and Tear: Low or dirty fluid causes increased friction between moving parts, accelerating wear on gears, bearings, and clutches.
Transmission Damage: Prolonged operation with inadequate lubrication can lead to catastrophic transmission failure, requiring costly repairs or replacement.
Reduced Fuel Efficiency: A struggling transmission consumes more energy to operate, resulting in lower fuel economy.
Safety Concerns: Slipping gears or sudden transmission failure can create dangerous driving situations, especially on highways.
Complete Transmission Failure: The worst-case scenario is a complete transmission failure, leaving you stranded and facing a bill that could easily run into thousands of dollars.

Checking Your Transmission Fluid: The Dipstick Method

Here's a step-by-step guide on how to check your transmission fluid using the dipstick method:

Gather Supplies: You'll need a clean rag or paper towel. Some manufacturers recommend wearing gloves.

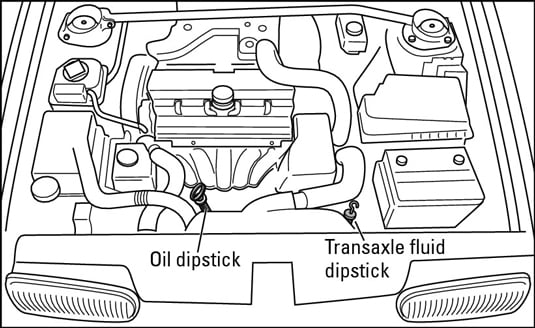

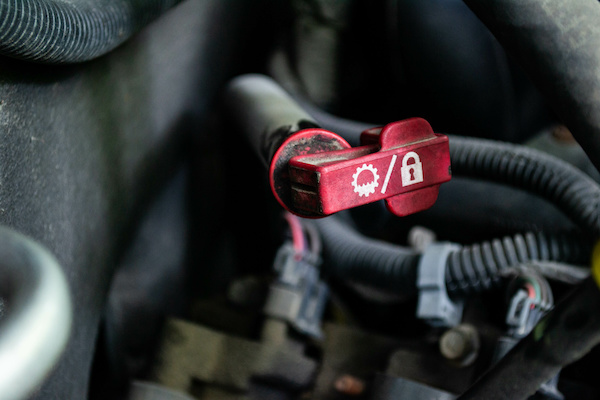

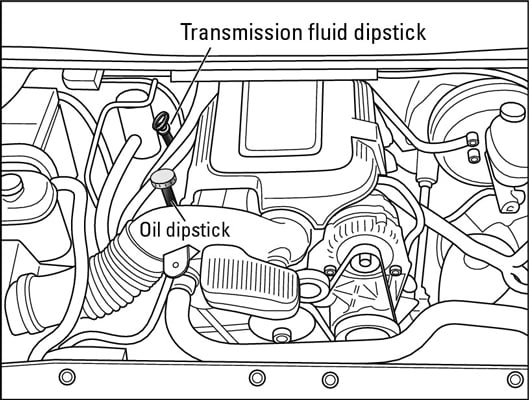

Locate the Dipstick: Consult your owner's manual to find the transmission fluid dipstick. It's often located near the engine or transmission itself and is usually marked with a transmission symbol. Be cautious, as the engine and exhaust components can be very hot.
Warm Up the Engine (If Required): Some vehicles require the engine to be warm before checking the fluid level. Check your owner's manual for specific instructions. If warming is required, run the engine for a few minutes until it reaches normal operating temperature. Then, shift through all the gears (P, R, N, D, etc.) allowing a few seconds in each gear. Return the vehicle to Park (P) and leave the engine idling. Be sure to apply the parking brake!
Remove the Dipstick: Pull the dipstick out of its tube and wipe it clean with the rag or paper towel.
Reinsert the Dipstick: Fully reinsert the dipstick into the tube, ensuring it's seated properly.

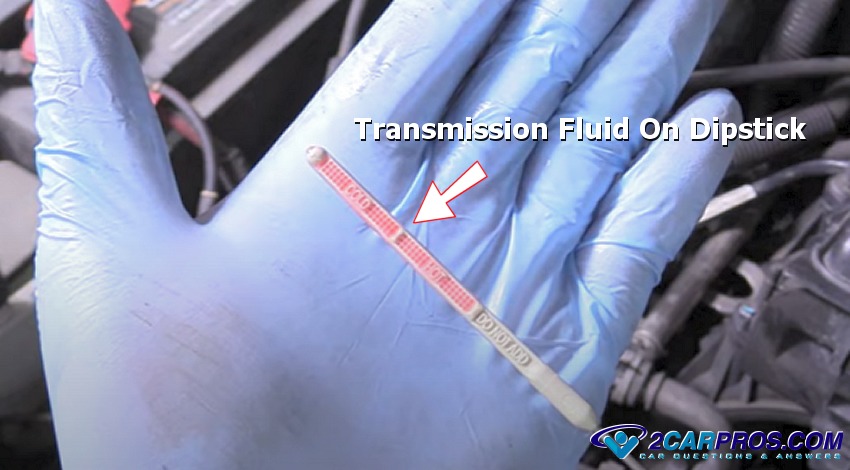

Remove and Inspect: Pull the dipstick out again and examine the fluid level. The dipstick will have markings indicating the "full" and "low" levels.

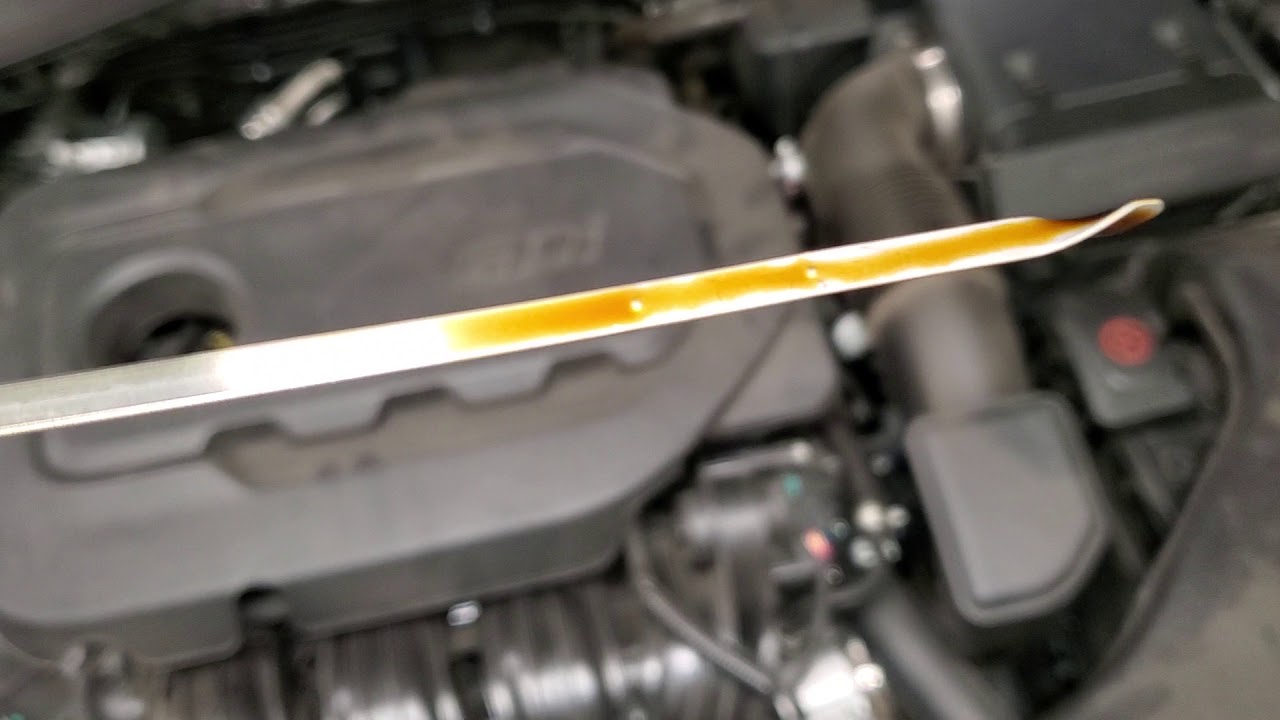

Check the Fluid Condition: Observe the color and smell of the fluid. Transmission fluid should typically be a reddish or pinkish color. Dark brown or black fluid, or fluid with a burnt smell, indicates degradation and the need for a fluid change. Look for any signs of metal shavings or other debris, which could indicate internal transmission damage.
Top Off (If Needed): If the fluid level is low, add the recommended type of transmission fluid through the dipstick tube using a funnel. Consult your owner's manual to determine the correct type of fluid. Add fluid in small increments, checking the level after each addition until it reaches the "full" mark. Be careful not to overfill.
Final Check: Wipe the dipstick clean, reinsert it, and check the fluid level one last time to ensure accuracy.

Recommended Fixes and Cost Estimates

Based on your findings, here are some recommended fixes and associated cost estimates:

Low Fluid Level (No Leaks): If the fluid level is simply low and there are no signs of leaks, topping off the fluid might be sufficient. However, it's crucial to monitor the fluid level regularly to ensure it doesn't drop again. Cost: Cost of transmission fluid (typically $10-$20 per quart).
Low Fluid Level (With Leaks): If you suspect a leak, you'll need to identify and repair the source of the leak. This might involve replacing seals, gaskets, or O-rings. A mechanic can perform a pressure test to pinpoint the leak. Cost: Varies depending on the location and complexity of the repair, but typically ranges from $100 to $500.
Dirty or Burnt Fluid: A transmission fluid change is recommended. This involves draining the old fluid and replacing it with fresh fluid. Some vehicles may also benefit from a transmission filter replacement. Cost: A transmission fluid change typically costs between $80 and $250, depending on the type of fluid and whether the filter is replaced. A transmission flush is generally not recommended unless specifically advised by the manufacturer or a trusted mechanic, as it can sometimes dislodge debris and cause further problems in older transmissions.
Fluid Contamination (Coolant): If the fluid is milky or contains coolant, it indicates a more serious issue, such as a leaking transmission cooler or a cracked transmission case. This requires immediate attention to prevent further damage. Cost: Varies greatly depending on the extent of the damage, but can range from several hundred to thousands of dollars.
Metal Shavings in Fluid: The presence of metal shavings indicates internal transmission damage and likely requires a transmission rebuild or replacement. Cost: A transmission rebuild can cost between $1,500 and $3,500, while a replacement can cost even more.

Shop Advice and Technical Service Bulletins (TSBs)

When it comes to transmission issues, it's always best to consult with a qualified mechanic. They can accurately diagnose the problem and recommend the appropriate course of action. Before taking your car to a shop, do some research on common transmission problems for your make and model. You can often find valuable information on online forums and owner's groups.

Also, be aware of any Technical Service Bulletins (TSBs) issued by the manufacturer related to transmission problems. TSBs are essentially notices from the manufacturer to dealerships about known issues and recommended repair procedures. You can often find TSB information online or by contacting your local dealership.

For example, many older Honda vehicles are known for transmission issues around the 100,000-mile mark, and there are TSBs related to these problems. Similarly, certain Ford models have experienced issues with their automatic transmissions, resulting in TSBs addressing shifting problems and fluid leaks.

Finally, remember that regular maintenance, including scheduled transmission fluid changes, is the best way to prevent costly transmission repairs. Consult your owner's manual for the recommended fluid change interval. By being proactive and addressing potential problems early, you can keep your transmission running smoothly for years to come.
