How To Clean An Idle Air Control Valve

Picture this: you're cruising down the road, foot off the accelerator, and your car sputters, almost stalls, or idles roughly. Or maybe, instead of struggling, it's idling way too high, sounding like it's eager to launch even when you're stopped. More often than not, these erratic idle symptoms point to a single culprit: a dirty or malfunctioning Idle Air Control (IAC) valve.

Before you resign yourself to a hefty mechanic's bill, consider this: cleaning the IAC valve is often a straightforward DIY task that can save you significant money and restore smooth idling performance. But before grabbing your tools, let's delve into the inner workings of this vital component and understand why it's so prone to gunk buildup.

The Idle Air Control Valve: A Gateway to Smooth Idling

Think of your car's engine as a marathon runner. At high speeds (high RPMs), it's breathing heavily, taking in large gulps of air to generate power. But when it's just idling – waiting at the starting line, so to speak – it needs a much smaller, precisely controlled amount of air to keep running smoothly. This is where the IAC valve steps in.

Mechanical Operation: A Detailed Look

The IAC valve is essentially a bypass valve. When the throttle plate (the main valve controlling airflow into the engine) is closed at idle, it restricts the normal flow of air. The IAC valve provides an alternate route for air to enter the intake manifold, allowing the engine to maintain a stable idle speed. This bypass is regulated by a small electric motor that precisely positions a valve (often a plunger, pintle, or rotary type) opening and closing the airflow passage.

Here's a breakdown of the typical IAC system components and their functions:

ECU (Engine Control Unit): The brains of the operation. The ECU monitors engine RPM, coolant temperature, and other parameters to determine the ideal idle speed. It then sends signals to the IAC valve's electric motor.
Electric Motor: This motor precisely positions the IAC valve based on the signals from the ECU.
Valve (Plunger/Pintle/Rotary): This is the actual component that restricts or allows airflow through the bypass passage. A plunger valve moves linearly, while a rotary valve spins to adjust the opening. A pintle valve is a shaped needle that moves in and out of an orifice.
Air Passage: The bypass channel that allows air to flow around the closed throttle plate.

The ECU constantly adjusts the IAC valve position to compensate for variations in engine load (e.g., air conditioning kicking on, power steering pump engaging) and temperature, ensuring a consistent idle speed. For example, on a cold start, the ECU commands the IAC to open wider, allowing more air into the engine to compensate for the increased fuel demand. As the engine warms up, the IAC valve gradually closes to reduce the idle speed to the normal operating level.

Why Does the IAC Valve Get Dirty?

The IAC valve is strategically located near the throttle body, making it susceptible to contamination from several sources:

Oil Vapor: Positive Crankcase Ventilation (PCV) systems recirculate crankcase gases (containing oil vapor) back into the intake manifold to reduce emissions. Some of this vapor inevitably finds its way to the IAC valve.
Airborne Debris: Even with an air filter, small particles of dust and dirt can enter the intake system and accumulate on the IAC valve.
Fuel Deposits: Incomplete combustion can lead to fuel deposits building up in the intake manifold and, consequently, on the IAC valve.

Over time, this buildup of gunk can restrict airflow through the IAC valve, preventing it from properly regulating idle speed. This can lead to the symptoms we discussed earlier: rough idling, stalling, or high idle speed.

Pros and Cons of Cleaning the IAC Valve

Cleaning the IAC valve offers several advantages, but it's important to be aware of potential drawbacks:

Pros:

Cost-Effective: Cleaning the IAC valve is significantly cheaper than replacing it. A can of carburetor cleaner is usually all you need.
Improved Idle Performance: A clean IAC valve can restore smooth and stable idling.
Increased Fuel Efficiency: A properly functioning IAC valve can optimize the air-fuel mixture at idle, leading to improved fuel economy.
DIY Friendly: With basic tools and some patience, cleaning the IAC valve is a relatively easy task.

Cons:

May Not Always Work: If the IAC valve is damaged internally (e.g., a faulty electric motor), cleaning it may not resolve the issue.
Risk of Damage: Improper cleaning techniques (e.g., using harsh solvents or applying excessive force) can damage the IAC valve.
Temporary Solution: Depending on the severity of the contamination and the underlying causes, the IAC valve may need to be cleaned again in the future.
May Require Throttle Body Cleaning: In some cases, the throttle body itself is heavily contaminated and will need to be cleaned alongside the IAC valve for optimal results.

Use Cases and Manufacturer Examples

IAC valves are found in a vast majority of vehicles manufactured before the widespread adoption of electronic throttle control (ETC), also known as "drive-by-wire."

General Motors: GM vehicles from the 1980s through the early 2000s commonly used IAC valves. Symptoms like stalling after deceleration or erratic idle speeds were frequently attributed to a dirty IAC valve in models like the Chevy S-10, Blazer, and various Buick sedans.
Ford: Ford vehicles, particularly those with the 4.0L V6 and 5.0L V8 engines, were also prone to IAC valve issues. Models like the Ford Explorer, Mustang, and F-150 often benefited from regular IAC valve cleaning.
Toyota: While generally known for reliability, Toyota vehicles like the Camry and Corolla from the 1990s also utilized IAC valves that could become clogged over time.
Honda: Honda vehicles from the same era are known for having IAC valves that can become clogged by carbon deposits and cause rough idling, especially in models like the Civic and Accord.

Modern vehicles with ETC systems don't rely on a separate IAC valve. The electronic throttle body directly controls the airflow at idle, eliminating the need for a bypass valve. Therefore, cleaning is less of an issue as the system is more refined.

Cleaning Procedure: Step-by-Step Guide

Important Safety Note: Always disconnect the negative battery cable before working on any electrical components of your vehicle. Work in a well-ventilated area and wear safety glasses to protect your eyes from solvents.

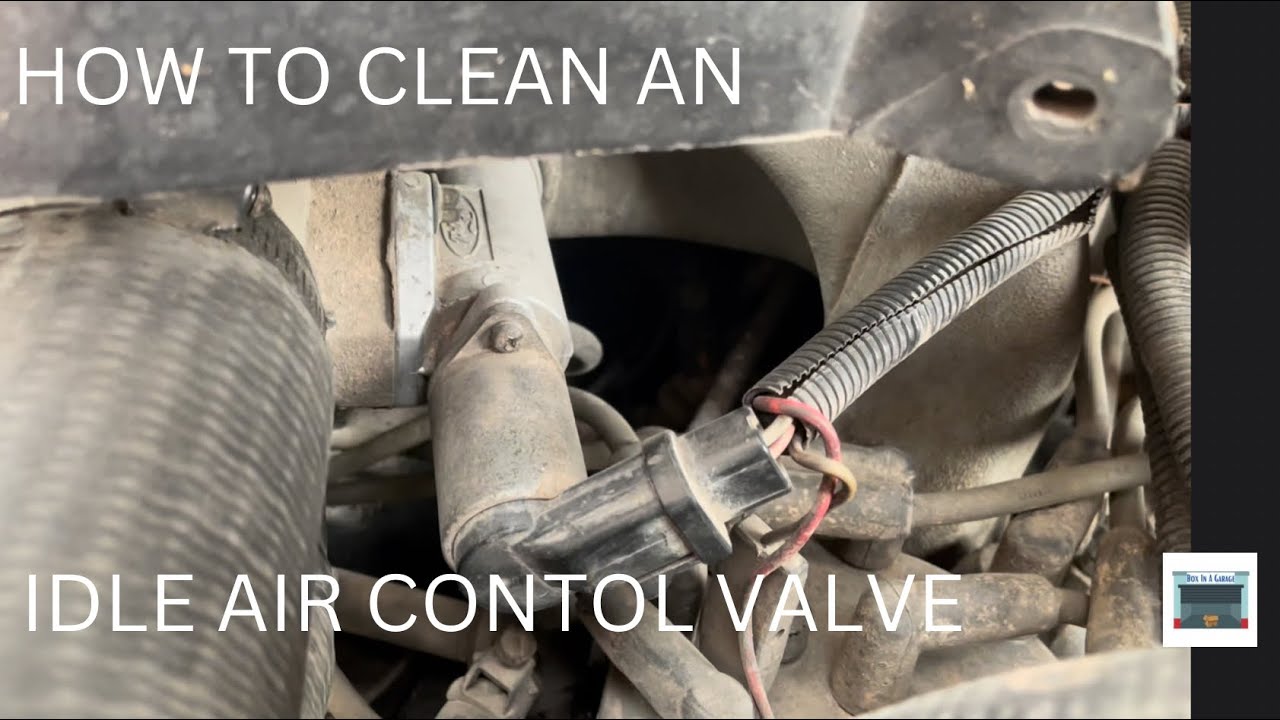

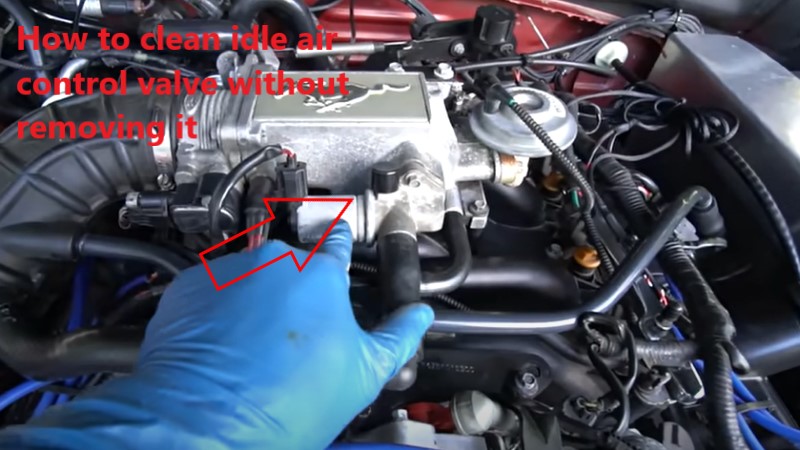

Locate the IAC Valve: The IAC valve is typically mounted on the throttle body. Consult your vehicle's repair manual or online resources to identify its exact location.
Disconnect the Electrical Connector: Carefully disconnect the electrical connector from the IAC valve. Be sure to depress any locking tabs before pulling the connector.
Remove the IAC Valve: Depending on the vehicle, the IAC valve may be held in place by screws or bolts. Remove these fasteners and gently detach the IAC valve from the throttle body.
Inspect the IAC Valve: Examine the IAC valve for signs of excessive carbon buildup or damage.

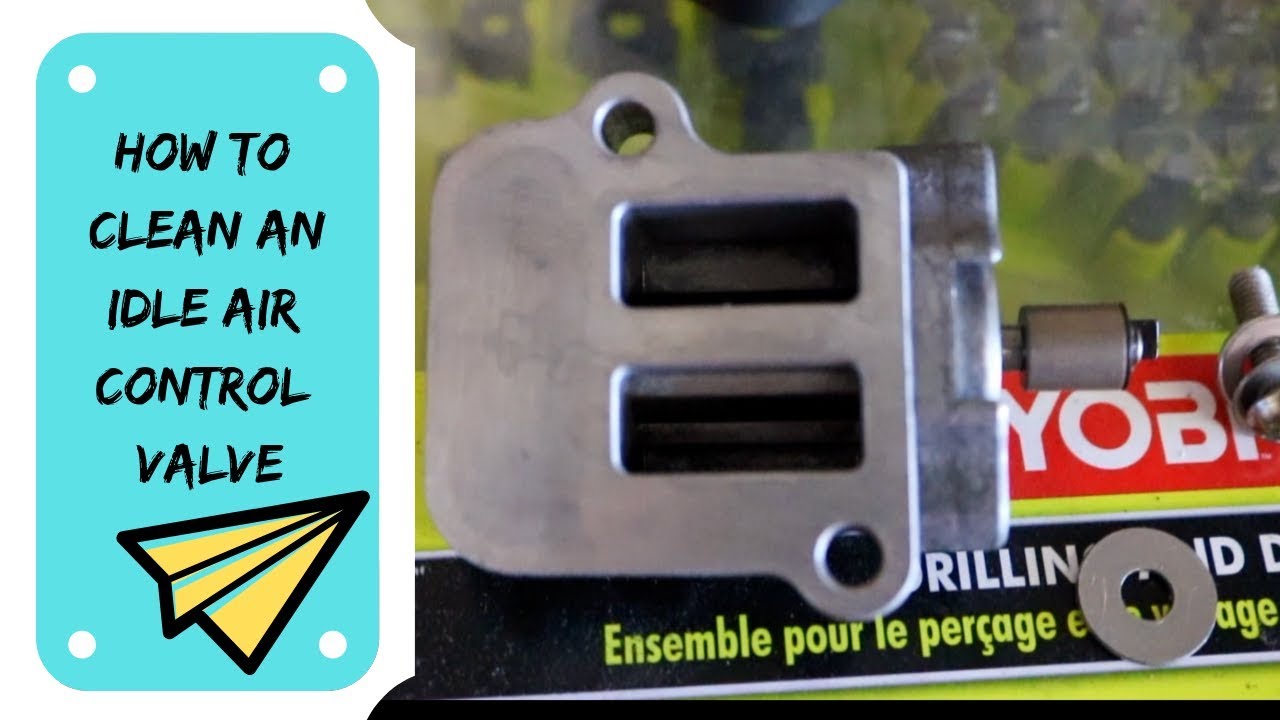

Clean the IAC Valve: Using a carburetor cleaner specifically designed for cleaning throttle bodies and IAC valves, thoroughly spray the valve and all its passages. Use a soft brush (like an old toothbrush) to gently scrub away any stubborn deposits. Pay particular attention to the valve element (plunger, pintle, or rotary) and its seat.

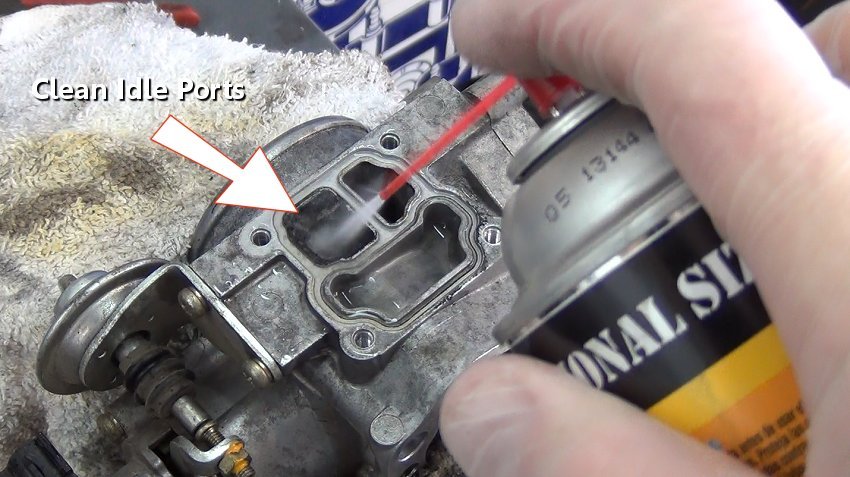

Clean the IAC Valve Mounting Surface: Use carburetor cleaner and a clean rag to clean the mounting surface on the throttle body where the IAC valve sits. This will ensure a good seal.
Reassemble and Reinstall: Reinstall the IAC valve, tightening the fasteners to the specified torque. Reconnect the electrical connector.
Reconnect the Battery: Reconnect the negative battery cable.
Start the Engine: Start the engine and let it idle for a few minutes. Monitor the idle speed and listen for any unusual noises. In some cases, the ECU may need to "relearn" the IAC valve's position. This may involve letting the engine idle for a specific period or performing a relearn procedure using a scan tool.

Real-World Insights and Recommendations

While cleaning the IAC valve is often effective, here are some additional considerations based on real-world experience:

Use Quality Carburetor Cleaner: Not all carburetor cleaners are created equal. Opt for a reputable brand that is specifically formulated for cleaning throttle bodies and IAC valves. Avoid using harsh solvents that could damage the valve's delicate components.
Don't Force Anything: If the IAC valve is stuck or difficult to remove, don't force it. Apply penetrating oil and let it soak for a while before attempting to remove it again.
Inspect for Vacuum Leaks: A vacuum leak in the intake system can mimic the symptoms of a dirty IAC valve. Check all vacuum hoses and connections for cracks or leaks.

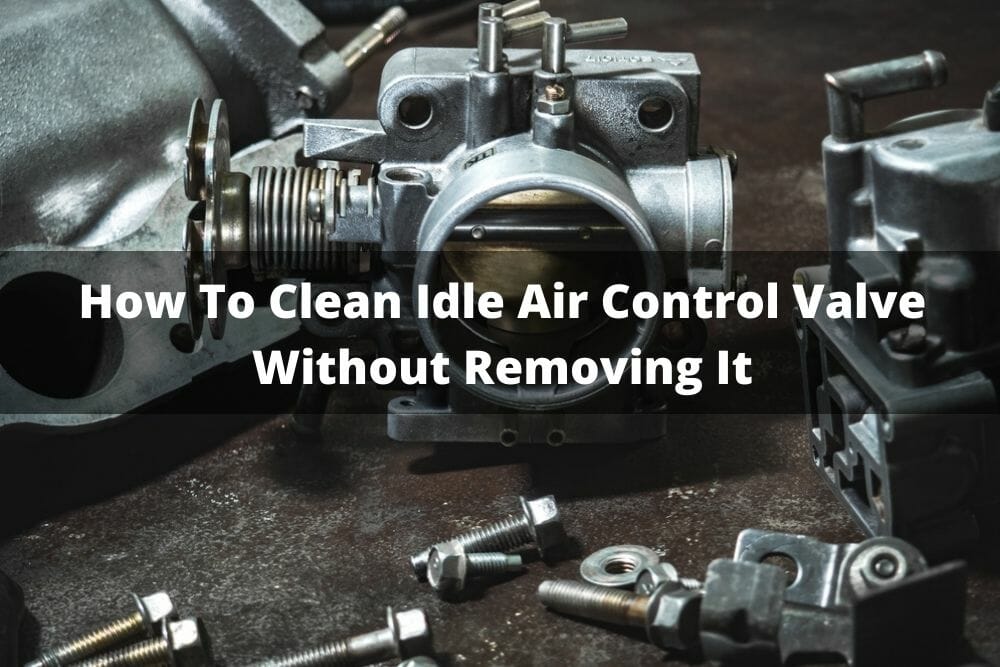

Consider Throttle Body Cleaning: If the throttle body is also heavily contaminated, cleaning it at the same time as the IAC valve can improve overall engine performance.
Monitor Idle Speed: After cleaning the IAC valve, monitor the idle speed closely. If the idle speed is still erratic or too high, the IAC valve may be damaged or the ECU may need to be reset.
Check the PCV Valve: A malfunctioning PCV valve can contribute to oil vapor buildup in the intake manifold. Consider replacing the PCV valve as part of your maintenance routine.

In conclusion, cleaning your car's Idle Air Control valve is a simple yet highly effective maintenance task that can dramatically improve your engine's idle performance and save you money on costly repairs. By understanding how the IAC valve works and following the proper cleaning procedure, you can keep your engine running smoothly for years to come. However, remember that cleaning is not a universal fix. If problems persist after cleaning, further diagnosis, and possibly IAC valve replacement, may be necessary.
