How To Clean An Idle Control Valve

An idle control valve (ICV), sometimes called an idle air control (IAC) valve, plays a crucial role in maintaining a smooth and consistent engine idle speed. When this valve becomes dirty or clogged, it can lead to a rough idle, stalling, or even difficulty starting your car. Cleaning the ICV can often resolve these issues and save you the expense of replacing it. This guide provides a step-by-step approach to cleaning your ICV effectively and safely.

Why Cleaning Your Idle Control Valve Matters

The idle control valve regulates the amount of air that bypasses the throttle plate when the throttle is closed (during idle). This ensures the engine receives enough air to keep running smoothly without needing you to depress the accelerator pedal. Over time, carbon deposits, oil residue, and other contaminants can accumulate inside the ICV, restricting airflow and disrupting its function. This is why cleaning your ICV is a necessary part of vehicle maintenance.

Here's why a clean ICV is essential:

• Smooth Idle: A clean ICV allows for precise control of idle speed, preventing rough idling and vibrations.
• Prevents Stalling: A malfunctioning ICV can cause the engine to stall, especially when coming to a stop or during cold starts.
• Improved Fuel Efficiency: When the ICV is working correctly, the engine operates more efficiently at idle, potentially improving fuel economy.
• Easier Starting: A clean ICV ensures the engine receives the correct amount of air during startup, making it easier to start.
• Reduced Emissions: Proper engine operation, including a functioning ICV, contributes to lower emissions.

Ignoring a dirty ICV can lead to more serious problems down the line, potentially affecting other engine components. Regular cleaning can prevent these issues and prolong the life of your engine.

How to Choose the Right Cleaning Products and Tools

Before you start, it's important to gather the right supplies. Using the appropriate cleaning products and tools will ensure you clean the ICV effectively without causing damage.

Essential Cleaning Products:

• Throttle Body Cleaner: This is the best option. Specially formulated to dissolve carbon deposits and oil residue in throttle bodies and ICVs. Make sure it's safe for sensors, especially if you are not removing the ICV.
• Carburetor Cleaner: Similar to throttle body cleaner, but often more aggressive. Use with caution, and only if the ICV is removed from the vehicle.
• Electrical Contact Cleaner: Use this to clean the electrical connector on the ICV to ensure proper signal transmission.

Necessary Tools:

• Screwdrivers: You'll likely need a variety of screwdrivers (Phillips head and flathead) to remove the ICV.
• Socket Set: May be needed to remove mounting bolts.
• Pliers: Helpful for disconnecting hoses and electrical connectors.
• Soft Brush: A small, soft-bristled brush (like a toothbrush) can help dislodge stubborn deposits.
• Lint-Free Cloths: For wiping away cleaner and residue.
• Safety Glasses: To protect your eyes from cleaner spray.
• Gloves: To protect your hands from chemicals.

Important Safety Note: Work in a well-ventilated area when using cleaning solvents. Avoid inhaling the fumes and follow the manufacturer's instructions on the product label.

Step-by-Step Guide to Cleaning Your Idle Control Valve

Follow these steps carefully to clean your ICV effectively. If you're not comfortable performing this task yourself, consider taking your vehicle to a qualified mechanic.

Step 1: Locate the Idle Control Valve

The ICV is typically located on or near the throttle body. Consult your vehicle's repair manual or search online for specific information about its location in your vehicle's engine. Identifying the ICV correctly is the first crucial step.

Step 2: Disconnect the Battery

Before working on any electrical component, it's essential to disconnect the negative terminal of your car battery. This will prevent accidental shorts and protect the electrical system.

Step 3: Remove the ICV (Optional, But Recommended)

Removing the ICV makes the cleaning process much easier and more thorough. Disconnect the electrical connector and any hoses attached to the ICV. Use the appropriate screwdrivers or sockets to remove the mounting bolts or screws. Be careful not to damage any of the connectors or hoses.

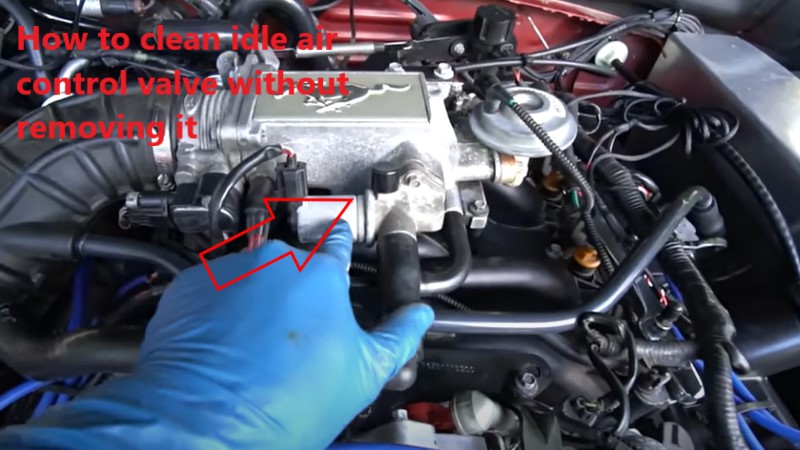

If you choose not to remove the ICV, proceed with caution and avoid spraying cleaner into any sensitive areas, such as the throttle position sensor. Use a lint-free cloth to catch any excess cleaner.

Step 4: Clean the ICV

With the ICV removed, spray it liberally with throttle body cleaner. Pay close attention to the valve opening and any areas with visible carbon deposits. Let the cleaner soak for a few minutes to loosen the grime. Use a soft brush to scrub away stubborn deposits. Repeat this process until the ICV is clean and free of residue.

If you did not remove the ICV, spray the cleaner onto a lint-free cloth and carefully wipe the accessible surfaces of the ICV. Avoid spraying directly into the valve body as this could damage internal components.

Step 5: Dry the ICV

After cleaning, thoroughly dry the ICV with a lint-free cloth. Ensure no cleaner remains inside the valve. You can use compressed air to speed up the drying process, but be careful not to damage any delicate parts.

Step 6: Reinstall the ICV

Reinstall the ICV in the reverse order of removal. Ensure all hoses and electrical connectors are securely attached. Tighten the mounting bolts or screws to the manufacturer's specified torque (if known).

Step 7: Reconnect the Battery

Reconnect the negative terminal of your car battery.

Step 8: Start the Engine

Start your engine and let it idle for a few minutes. Observe the idle speed and listen for any unusual noises. It may take a few minutes for the engine to adjust to the cleaned ICV.

Real-World Owner Experiences

Many car owners have reported positive results after cleaning their ICVs. Here are a few common experiences:

• Improved Idle: The most common benefit is a smoother, more stable idle speed.
• Reduced Stalling: Cleaning the ICV often eliminates stalling issues, especially during cold starts.
• Better Throttle Response: Some owners report improved throttle response after cleaning the ICV.
• Cost Savings: Cleaning the ICV is a much cheaper alternative to replacing it, potentially saving hundreds of dollars.

However, it's important to note that cleaning the ICV may not always solve the problem. In some cases, the ICV may be damaged beyond repair and require replacement. Also, sometimes the problem might not be the ICV itself. Other parts like vacuum lines, or a dirty throttle body can cause the same symptoms.

Frequently Asked Questions (FAQs)

Q: How often should I clean my idle control valve?

A: There's no fixed schedule, but a good rule of thumb is to clean it every 30,000 to 50,000 miles, or whenever you notice symptoms like a rough idle or stalling.

Q: Can I use WD-40 to clean my idle control valve?

A: While WD-40 can be used as a lubricant, it's not recommended as a cleaner for the ICV. It's not as effective at dissolving carbon deposits as throttle body cleaner or carburetor cleaner and can leave a residue that attracts dirt.

Q: What if cleaning the ICV doesn't fix the problem?

A: If cleaning the ICV doesn't resolve the issue, there may be other underlying problems, such as a faulty ICV, vacuum leaks, or issues with the throttle position sensor. Further diagnosis may be required.

Q: Can I damage my engine by cleaning the ICV?

A: If done correctly, cleaning the ICV should not damage your engine. However, improper cleaning techniques, such as using aggressive chemicals or damaging the valve during removal or reinstallation, could potentially cause problems. Follow the instructions carefully and exercise caution.

Q: How do I know if my idle control valve is bad?

A: Symptoms of a bad ICV include a rough idle, stalling, difficulty starting, and an illuminated check engine light. A diagnostic scan tool can often provide specific error codes related to the ICV.

By following these steps and taking the necessary precautions, you can effectively clean your idle control valve and restore your engine's smooth idle. Remember to consult your vehicle's repair manual or seek professional assistance if you're unsure about any part of the process.
