How To Clean Electrical Connections On A Car

The dreaded flicker. The hesitant start. The inexplicable dashboard light. Often, these automotive gremlins aren't the result of a complex sensor failure or a catastrophic mechanical breakdown, but rather, the humble, often-overlooked, dirty electrical connection. Cleaning these connections is a fundamental skill that can save you time, money, and frustration. This guide will provide an in-depth look at why electrical connections degrade, how to diagnose the problem, and, most importantly, how to clean them properly.

The Problem: Resistance and Corrosion

Imagine a garden hose. Clean and unobstructed, water flows freely, providing ample pressure for your sprinkler. Now, imagine that hose is kinked, or partially clogged with leaves and debris. The water flow is significantly reduced, and the pressure drops. An electrical circuit behaves similarly. Electrical current, like water, needs a clear, unobstructed path to flow efficiently. A corroded or dirty electrical connection introduces resistance into the circuit, acting like the kinked hose. This resistance impedes the flow of current, leading to a variety of problems.

Consider a typical headlight circuit. A 12-volt power source runs through a switch and then to the headlight bulb. If the connection at the bulb connector is corroded, the voltage reaching the bulb will be lower than 12 volts. This results in a dim, yellow light instead of a bright, white one. The reduced voltage may not be immediately noticeable, but over time, it can also shorten the lifespan of the bulb itself. In more sensitive circuits, like those connected to engine control sensors, even a small amount of resistance can throw off the sensor readings, leading to poor engine performance, increased emissions, and diagnostic trouble codes (DTCs).

Understanding Corrosion

The primary culprit behind degraded electrical connections is corrosion. This is a chemical process where a metal is gradually destroyed by reacting with its environment. In the automotive world, the main environmental factors contributing to corrosion are moisture, salt, and atmospheric pollutants. When these elements come into contact with the metal connectors in your car's electrical system, they trigger a chemical reaction that forms oxides and other compounds on the surface of the metal. These compounds are typically poor conductors of electricity, creating the resistance we discussed earlier.

Different metals corrode at different rates. Copper, often used in wiring, is relatively resistant to corrosion, but it can still develop a greenish-blue patina called verdigris over time. Steel and iron, commonly used in connectors and grounding points, are highly susceptible to rust, which is a form of iron oxide. Aluminum, used in some connectors and housings, forms a protective oxide layer that can actually inhibit further corrosion, but this layer can still be compromised by harsh chemicals or physical damage.

The Mechanics: How Electrical Connections Work

At a fundamental level, an electrical connection is simply a physical contact between two or more conductive surfaces. The quality of this contact determines the efficiency of the electrical connection. A perfectly clean and tight connection provides a large surface area for electron flow, minimizing resistance. However, even a microscopic layer of dirt, oil, or corrosion can drastically reduce the contact area and increase resistance.

Automotive electrical connectors come in various shapes and sizes, from simple spade connectors to complex multi-pin connectors with locking mechanisms and environmental seals. The purpose of these connectors is to provide a secure and reliable electrical connection that can withstand the harsh conditions of the automotive environment. The locking mechanisms prevent the connector from vibrating loose, while the environmental seals protect the connection from moisture and contaminants. Despite these precautions, however, connectors are still vulnerable to corrosion and degradation over time.

The pressure applied between the mating surfaces of a connector is also crucial. Over time, the spring tension in connector terminals can weaken, reducing the contact pressure and increasing resistance. This is why simply unplugging and re-plugging a connector can sometimes temporarily improve a faulty connection, as it can momentarily increase the contact pressure.

Cleaning Electrical Connections: A Step-by-Step Guide

Now, let's get into the practical steps of cleaning electrical connections:

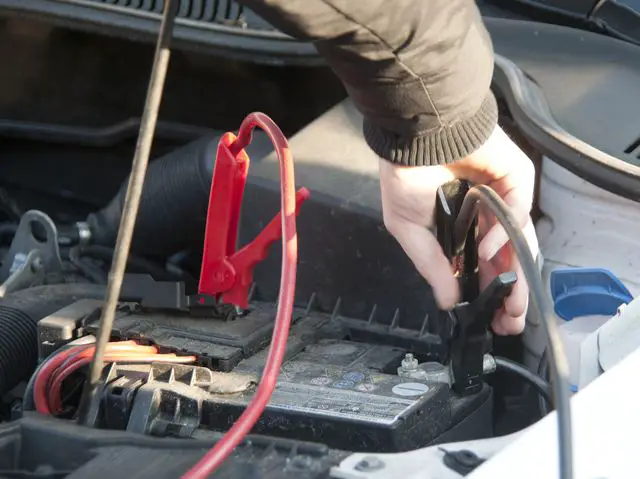

Safety First: Disconnect the battery! This is crucial to prevent electrical shocks and accidental short circuits. Disconnect the negative (-) terminal first.
Identify the Problem Connection: Use a visual inspection to look for signs of corrosion, such as rust, verdigris, or discoloration. Wiggle the connector to see if it affects the circuit's performance. If you have a multimeter, you can use it to measure the voltage drop across the connection. A significant voltage drop indicates excessive resistance.
Disconnect the Connector: Carefully disconnect the connector by releasing any locking tabs or clips. Avoid pulling on the wires, as this can damage the connector or the wiring.
Clean the Terminals: There are several methods you can use to clean the terminals:
- Electrical Contact Cleaner: This is a solvent-based cleaner specifically designed to remove corrosion and dirt from electrical contacts. Spray the cleaner onto the terminals and let it soak for a few minutes. Then, use a small brush or cotton swab to scrub away any remaining debris.
- Wire Brush or Terminal Cleaner: For heavily corroded terminals, you may need to use a wire brush or a specialized terminal cleaner tool. These tools have small brushes or abrasive pads that can effectively remove stubborn corrosion. Be careful not to damage the terminals with excessive force.
- Baking Soda and Water: A mild solution of baking soda and water can also be used to clean corrosion, especially on battery terminals. Apply the solution to the terminals and scrub with a brush. Rinse thoroughly with clean water and dry completely.
Inspect the Wiring: While the connector is disconnected, inspect the wiring for any signs of damage, such as frayed insulation, broken wires, or loose connections. Repair or replace any damaged wiring.
Apply Dielectric Grease: After cleaning the terminals, apply a thin layer of dielectric grease to the connector. Dielectric grease is a non-conductive lubricant that helps to prevent corrosion and improve electrical contact. It also helps to seal out moisture and contaminants.
Reconnect the Connector: Reconnect the connector, making sure it clicks securely into place. Ensure that any locking tabs or clips are properly engaged.
Test the Circuit: Reconnect the battery and test the circuit to ensure that the problem has been resolved. Use a multimeter to verify that the voltage and current are within the expected range.

Pros and Cons of Cleaning vs. Replacing

While cleaning electrical connections is often a cost-effective solution, there are situations where replacement is the better option.

Cleaning

Pros:

Cost-effective: Cleaning is significantly cheaper than replacing connectors or wiring harnesses.
Simple: The process is relatively straightforward and can be performed by most DIY enthusiasts.
Preserves Originality: For older vehicles, cleaning maintains the original components.

Cons:

Temporary Solution: Cleaning may not be a permanent fix, especially in severe cases of corrosion.
Potential Damage: Aggressive cleaning methods can damage delicate terminals.
Time-Consuming: Cleaning can be time-consuming, especially if multiple connections need attention.

Replacing

Pros:

Permanent Solution: Replacement provides a fresh, corrosion-free connection.
Improved Reliability: New connectors offer improved performance and reliability.
Peace of Mind: Replacing eliminates the risk of recurring problems due to corrosion.

Cons:

Costly: Replacement can be expensive, especially for complex connectors or wiring harnesses.
More Complex: Replacement may require specialized tools and knowledge.
Availability: Finding replacement connectors for older vehicles can be challenging.

Use Cases: Clean lightly corroded connectors, especially where the original connector is difficult or expensive to replace. Replace heavily damaged or broken connectors, or when cleaning does not resolve the issue.

Manufacturer Examples: Many manufacturers recommend cleaning electrical connections as part of routine maintenance. For example, Toyota's service manuals often include instructions for cleaning battery terminals and other electrical connectors. Similarly, Ford's diagnostic procedures often involve inspecting and cleaning connectors as a first step in troubleshooting electrical problems.

Real-World Insights and Recommendations

Based on real-world experience, here are some additional tips and recommendations:

Prevention is Key: Regularly inspect electrical connections for signs of corrosion and apply dielectric grease to prevent future problems.
Use the Right Tools: Invest in a good quality electrical contact cleaner, a terminal cleaning tool, and a multimeter.
Be Patient: Cleaning heavily corroded connections can take time and effort. Don't rush the process.
Document Your Work: Take pictures of the connections before and after cleaning to help you remember the wiring configuration.
Don't Overlook Grounding Points: Grounding points are often overlooked, but they are crucial for proper electrical function. Make sure the grounding points are clean and securely attached to the vehicle's chassis.
Consider the Environment: Vehicles that are exposed to harsh environments, such as salt air or road salt, are more prone to corrosion. Pay extra attention to electrical connections in these vehicles.

In conclusion, cleaning electrical connections is a valuable skill that can save you time, money, and frustration. By understanding the causes of corrosion, the mechanics of electrical connections, and the proper cleaning techniques, you can keep your car's electrical system running smoothly and reliably. And remember, when in doubt, consult a qualified automotive technician.
