How To Clean Electrical Connectors On A Car

Anyone who’s ever wrestled with a stubborn car repair knows the frustration of tracing a fault. Often, the culprit isn't a complex component, but a simple, overlooked issue: a dirty or corroded electrical connector. These unassuming junctions are the lifelines of your vehicle's electrical system, and keeping them clean is crucial for reliable operation. Let's dive into why cleaning them matters, how the system works, and the best methods for getting the job done right.

The Problem: Signal Degradation and System Failures

Imagine trying to have a conversation with someone shouting over a bad phone line. The message gets garbled, pieces are lost, and understanding becomes difficult. That's essentially what happens when an electrical connector gets dirty. Corrosion, dirt, grease, and other contaminants create resistance, hindering the free flow of electrons. This degraded signal can manifest in a variety of ways:

Intermittent failures: A sensor signal might drop out sporadically, causing a warning light to flicker or an engine to stumble.
Reduced performance: A fuel injector might not receive the full voltage it needs, resulting in poor fuel economy and sluggish acceleration.
Complete system shutdowns: A critical circuit could be interrupted entirely, leaving you stranded.

Think of your car's electrical system as a network of roads. Clean connectors are like well-maintained highways, allowing traffic (electrons) to flow smoothly. Dirty connectors, however, are like roads riddled with potholes and debris, slowing traffic and increasing the risk of accidents (electrical faults).

How Electrical Connectors Work

At their core, electrical connectors are designed to create a reliable and easily separable junction between two or more wires. They achieve this using metal contacts that press firmly together. The contact points are usually made of conductive materials like copper or brass, often plated with a more corrosion-resistant metal like tin or gold.

Mechanical Design

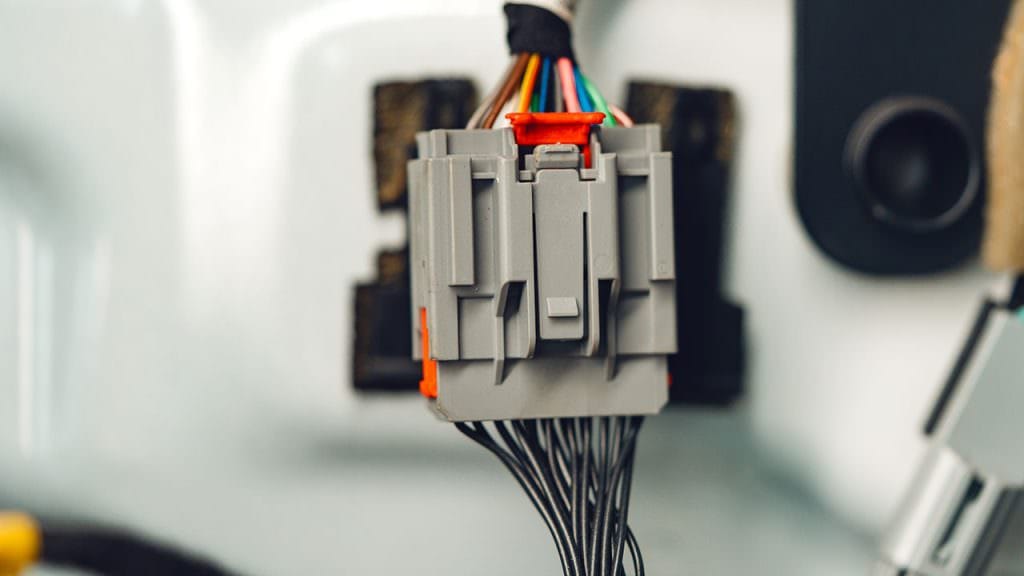

Most automotive connectors utilize a housing, typically made of plastic, to protect the contacts and provide a secure locking mechanism. These mechanisms can range from simple clips to complex levers, ensuring the connector stays securely mated, even under vibration and environmental stress. The housing also serves to insulate the contacts from each other and the surrounding environment. Different connector types are used for different applications. Some common examples include:

Blade connectors: Simple, push-on connectors often used for lower-current circuits.
Pin and socket connectors: More robust connectors with multiple pins and sockets, used for more complex circuits and higher current loads.
Weatherpack and Metripack connectors: Sealed connectors designed for harsh environments, often found in engine compartments.

The Role of Corrosion

Corrosion is the electrochemical degradation of a metal due to a reaction with its environment. In electrical connectors, corrosion forms an insulating layer on the contact surfaces, increasing resistance and hindering current flow. Several factors accelerate corrosion:

Moisture: Water acts as an electrolyte, facilitating the electrochemical reactions.
Salt: Road salt is particularly corrosive, especially in regions that experience winter weather.
Heat: High temperatures accelerate the rate of chemical reactions, including corrosion.
Dissimilar metals: When two different metals are in contact in the presence of an electrolyte, a galvanic cell can form, leading to accelerated corrosion of the more active metal.

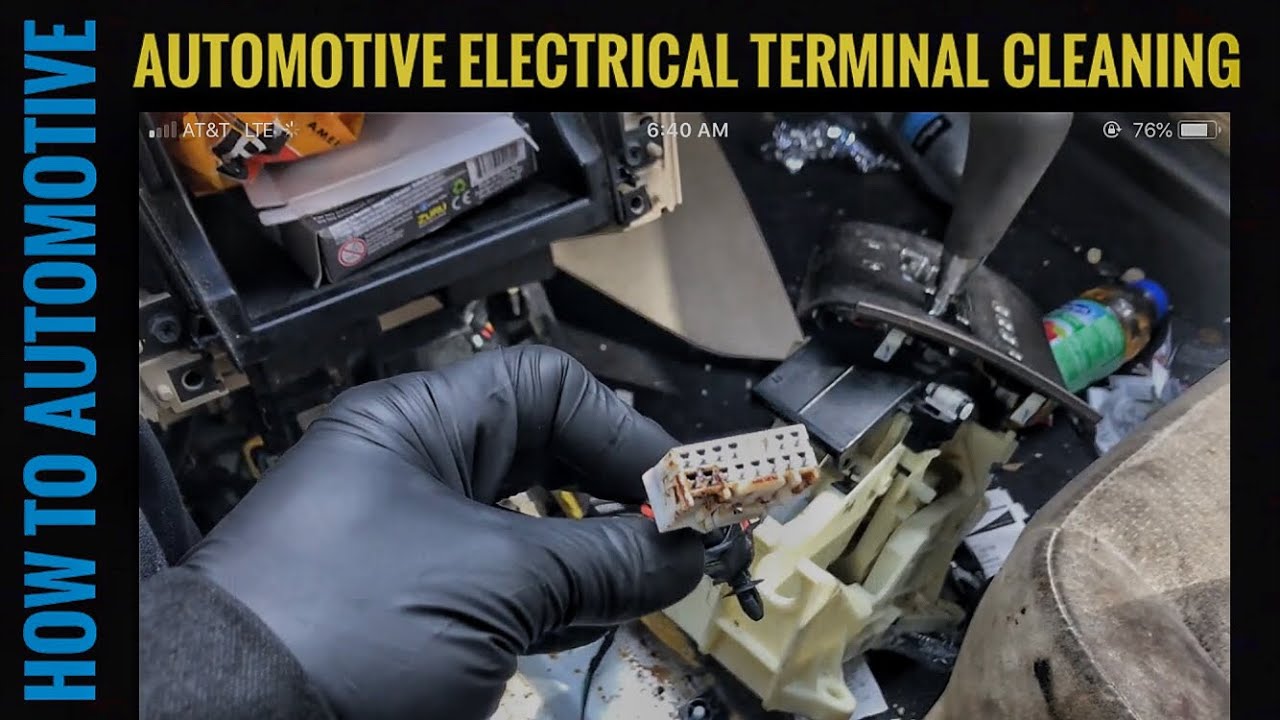

Cleaning Electrical Connectors: A Step-by-Step Guide

Cleaning electrical connectors isn't difficult, but it requires patience and attention to detail. Here's a practical guide:

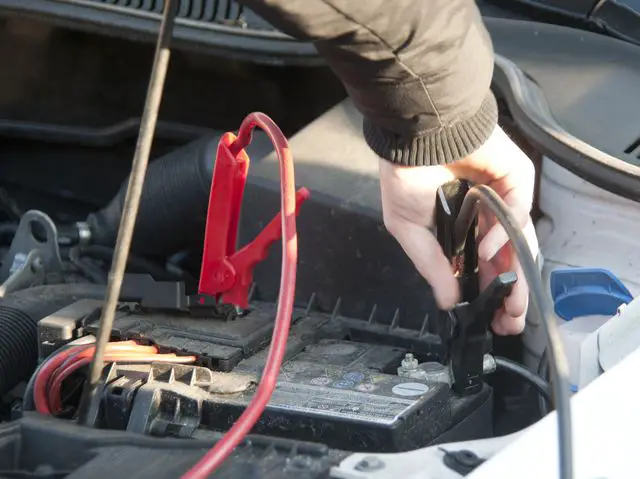

Disconnect the power: Always disconnect the battery's negative terminal before working on any electrical components. This prevents accidental short circuits.
Identify the connector: Locate the connector you want to clean. Consult a wiring diagram or repair manual if needed.

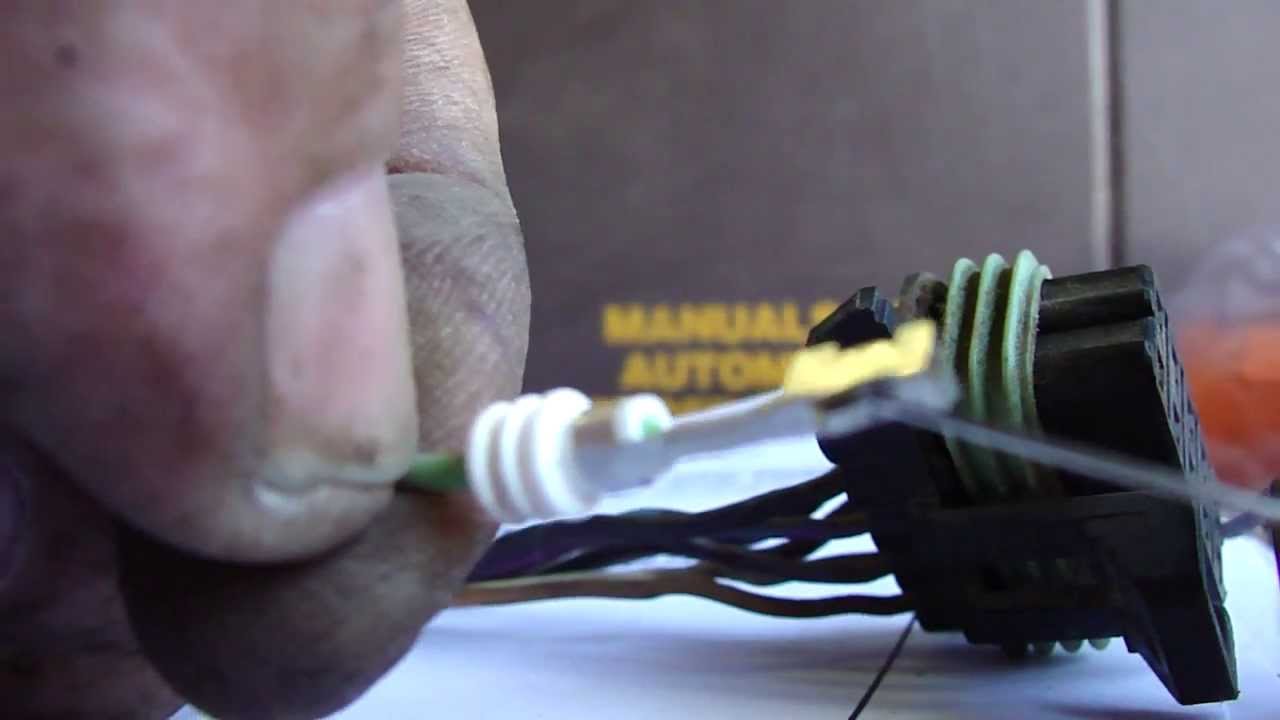

Disconnect the connector: Carefully disconnect the connector by releasing the locking mechanism. Avoid pulling on the wires themselves, as this can damage the terminals.
Inspect the connector: Examine the connector for signs of corrosion, dirt, or damage. Look for green or white powdery deposits on the terminals.
Cleaning methods: Choose the appropriate cleaning method based on the severity of the contamination:
- Mild contamination: Use a contact cleaner spray specifically designed for electronics. Spray the cleaner onto the contacts and wipe away any residue with a clean cloth or cotton swab. Avoid using harsh solvents like brake cleaner, as they can damage the plastic housing and seals.
- Moderate contamination: Use a small brush (like a toothbrush or a specialized connector cleaning brush) to gently scrub the contacts. Spray with contact cleaner after brushing to remove any remaining debris.
- Severe corrosion: For stubborn corrosion, use a small piece of fine-grit sandpaper (2000 grit or higher) or a specialized connector cleaning tool to carefully remove the corrosion. Be very gentle to avoid damaging the contacts. Follow up with contact cleaner to remove any sanding residue.
- Connector Pick Set: A fine pick set can also be used to scrape away stubborn build up.
Apply dielectric grease: After cleaning, apply a small amount of dielectric grease to the contacts. Dielectric grease is a non-conductive lubricant that helps prevent corrosion and improves electrical contact. It also helps seal out moisture.
Reconnect the connector: Carefully reconnect the connector, ensuring it locks securely.
Reconnect the battery: Reconnect the battery's negative terminal and test the system.

Pros, Cons, and Use Cases

Pros of Cleaning Connectors:

Improved reliability: Reduces the risk of intermittent failures and system shutdowns.
Enhanced performance: Ensures proper signal transmission, leading to improved engine performance, sensor accuracy, and overall system function.
Extended component life: Prevents damage to sensitive electronic components caused by voltage fluctuations and signal degradation.
Cost-effective: A simple cleaning can often resolve issues that would otherwise require expensive repairs or component replacements.

Cons of Cleaning Connectors:

Time-consuming: Accessing and cleaning connectors can be time-consuming, especially in cramped engine compartments.
Risk of damage: Improper cleaning techniques can damage the contacts or the connector housing.
Temporary solution: In some cases, corrosion may be too severe to be effectively removed, requiring connector replacement.

Use Cases:

Troubleshooting electrical problems: Cleaning connectors is a good first step when diagnosing electrical issues, especially intermittent problems.
Preventive maintenance: Regularly cleaning connectors, especially in harsh environments, can help prevent future problems.
Restoring older vehicles: Connectors in older vehicles are often heavily corroded, and cleaning them can significantly improve reliability.

Manufacturer Examples

Many manufacturers recommend cleaning electrical connectors as part of routine maintenance. For example, Toyota service manuals often specify the use of contact cleaner and dielectric grease when working on electrical systems. Similarly, Bosch, a major supplier of automotive electrical components, produces and recommends specific contact cleaners for use with their products. GM also publishes technical service bulletins (TSBs) that address connector corrosion issues and outline recommended cleaning procedures.

Real-World Insights and Recommendations

In my experience, preventative maintenance wins the day. Focus on connectors in areas prone to moisture and heat: engine bay sensors, undercarriage wiring, and lighting systems. A quick spray with contact cleaner and a dab of dielectric grease during a routine inspection can save you headaches later. Also, consider upgrading to sealed connectors (Weatherpack or Metripack) in particularly vulnerable locations. Don't underestimate the importance of proper tools. A good set of terminal tools will help you disconnect connectors without damaging the wires or terminals. Finally, remember to document your work with photos, particularly before disconnecting anything. This makes reassembly much easier and reduces the risk of errors.

While contact cleaner and dielectric grease are your go-to solutions, don’t be afraid to use more aggressive methods like a fiberglass pen for stubborn corrosion, but proceed with caution. Remember, the goal is to remove the corrosion without damaging the underlying metal.

By understanding how electrical connectors work and following these cleaning procedures, you can keep your car's electrical system running smoothly and reliably, saving yourself time, money, and frustration in the long run. It's a small investment of time that yields significant returns in terms of vehicle performance and dependability.
