How To Clean Hvlp Paint Gun

Are you experiencing issues with your HVLP (High Volume Low Pressure) paint gun? Clogging, sputtering, or inconsistent spray patterns can significantly impact the quality of your paint job and waste valuable time and materials. Proper cleaning is absolutely crucial for maintaining peak performance and extending the lifespan of your HVLP gun. In this guide, we'll walk you through the symptoms, causes, consequences, and, most importantly, the solutions to keep your HVLP paint gun spraying like new.

Symptoms of a Dirty HVLP Paint Gun

A dirty HVLP paint gun will manifest a variety of frustrating symptoms. Recognizing these early can save you from major headaches down the road. Here's a list of common indicators:

Sputtering or spitting paint: Instead of a smooth, consistent spray, you'll get intermittent bursts and uneven coverage.
Inconsistent spray pattern: The fan pattern might be uneven, distorted, or narrow, leading to streaks and poor blending.
Clogging in the nozzle or air cap: Paint dries and hardens within the intricate passages, restricting airflow and paint flow.
Weak or no spray: A complete blockage prevents any paint from being atomized and sprayed.
Excessive paint consumption: The gun might be struggling to atomize properly, leading to increased paint usage for the same coverage.
Air leaks: Damaged or dirty seals can cause air leaks, affecting pressure and spray quality. You might hear hissing sounds.
Difficulty adjusting the spray pattern: The adjustment knobs might be stiff or unresponsive due to dried paint.
Orange peel effect: Even with proper technique, a dirty gun can contribute to a textured, "orange peel" finish due to poor atomization.

Root Causes of HVLP Paint Gun Problems

The primary culprit behind most HVLP paint gun issues is, unsurprisingly, dried paint. Understanding how and where this occurs is key to preventing it. Here's a breakdown:

Inadequate Cleaning After Use: This is the most common reason. Paint left in the gun after a job will dry and harden, clogging the nozzle, fluid tip, air cap, and fluid passages.
Using the Wrong Cleaning Solvents: Not all solvents are created equal. Using the wrong type can leave residue or even damage the gun's components. Always use the solvent recommended by the paint manufacturer and your gun's manual.
Infrequent Deep Cleaning: Even with regular cleaning, a deep clean is necessary periodically to remove accumulated residue and buildup.
Improper Storage: Storing the gun in a dusty or humid environment can contribute to contamination and corrosion.
Contaminated Paint: Introducing dirt or debris into the paint itself can accelerate clogging and damage the gun. Always strain your paint before loading it into the gun.
Damage to Internal Components: Over time, seals, needles, and other parts can wear down or become damaged, leading to leaks and performance issues.
Using Incompatible Materials: Some paints and solvents are not compatible with certain gun materials. Check your gun's manual for compatibility information.

What Happens if You Ignore a Dirty HVLP Paint Gun?

Ignoring the signs of a dirty HVLP paint gun will lead to a cascade of problems. The short-term consequences are frustrating, but the long-term effects can be costly.

Poor Finish Quality: Expect uneven coverage, streaks, orange peel, and other imperfections that will ruin your paint job. This will result in rework and wasted materials.
Increased Material Waste: A clogged gun will atomize paint inefficiently, leading to excessive paint consumption and higher material costs.
Reduced Productivity: Time spent troubleshooting a malfunctioning gun is time lost on the project. Cleaning a badly clogged gun can take significantly longer than regular maintenance.
Component Damage: Dried paint can corrode or damage internal components, leading to premature wear and the need for expensive replacements. The needle, nozzle and air cap are particularly vulnerable.
Complete Gun Failure: If left unaddressed for too long, the gun can become completely unusable, requiring a costly replacement.
Increased Risk of Accidents: A malfunctioning gun can spray erratically or leak, increasing the risk of accidents and exposure to harmful chemicals.

Recommended Fixes: Cleaning Your HVLP Paint Gun

The best way to deal with a dirty HVLP paint gun is to clean it *immediately* after each use. Here's a step-by-step guide to both regular cleaning and a more thorough deep clean:

Regular Cleaning (After Each Use)

Empty the Paint: Pour any remaining paint back into its container. Never leave paint sitting in the gun.

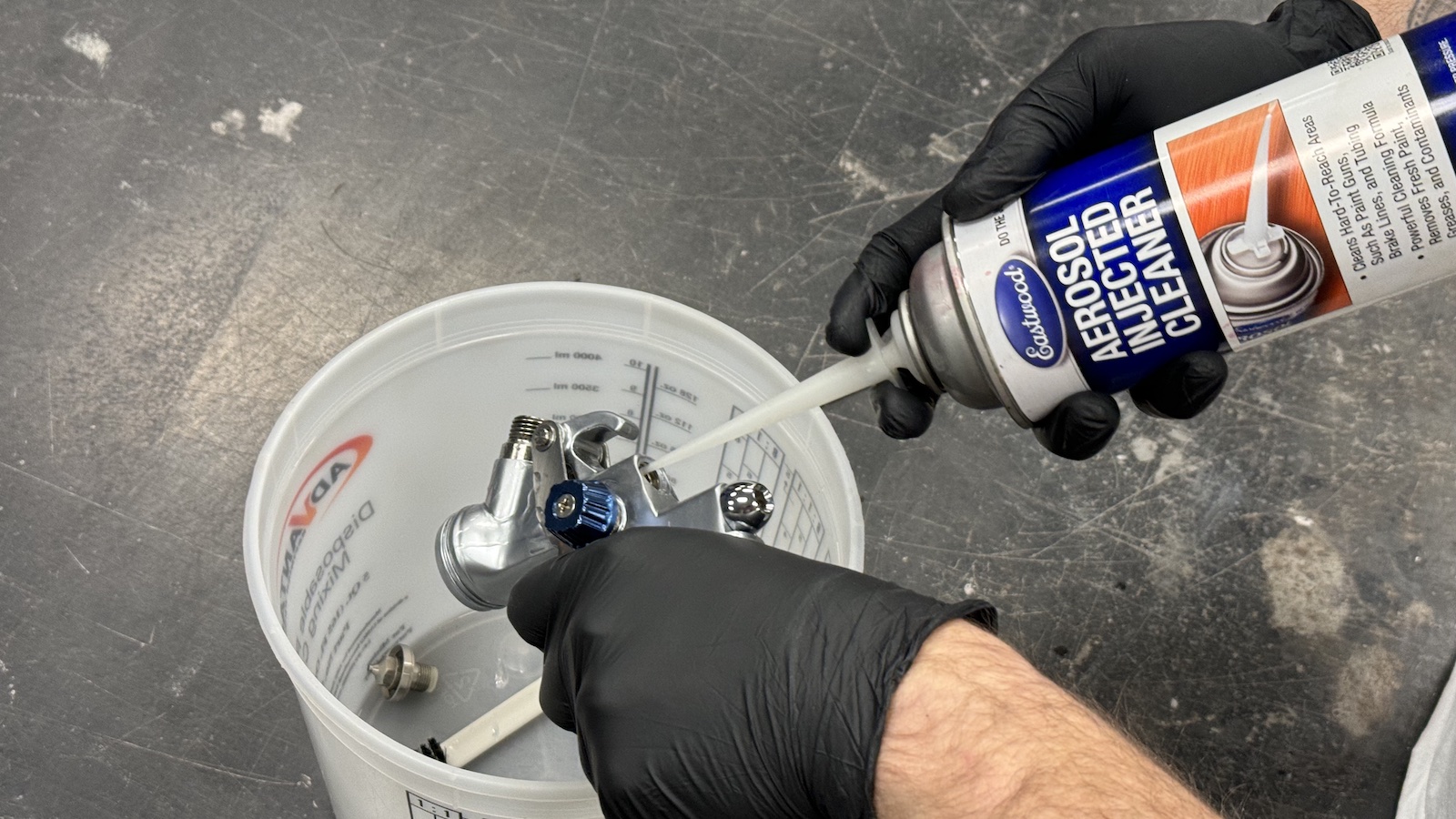

Rinse with Solvent: Add a small amount of appropriate solvent (check your paint manufacturer's recommendations – usually lacquer thinner for solvent-based paints or water for water-based paints) to the paint cup. Spray the solvent through the gun until it runs clear. Repeat this several times.
Clean the Paint Cup: Remove the paint cup and clean it thoroughly with solvent and a brush. Pay attention to the threads.
Wipe Down the Exterior: Use a clean rag dampened with solvent to wipe down the exterior of the gun, removing any overspray.
Backflush: This helps dislodge stubborn paint particles. Block the air cap with a rag and gently pull the trigger. This forces solvent backward through the fluid passages.
Disassemble the Air Cap and Fluid Tip: Carefully remove these components. Soak them in solvent and use a soft brush (a toothbrush works well) to clean any remaining paint. Never use metal objects to clean these parts, as they can easily be damaged.
Reassemble and Test: Reassemble the gun and spray a small amount of clean solvent to ensure everything is working correctly.

Deep Cleaning (Periodically)

In addition to regular cleaning, a deep clean is recommended every few weeks or months, depending on how frequently you use the gun. This involves a more thorough disassembly and cleaning of all components.

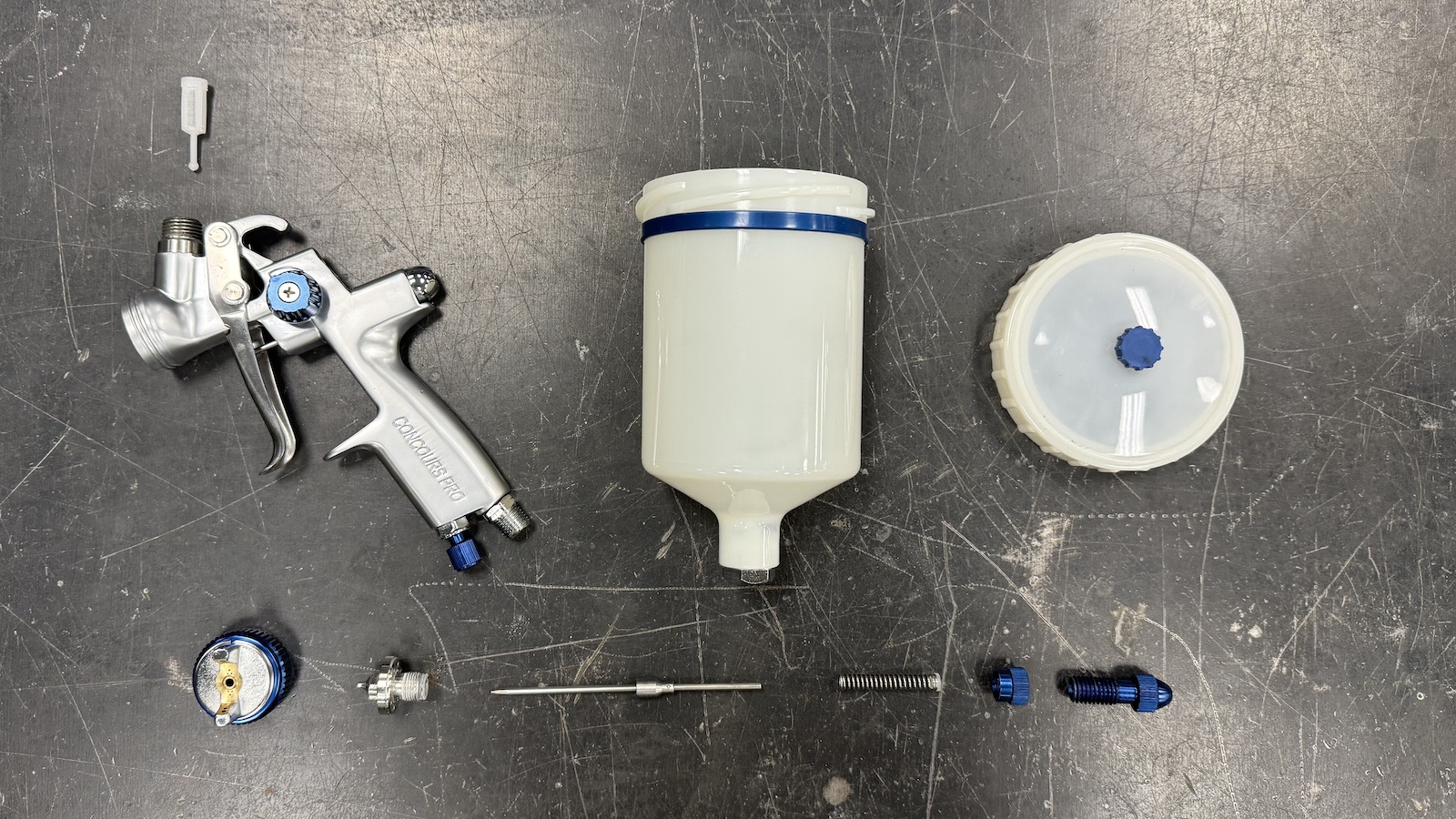

Disassemble Completely: Carefully disassemble the entire gun, including the air cap, fluid tip, needle, and any other removable parts. Refer to your gun's manual for specific instructions.
Soak Components: Soak all disassembled parts in a container of appropriate solvent for at least 30 minutes. This will help loosen any stubborn paint buildup.
Clean with Brushes and Cleaning Tools: Use a variety of brushes, including small detail brushes, pipe cleaners, and specialized HVLP cleaning kits, to thoroughly clean all parts. Pay close attention to the nozzle, fluid passages, and air cap openings. You can use specialized nozzle cleaning needles to clear any blockages.
Inspect for Damage: While cleaning, carefully inspect all parts for signs of wear, damage, or corrosion. Replace any worn or damaged parts as needed.
Lubricate Moving Parts: After cleaning and drying, lightly lubricate any moving parts, such as the needle, with a small amount of gun oil or lubricant recommended by the manufacturer.
Reassemble and Test: Carefully reassemble the gun, ensuring all parts are properly aligned and tightened. Test the gun with clean solvent to ensure it is spraying correctly.

Important Safety Tips:

Always wear appropriate personal protective equipment (PPE), including gloves, eye protection, and a respirator, when working with solvents and paints.
Work in a well-ventilated area.
Dispose of used solvents and cleaning materials properly, according to local regulations.
Never use flammable solvents near open flames or sources of ignition.

Cost Estimates and Shop Advice

Regular cleaning is free (assuming you already have the necessary solvents and cleaning supplies) and takes only a few minutes after each use. A deep clean might take 30 minutes to an hour, but it's a worthwhile investment in the long run.

If you're uncomfortable disassembling and cleaning the gun yourself, or if you suspect internal damage, you can take it to a professional paint gun repair shop. The cost of professional cleaning and repair can range from $50 to $200, depending on the extent of the damage and the shop's labor rates. However, replacing the gun is often more expensive than a repair, so consider professional service before throwing it away.

Shop Advice: Before taking your gun to a shop, try the deep cleaning method yourself. Many times, a thorough cleaning is all that's needed. If the gun still malfunctions after a deep clean, it's more likely that there's a damaged or worn-out component that needs to be replaced. A reputable repair shop will be able to diagnose the problem and recommend the best course of action.

There are no specific TSBs (Technical Service Bulletins) related to cleaning HVLP paint guns, as it's a routine maintenance procedure. However, various online forums and painting communities offer valuable tips and advice based on real-world experiences. Search for specific issues you're facing and see what solutions others have found. Remember to always consult your gun's manual for specific instructions and recommendations.

By following these cleaning procedures and performing regular maintenance, you can keep your HVLP paint gun in top condition, ensuring consistent spray patterns, high-quality finishes, and a long and productive lifespan for your equipment. Don't underestimate the power of a clean gun!
