How To Clean Iac Valve Without Removing

Engine idling issues can be a real headache. That shaky vibration at stoplights, the near-stall when you crank the steering wheel, or even the dreaded engine cut-out – they can all point to a malfunctioning Idle Air Control (IAC) valve. Traditionally, cleaning this component involves removal, a process that can be daunting for the amateur mechanic. But what if there was a way to address the problem without taking everything apart? Let's explore the possibilities and limitations of cleaning an IAC valve in situ.

The Case of the Erratic Idle

Imagine you're driving a classic '90s sedan. It's a reliable workhorse, but lately, the engine's been acting up. The idle speed is inconsistent, sometimes too high, sometimes dangerously low. It's like the engine is gasping for air, unable to maintain a smooth and stable rhythm. This is a classic symptom of a dirty or malfunctioning IAC valve. Think of it like a clogged artery in your car's respiratory system. Just as a blocked artery restricts blood flow, a dirty IAC valve restricts airflow, disrupting the delicate balance needed for a smooth idle. The engine's computer (ECU) tries to compensate, but eventually, the problem becomes too severe, leading to noticeable performance issues.

How the IAC Valve Works: A Deep Dive

To understand how to clean an IAC valve without removing it, we first need to understand its inner workings. The IAC valve is essentially a small electric motor-controlled valve that regulates the amount of air bypassing the throttle plate when the throttle is closed. This bypass air allows the engine to maintain a stable idle speed, regardless of the engine load (e.g., air conditioning, power steering).

Mechanical Operation

The valve typically consists of a pintle or a rotary valve controlled by a stepper motor or a solenoid. The ECU sends signals to the motor, instructing it to move the pintle or valve, thereby adjusting the airflow. When the engine is cold, the ECU signals the IAC valve to open further, allowing more air to enter the engine and compensate for the increased fuel required for cold starting. As the engine warms up, the IAC valve gradually closes, reducing the airflow to the normal idle level.

The Dirt Factor

Over time, the IAC valve can accumulate carbon deposits, oil residue, and other contaminants. These deposits restrict the movement of the pintle or valve, hindering its ability to accurately control airflow. This is especially prevalent in older vehicles or those with poorly maintained air filters. The deposits essentially "gum up" the works, leading to erratic idle, stalling, and poor fuel economy.

Cleaning In Situ: The Procedure and Considerations

Cleaning the IAC valve without removing it is possible, but it's not a guaranteed solution and depends heavily on the severity of the contamination. Here's a general procedure, noting its inherent limitations:

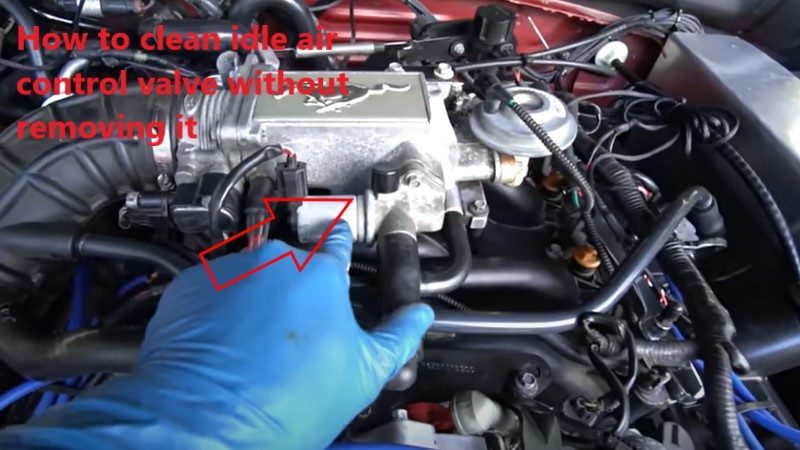

1. Preparation: Ensure the engine is cold to avoid burns. Disconnect the negative battery terminal for safety. Locate the IAC valve on the throttle body. It's usually a cylindrical component with an electrical connector.
2. Access: Remove the air intake duct leading to the throttle body to gain access.
3. Spraying: Using a throttle body cleaner or IAC valve cleaner (specifically formulated for this purpose), spray the cleaner directly into the IAC valve opening inside the throttle body. Use the straw attachment for precise application.
4. Manipulation (Engine Off): With the engine off, manually manipulate the throttle plate to open and close, allowing the cleaner to penetrate the IAC valve passages. You can also use a clean rag to wipe away any visible deposits inside the throttle body.
5. Reassembly and Test: Reconnect the air intake duct and the negative battery terminal. Start the engine and let it idle. Observe the idle speed and smoothness. You may need to drive the vehicle for a short distance to allow the ECU to relearn the idle settings.

Pros and Cons of On-Vehicle Cleaning

Pros:

• Convenience: It's faster and easier than removing the IAC valve.
• Reduced Risk of Damage: Avoids potential damage to the valve or surrounding components during removal and installation.
• Cost-Effective: Only requires a can of cleaner and a few basic tools.

Cons:

• Limited Effectiveness: May not be effective for heavily contaminated IAC valves.
• Potential for Damage: Excessive cleaner can damage sensitive electronic components.
• Incomplete Cleaning: Doesn't allow for thorough inspection and cleaning of all parts.
• Risk of Solvent Intrusion: Some cleaners can damage oxygen sensors if they enter the exhaust system.

When to Attempt On-Vehicle Cleaning

On-vehicle cleaning is most suitable for mild idle issues, such as slightly erratic idle or occasional stalling, especially when the problem is relatively new. If the symptoms are severe, such as constant stalling, extremely high or low idle speeds, or if the check engine light is illuminated, a full removal and cleaning, or even replacement, may be necessary. It's also a good preventative maintenance step to take before a problem occurs.

Manufacturer Examples and Applications

Many manufacturers utilize IAC valves in their vehicles, especially older models. General Motors, Ford, Toyota, and Honda vehicles from the 1990s and early 2000s are prime examples. These vehicles often experience IAC valve issues due to age and mileage. While newer vehicles may use different idle control strategies (e.g., electronic throttle control), the principles remain the same – maintaining a stable idle speed under varying conditions.

For example, the Ford Ranger and Explorer models from the mid-1990s are notorious for IAC valve problems. Similarly, many Honda Civics and Accords from the same era are also prone to these issues. These vehicles often benefit from regular IAC valve cleaning, whether on-vehicle or off-vehicle, to maintain optimal performance.

Real-World Insights and Recommendations

Based on real-world experiences, cleaning an IAC valve without removing it can provide temporary relief, but it's often not a permanent solution. It's like taking an aspirin for a chronic headache – it might alleviate the symptoms for a while, but it doesn't address the underlying cause. For a truly effective solution, consider the following recommendations:

• Diagnose Accurately: Before attempting any cleaning, ensure that the IAC valve is indeed the source of the problem. Other potential causes of idle issues include vacuum leaks, faulty mass airflow sensors, and clogged fuel injectors.
• Use the Right Cleaner: Use a throttle body cleaner or IAC valve cleaner specifically designed for this purpose. Avoid using harsh chemicals or solvents that could damage the valve or surrounding components.
• Consider Removal: If the on-vehicle cleaning doesn't resolve the issue, consider removing the IAC valve for a more thorough cleaning. This allows you to inspect the valve for damage and clean all parts effectively.
• Inspect the Throttle Body: While you're cleaning the IAC valve, take the opportunity to clean the throttle body as well. This can further improve idle quality and overall engine performance.
• Replace if Necessary: If the IAC valve is severely damaged or worn, replacement is the best option. A new IAC valve will ensure proper idle control and prevent future problems.
• Learn the Relearn Procedure: After cleaning or replacing the IAC, most vehicles need to "relearn" their idle settings. This might involve a specific procedure (check your vehicle's service manual) or simply driving the vehicle for a period to let the ECU adapt.

In conclusion, cleaning an IAC valve without removing it can be a quick and easy way to address mild idle issues. However, it's not a substitute for proper diagnosis and maintenance. If the problem persists, don't hesitate to seek professional help from a qualified mechanic.
