How To Clean Idle Air Control Valve

Stalling, rough idling, or erratic engine behavior at low speeds can be incredibly frustrating. Often, the culprit behind these issues is a seemingly small but vital component: the Idle Air Control (IAC) valve. This component plays a critical role in maintaining smooth engine operation, particularly when your foot isn't on the accelerator. Neglecting it can lead to a cascade of problems, impacting fuel efficiency and overall drivability. This guide will walk you through understanding the IAC valve, its function, and how to properly clean it, potentially saving you a trip to the mechanic and restoring your engine's smooth idle.

The Silent Orchestrator: Understanding the Idle Air Control Valve

Imagine a conductor leading an orchestra. When the orchestra isn't playing a full piece, the conductor still subtly directs a few instruments to maintain a faint, underlying hum. The IAC valve performs a similar role for your engine. When you release the accelerator pedal, the main throttle plate closes, restricting airflow into the engine. However, the engine still needs a small amount of air to keep running smoothly at idle speed. This is where the IAC valve steps in.

Without the IAC valve, the engine would starve for air and likely stall. The valve provides a bypass pathway around the closed throttle plate, allowing a precise amount of air to enter the intake manifold. This controlled airflow ensures the engine continues to run at the correct idle speed, typically between 600 and 1000 RPM, depending on the vehicle. Think of it as a tiny, electronically controlled air regulator, constantly adjusting to maintain a stable idle regardless of engine load (e.g., air conditioning, power steering).

How the IAC Valve Works: A Mechanical Deep Dive

The IAC valve is typically mounted on the throttle body or intake manifold. It's essentially a small electric motor connected to a valve or plunger. This valve regulates the amount of air bypassing the main throttle plate. The Engine Control Unit (ECU), the car's "brain," controls the IAC valve based on various sensor inputs, including engine temperature, throttle position, and engine speed.

Here's a breakdown of the process:

Sensor Inputs: The ECU receives information from sensors like the Throttle Position Sensor (TPS), Engine Coolant Temperature (ECT) sensor, and crankshaft position sensor.
ECU Calculation: Based on these inputs, the ECU determines the ideal idle speed for the current operating conditions. For instance, a cold engine requires a higher idle speed than a warm engine. Turning on the air conditioner also increases the engine load, requiring a higher idle speed to compensate.
IAC Valve Adjustment: The ECU sends a signal to the IAC valve's electric motor. This motor then moves the valve or plunger, adjusting the size of the air bypass passage.
Airflow Regulation: By changing the size of the bypass passage, the IAC valve controls the amount of air entering the intake manifold, effectively regulating the engine's idle speed.
Feedback Loop: The ECU continuously monitors engine speed and adjusts the IAC valve accordingly, creating a feedback loop that ensures a stable and consistent idle.

There are generally two common types of IAC valves: stepper motor and rotary solenoid. Stepper motor IAC valves use a series of small, precise movements (steps) to position the valve. These are known for their accuracy and control. Rotary solenoid IAC valves use a rotating solenoid to open and close the bypass passage. While potentially less precise than stepper motors, they can be more robust in certain applications.

The Problem: When the Silent Orchestrator Falls Silent

Over time, the IAC valve can become contaminated with carbon deposits, oil residue, and other debris. This buildup can restrict airflow through the bypass passage, causing the valve to stick or malfunction. Imagine trying to play a wind instrument with a clogged mouthpiece – the sound will be distorted or nonexistent. Similarly, a dirty IAC valve can lead to:

Rough idling: The engine idles unevenly, causing vibrations and a shaky feeling.
Stalling: The engine stalls, particularly when coming to a stop or during cold starts.
Erratic idle speed: The idle speed fluctuates up and down, sometimes revving too high or dropping too low.
Poor fuel economy: The engine may be running inefficiently due to incorrect air/fuel mixture at idle.
Check engine light: In some cases, a faulty IAC valve can trigger the check engine light.

Cleaning the IAC Valve: A Step-by-Step Guide

Cleaning the IAC valve is a relatively straightforward task that can often be performed at home with basic tools. However, always consult your vehicle's repair manual for specific instructions and precautions.

Safety First: Disconnect the negative battery terminal to prevent electrical shorts and ensure the engine is cold.

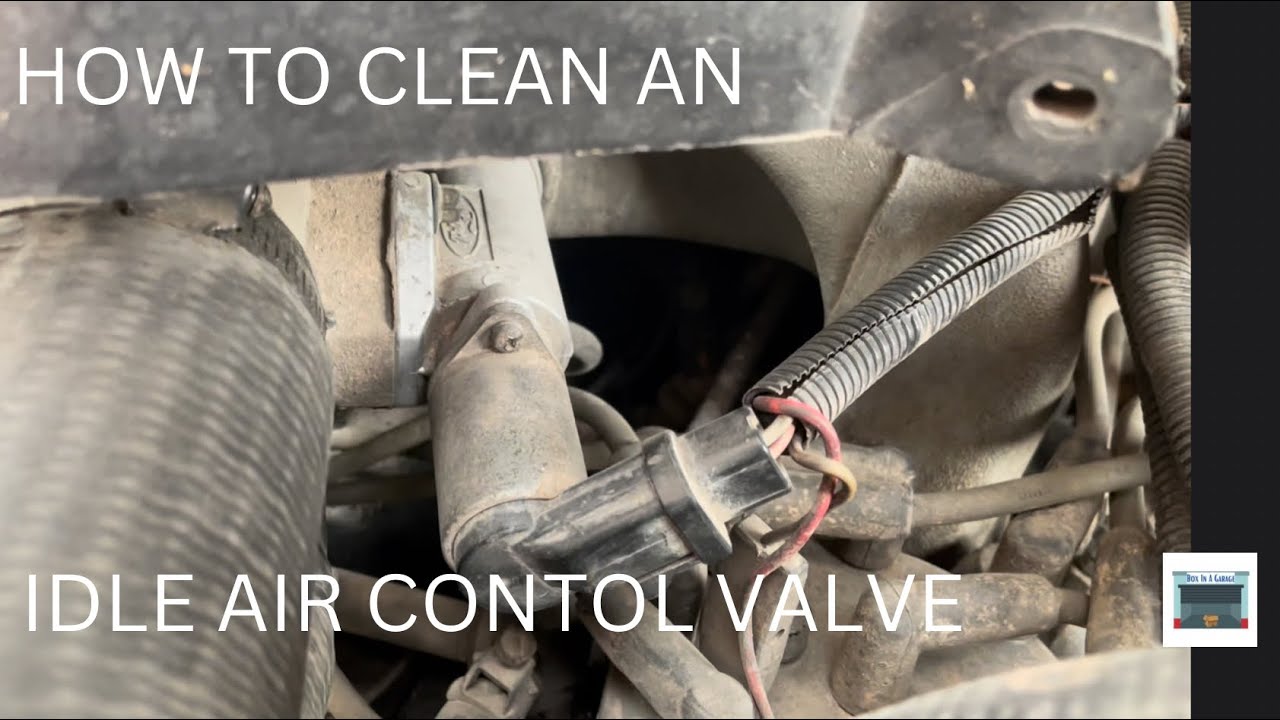

Locate the IAC Valve: Refer to your vehicle's repair manual to identify the location of the IAC valve. It's typically found on the throttle body or intake manifold.
Disconnect Electrical Connector: Carefully disconnect the electrical connector from the IAC valve.

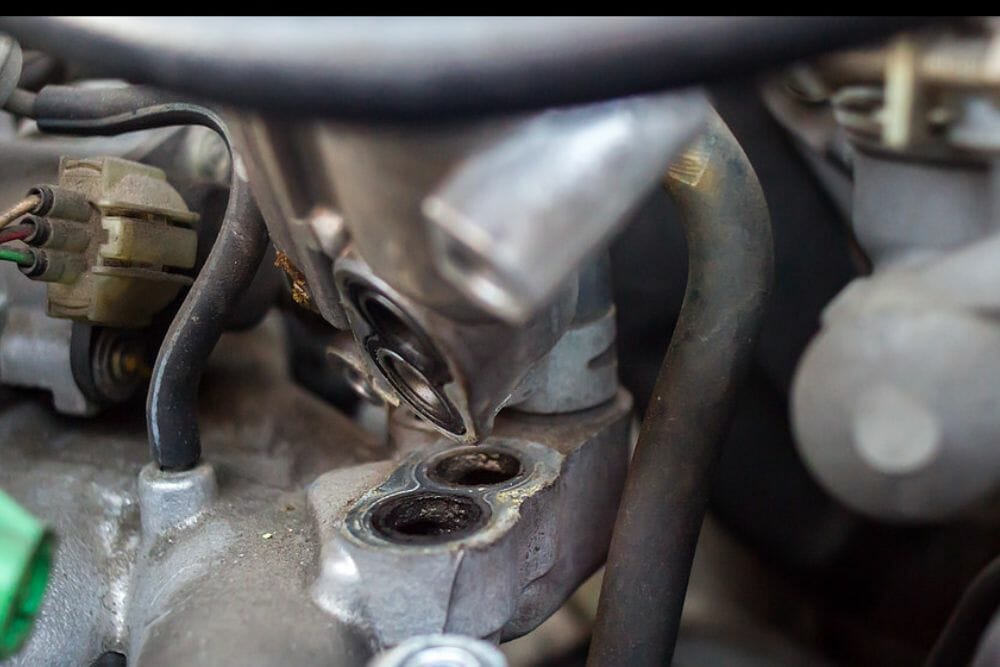

Remove the IAC Valve: Depending on the vehicle, the IAC valve may be held in place by screws or bolts. Remove these fasteners and gently detach the valve from the throttle body or intake manifold.
Inspect the Valve: Examine the valve for any signs of carbon buildup, oil residue, or damage.

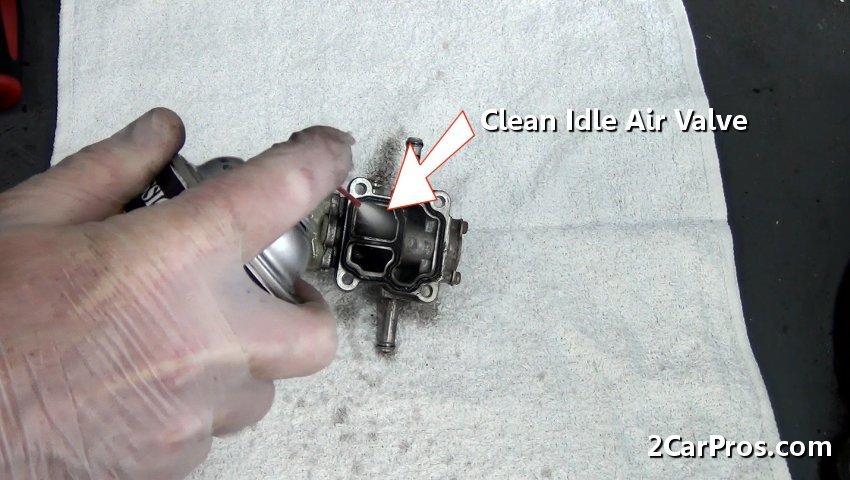

Clean the Valve: Use a throttle body cleaner or carburetor cleaner to thoroughly clean the IAC valve. Spray the cleaner into the valve passages and use a soft brush or cotton swab to remove any stubborn deposits. Be careful not to damage the valve's delicate components. Do not use harsh solvents or abrasive cleaners.

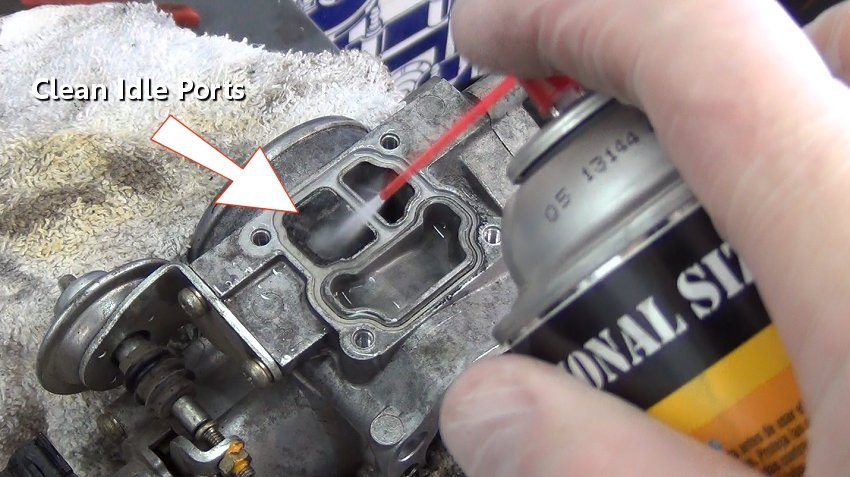

Clean the Mounting Surface: Clean the mounting surface on the throttle body or intake manifold where the IAC valve sits. Remove any old gasket material or debris.
Reinstall the IAC Valve: Install a new gasket (if required) and reattach the IAC valve to the throttle body or intake manifold. Tighten the fasteners to the specified torque.
Reconnect Electrical Connector: Reconnect the electrical connector to the IAC valve.
Reconnect Battery: Reconnect the negative battery terminal.
Start the Engine: Start the engine and allow it to idle for a few minutes. The ECU may need to relearn the IAC valve's position.
Test Drive: Take the vehicle for a short test drive to ensure the idle is stable and the engine is running smoothly.

Pros and Cons of Cleaning vs. Replacing

Cleaning the IAC valve offers several advantages: it's a cost-effective solution, relatively easy to perform, and can often restore the valve's functionality. However, it's not always a permanent fix, especially if the valve is severely damaged or worn. There are pros and cons of both cleaning and replacing:

Cleaning

Pros: Lower cost, DIY-friendly, can restore functionality, environmentally friendly.
Cons: Not always a permanent fix, may require repeated cleaning, ineffective for damaged valves.

Replacing

Pros: Permanent solution, eliminates the root cause of the problem, provides peace of mind.
Cons: Higher cost, may require professional installation, not always necessary.

The decision of whether to clean or replace the IAC valve depends on the severity of the problem, the condition of the valve, and your budget. If cleaning the valve doesn't resolve the issue, or if the valve is visibly damaged, replacement is the best option.

Real-World Examples and Manufacturer Variations

IAC valves are common on a wide range of vehicles, particularly those manufactured before the widespread adoption of electronic throttle control (drive-by-wire). Some examples include:

General Motors: Many GM vehicles from the 1980s to the early 2000s, such as the Chevrolet Cavalier, Pontiac Grand Am, and Buick Century, used IAC valves. These valves often suffered from carbon buildup, leading to rough idling and stalling.
Ford: Ford vehicles like the Mustang, Explorer, and F-150 also utilized IAC valves. On these vehicles, a common issue was a sticking IAC valve caused by oil residue from the Positive Crankcase Ventilation (PCV) system.
Toyota: Toyota models like the Camry, Corolla, and 4Runner incorporated IAC valves. Issues often arose from carbon deposits accumulating in the valve's passages, leading to erratic idle speed.

It's important to note that manufacturers may use different designs and names for the IAC valve. For example, some manufacturers may refer to it as an Idle Speed Control (ISC) valve or an Air Bypass Valve (ABV). However, the underlying function remains the same: to regulate airflow during idle.

Insights and Recommendations

Based on real-world experience, cleaning the IAC valve is often a worthwhile first step in addressing idle-related problems. However, it's crucial to use the correct cleaning products and follow the proper procedures. Avoid using harsh solvents or abrasive cleaners, as these can damage the valve's delicate components. Also, be sure to inspect the valve for any signs of wear or damage. If the valve is significantly worn or damaged, replacement is the best option.

Furthermore, consider the overall health of your engine. Excessive carbon buildup in the IAC valve may be a symptom of underlying issues, such as a faulty PCV valve, worn piston rings, or a rich-running fuel mixture. Addressing these underlying issues can help prevent future IAC valve problems.

Finally, remember that proper maintenance is key to preventing IAC valve problems. Regularly inspecting and cleaning the valve can help ensure smooth engine operation and prolong its lifespan. While not always needed, understanding the IAC valve can help you keep your car in top condition.
