How To Clean Idle Air Control Valve Without Removing

Many modern internal combustion engines rely on an Idle Air Control (IAC) valve to maintain a stable idle speed. Over time, these valves can become clogged with carbon deposits and other debris, leading to a rough idle, stalling, or even difficulty starting your vehicle. While removing the IAC valve for a thorough cleaning is often recommended, it's sometimes possible to clean it without removal. This article will guide you through the process, offering a safe and effective method, along with best practices to ensure you do the job right.

Understanding the Idle Air Control System

Before diving into the cleaning process, it's crucial to understand the fundamentals of your engine's idle air control system. This system's primary purpose is to bypass the throttle plate and allow a controlled amount of air into the engine when the throttle is closed. This controlled airflow maintains the engine's idle speed at the manufacturer's specified RPM (Revolutions Per Minute).

Think of it like this: when you take your foot off the gas, the throttle plate closes, severely restricting airflow. Without the IAC valve, the engine wouldn't get enough air to keep running and would stall. The Engine Control Unit (ECU), also known as the engine computer, monitors engine speed and coolant temperature, adjusting the IAC valve to precisely control the bypass air and maintain the correct idle speed. This is especially important during cold starts when the engine needs a richer air-fuel mixture and a higher idle to run smoothly.

Technical Breakdown: How the IAC Valve Works

The IAC valve is typically a small electric motor connected to a valve or plunger. The ECU sends electrical signals to the motor, causing it to move the valve or plunger, thereby changing the size of the air passage. There are a few common IAC valve designs:

Stepper Motor IAC: This type uses a stepper motor that rotates in small, precise increments. Each "step" opens or closes the air passage a tiny amount, allowing for very fine control over the idle speed.
Solenoid-Based IAC: This design uses a solenoid, an electromagnet, to pull a plunger in or out of the air passage. The ECU controls the solenoid's activation, adjusting the plunger's position to regulate airflow.
Rotary Valve IAC: This style uses a rotating valve, like a butterfly valve but smaller, which regulates airflow through the bypass passage. The ECU controls the valve’s rotational position using an electric motor.

Regardless of the specific design, the principle remains the same: the ECU uses the IAC valve to fine-tune the amount of air bypassing the closed throttle, ensuring a stable and consistent idle.

Common IAC Valve Issues and Maintenance Concerns

Because the IAC valve is constantly exposed to unfiltered air and recirculated exhaust gases (via the Positive Crankcase Ventilation, or PCV, system), it's prone to accumulating deposits. The most common culprit is carbon buildup from oil vapors and combustion byproducts. Over time, these deposits can restrict the valve's movement, leading to various symptoms:

Rough or Unstable Idle: The engine may idle erratically, fluctuating up and down or feeling "lumpy."
Stalling: The engine may stall when coming to a stop, especially when the engine is cold.
High Idle: The engine may idle too high, even after warming up.
Difficulty Starting: In severe cases, a clogged IAC valve can make it difficult to start the engine.
Check Engine Light: The ECU may detect an issue with the IAC valve and trigger the check engine light. Diagnostic Trouble Codes (DTCs) like P0505 (IAC System Malfunction) are common.

Preventive maintenance is key to avoiding these issues. Using high-quality engine oil and keeping the PCV system in good working order can minimize carbon buildup. However, even with the best maintenance practices, cleaning the IAC valve periodically is a good idea, especially if you notice any of the symptoms mentioned above.

Cleaning the IAC Valve Without Removal: A Step-by-Step Guide

This procedure outlines how to clean the IAC valve without removing it from the engine. This method is best suited for mild to moderate carbon buildup. For severely clogged valves, removal and a more thorough cleaning might be necessary.

Gather Your Supplies: You'll need the following:
- Carburetor/Throttle Body Cleaner: Make sure it's safe for sensors! Some cleaners can damage oxygen sensors or other sensitive components.
- Lint-Free Cloths or Rags: Avoid using paper towels, as they can leave behind fibers.
- Safety Glasses: Protect your eyes from splashes.
- Gloves: Protect your hands from the cleaner.
- Small Brush (Optional): A soft-bristled brush, like a toothbrush, can help loosen stubborn deposits.

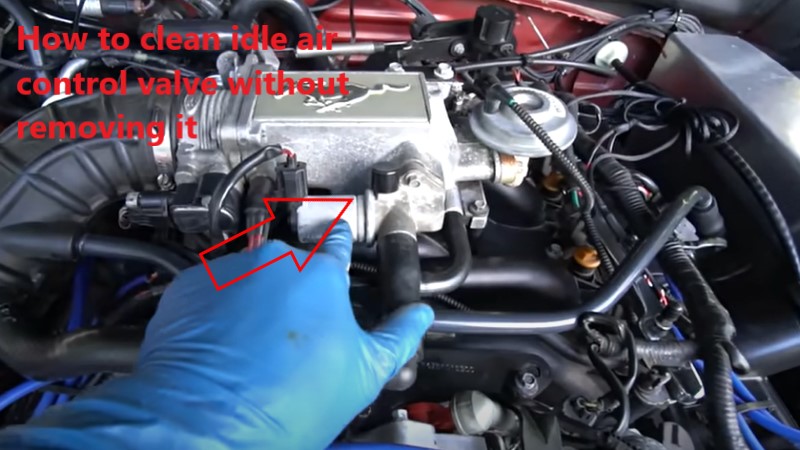

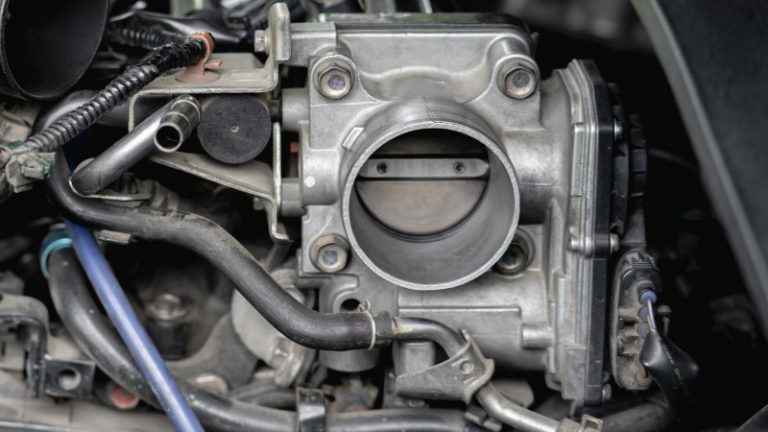

Locate the IAC Valve: The IAC valve is typically mounted on the throttle body. Refer to your vehicle's repair manual or online resources to pinpoint its exact location. They're usually cylindrical or rectangular in shape and connected to the throttle body with screws or bolts.
Disconnect the Electrical Connector: Carefully disconnect the electrical connector from the IAC valve. This will prevent the valve from activating during the cleaning process.
Spray the Cleaner: With the engine off, spray the carburetor/throttle body cleaner directly into the IAC valve's air passage. You may need to open the throttle plate manually to gain better access. Use short bursts and avoid saturating the area with cleaner.
Let it Soak: Allow the cleaner to soak for a few minutes to loosen the carbon deposits.
Wipe Away Excess Cleaner: Use a lint-free cloth or rag to wipe away any excess cleaner from the throttle body and surrounding areas.
Agitate with Brush (Optional): If you have a small brush, gently scrub the inside of the air passage to help dislodge stubborn deposits. Be careful not to damage any sensitive components.
Repeat if Necessary: Repeat steps 4-7 as needed until the valve appears clean.
Reconnect the Electrical Connector: Once you're satisfied with the cleaning, reconnect the electrical connector to the IAC valve.
Start the Engine: Start the engine and let it idle for a few minutes. The engine may run rough at first, but it should smooth out as the cleaner burns off.
Monitor Idle Speed: Monitor the idle speed to ensure it's within the manufacturer's specifications. If the idle is still rough or unstable, you may need to repeat the cleaning process or consider removing the IAC valve for a more thorough cleaning.

Do's and Don'ts / Best Practices

DO: Use a carburetor/throttle body cleaner specifically designed for modern engines. These cleaners are formulated to be safe for oxygen sensors and other sensitive components.
DO: Work in a well-ventilated area to avoid inhaling harmful fumes.
DO: Wear safety glasses and gloves to protect yourself from the cleaner.
DO: Disconnect the electrical connector from the IAC valve before cleaning.
DO: Use short bursts of cleaner and avoid saturating the area.
DO: Let the cleaner soak for a few minutes to loosen the carbon deposits.
DO: Wipe away any excess cleaner from the throttle body and surrounding areas.
DON'T: Use harsh solvents or abrasive cleaners, as they can damage the IAC valve.
DON'T: Spray cleaner into the electrical connector.
DON'T: Forcefully remove any deposits with sharp objects, as you could damage the valve.
DON'T: Over-tighten the IAC valve when reinstalling it (if you removed it for a deep clean). Follow the torque specifications in your vehicle's repair manual.

Conclusion and Recommendation

Cleaning the IAC valve without removal can be an effective way to address minor carbon buildup and restore a smooth idle. However, it's essential to use the correct cleaner, follow the steps carefully, and avoid damaging any sensitive components. If you're uncomfortable performing this procedure yourself, it's always best to consult with a qualified mechanic.

If the non-removal cleaning method doesn't resolve the issue, or if you suspect significant carbon buildup, removing the IAC valve for a more thorough cleaning or even replacement might be necessary. While cleaning the IAC valve can resolve some issues, consider replacing the component if symptoms persist after cleaning as the electronic components may have failed within the valve. Remember to consult your vehicle's service manual for specific instructions and torque specifications.
