How To Clean Oil Passages In Engine

Maintaining the health of your engine involves more than just regular oil changes. While fresh oil lubricates and cools the internal components, the oil passages themselves can accumulate sludge and debris over time, hindering their critical function. This article delves into the crucial process of cleaning oil passages, equipping you with the knowledge to tackle this task safely and effectively.

Understanding Your Engine's Oil System

The oil system is the lifeblood of your internal combustion engine. It's responsible for delivering lubrication to all moving parts, reducing friction and wear. It also plays a vital role in cooling, carrying heat away from areas like pistons and bearings. Furthermore, the oil system helps to cleanse the engine by suspending contaminants and carrying them to the oil filter.

The system's core components typically include:

Oil Pan: The reservoir for the engine oil.
Oil Pump: Driven by the engine, the pump creates pressure to circulate the oil.
Oil Filter: Removes debris and contaminants from the oil.
Oil Pressure Relief Valve: Prevents excessive oil pressure from damaging the system.
Oil Cooler (Optional): Helps to further reduce oil temperature, especially in high-performance applications.
Oil Galleries (Passages): A network of channels within the engine block and cylinder head that distribute oil to various components.

The Role of Oil Galleries

Oil galleries, or passages, are the focus of this article. These intricate channels are meticulously designed to deliver oil precisely where it's needed. Main galleries often run the length of the engine block, supplying oil to the main bearings and connecting rod bearings via drilled passages. Separate passages feed oil to the camshaft bearings, valve train components (rocker arms, lifters, etc.), and sometimes even turbocharger bearings.

The design of these galleries varies depending on the engine. Some are simple drilled holes, while others are more complex cast-in channels. Regardless of their construction, they are all crucial for ensuring proper lubrication and cooling. Blocked or restricted oil galleries can lead to catastrophic engine failure due to oil starvation and overheating.

Technical Breakdown: Cleaning Oil Passages

Cleaning oil passages involves removing accumulated sludge, varnish, and other debris that can restrict oil flow. Several methods can be employed, ranging from simple chemical treatments to more involved mechanical cleaning.

1. Chemical Flushing

Chemical flushing is the least invasive method. It involves adding a special engine flush additive to the engine oil before an oil change. The additive contains solvents and detergents that help to dissolve and loosen deposits within the oil system. After running the engine for the recommended time (usually 15-30 minutes), the oil and filter are drained and replaced with fresh oil and a new filter.

Pros: Relatively easy and inexpensive. Can be performed by most DIYers.

Cons: May not be effective for heavily clogged passages. Can potentially loosen large chunks of debris that could further clog the system. Some additives may be harmful to seals and gaskets (always read and follow the manufacturer's instructions carefully).

2. Mechanical Cleaning (Engine Disassembled)

When the engine is disassembled, such as during a rebuild, more thorough cleaning methods can be employed. This involves physically cleaning the oil passages using specialized tools and solvents.

a. Parts Washer and Solvents: All engine components, including the block and cylinder head, are thoroughly cleaned in a parts washer using a suitable solvent. This removes surface grime and grease.

b. Gun Brushes and Pipe Cleaners: A set of gun brushes and pipe cleaners of varying sizes are used to scrub the inside of the oil passages. These brushes help to dislodge stubborn deposits.

c. Wire: Piano wire or similar flexible wire can be carefully inserted into the oil passages to break up obstructions. Caution: Avoid using overly aggressive wire or tools that could damage the passage walls.

d. Compressed Air: After scrubbing, use compressed air to blow out any remaining debris. Make sure to wear safety glasses to protect your eyes from flying particles. Direct the air flow in the opposite direction of normal oil flow to maximize debris removal.

e. Carburetor Cleaner: Carburetor cleaner can be used as a solvent to further dissolve stubborn deposits. Follow the manufacturer's instructions and ensure proper ventilation.

f. Ultrasonic Cleaning: For heavily contaminated parts, ultrasonic cleaning can be highly effective. This involves immersing the components in a cleaning solution and subjecting them to high-frequency sound waves, which create microscopic bubbles that dislodge dirt and grime.

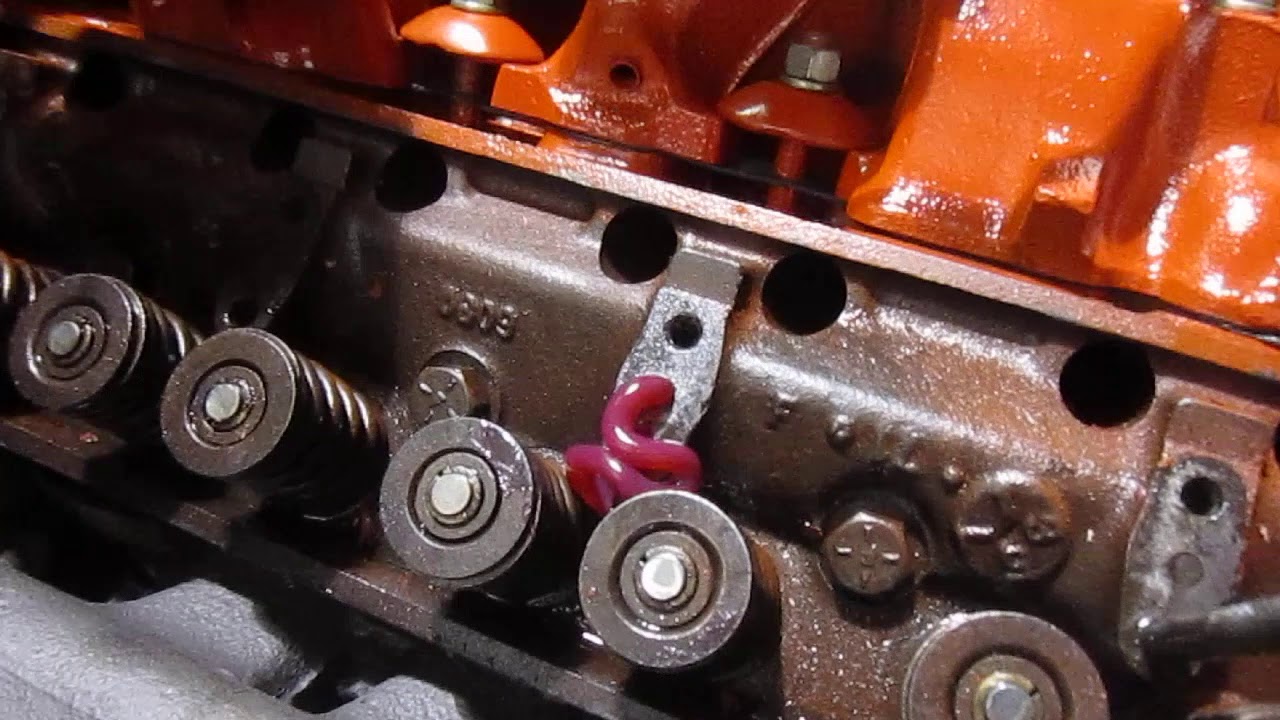

3. Cleaning Oil Passages with Engine Assembled (More Difficult)

Cleaning oil passages with the engine assembled is more challenging, but it can be done. This often involves removing oil pressure sensors, galley plugs and similar accessible points. A long flexible brush is inserted along with a cleaning solvent, followed by compressed air. Repeat until the passages are clear.

a. Custom Made Tools: Some resourceful mechanics make custom tools to help with this task. A popular one is modifying a brake line tube to act as a mini jet nozzle. One end connects to compressed air, while the other end is inserted into oil passages to blast them clean.

Common Issues and Maintenance Concerns

Several factors can contribute to the buildup of sludge and debris in oil passages:

Infrequent Oil Changes: Extending oil change intervals beyond the manufacturer's recommendations allows contaminants to accumulate.
Low-Quality Oil: Using inferior oil that doesn't meet the engine's specifications can lead to increased sludge formation.
Overheating: Excessive engine temperatures can cause oil to break down and form varnish.
Short Trips: Frequent short trips prevent the engine from reaching operating temperature, which hinders the evaporation of moisture and fuel contaminants from the oil.
Incorrect Oil Filter: A faulty or low-quality oil filter may not effectively remove contaminants.

The most common symptom of clogged oil passages is low oil pressure. This can manifest as a warning light on the dashboard or a reading below the normal range on an oil pressure gauge. Other symptoms include engine knocking (especially from the valve train), overheating, and ultimately, engine failure.

Do's and Don'ts / Best Practices

Do's:

Use the Right Tools: Employ appropriate brushes, solvents, and compressed air equipment for the job.
Wear Safety Gear: Always wear safety glasses and gloves to protect yourself from chemicals and flying debris.
Follow Instructions: Carefully read and follow the manufacturer's instructions for any chemicals or additives you use.
Be Thorough: Ensure that all oil passages are cleaned thoroughly.
Inspect Carefully: After cleaning, inspect the passages to ensure they are free of obstructions.
Use Quality Oil and Filters: Invest in high-quality oil and filters that meet your engine's specifications.
Change Oil Regularly: Adhere to the manufacturer's recommended oil change intervals.
Clean Before Assembly: Always clean oil passages before assembling an engine.

Don'ts:

Use Abrasive Tools: Avoid using overly aggressive tools that could damage the passage walls.
Over-Tighten Galley Plugs: These can easily strip. Torque to specification.
Use Harsh Chemicals: Avoid using harsh chemicals that could damage seals and gaskets.
Ignore Symptoms: Address any signs of low oil pressure or engine knocking promptly.
Rely Solely on Chemical Flushes for Severely Clogged Passages: Mechanical cleaning is often necessary in these cases.
Forget to Prime the Oil System: After an engine rebuild or any significant work on the oil system, prime the oil pump before starting the engine to ensure proper lubrication.

Conclusion

Cleaning oil passages is a vital maintenance task that can significantly extend the life of your engine. Whether you opt for a chemical flush or a more involved mechanical cleaning, the key is to be thorough and cautious. Regular oil changes and the use of high-quality oil and filters are essential for preventing sludge buildup in the first place. If you are uncomfortable performing these procedures yourself, consult a qualified mechanic. Prioritizing the health of your engine's oil system is a wise investment that will pay off in the long run with improved performance and reliability. If your engine is showing signs of low oil pressure, don't delay inspection and cleaning. It could save you from a costly engine failure.
