How To Clean The Idle Control Valve

Engine idling: that rhythmic, low-RPM hum that keeps your car running when you're stopped at a light or waiting in a parking lot. It's a seemingly simple task, yet it relies on a complex system to maintain a smooth and consistent speed. But what happens when that hum turns into a sputter, a stall, or a generally unhappy engine at idle? One common culprit is a dirty or malfunctioning Idle Control Valve (ICV). This guide delves into the intricate workings of the ICV, exploring how to diagnose its issues, and providing a step-by-step guide to cleaning it.

The Case of the Erratic Idle

Imagine this: You're cruising down the highway, everything's running smoothly. You pull up to a stop sign, and suddenly, your car starts shaking like a maraca. The RPMs are fluctuating wildly, dipping dangerously low, and you're convinced the engine is about to stall. This frustrating scenario is a classic symptom of a malfunctioning ICV. It's like a conductor losing control of the orchestra, failing to maintain the delicate balance needed for harmonious operation.

Think of your engine as a runner. When sprinting, they breathe heavily, needing a lot of oxygen. When at rest, their breathing slows significantly. The ICV is like the automated breathing control for your engine when it's "at rest," or idling. It ensures the engine gets just the right amount of air to keep running without revving too high. If this "breathing control" is blocked or malfunctioning, the engine won't get enough air (stalling) or get too much (revving erratically).

Unveiling the Mechanics of the ICV

The ICV, also known by various names like Idle Air Control (IAC) valve or Idle Speed Control (ISC) valve, is an electromechanical device that regulates the amount of air bypassing the throttle plate when the throttle is closed. This bypassed air is crucial for maintaining a stable idle speed. Here's how it works:

The Brain (ECU): The Engine Control Unit (ECU), the car's computer, monitors engine parameters like coolant temperature, engine speed (RPM), and throttle position.
The Signal: Based on these parameters, the ECU sends a signal to the ICV. This signal instructs the ICV how much to open or close.
The Valve: The ICV itself typically consists of a stepper motor or a rotary solenoid that precisely controls the opening and closing of an air passage.
The Airflow: When the throttle is closed (at idle), the ICV allows a controlled amount of air to bypass the throttle plate and enter the intake manifold. This maintains the engine's RPM at the desired idle speed.

Over time, the ICV can become clogged with carbon deposits, oil residue, and other contaminants. This buildup restricts airflow, hindering the valve's ability to function properly. This can lead to erratic idling, stalling, and even increased fuel consumption. Think of it like plaque building up in your arteries, restricting blood flow and causing problems.

Pros and Cons of Cleaning the ICV

Pros:

Improved Idle Quality: The most significant benefit is a smoother, more stable idle.
Reduced Stalling: Cleaning the ICV can eliminate stalling issues caused by insufficient airflow at idle.
Increased Fuel Efficiency: A properly functioning ICV can contribute to slightly improved fuel economy.
Cost-Effective: Cleaning the ICV is significantly cheaper than replacing it.
DIY Friendly: With basic tools and some patience, most amateur mechanics can clean their ICV.

Cons:

Temporary Fix: Depending on the condition of the ICV, cleaning may only provide a temporary solution. In some cases, the valve may be damaged internally and require replacement.
Risk of Damage: Improper cleaning techniques can damage the ICV, rendering it unusable.
Not Always the Solution: Erratic idling can be caused by other factors, such as vacuum leaks, faulty sensors, or ignition system issues. Cleaning the ICV may not resolve the problem if it lies elsewhere.

Common Use Cases and Manufacturer Variations

The ICV is a ubiquitous component found in most gasoline-powered vehicles, especially those with fuel injection systems. Different manufacturers employ various ICV designs. For example:

Bosch: Often uses a rotary solenoid design, known for its reliability and precision.
Denso: Employs both stepper motor and solenoid-based ICVs, commonly found in Japanese vehicles.
Delphi: Typically utilizes stepper motor designs, known for their robust construction.

Specific applications can vary. For instance, high-performance engines may use more sophisticated ICVs with faster response times to maintain a consistent idle speed under demanding conditions. In contrast, older vehicles may have simpler, less precise ICV designs.

Cleaning the ICV: A Step-by-Step Guide

Disclaimer: Always consult your vehicle's repair manual for specific instructions and safety precautions before performing any maintenance. Disconnect the negative battery terminal before working on electrical components.

Tools and Materials Required:

Socket set and wrenches
Screwdrivers (Phillips and flathead)
Throttle body cleaner (specifically designed for cleaning automotive components)
Clean rags or shop towels
Small brush (e.g., toothbrush)
Safety glasses and gloves

Procedure:

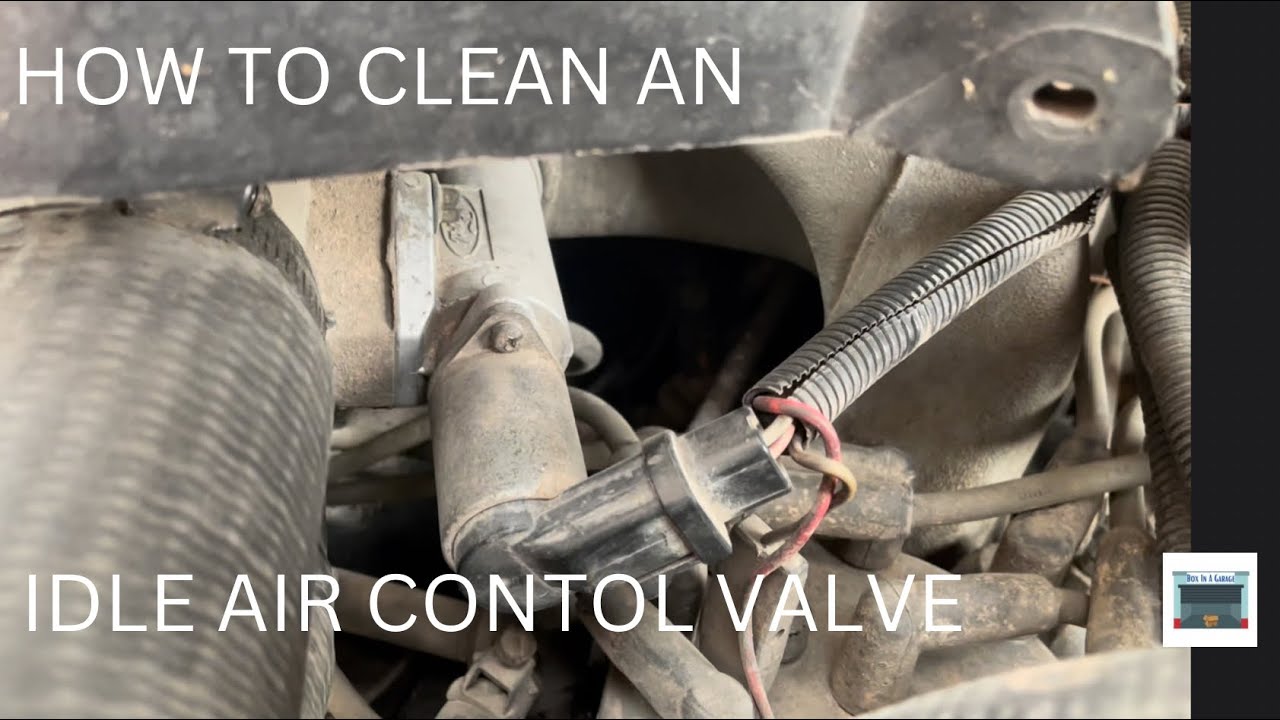

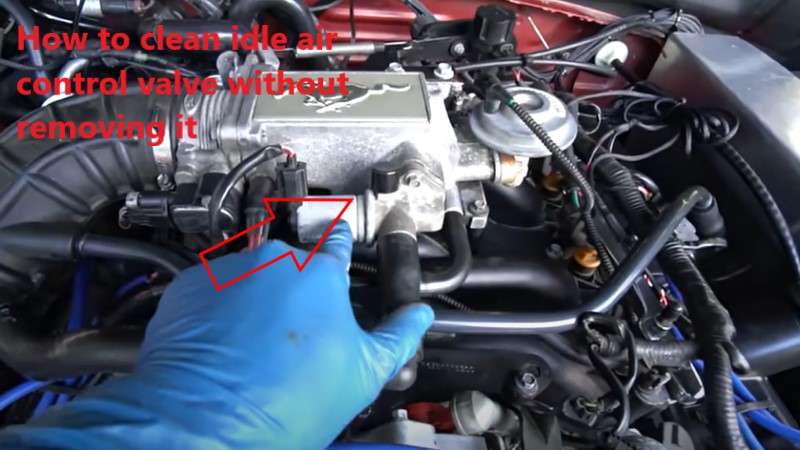

Locate the ICV: Refer to your vehicle's repair manual to identify the location of the ICV. It is usually mounted on the throttle body or intake manifold.
Disconnect the Electrical Connector: Carefully disconnect the electrical connector from the ICV. Be gentle to avoid damaging the connector or wiring.

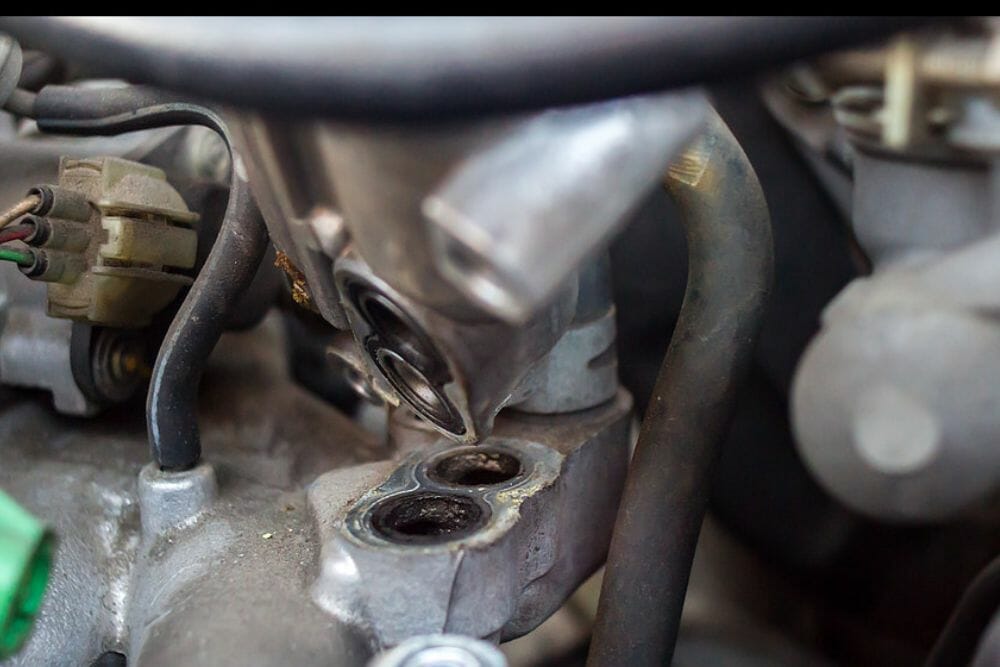

Remove the ICV: Use the appropriate socket or wrench to remove the mounting bolts or screws securing the ICV to the throttle body or intake manifold.

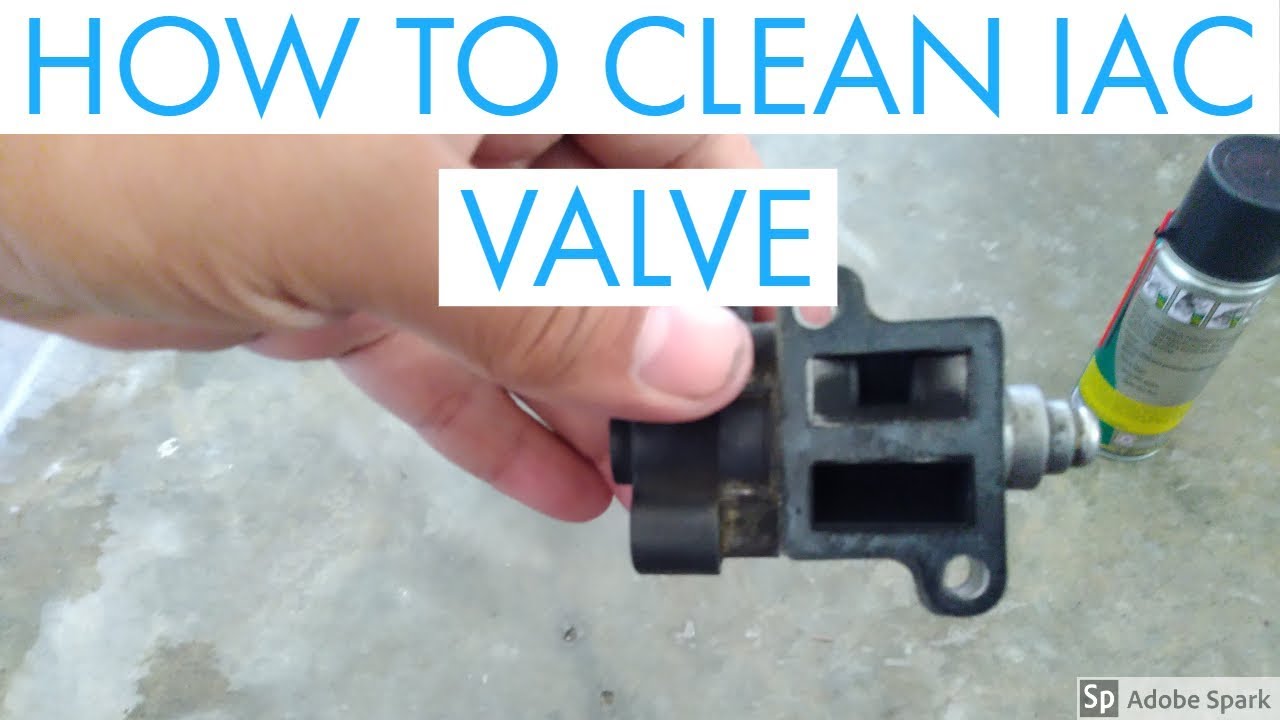

Inspect the ICV: Once removed, inspect the ICV for any visible signs of damage or excessive carbon buildup.
Clean the ICV:
- Spray the ICV with throttle body cleaner, paying close attention to the air passages and valve mechanism.
- Use a small brush to gently scrub away any carbon deposits or debris.
- Avoid using abrasive cleaners or tools, as these can damage the delicate components of the ICV.
- Repeat the cleaning process until the ICV is clean and free of obstructions.
Dry the ICV: Allow the ICV to air dry completely before reinstalling it. You can also use compressed air to speed up the drying process.
Reinstall the ICV: Reinstall the ICV onto the throttle body or intake manifold, tightening the mounting bolts or screws to the manufacturer's specified torque.
Reconnect the Electrical Connector: Reconnect the electrical connector to the ICV.
Reconnect the Battery: Reconnect the negative battery terminal.
Start the Engine: Start the engine and let it idle for a few minutes. Monitor the idle speed to ensure it is stable and within the normal range.
Test Drive: Take the vehicle for a short test drive to confirm that the idle is smooth and that there are no stalling issues.

Real-World Insights and Recommendations

Cleaning the ICV is a valuable skill for any car enthusiast. However, it's crucial to approach the task with caution and a thorough understanding of the procedure. Here are some insights based on real-world use:

Prevention is Key: Regular maintenance, such as using high-quality air filters and performing routine oil changes, can help prevent carbon buildup in the ICV.
Use the Right Cleaner: Always use a throttle body cleaner specifically designed for automotive components. Avoid using carburetor cleaners or other harsh chemicals, as they can damage the ICV.
Don't Over-Clean: While it's important to remove carbon deposits, avoid excessive cleaning, as this can damage the delicate components of the ICV.
Consider Replacement: If the ICV is severely damaged or heavily worn, cleaning may not be sufficient. In such cases, it's best to replace the ICV with a new unit.
Check for Vacuum Leaks: Before cleaning the ICV, inspect the surrounding area for vacuum leaks. Vacuum leaks can also cause erratic idling and stalling issues.
Reset the ECU: After cleaning the ICV, it may be necessary to reset the ECU to allow it to relearn the idle parameters. This can be done by disconnecting the negative battery terminal for a few minutes or by using a scan tool.

By understanding the function of the ICV and following these guidelines, you can effectively diagnose and address idle-related issues, ensuring a smooth and reliable driving experience. It's a small component, but a critical one to keep your engine breathing easy at idle.
