How To Clean Throttle Body Sensor

Okay, let's talk about cleaning your throttle body. It's a maintenance task that often gets overlooked, but it can make a significant difference in your engine's performance. This article provides a detailed, step-by-step guide for cleaning your throttle body, along with explanations of its purpose, components, troubleshooting, and safety precautions.

Purpose of Cleaning Your Throttle Body

The throttle body is a critical component in your engine's air intake system. Its primary function is to regulate the amount of air entering the engine. Over time, especially with older vehicles or those running on less-than-premium fuel, the throttle body can accumulate deposits of carbon, oil, and other contaminants. These deposits can restrict airflow, leading to various problems, including:

• Rough idling: The engine struggles to maintain a smooth idle speed.
• Hesitation during acceleration: The engine feels sluggish or unresponsive when you press the gas pedal.
• Reduced fuel economy: The engine has to work harder to achieve the same performance.
• Increased emissions: The engine isn't burning fuel as efficiently.
• Check Engine Light (CEL): A dirty throttle body can trigger error codes related to idle air control or mixture issues.

Cleaning the throttle body removes these deposits, restoring proper airflow and resolving these problems. It's a relatively simple and inexpensive maintenance task that can significantly improve your car's performance and fuel efficiency.

Key Specs and Main Parts

Before diving into the cleaning process, let's familiarize ourselves with the main components of the throttle body. While designs vary slightly between manufacturers and models, the fundamental parts remain consistent:

• Throttle Plate: The main moving part, a butterfly valve that pivots to control airflow. Its angle is directly controlled by the accelerator pedal via a cable (in older cars) or an electronic throttle actuator.
• Throttle Body Housing: The metal housing that contains the throttle plate and other components. This housing is bolted to the intake manifold.
• Throttle Position Sensor (TPS): A sensor that monitors the position of the throttle plate and sends this information to the engine control unit (ECU). The ECU uses this data to adjust fuel injection and ignition timing. Disconnecting the TPS can sometimes trigger a fault code, so be mindful during removal and reconnection.
• Idle Air Control (IAC) Valve (or motor): A small valve that allows a small amount of air to bypass the throttle plate when it's closed. This ensures the engine idles smoothly. Some newer vehicles use an electronic throttle actuator to manage the throttle plate at idle. In this case, there's no separate IAC valve.
• Coolant Passages (on some models): Some throttle bodies have coolant passages to prevent icing in cold weather.

The Cleaning Process: Step-by-Step

Here's how to clean your throttle body effectively:

1. Safety First! Disconnect the negative battery cable. This prevents accidental starting and protects the electrical components. Also, ensure the engine is completely cool before starting.
2. Locate the Throttle Body: It's usually located between the air filter box and the intake manifold. Consult your vehicle's repair manual if you're unsure of its location.
3. Disconnect the Air Intake Duct: Loosen the clamp(s) securing the air intake duct to the throttle body and carefully remove the duct.
4. Disconnect Electrical Connectors: Disconnect the electrical connectors for the TPS and IAC valve (if present). Be gentle to avoid damaging the connectors.
5. Optional: Remove the Throttle Body: Removing the throttle body makes cleaning easier, especially on vehicles with limited access. However, it's not always necessary. If you choose to remove it, disconnect any coolant hoses (if present) and unbolt the throttle body from the intake manifold. Be prepared for a small amount of coolant to spill if coolant hoses are disconnected.

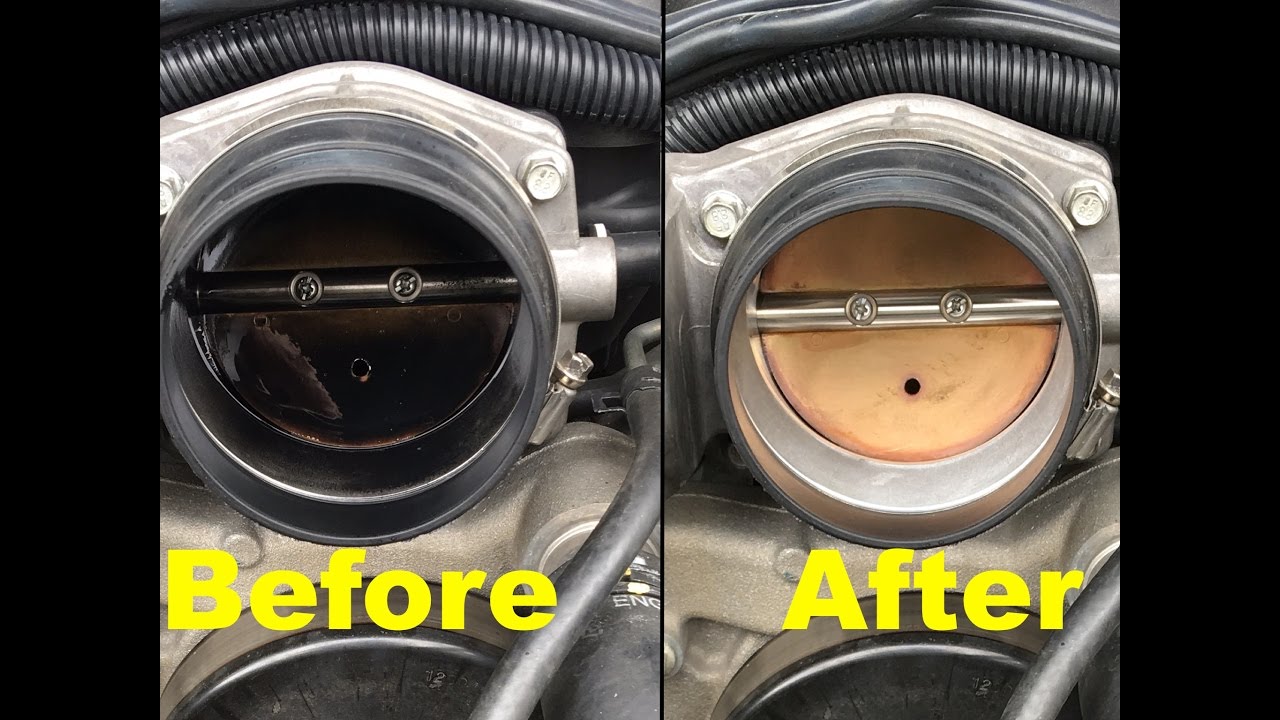

6. Clean the Throttle Body: Use a throttle body cleaner (specifically designed for this purpose) and a clean, lint-free cloth to thoroughly clean the throttle plate and the inside of the throttle body. Do not use carburetor cleaner, as it can damage the TPS and other components. Spray the cleaner onto the cloth and wipe away the deposits. Open the throttle plate (manually or by having someone press the accelerator pedal slightly) to clean both sides. Be sure to clean around the edges of the throttle plate where carbon tends to accumulate.

   Important: Avoid spraying cleaner directly into the throttle body while it's attached to the engine, as this can flood the intake manifold and potentially damage sensors.

7. Clean the IAC Valve (if applicable): If your vehicle has an IAC valve, carefully clean it with throttle body cleaner. Follow the manufacturer's instructions for cleaning this valve, as some are more delicate than others.
8. Reassemble: Reinstall the throttle body (if removed), reconnect the electrical connectors, and reattach the air intake duct. Ensure all connections are secure.
9. Reconnect the Battery: Reconnect the negative battery cable.
10. Start the Engine: Start the engine and let it idle for a few minutes. It may idle roughly at first, but it should smooth out as the ECU relearns the idle settings.
11. Test Drive: Take the car for a short test drive to ensure everything is working properly.

Real-World Use – Basic Troubleshooting Tips

Here are a few troubleshooting tips related to throttle body cleaning:

• Still idling rough?: Double-check all connections to the throttle body (electrical connectors, air intake duct). A vacuum leak can cause rough idling.
• Check Engine Light is on?: Use an OBD-II scanner to read the trouble codes. Clear the codes after cleaning the throttle body. If the codes reappear, further diagnosis may be required.
• Engine stalls after cleaning?: The ECU may need to relearn the idle settings. Try disconnecting the battery for 30 minutes to reset the ECU and then let the engine idle for 10-15 minutes without touching the accelerator pedal.
• Difficulty starting after cleaning? You may have over-sprayed the intake with cleaner. Wait some time to allow evaporation. Also, verify that all vacuum and sensor connections are correct.

Safety Considerations

Working on your car can be dangerous if you don't take the proper precautions. Here are some safety tips to keep in mind when cleaning your throttle body:

• Disconnect the Battery: Always disconnect the negative battery cable before working on any electrical components.
• Work in a Well-Ventilated Area: Throttle body cleaner contains harsh chemicals. Work in a well-ventilated area to avoid inhaling the fumes.
• Wear Eye Protection: Wear safety glasses to protect your eyes from splashes of cleaner.
• Use Gloves: Wear gloves to protect your skin from the cleaner.
• Dispose of Rags Properly: Oily rags can be a fire hazard. Dispose of them properly in a sealed metal container.
• Be Careful with Coolant: If your throttle body has coolant passages, be careful when disconnecting the hoses, as the coolant may be hot.
• Fuel Injection Systems: Be aware that modern fuel injected vehicles run at high fuel pressure. Relieving this pressure is a must before disconnecting any fuel lines. However, because we are dealing with the air intake system, this should not be an issue during a throttle body cleaning.

Cleaning your throttle body is a relatively simple and straightforward maintenance task that can significantly improve your car's performance. By following these steps and taking the necessary safety precautions, you can keep your engine running smoothly and efficiently. If you are uncomfortable performing this task yourself, it is always best to consult with a qualified mechanic.

We have a detailed diagram of a typical throttle body assembly available for download. It includes labeled parts and sensor locations to aid in your understanding of the system. This diagram can be a valuable resource for repairs, troubleshooting, and general learning about your vehicle's air intake system.
