How To Convert From R12 To 134a

The air conditioning system in an older vehicle blowing warm air instead of icy coolness is a familiar frustration. Often, the culprit isn't a major mechanical failure, but rather the refrigerant used. Many cars manufactured before the mid-1990s used R12, a chlorofluorocarbon (CFC) refrigerant that was phased out due to its ozone-depleting properties. The replacement? R134a, a hydrofluorocarbon (HFC) considered more environmentally friendly. Converting an R12 system to R134a is a common task, but it's more than just a simple refrigerant swap. It involves understanding the differences between the two systems and taking steps to ensure compatibility and longevity.

The Need for Conversion: Why Can't We Just Top It Off?

Imagine you're baking a cake. You have a recipe that calls for specific ingredients in precise proportions. Substituting one ingredient – say, baking soda for baking powder – without adjusting other elements will likely result in a less-than-ideal outcome. Similarly, an R12 system is designed with specific components and pressures in mind. Simply adding R134a to an R12 system is a recipe for disaster. It's important to understand the intricacies involved to achieve proper system operation. R12 and R134a have different operating pressures, require different types of oil for lubrication, and are not compatible with the same sealing materials.

Understanding the Mechanical Differences

To grasp why a conversion is necessary, we need to delve into the mechanics of an automotive AC system:

Compressor: The heart of the system, the compressor circulates the refrigerant. R12 systems typically used mineral oil as a lubricant, while R134a systems use ester or PAG (polyalkylene glycol) oil. These oils are not miscible; mixing them can lead to sludge formation, compromising compressor lubrication and potentially causing catastrophic failure.
Condenser: This component dissipates heat from the high-pressure refrigerant vapor, turning it into a high-pressure liquid. Condensers in R12 systems are often less efficient than those designed for R134a, which operates at higher pressures.
Evaporator: Here, the liquid refrigerant absorbs heat from the cabin air, turning back into a low-pressure vapor and providing the cooling effect. The evaporator's design isn't usually a major concern during conversion, but its cleanliness is critical.
Receiver-Drier/Accumulator: This component removes moisture and filters debris from the refrigerant. It also contains a desiccant that is specific to the refrigerant being used. R12 systems used XH-5 desiccant; R134a systems use XH-7 or XH-9 desiccant. Mixing desiccants can reduce the system's drying capability and cause premature wear.
Expansion Valve/Orifice Tube: This regulates the flow of refrigerant into the evaporator. While some expansion valves can be adjusted, orifice tubes are fixed and may need replacement for optimal performance with R134a.
Hoses and Seals: R12 systems used hoses and O-rings made of materials that are not compatible with R134a. Over time, R134a can cause these materials to deteriorate, leading to leaks.

The Conversion Process: A Step-by-Step Guide

A proper R12 to R134a conversion involves several key steps:

Refrigerant Recovery: Crucially, the first step is to evacuate the existing R12 refrigerant. This must be done by a certified technician using appropriate equipment to prevent releasing ozone-depleting substances into the atmosphere. It's illegal and environmentally irresponsible to vent R12.
System Flush: Thoroughly flush the system to remove any residual mineral oil. Special flushing solvents designed for AC systems are used for this purpose. The evaporator is particularly important to flush.

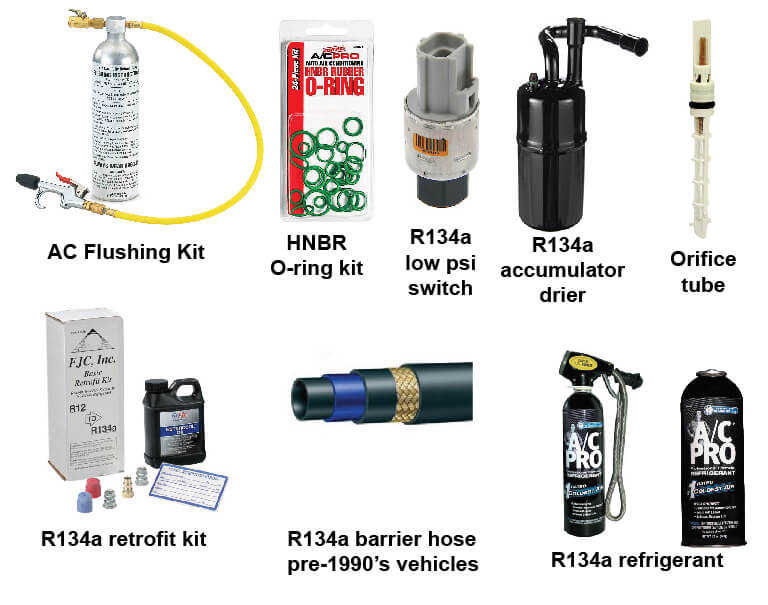

Component Replacement: The receiver-drier/accumulator must be replaced with a unit designed for R134a. Hoses and O-rings should also be replaced with R134a-compatible versions, typically made of HNBR (hydrogenated nitrile butadiene rubber). Consider replacing the condenser with a more efficient parallel flow condenser designed for R134a; this will improve cooling performance.
Oil Charge: Add the correct type and amount of oil for R134a systems (ester or PAG oil). Consult the vehicle's service manual or an AC specialist for the recommended oil type and quantity.
Retrofit Adapters: Install adapter fittings on the service ports to accommodate R134a charging equipment. These adapters allow you to connect the R134a hoses to the old R12 fittings.
Vacuuming the System: Evacuate the system with a vacuum pump for at least 30-45 minutes to remove any air and moisture. This is crucial for proper refrigerant performance and to prevent corrosion.
Refrigerant Charge: Charge the system with the correct amount of R134a. Note that R134a systems typically require about 80-90% of the original R12 charge. Overcharging can lead to high pressures and system damage.
Leak Test: After charging, use a refrigerant leak detector to check for any leaks.

Pros and Cons of Converting to R134a

Pros:

Environmental Friendliness: R134a has a much lower ozone depletion potential than R12.
Availability: R134a is readily available and relatively inexpensive compared to dwindling supplies of R12 (which is often recycled and expensive).
Cost: Converting to R134a, while involving some upfront costs, can be more economical in the long run due to the lower cost of the refrigerant and readily available parts.

Cons:

Lower Cooling Efficiency: R134a generally provides slightly less cooling efficiency than R12 in older systems, especially those with original condensers. Upgrading to a more efficient condenser can mitigate this.
Potential for Leaks: If the conversion is not done properly, leaks can develop due to the incompatibility of R134a with older hoses and seals.
System Compatibility Issues: In some cases, the compressor may not be ideally suited for R134a, leading to reduced lifespan or performance.

Real-World Examples and Manufacturer Considerations

Many aftermarket conversion kits are available, but their quality and completeness vary. It's crucial to choose a reputable kit and follow the instructions carefully. Some manufacturers, such as Four Seasons and Murray, offer comprehensive kits that include all the necessary components.

Consider a classic 1970s muscle car. The original R12 system might struggle to keep the cabin cool in modern traffic. A well-executed R134a conversion, potentially with an upgraded condenser, could significantly improve cooling performance while also being more environmentally responsible. On the other hand, a simple "drop-in" conversion without proper flushing and component replacement could lead to compressor failure and persistent leaks.

Another example is a 1990s sedan. These vehicles often have systems that are closer in design to R134a systems. The conversion process might be simpler, requiring mainly a change of oil, desiccant, and adapter fittings. However, even in these cases, thorough flushing and leak testing are essential.

Insights and Recommendations

Converting an R12 system to R134a is a worthwhile endeavor if done correctly. However, it's not a simple task that should be undertaken lightly. It requires a good understanding of AC system mechanics, attention to detail, and access to appropriate tools and equipment. If you are not comfortable working on AC systems, it's best to leave the conversion to a qualified technician. They have the experience and expertise to ensure that the conversion is done safely and effectively. Even experienced DIYers might benefit from consulting with an AC specialist to discuss the specific needs of their vehicle.

In the modern era, some alternative refrigerants, such as R1234yf, are emerging as potential replacements for R134a due to their even lower global warming potential. However, R1234yf requires different system components and is not a direct drop-in replacement for either R12 or R134a. For older vehicles, R134a remains the most practical and cost-effective option.

Ultimately, a successful R12 to R134a conversion provides a more environmentally responsible and sustainable solution for keeping your vintage or classic car cool. By understanding the nuances of the conversion process and taking the necessary steps to ensure compatibility and longevity, you can enjoy years of reliable air conditioning performance.
