How To Convert From R12 To R134

Is your older car's air conditioning system blowing warm air? You might be dealing with an outdated R-12 refrigerant system. Converting from R-12 to R-134a is a common issue for owners of vehicles manufactured before the mid-1990s. Many of these vehicles used R-12, a refrigerant that was phased out due to its ozone-depleting properties. Switching to R-134a, a more environmentally friendly refrigerant, can restore your AC's cooling power. This article will guide you through the process, explaining the symptoms, causes, and solutions to help you decide on the best course of action.

Symptoms of an R-12 System Needing Attention

Here are some telltale signs that your R-12 system might need attention, and that a conversion to R-134a might be a viable solution:

Weak or non-existent AC cooling: This is the most obvious sign. If your AC blows warm or only slightly cool air, especially on hot days, it could indicate a problem.
AC system hasn't been serviced in years: R-12 systems are aging. If the system hasn't been maintained or recharged in a long time, the refrigerant may have leaked out.
Difficulty finding R-12 refrigerant: R-12 is becoming increasingly difficult and expensive to obtain due to its phase-out. Finding a shop that still carries it and is qualified to service it can be a challenge.
Presence of moisture or contaminants in the system: Over time, seals can degrade, allowing moisture and air to enter the system. This can damage components and reduce cooling efficiency.
Unusual noises from the AC compressor: A struggling compressor can indicate low refrigerant or internal damage, which may be exacerbated by using an outdated refrigerant system.
Visible leaks of refrigerant oil: These leaks are often accompanied by a greasy residue and a distinctive smell. They can indicate failing seals or components.

Root Cause: The R-12 Phase-Out

The primary reason for converting from R-12 to R-134a is the Montreal Protocol, an international treaty designed to protect the ozone layer. R-12, also known as Freon-12, was identified as an ozone-depleting substance and its production was phased out. This has led to a dwindling supply and significantly increased costs for R-12. Although R-12 can still be purchased, it is often reclaimed, recycled, or synthetically produced and the EPA has strict regulations surrounding its handling.

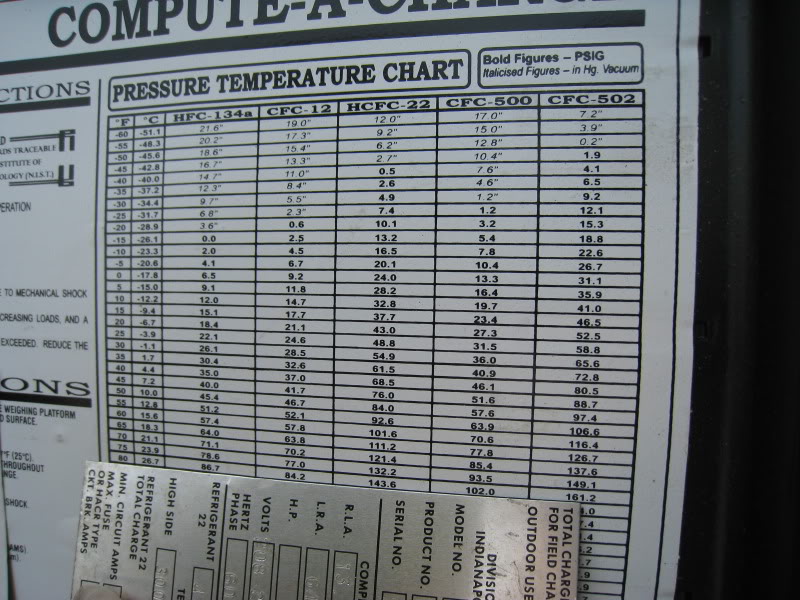

While R-134a is a suitable replacement, it's not a direct drop-in. The R-12 system was designed with specific seals, hoses, and compressor oil that are not always compatible with R-134a. Furthermore, R-134a operates at slightly different pressures than R-12, necessitating modifications to ensure optimal performance and prevent damage.

What Happens if You Ignore the Problem?

Ignoring a failing R-12 AC system can lead to several problems:

Continued discomfort: You'll continue to suffer from inadequate cooling, especially during hot weather.
Further system damage: A low refrigerant charge can cause the compressor to work harder, leading to premature failure. Moisture and contaminants can corrode internal components.
Increased repair costs: Delaying repairs can result in more extensive and expensive damage to the AC system. A simple leak could turn into a full compressor replacement.
Difficulty finding qualified technicians: As R-12 systems become rarer, finding technicians experienced in working on them can become increasingly difficult.
Potential legal issues: Knowingly releasing R-12 into the atmosphere is illegal and can result in fines.

Recommended Fixes: The R-134a Conversion Process

Converting from R-12 to R-134a requires a systematic approach. It's generally recommended to have this work done by a qualified AC technician, but here's an overview of the process:

Refrigerant Recovery: The first step is to legally and safely recover any remaining R-12 refrigerant in the system. This must be done with specialized equipment to prevent release into the atmosphere. This step is mandatory and is strictly regulated by environmental protection agencies.
System Flush: The system needs to be thoroughly flushed to remove the old mineral oil that was used with R-12. R-134a is typically used with a synthetic oil, such as PAG or Ester oil, and the two types of oil are not compatible. Mixing them can lead to sludge formation and compressor failure.
Component Inspection and Replacement: This is where the process becomes more involved. Not all components *need* to be replaced, but many shops recommend it as a best practice for long-term reliability.
- O-rings and Seals: Replace all O-rings and seals with R-134a compatible versions. R-12 seals are often made of materials that degrade when exposed to R-134a.
- Receiver Drier or Accumulator: Replace the receiver drier (for systems with a thermal expansion valve) or the accumulator (for systems with an orifice tube). These components contain a desiccant that absorbs moisture, and they can become saturated over time. A new drier/accumulator will ensure proper moisture removal.
- Orifice Tube or Expansion Valve: Some technicians recommend replacing the orifice tube or thermal expansion valve. This can help optimize system performance with R-134a.
- Hoses: While not always required, replacing the hoses with R-134a compatible hoses is often recommended for older vehicles. R-12 hoses can be permeable to R-134a, leading to leaks over time.
- Compressor Oil: As mentioned before, the correct type of compressor oil (PAG or Ester) must be added according to the vehicle manufacturer's specifications.
- High/Low Pressure Switch: Inspect and replace if necessary.
Retrofit Fittings (if required): R-134a service ports are different from R-12 ports. Adapter fittings are needed to connect R-134a charging equipment to the system. These fittings are typically screw-on adapters that attach to the existing service ports.
Vacuum and Leak Test: Once the system is reassembled, it needs to be evacuated with a vacuum pump to remove any remaining air and moisture. The system should then be leak-tested to ensure that there are no leaks before charging with refrigerant.

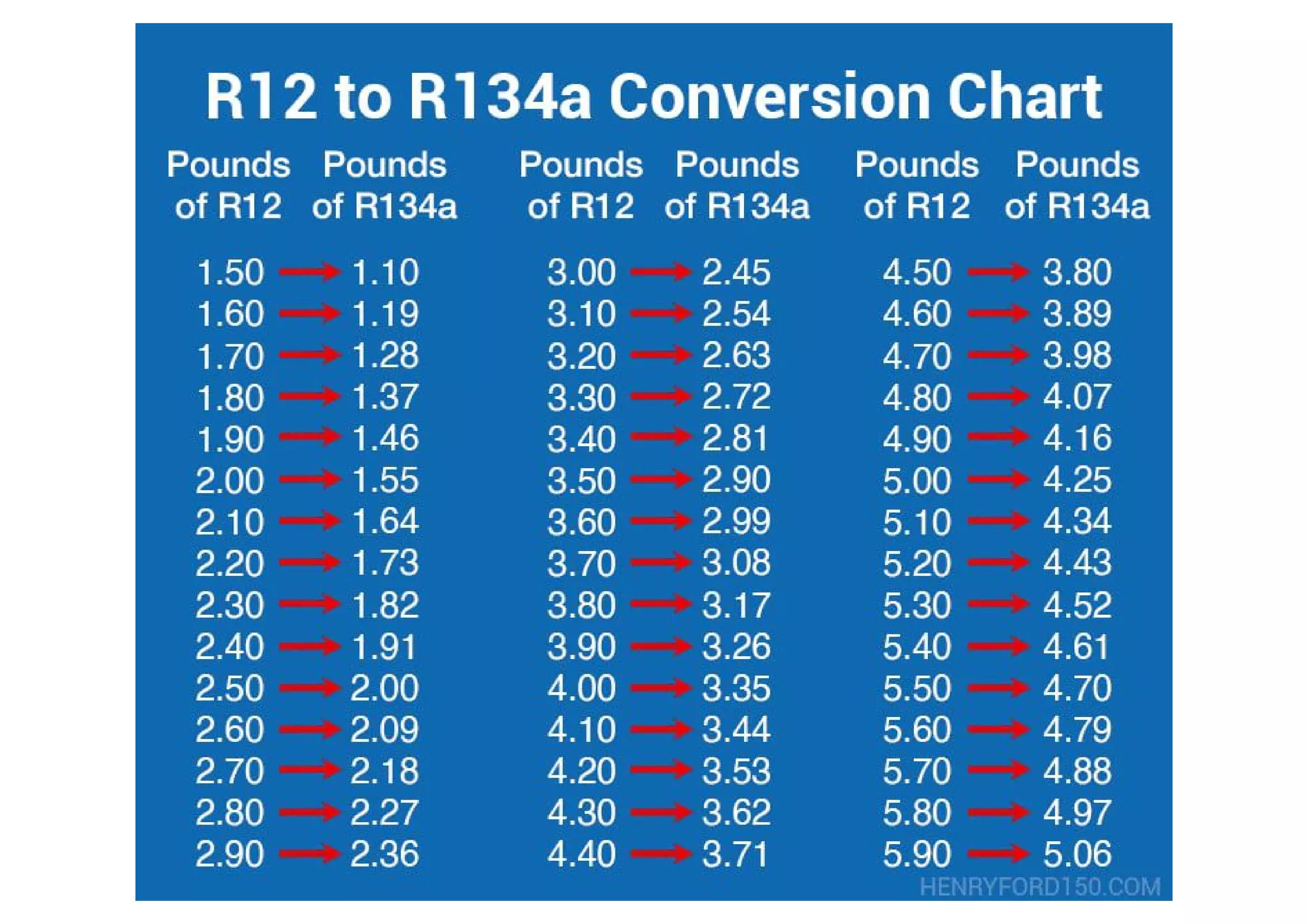

Refrigerant Charge: Finally, the system is charged with the correct amount of R-134a refrigerant. The amount of refrigerant needed for an R-134a conversion is typically slightly less than the original R-12 charge. Your technician will have the proper charts and specifications.

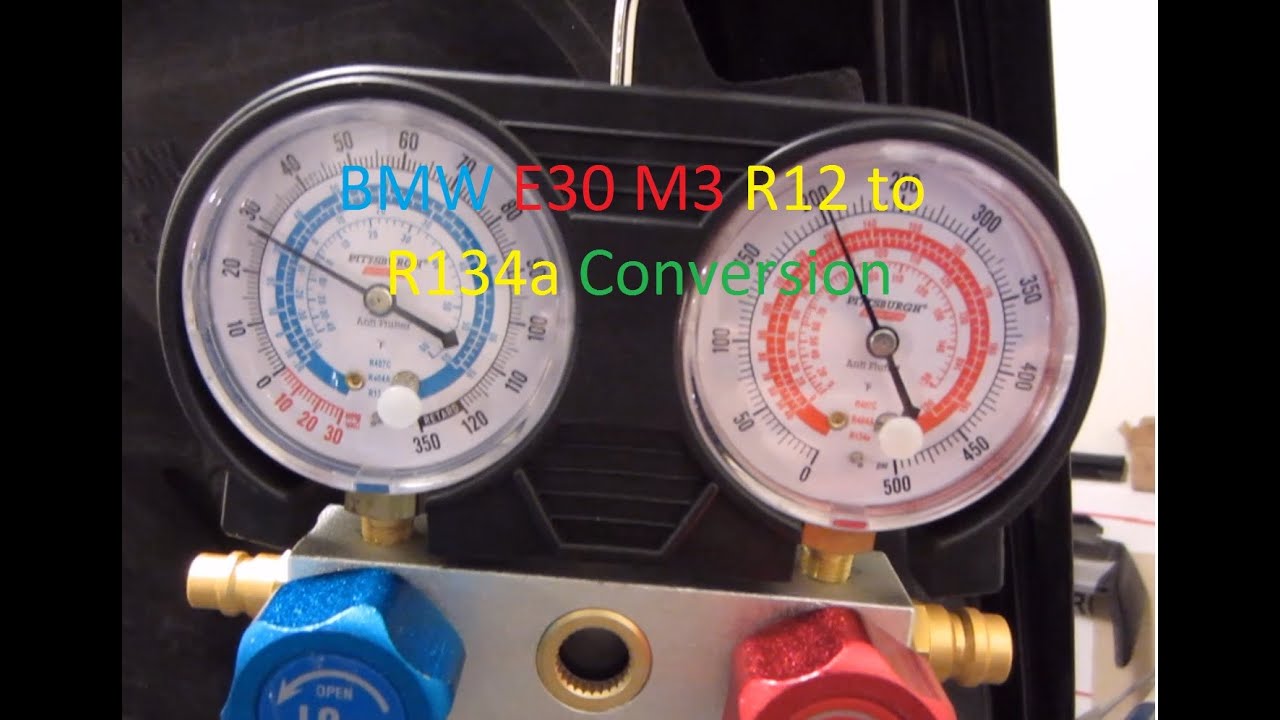

Performance Check: After charging, the technician will check the system's performance, including vent temperature and compressor pressures, to ensure that it is cooling properly.

Cost Estimates and Shop Advice

The cost of converting from R-12 to R-134a can vary depending on several factors, including the make and model of your vehicle, the extent of the work required, and the labor rates in your area. Here's a general estimate:

Basic Conversion (O-rings, fittings, refrigerant): $200 - $400
More Comprehensive Conversion (including receiver drier, hoses, etc.): $400 - $800+
Compressor Replacement (if needed): Add $300 - $800+ (including labor)

Shop Advice:

Get multiple quotes: Contact several reputable AC repair shops in your area and get estimates for the conversion.
Ask about warranty: Inquire about the warranty offered on the work performed.
Choose a qualified technician: Make sure the technician is experienced in AC repair and has the proper equipment for R-12 recovery and R-134a charging.
Discuss component replacement options: Talk to the technician about which components are essential to replace and which are optional, based on the condition of your system.

Important Note: Some "drop-in" R-12 replacements exist (like R414B, also known as Hot Shot). While these might seem easier, they often don't perform as well as a proper R-134a conversion and might still require some component changes. A full R-134a conversion remains the most reliable long-term solution.

Credibility and Common Issues

Many online forums and communities dedicated to classic and vintage cars contain vast amounts of information on R-12 to R-134a conversions. These discussions often highlight the importance of proper flushing and oil selection for optimal system performance and longevity. While official TSBs (Technical Service Bulletins) from vehicle manufacturers typically don't cover R-12 to R-134a conversions directly, they can provide valuable information about AC system components and operation, which can be helpful during the conversion process.

A common mileage for AC system issues to appear is around 80,000 to 120,000 miles, or after 10-15 years of use. Seals and hoses degrade over time, leading to leaks and reduced performance. Compressor failures can also occur due to age, wear, or low refrigerant levels. Regular AC system maintenance, including leak checks and refrigerant recharges, can help prevent these issues and extend the life of your AC system.

By understanding the process and potential costs involved, you can make an informed decision about converting your R-12 AC system to R-134a. A well-executed conversion can restore your AC's cooling power and provide years of reliable service.
