How To Depressurize A Fuel System

Is your car sputtering, stalling, or refusing to start after sitting for a while? You might be facing a fuel system pressure issue. Safely depressurizing your fuel system is often a necessary step for many DIY repairs, from replacing a fuel filter to working on fuel injectors. Understanding why and how to do this properly is crucial for your safety and your car's well-being.

Why Depressurize Your Fuel System?

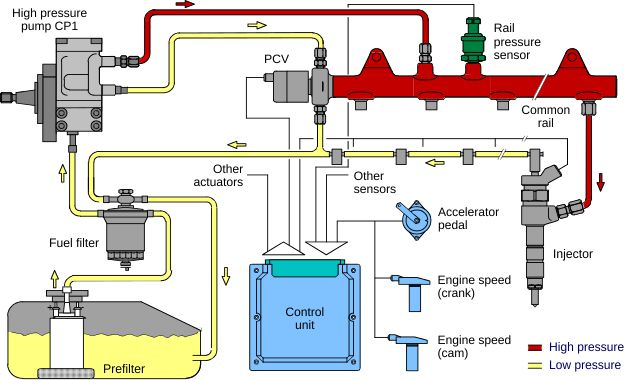

The fuel system in your vehicle operates under significant pressure, often around 40-60 PSI, and sometimes even higher in modern direct injection systems. This pressure ensures that the fuel injectors can deliver a fine mist of fuel into the engine cylinders for efficient combustion. However, when working on components of the fuel system, this pressure poses a serious safety risk. Imagine disconnecting a fuel line with that pressure still present - you'll be met with a potentially dangerous spray of fuel, which is highly flammable and can cause serious injury. Depressurizing the system removes this hazard, allowing you to work safely.

Symptoms of a Fuel System Pressure Problem

While depressurizing the fuel system is a procedure, it's important to recognize the symptoms that might lead you to suspect a fuel pressure issue in the first place. Keep an eye out for the following:

• Hard starting or no start: The engine cranks but doesn't fire up, especially after the car has been sitting for a while.
• Rough idling: The engine idles unevenly, stumbles, or shakes.
• Stalling: The engine dies unexpectedly, particularly at low speeds or when coming to a stop.
• Poor acceleration: The engine feels sluggish and lacks power when accelerating.
• Hesitation: The engine hesitates or stumbles when you press the accelerator pedal.
• Poor fuel economy: You're getting fewer miles per gallon than usual.
• Fuel smell: A distinct smell of gasoline, especially near the engine or fuel tank.
• Check engine light: The check engine light may illuminate with codes related to fuel pressure or fuel trim. Common codes include P0087 (Fuel Rail/System Pressure Too Low), P0088 (Fuel Rail/System Pressure Too High), and P0171/P0174 (System Too Lean).

Root Cause of Fuel Pressure Problems

Several factors can contribute to fuel pressure issues. Common culprits include:

• Faulty fuel pump: The fuel pump is responsible for delivering fuel from the tank to the engine. A failing fuel pump may not be able to maintain adequate pressure.
• Clogged fuel filter: A dirty fuel filter restricts fuel flow, leading to low pressure.
• Leaking fuel injectors: Injectors that leak allow fuel pressure to drop, especially when the engine is off.
• Faulty fuel pressure regulator: The fuel pressure regulator maintains a consistent pressure in the fuel rail. A malfunctioning regulator can cause pressure to be too high or too low.
• Fuel line leaks: Leaks in the fuel lines allow fuel to escape, reducing pressure.
• Vacuum leaks: Vacuum leaks can affect the fuel pressure regulator, leading to pressure fluctuations.

It's worth noting that fuel pump failures often become more prevalent after around 100,000-150,000 miles, though this can vary depending on the vehicle and driving conditions. Also, remember to check for any relevant Technical Service Bulletins (TSBs) related to your vehicle's make and model. These bulletins often address known issues and provide specific diagnostic and repair procedures.

What Happens If Ignored?

Ignoring fuel system pressure problems can lead to several negative consequences:

• Engine damage: Low fuel pressure can cause the engine to run lean, leading to overheating and potential damage to engine components like pistons and valves.
• Catalytic converter damage: A lean-running engine can also damage the catalytic converter.
• Increased emissions: Fuel pressure problems can lead to increased emissions and failure to pass emissions tests.
• Poor performance: Reduced power, stalling, and hesitation can make the vehicle difficult and unsafe to drive.
• Complete engine failure: In severe cases, a prolonged lack of fuel pressure can lead to catastrophic engine failure.
• Safety hazard: As mentioned earlier, attempting to work on a pressurized fuel system poses a significant safety risk due to the flammability of gasoline.

Recommended Fixes: Depressurizing the Fuel System

Before tackling any fuel system repairs, depressurizing the system is paramount. Here are two common methods:

Method 1: Disconnecting the Fuel Pump Relay or Fuse

This is often the simplest and safest method. Here's how:

1. Locate the fuel pump relay or fuse: Consult your vehicle's owner's manual or a repair manual to identify the location of the fuel pump relay or fuse. These are usually located in the fuse box, either under the hood or inside the passenger compartment.
2. Remove the relay or fuse: Carefully remove the fuel pump relay or fuse using a fuse puller or pliers.
3. Start the engine: Start the engine and let it run until it stalls. This will consume the remaining fuel in the fuel lines and reduce the pressure. It might take a few seconds, and the engine may run roughly before stalling.
4. Crank the engine again (optional): Crank the engine for a few more seconds to ensure that any remaining pressure is relieved.
5. Replace the relay or fuse: Once you've completed your repairs, replace the fuel pump relay or fuse.
6. Verify proper operation: Start the engine and verify that it runs smoothly. Check for any fuel leaks before driving the vehicle.

Method 2: Using a Fuel Pressure Relief Tool

This method involves using a specialized tool to bleed off the fuel pressure. This is sometimes necessary for systems where the relay method isn't effective, or if you need to measure the initial fuel pressure before depressurizing.

1. Locate the Schrader valve: Most vehicles have a Schrader valve (similar to a tire valve) on the fuel rail. This is typically located near the fuel injectors. Consult your repair manual for the exact location.
2. Connect the fuel pressure relief tool: Attach the fuel pressure relief tool to the Schrader valve. Make sure the tool is properly seated to prevent fuel leaks.
3. Relieve the pressure: Slowly open the valve on the fuel pressure relief tool to bleed off the fuel pressure. Direct the fuel into a suitable container, such as a fuel-safe can or bottle.
4. Monitor the pressure: Some fuel pressure relief tools have a gauge that allows you to monitor the fuel pressure as it decreases.
5. Disconnect the tool: Once the fuel pressure has been completely relieved, disconnect the tool from the Schrader valve.
6. Dispose of fuel properly: Safely dispose of the collected fuel according to local regulations.

Important Safety Precautions:

• Work in a well-ventilated area: Gasoline fumes are flammable and can be harmful if inhaled.
• Wear safety glasses: Protect your eyes from fuel splashes.
• Avoid sparks or open flames: Gasoline is highly flammable.
• Have a fire extinguisher nearby: Just in case!
• Disconnect the negative battery cable: This will help prevent accidental electrical sparks.
• Use proper tools: Using the correct tools will help you avoid damaging fuel system components.

Cost Estimates and Shop Advice

If you're not comfortable performing these procedures yourself, it's best to take your vehicle to a qualified mechanic. The cost of diagnosing and repairing fuel system problems can vary depending on the issue. A simple fuel filter replacement might cost around $50-$150, while a fuel pump replacement could range from $300 to $1000 or more, including parts and labor. Diagnosing more complex issues, such as a faulty fuel pressure regulator or leaking injectors, can also add to the cost.

When choosing a mechanic, look for one with experience in fuel system diagnosis and repair. Ask for a detailed estimate before authorizing any work. Be sure to inquire about any applicable warranties on parts and labor. A reputable shop will be happy to answer your questions and explain the repair process in detail.

Remember, safety is paramount when working with fuel systems. If you're unsure about any step of the process, don't hesitate to seek professional assistance. Taking a little extra time and care can save you time, money, and potential injury in the long run.
