How To Determine Which Tire Pressure Sensor Is Bad

Modern vehicles rely heavily on electronic systems to ensure optimal performance, safety, and fuel efficiency. One such system is the Tire Pressure Monitoring System (TPMS), designed to alert the driver when tire pressure drops below a safe level. While incredibly useful, TPMS can sometimes trigger false alarms, and identifying which sensor is faulty can be a frustrating task. This guide will walk you through the process of pinpointing a bad tire pressure sensor, offering a step-by-step approach suitable for experienced DIYers.

Understanding TPMS: A Technical Overview

The Tire Pressure Monitoring System is more than just a simple warning light. It's a sophisticated network of sensors, a receiver, and a control module working in harmony. To effectively troubleshoot, you need a basic understanding of how each component functions.

Direct vs. Indirect TPMS

It's crucial to distinguish between Direct and Indirect TPMS, as their operating principles differ significantly.

• Direct TPMS: This type utilizes individual pressure sensors mounted inside each tire. These sensors measure the actual tire pressure and temperature, transmitting this data wirelessly to the vehicle's central control module, typically the Body Control Module (BCM) or TPMS control unit. Each sensor has a unique identifier (ID) that the system learns during the initial setup (or relearn procedure). If a sensor detects low pressure, it sends a signal that triggers the warning light on the dashboard.
• Indirect TPMS: This system infers tire pressure by monitoring the rotational speed of each wheel via the Anti-lock Braking System (ABS). A tire with lower pressure will have a slightly smaller diameter, causing it to rotate faster than the other tires. The ABS control module detects these subtle differences in wheel speed and uses an algorithm to estimate tire pressure. Indirect TPMS is less precise than direct TPMS and is more susceptible to false alarms, especially after tire rotations or changes.

This article focuses primarily on diagnosing issues in Direct TPMS systems, as they are the more common and complex of the two.

Components of a Direct TPMS

A typical direct TPMS comprises the following:

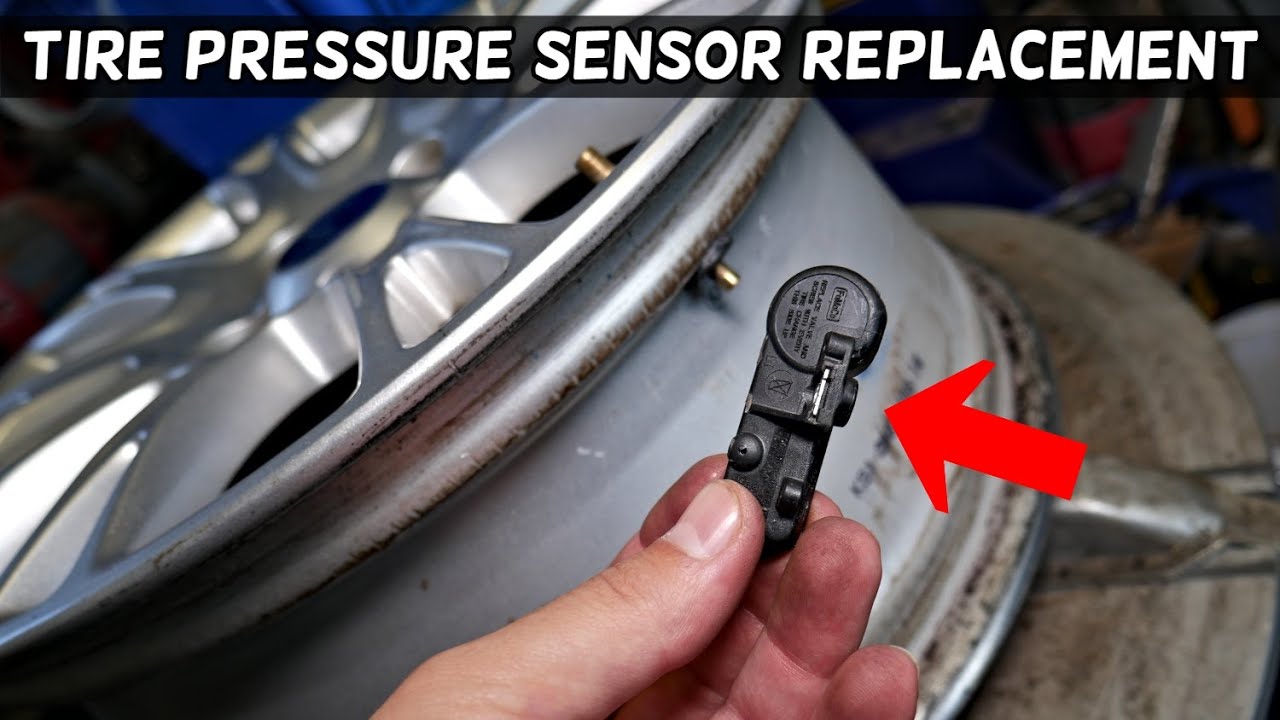

• Tire Pressure Sensors: Located inside each wheel, these units measure pressure and temperature. They are usually battery-powered and have a limited lifespan (typically 5-10 years).
• Receiver/Antenna: This unit receives the signals transmitted by the sensors. It's often integrated into the BCM or a dedicated TPMS control module.
• TPMS Control Module (if applicable): Processes the sensor data and communicates with the vehicle's CAN (Controller Area Network) bus.
• Instrument Cluster: Displays the warning light and, in some advanced systems, individual tire pressure readings.
• CAN Bus: The communication network that allows different electronic modules in the vehicle to exchange information.

Diagnosing a Faulty TPMS Sensor: The Technical Breakdown

Identifying a bad TPMS sensor requires a systematic approach. Here's a step-by-step guide:

1. Visual Inspection: Start by visually inspecting each tire for signs of damage, such as punctures, cuts, or bulges. Check the tire pressure manually using a reliable gauge. Ensure all tires are inflated to the recommended pressure specified on the vehicle's door placard or in the owner's manual. Incorrect tire pressure can sometimes trigger false TPMS warnings.

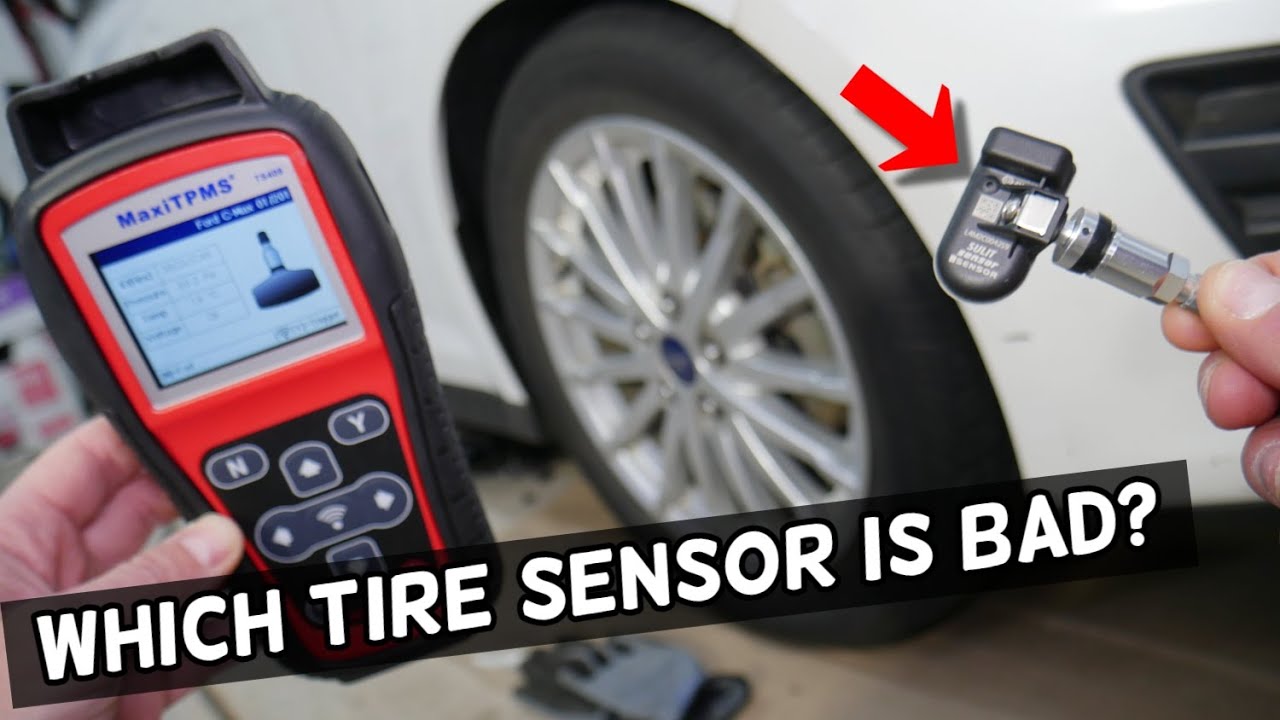

2. Using a TPMS Scan Tool: This is the most effective method for diagnosing TPMS issues. A TPMS scan tool can communicate with the sensors, read their IDs, pressure readings, temperature readings, and battery status.

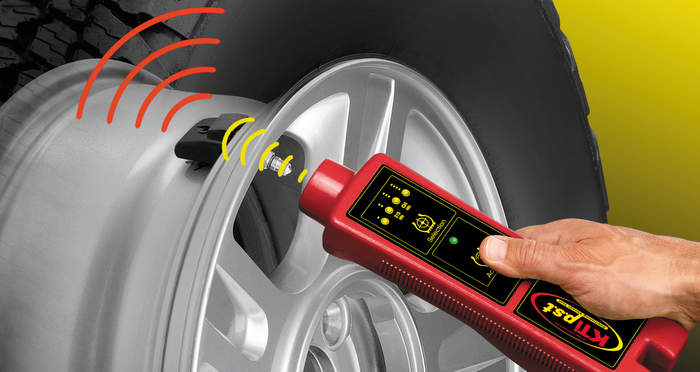

   • Tool Activation: Most TPMS scan tools require you to "activate" each sensor individually by holding the tool near the sensor valve stem. The tool sends a radio frequency (RF) signal that wakes up the sensor and prompts it to transmit data.
   • Data Interpretation: The scan tool will display the data received from each sensor. Pay attention to the following:
     • Sensor ID: Verify that the sensor IDs match the IDs stored in the vehicle's TPMS control module. Mismatched IDs can occur after tire rotations or sensor replacements if the system wasn't properly relearned.
     • Pressure Reading: Compare the pressure reading from each sensor to the actual tire pressure you measured manually. A significant discrepancy indicates a faulty sensor.
     • Temperature Reading: While not always a primary indicator of failure, an unusually high or low temperature reading could suggest a sensor malfunction.
     • Battery Status: If the scan tool indicates a low battery, the sensor needs to be replaced. TPMS sensor batteries are not typically replaceable as the sensor is a sealed unit.
     • Error Codes: The scan tool may display Diagnostic Trouble Codes (DTCs) related to the TPMS. These codes provide valuable information about the nature of the problem. Common DTCs include:
       • C0605: Tire Pressure Monitoring (TPM) Sensor Malfunction
       • C0615: Tire Pressure Monitoring (TPM) Sensor ID Incorrect
       • C0620: Tire Pressure Monitoring (TPM) System Malfunction
       • C0750-C0754: Tire Pressure Sensor Fault (specific tire location)
3. Relearn Procedure: After replacing a TPMS sensor or rotating tires, you need to perform a relearn procedure. This procedure allows the vehicle's TPMS control module to learn the new sensor IDs and their corresponding locations. There are typically three types of relearn procedures:
   • Auto Relearn: Some vehicles automatically relearn the sensor IDs after a short drive (typically 10-20 minutes at speeds above 25 mph).
   • OBD Relearn: This method requires a TPMS scan tool to program the sensor IDs into the vehicle's TPMS control module via the OBD-II port.
   • Manual Relearn: This procedure involves a specific sequence of actions (e.g., inflating/deflating tires to specific pressures, turning the ignition on/off) that must be followed precisely. Consult your owner's manual for the correct manual relearn procedure for your vehicle.
4. Checking the Wiring and Connections: In rare cases, the issue may not be with the sensor itself but with the wiring or connections between the receiver and the TPMS control module. Inspect the wiring harness for damage, corrosion, or loose connections. Use a multimeter to check for continuity and voltage at the receiver.

Common TPMS Issues and Maintenance Concerns

Several factors can contribute to TPMS problems:

• Battery Failure: The most common cause of TPMS sensor failure is battery depletion. TPMS sensor batteries typically last 5-10 years.
• Physical Damage: Sensors can be damaged by impacts, corrosion, or improper installation/removal during tire changes.
• Valve Stem Corrosion: Corrosion around the valve stem can interfere with the sensor's operation.
• Environmental Factors: Extreme temperatures, humidity, and road salt can accelerate sensor deterioration.
• Incorrect Installation: Improperly installed sensors can leak air or fail to transmit data correctly.

Maintenance Tips:

• Use Proper Torque Specifications: When installing TPMS sensors, always use a torque wrench to tighten the valve stem nut to the manufacturer's specified torque. Overtightening can damage the sensor, while undertightening can cause air leaks.

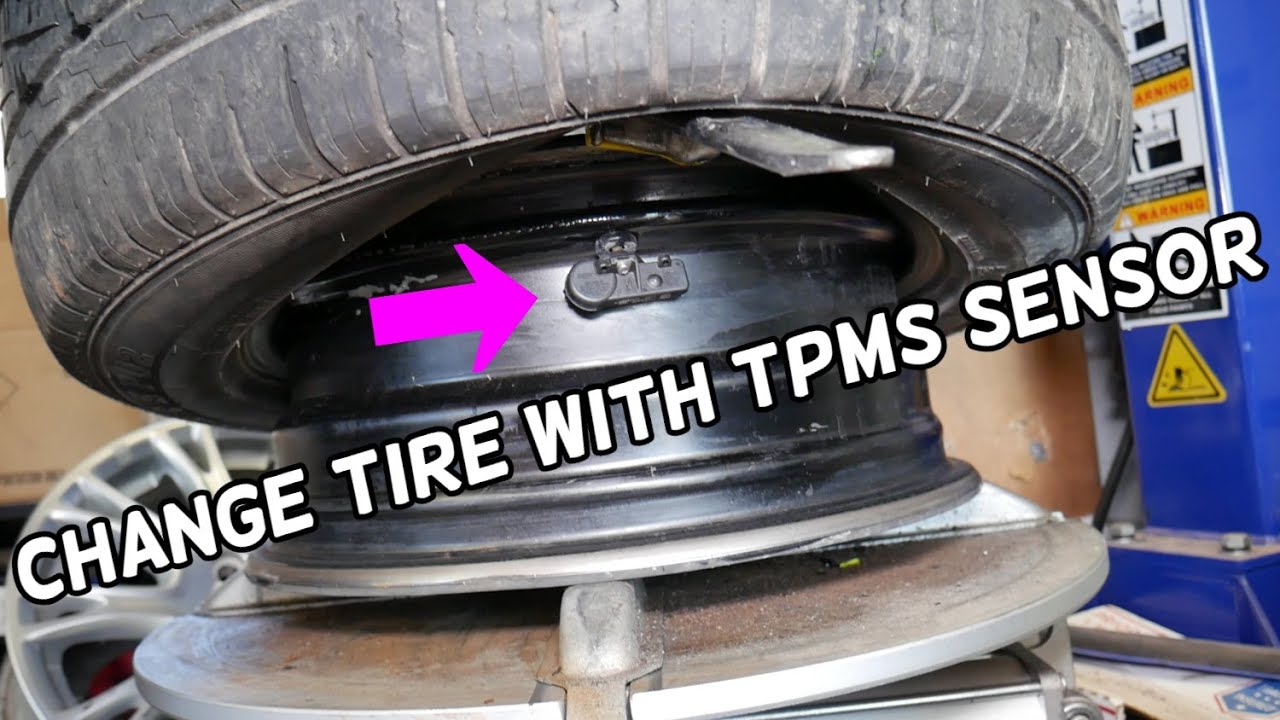

• Replace Service Kits: When replacing tires, consider replacing the TPMS sensor service kits (valve core, seal, and nut). These components are relatively inexpensive and can help prevent leaks and corrosion.
• Regularly Check Tire Pressure: Maintaining proper tire pressure extends the life of your tires and ensures optimal TPMS performance.
• Avoid Tire Sealants: Some tire sealants can damage TPMS sensors. If you use a tire sealant, choose one that is TPMS-safe.

Do's and Don'ts / Best Practices

• Do use a TPMS scan tool to diagnose TPMS problems accurately.
• Do check the battery status of the sensors using a scan tool.
• Do perform a relearn procedure after replacing sensors or rotating tires.
• Do use proper torque specifications when installing sensors.
• Do replace service kits when replacing tires.
• Don't assume a low tire pressure warning is always a faulty sensor; check the tire pressure manually first.
• Don't ignore TPMS warnings; low tire pressure can compromise safety and fuel efficiency.
• Don't overtighten the valve stem nut when installing sensors.
• Don't use incompatible tire sealants.
• Don't forget to consult your vehicle's owner's manual for specific TPMS information and relearn procedures.

Conclusion

Diagnosing a faulty TPMS sensor requires a combination of visual inspection, specialized tools, and a systematic approach. While you can attempt basic troubleshooting yourself, using a TPMS scan tool is essential for accurate diagnosis and proper sensor programming. If you're not comfortable working with electronic systems or lack the necessary tools, it's best to consult a qualified mechanic. A correct diagnosis and repair will ensure your TPMS functions correctly, improving safety and maintaining optimal tire performance. Investing in a decent TPMS scan tool can save you money and time in the long run, especially if you regularly work on your vehicles or own multiple cars. Remember safety first, and if ever in doubt, seek professional assistance.
