How To Determine Which Tpms Sensor Is Bad

Knowing which Tire Pressure Monitoring System (TPMS) sensor is malfunctioning can save you time and money. Instead of replacing all four sensors, this guide will equip you with the knowledge to diagnose the faulty one and perform a targeted repair. A malfunctioning TPMS sensor can trigger the TPMS warning light, causing anxiety and potentially leading to unnecessary trips to the mechanic. Accurately identifying the bad sensor allows for a focused repair, ensuring optimal tire pressure monitoring and safety.

Understanding TPMS: The Basics

The Tire Pressure Monitoring System is an electronic system designed to monitor the air pressure inside your tires. Its primary function is to alert the driver when tire pressure drops below a critical level, preventing potential accidents and improving fuel efficiency. There are two main types of TPMS: direct and indirect.

Direct TPMS

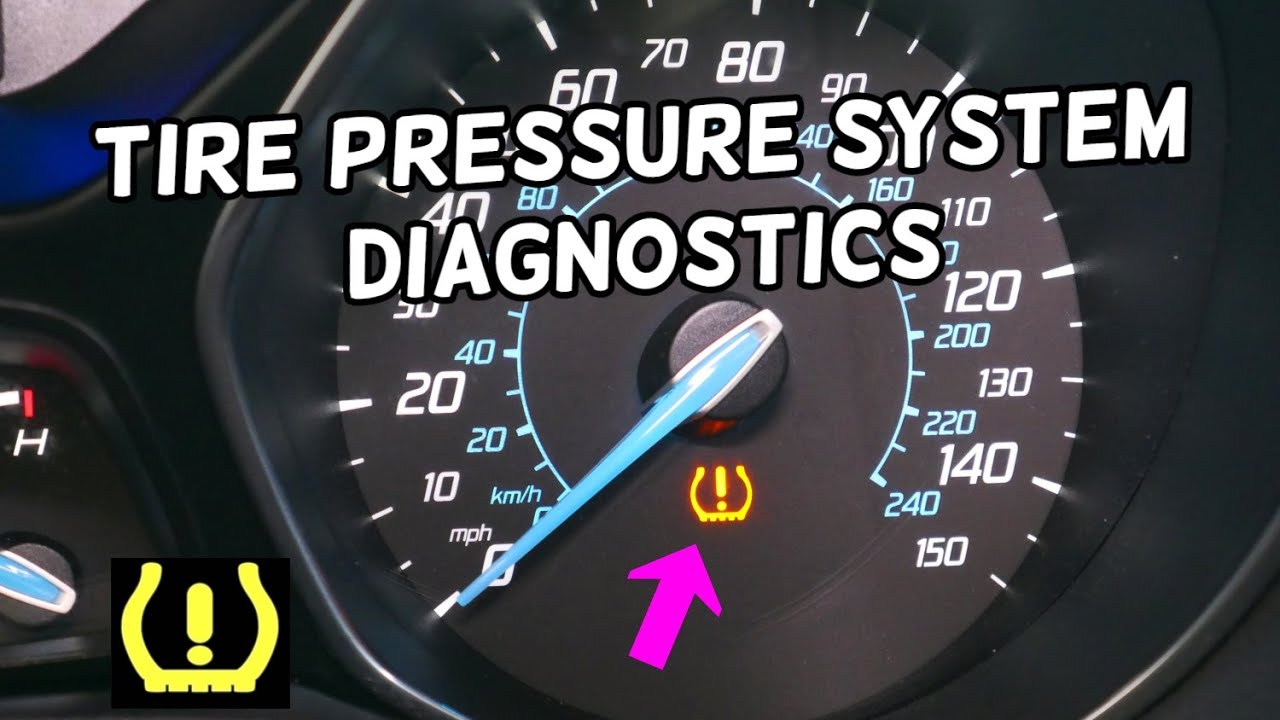

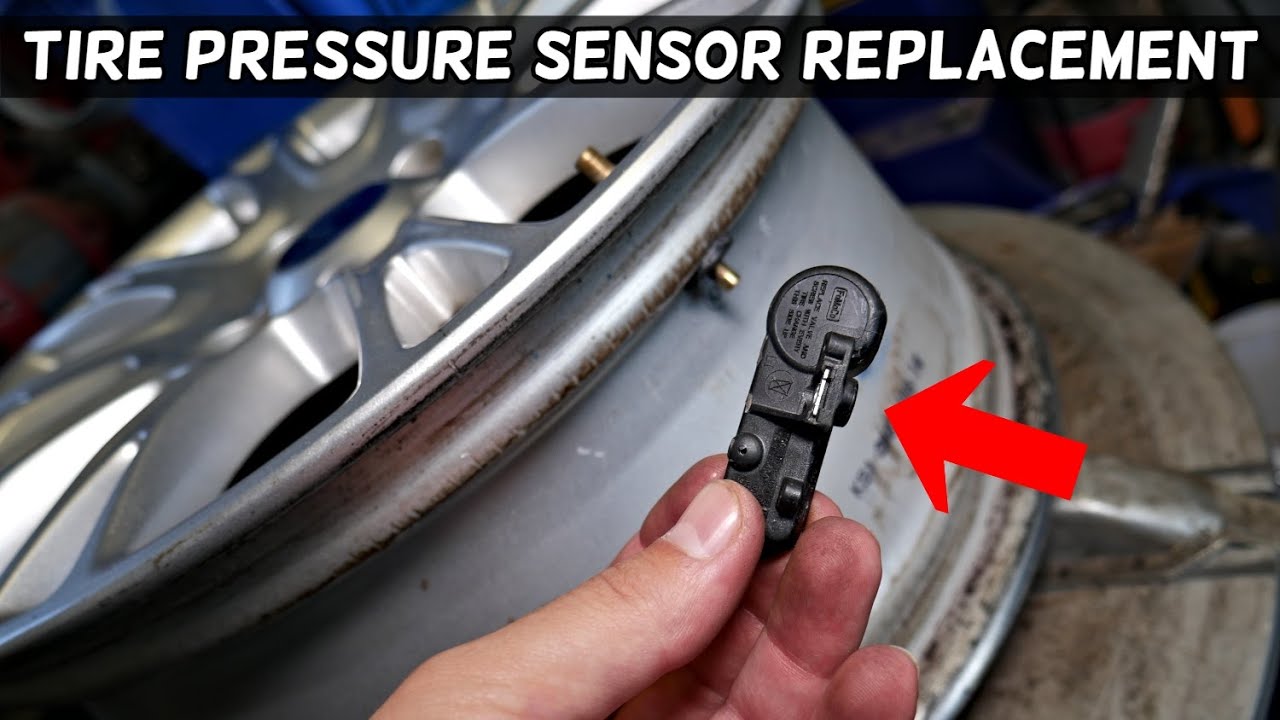

Direct TPMS uses pressure sensors mounted inside each wheel. These sensors measure the actual tire pressure and temperature and transmit this data wirelessly to the vehicle's onboard computer (ECU). Each sensor has a unique ID that the ECU recognizes. When a tire's pressure falls below a predetermined threshold (usually around 25% below the recommended pressure), the TPMS warning light illuminates on the dashboard.

Indirect TPMS

Indirect TPMS, on the other hand, doesn't use physical pressure sensors inside the tires. Instead, it relies on the vehicle's Anti-lock Braking System (ABS) wheel speed sensors. The system monitors the rotational speed of each wheel. When a tire loses pressure, its rolling radius decreases, causing it to spin faster than the other tires. The ABS system detects this difference in wheel speed and interprets it as a low-pressure condition, triggering the TPMS warning light. Indirect TPMS is less accurate than direct TPMS and may require recalibration after tire inflation or rotation.

Technical Breakdown: Diagnosing a Faulty TPMS Sensor (Direct TPMS)

Diagnosing a faulty TPMS sensor in a direct TPMS system typically involves using a TPMS scan tool. These tools can communicate with the sensors, read their data, and identify any errors. Here's a step-by-step process:

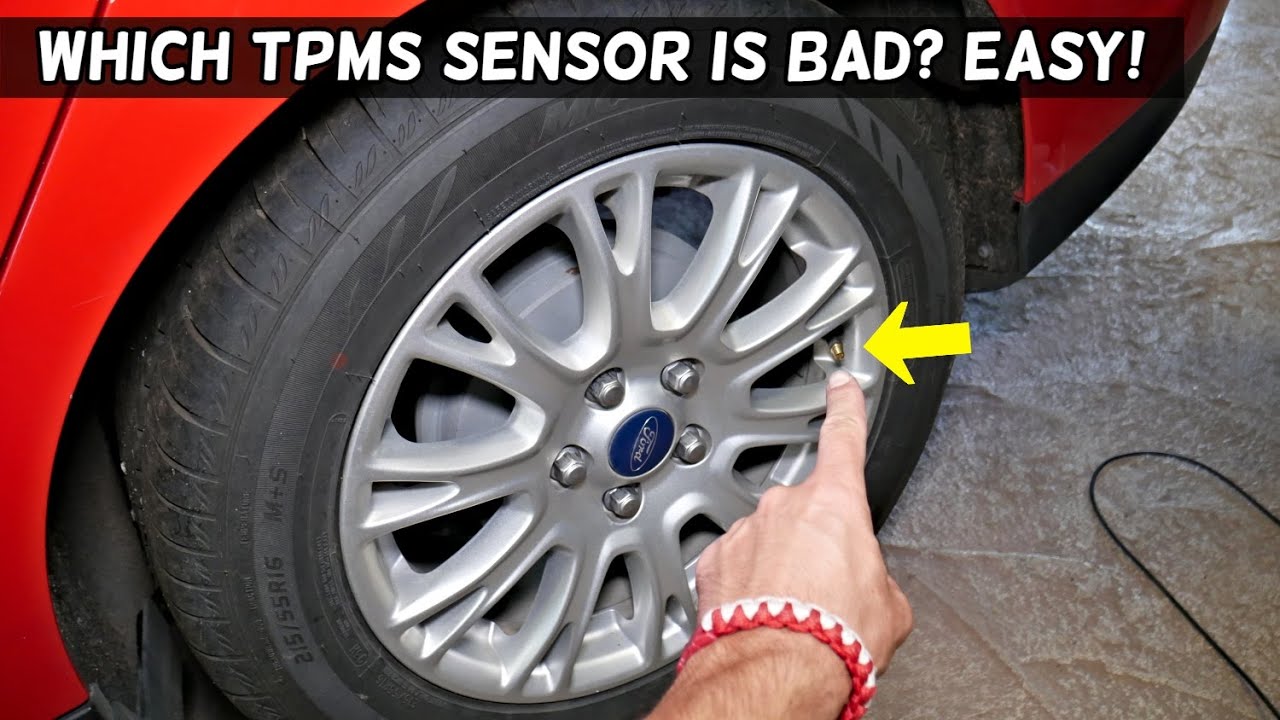

Visual Inspection: Begin with a visual inspection of all tires. Look for any obvious signs of damage, such as punctures, cuts, or bulges. Check the tire pressure manually with a reliable tire pressure gauge to confirm the reading against the vehicle's recommended pressure.

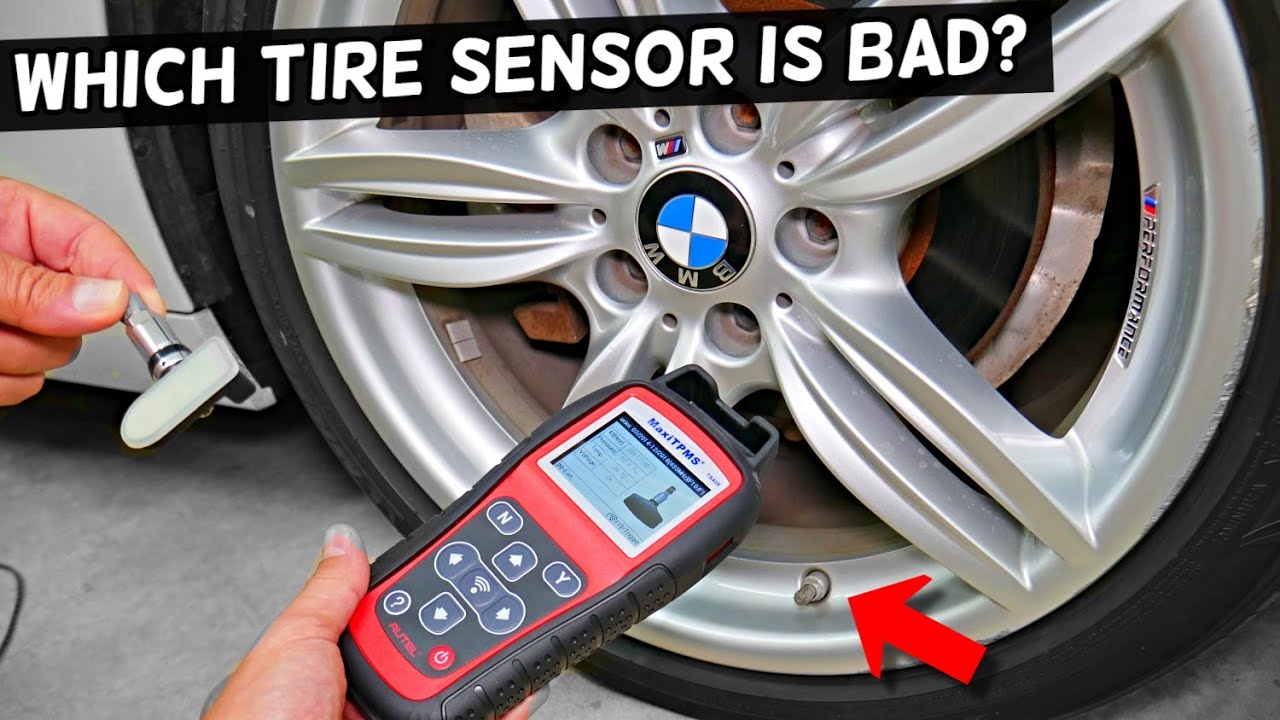

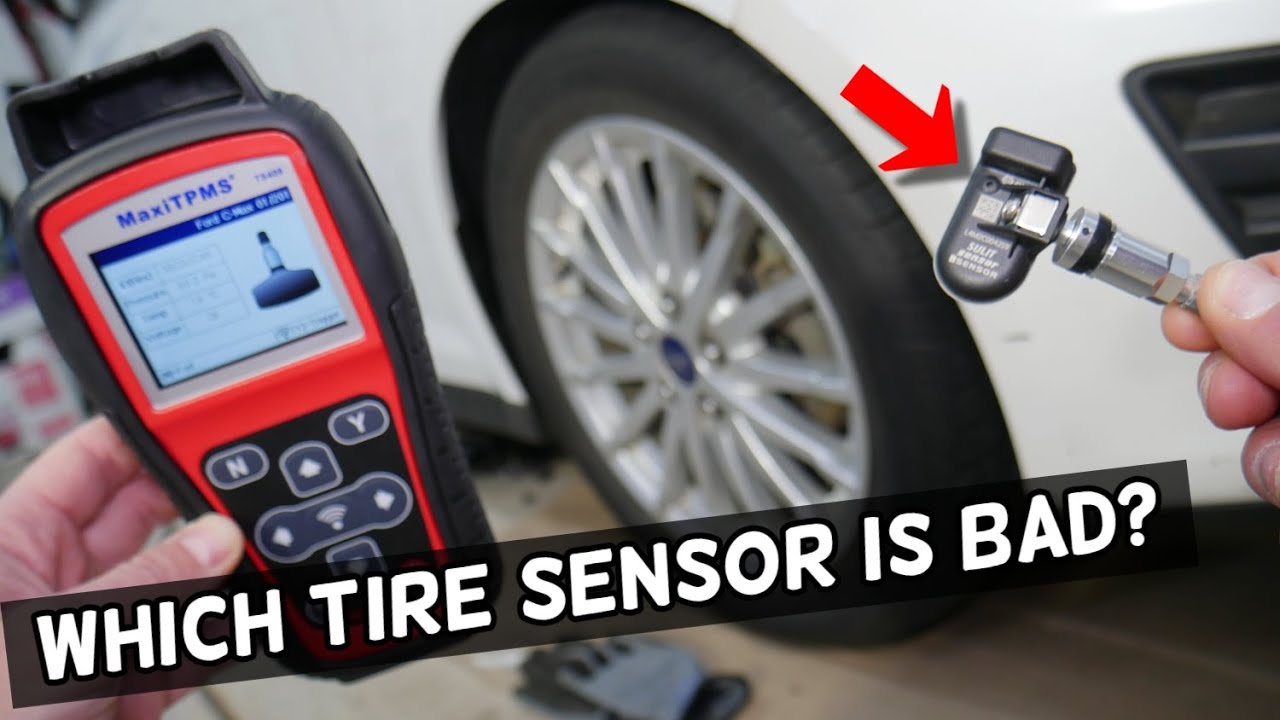

Accessing the TPMS Data: Use a TPMS scan tool to access the TPMS data. Most tools require you to enter the vehicle's make, model, and year to ensure compatibility. The tool will then communicate with the TPMS sensors, displaying information such as:
- Sensor ID: A unique identifier for each sensor.
- Tire Pressure: The current pressure reading from the sensor.
- Tire Temperature: The temperature of the air inside the tire.
- Battery Status: An indication of the sensor's battery life.
- Sensor Status: An overall status of the sensor (e.g., "OK," "Faulty," "Low Battery").
Interpreting the Data: Analyze the data displayed by the scan tool. If a sensor shows a "Faulty" status, a significantly different pressure reading compared to a manual gauge, a "Low Battery" warning (especially if the sensor is relatively new), or no reading at all, it is likely the culprit. Pay attention to the Sensor ID, as you'll need this information if you decide to replace the sensor yourself.
Using a TPMS Relearn Tool (If Necessary): After replacing a TPMS sensor, you may need to perform a relearn procedure. This process teaches the vehicle's ECU the new sensor ID. Some vehicles have an auto-relearn function, which automatically detects the new sensor after a short drive. However, other vehicles require a manual relearn procedure using a TPMS relearn tool. The procedure varies depending on the vehicle make and model, so consult your owner's manual or a repair database for specific instructions. Common relearn methods include:
- OBDII Relearn: This method involves connecting the relearn tool to the vehicle's OBDII port (usually located under the dashboard) and following the tool's instructions.
- Auto-Relearn (Drive Cycle): This method requires driving the vehicle for a specific period of time at a certain speed to allow the ECU to learn the new sensor ID.
- Stationary Relearn: This method involves using the relearn tool to trigger each sensor in a specific sequence while the vehicle is stationary.
Confirming the Repair: After replacing the faulty sensor and performing the relearn procedure, use the TPMS scan tool to verify that the new sensor is communicating correctly with the ECU and that the tire pressure readings are accurate. Clear any diagnostic trouble codes (DTCs) related to the TPMS system.

Common TPMS Issues and Maintenance Concerns

Several factors can contribute to TPMS sensor failure, including:

Battery Failure: TPMS sensors are battery-powered devices, and their batteries have a limited lifespan, typically 5-10 years. Battery failure is the most common cause of sensor malfunction.
Physical Damage: Sensors can be damaged by impacts, such as hitting potholes or curbs, or during tire replacement.
Corrosion: Corrosion can occur due to exposure to moisture, salt, and other contaminants. This can damage the sensor's internal components.
Valve Stem Issues: The valve stem, which is part of the TPMS sensor assembly, can become corroded or damaged, leading to air leaks.
Incorrect Installation: Improper installation of TPMS sensors can damage the sensor or prevent it from functioning correctly.

Maintenance Tips:

Regular Tire Pressure Checks: Maintaining proper tire pressure can help prolong the life of TPMS sensors.
Proper Tire Rotation: Rotating your tires regularly can help ensure even wear and tear on the sensors.
Professional Tire Service: When having your tires serviced, make sure the technician is experienced in handling TPMS sensors.
Replace Valve Stem Caps: Use valve stem caps to protect the valve stems from dirt and moisture.

Do's and Don'ts / Best Practices

Do's:

Do use a reputable TPMS scan tool for accurate diagnosis.
Do consult your vehicle's owner's manual or a repair database for specific TPMS relearn procedures.
Do replace the TPMS sensor if the battery is low, even if it's still functioning. This will prevent future problems.
Do torque the TPMS sensor nut to the manufacturer's specifications to prevent damage.
Do use new service kits (valve core, grommet, nut) when replacing a TPMS sensor.

Don'ts:

Don't ignore the TPMS warning light. Low tire pressure can be dangerous.
Don't assume that a single TPMS sensor failure means all sensors need replacement.
Don't use excessive force when installing TPMS sensors.
Don't overtighten the valve stem cap.
Don't use aftermarket sealants in tires equipped with TPMS sensors. These sealants can damage the sensors.

Conclusion

Diagnosing a faulty TPMS sensor requires a systematic approach and the right tools. By understanding the basics of TPMS technology, following the diagnostic steps outlined in this guide, and adhering to best practices, you can accurately identify and replace the bad sensor, saving time and money. While some aspects of TPMS repair are straightforward, remember that proper installation and relearn procedures are crucial for ensuring the system functions correctly. If you're uncomfortable performing any of these steps, it's always best to consult with a qualified mechanic.
