How To Disable Torque Converter Lock Up

The desire to disable torque converter lock-up (TCLU) in an automatic transmission often stems from a perceived performance bottleneck, particularly in applications where maintaining engine RPM and responsiveness are paramount. Imagine, for instance, climbing a steep off-road trail. Your vehicle lugs as the transmission constantly hunts between locked and unlocked states, robbing you of precious momentum. The question then becomes: is it possible, and if so, how does one effectively disable TCLU? This article will explore the mechanics of TCLU, the rationale behind disabling it, and the practical methods involved, along with the potential benefits and drawbacks.

Understanding the Torque Converter and Lock-Up Clutch

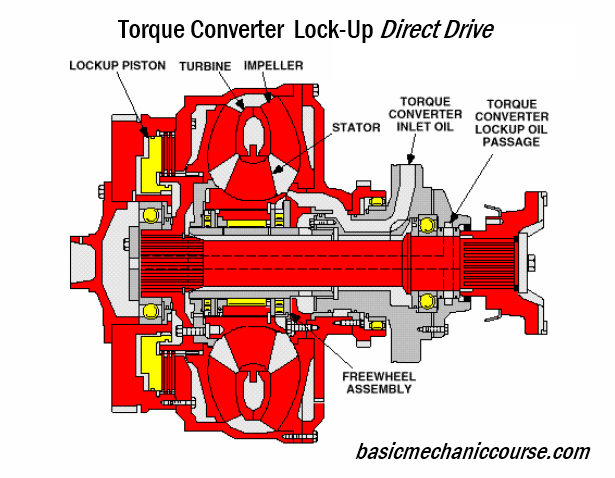

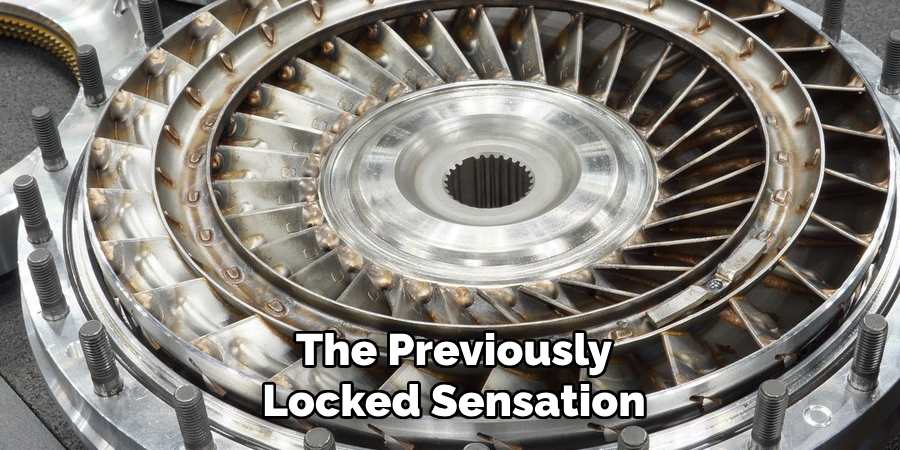

To understand why one might want to disable TCLU, it's crucial to first understand what it is and how it works. The torque converter is a fluid coupling located between the engine and the transmission. Its primary function is to allow the engine to continue spinning even when the vehicle is stopped, preventing stalling. It consists of three main components: the impeller (connected to the engine), the turbine (connected to the transmission), and the stator (a one-way clutch that redirects fluid flow).

Think of it like two fans facing each other. One fan (the impeller) blows air (fluid) onto the other fan (the turbine), causing it to spin. The stator then helps to optimize the airflow, improving efficiency. However, this fluid coupling inherently results in some slippage, particularly at lower speeds. This slippage translates to wasted energy and reduced fuel economy. This is where the lock-up clutch comes in.

The Role of the Lock-Up Clutch

The lock-up clutch is essentially a friction clutch that mechanically connects the impeller and turbine, eliminating the fluid coupling entirely. When engaged, the engine and transmission are directly linked, resulting in a 1:1 relationship. This drastically reduces slippage, improving fuel economy and power transfer, especially at higher speeds. However, it also eliminates the dampening effect of the torque converter, which can sometimes be desirable.

Why Disable Torque Converter Lock-Up?

The motivations for disabling TCLU vary, but common reasons include:

Improved Throttle Response: In certain driving scenarios, such as off-roading or towing, the constant engagement and disengagement of the lock-up clutch can feel jerky and unresponsive. Disabling it allows the torque converter to function as a constant fluid coupling, providing smoother power delivery and better throttle control.
Reduced Driveline Shock: The lock-up clutch can sometimes cause harsh shifts, especially in older vehicles or those with worn transmissions. By disabling it, you can reduce stress on the driveline components.
Lower Transmission Temperatures (Potentially): In some cases, particularly during heavy use where the transmission is frequently shifting and locking/unlocking, disabling the TCLU can reduce heat buildup by preventing rapid changes in fluid dynamics. However, continuous slippage can also generate heat, so this is highly dependent on the specific application.
Diagnostic Purposes: Disabling TCLU can be a useful diagnostic tool. If you suspect a problem with the lock-up clutch or its control system, disabling it can help isolate the issue.

How TCLU is Controlled: A Technical Overview

The engagement and disengagement of the lock-up clutch are typically controlled by the transmission control module (TCM) or, in older vehicles, by vacuum-operated or mechanically-controlled systems. The TCM uses various inputs, such as vehicle speed, throttle position, engine load, and transmission temperature, to determine when to engage or disengage the clutch. This control is usually achieved through a solenoid valve that regulates hydraulic pressure to the clutch actuator. When the TCM wants to engage the lock-up clutch, it energizes the solenoid, allowing hydraulic pressure to flow to the actuator, which then presses the clutch plates together.

Methods for Disabling TCLU

There are several methods for disabling TCLU, each with its own advantages and disadvantages:

Electrical Disconnection: This is often the simplest method. It involves disconnecting the electrical connector to the lock-up solenoid valve. This prevents the TCM from energizing the solenoid, effectively disabling the clutch. However, this can trigger a diagnostic trouble code (DTC) and illuminate the check engine light. It also requires identifying the correct solenoid wire, which varies by vehicle make and model.
Solenoid Interruption: A more sophisticated approach involves installing a switch in the power wire to the lock-up solenoid. This allows you to manually enable or disable TCLU as needed. A suitable switch should be chosen based on the current load, and proper wiring practices should be employed. Again, this might trigger a DTC.
TCM Reprogramming: Some aftermarket tuning software allows you to modify the TCM's programming to disable the lock-up clutch or alter its engagement parameters. This is the most advanced method, requiring specialized knowledge and equipment. It offers the greatest degree of control but also carries the highest risk of damaging the TCM if done incorrectly.
Hydraulic Modification (Less Common): In some older transmissions, it might be possible to physically modify the hydraulic circuits to disable the lock-up clutch. This is generally not recommended unless you have a thorough understanding of transmission hydraulics.

Pros and Cons of Disabling TCLU

Before disabling TCLU, it's essential to weigh the potential benefits against the drawbacks:

Pros:

Improved throttle response in certain driving conditions.
Reduced driveline shock.
Potentially lower transmission temperatures (depending on the scenario).
Diagnostic tool.

Cons:

Reduced fuel economy.
Increased transmission wear due to increased slippage.
Potential for higher transmission temperatures in some situations.
Possible diagnostic trouble codes and check engine light illumination.
Harsh shifting if the transmission is designed to rely on TCLU for smooth shifts.

Use Cases and Manufacturer Examples

Disabling TCLU is more common in certain applications than others:

Off-Roading: As mentioned earlier, off-road enthusiasts often disable TCLU for better throttle control and smoother power delivery on challenging terrain.
Towing: In heavy towing situations, some drivers prefer to disable TCLU to prevent the transmission from constantly hunting between locked and unlocked states, reducing stress on the transmission.
Racing: While less common, some racers might disable TCLU in specific scenarios to maintain engine RPM and responsiveness.

While manufacturers rarely offer a direct way to disable TCLU, some heavy-duty trucks and performance vehicles may have specific tow/haul modes or performance modes that alter the lock-up clutch behavior. For example, certain Ford trucks with the TorqShift transmission have a tow/haul mode that delays the engagement of the lock-up clutch, providing similar benefits to disabling it entirely in specific situations. However, these modes do not completely disable the lockup function; they merely alter its operational parameters.

Real-World Considerations and Recommendations

Disabling TCLU should not be undertaken lightly. It's crucial to carefully consider the potential consequences and whether the benefits outweigh the risks for your specific application. If you're considering disabling TCLU, start by understanding your vehicle's transmission control system and the potential for triggering DTCs.

If you choose to disable TCLU, consider installing a switch that allows you to easily enable or disable it as needed. This gives you the flexibility to optimize performance for different driving conditions. Monitor your transmission temperature closely, especially during heavy use. If you notice excessively high temperatures, consider re-enabling TCLU. Finally, remember that disabling TCLU can increase transmission wear, so be prepared to perform more frequent maintenance.

It is generally recommended to use TCM reprogramming only if you are very familiar with the process, and can revert back to factory settings easily. An improper TCM reprogram can lead to transmission malfunction and severe vehicle drivability issues.
