How To Do A Compression Check

Alright, let's talk compression checks. If you're into DIY car work, especially if you're modifying or troubleshooting engine problems, understanding compression is absolutely crucial. It's a fundamental diagnostic test that tells you a lot about the health of your engine's cylinders. We're going to walk through the process, step-by-step, covering the theory, procedure, and what those numbers really mean.

The Heart of the Matter: Compression and Your Engine

Before we dive into the practical stuff, let's quickly review the basics of an internal combustion engine. We're focusing on the four-stroke cycle here – intake, compression, combustion (or power), and exhaust. It all happens in the cylinder, with the piston moving up and down.

• Intake: The intake valve opens, and the piston moves down, drawing in a mixture of air and fuel (or just air in direct injection systems).
• Compression: The intake valve closes, and the piston moves up, compressing the air-fuel mixture. This increases the temperature and pressure, making it ready for combustion.
• Combustion (Power): The spark plug ignites the compressed mixture. The rapid expansion of gases forces the piston down, creating power.
• Exhaust: The exhaust valve opens, and the piston moves up, pushing the burned gases out of the cylinder.

Compression is the key to this whole process. If the air-fuel mixture isn't properly compressed, combustion will be weak or non-existent, leading to a loss of power, poor fuel economy, and potential engine misfires. A compression test directly measures the peak pressure achieved within each cylinder during the compression stroke. That pressure is a direct indicator of how well that cylinder is sealing.

The Technical Breakdown: How a Compression Test Works

The goal of a compression test is to measure the maximum pressure achieved inside each cylinder when the piston is moving through the compression stroke. You're essentially simulating engine operation but without the actual combustion.

Here's the basic procedure:

1. Preparation:
   • Safety First: Always wear safety glasses. Work in a well-ventilated area. Disconnect the negative battery cable to prevent accidental starting.
   • Warm-Up (Optional): Some technicians prefer to warm up the engine slightly before the test. This can help seat the rings and give a more accurate reading. However, it's not always necessary and can be skipped if you're pressed for time, especially if you're testing for a suspected problem that might be exaggerated by warming.
   • Disable Ignition: Crucially, you need to disable the ignition system to prevent the engine from starting. This usually involves disconnecting the coil packs or the primary wiring to the distributor (depending on your vehicle). For modern vehicles, you may need to remove the fuel pump fuse as well to prevent fuel from being injected into the cylinders. Check your vehicle's repair manual for the specific procedure.
   • Throttle Open: Open the throttle plate fully. This allows maximum airflow into the cylinders during the test. You can do this manually by holding the throttle linkage open or having an assistant do it while you perform the test.
   • Spark Plug Removal: Remove all the spark plugs. This is best done when the engine is cool enough to touch the spark plugs without burning yourself. Use a spark plug socket of the correct size to avoid damaging the spark plugs. Inspect the spark plugs for signs of wear, fouling, or damage. This can give you clues about the condition of each cylinder.
2. Performing the Test:

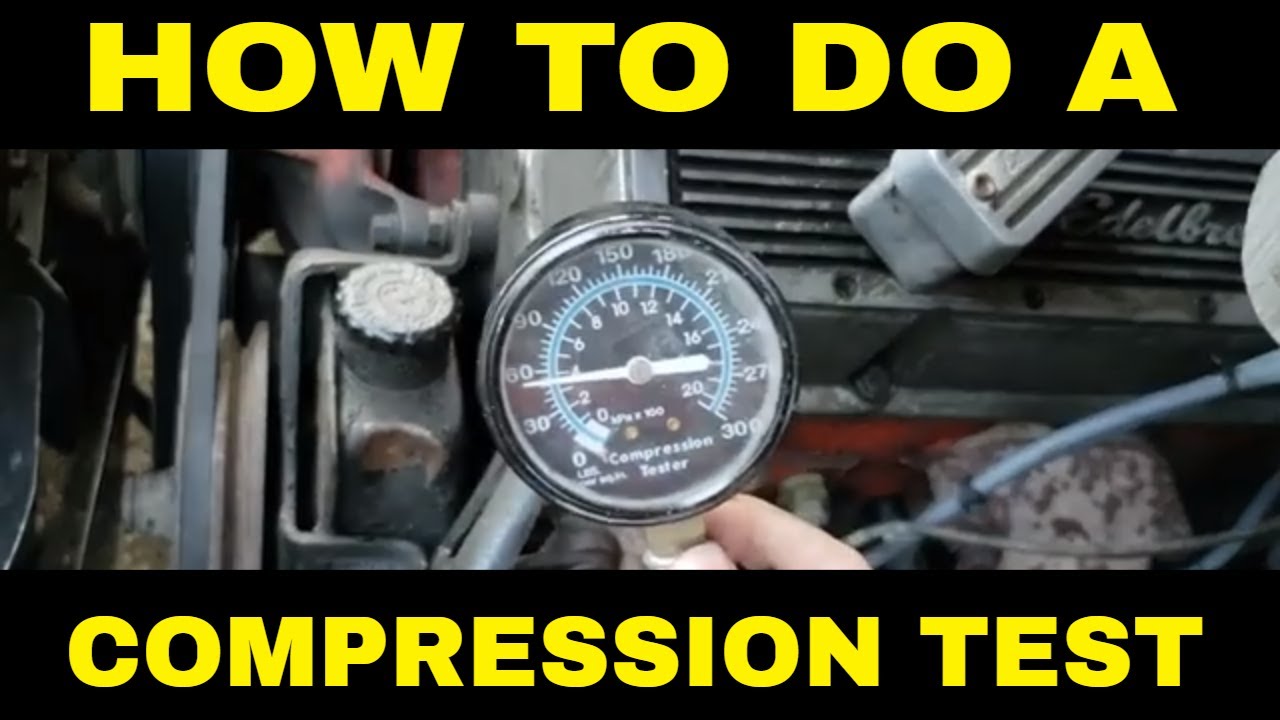

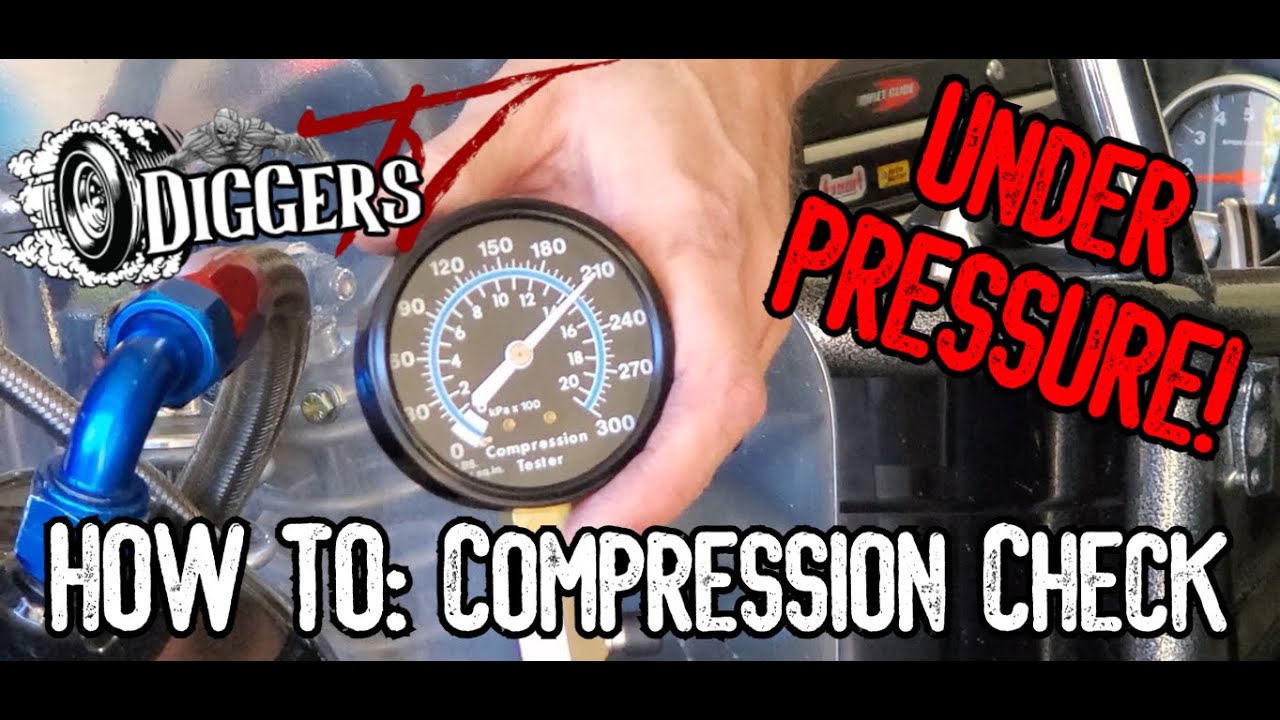

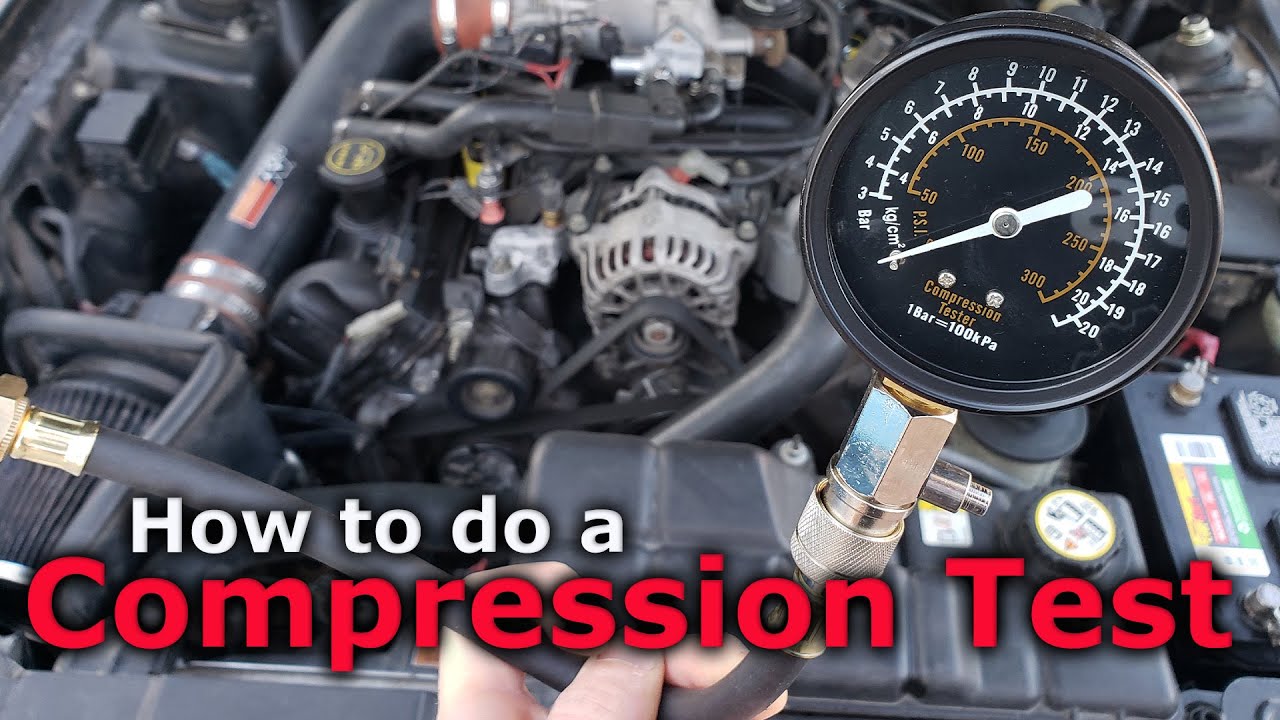

   • Install the Compression Tester: Screw the compression tester into the spark plug hole of the first cylinder. There are two main types of compression testers: screw-in and push-in. Screw-in testers provide a more reliable seal and are generally preferred. Ensure the tester is tightly sealed in the spark plug hole.

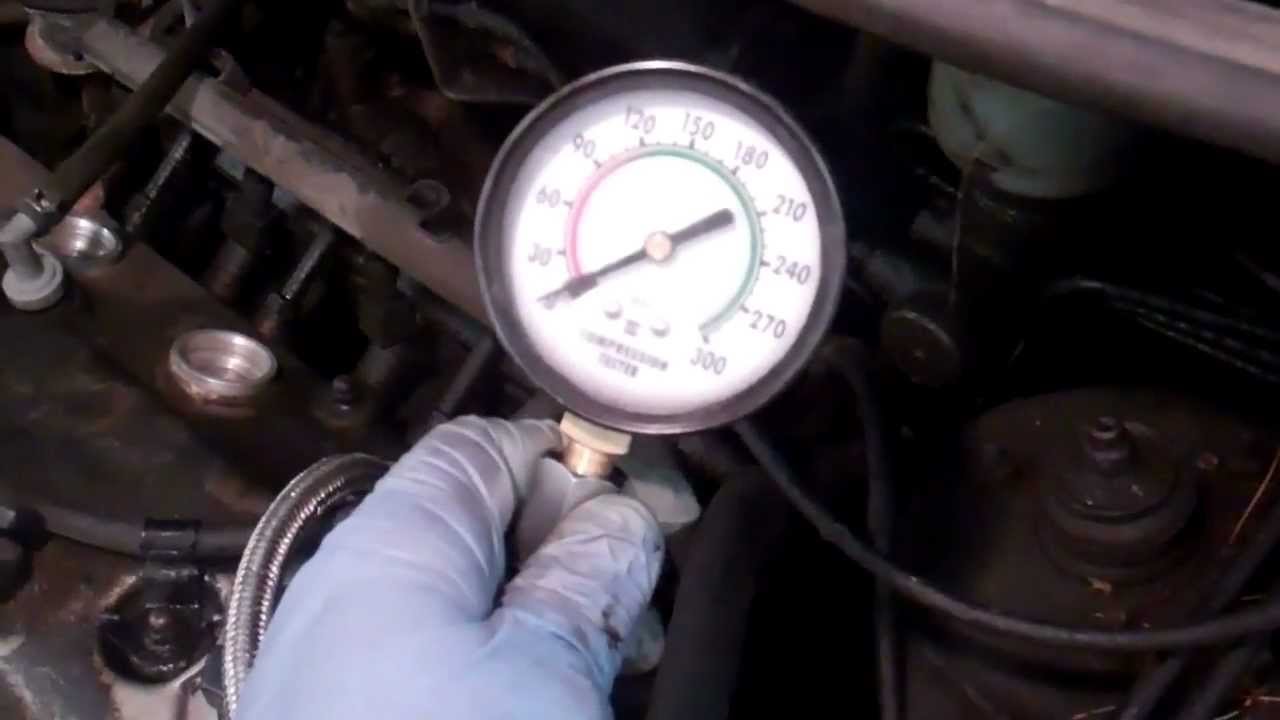

   • Cranking the Engine: Crank the engine for several seconds (usually 5-7 compression strokes) while observing the pressure gauge on the compression tester. You want to see the pressure build up steadily. Make a note of the highest reading achieved.
   • Repeat for All Cylinders: Repeat the process for each cylinder, recording the compression reading for each.
3. Analyzing the Results:
   • Compare Readings: Compare the compression readings from all cylinders. A healthy engine should have relatively consistent readings across all cylinders, with no significant variations.
   • Refer to Specifications: Consult your vehicle's repair manual for the manufacturer's specified compression values. The manual will typically list both the expected compression pressure and the acceptable variation between cylinders.
   • Interpreting the Readings:
     • Low Compression in One Cylinder: This could indicate a problem with the piston rings, valves (burnt, bent, or not sealing properly), or head gasket in that cylinder.
     • Low Compression in Adjacent Cylinders: This often points to a blown head gasket between those cylinders.
     • Overall Low Compression in All Cylinders: This could suggest worn piston rings in general, or a more serious problem like incorrect valve timing or a warped cylinder head.

Adding a Wet Compression Test

If you find a cylinder with low compression, a wet compression test can help you determine whether the problem is with the piston rings or the valves. This involves adding a small amount of oil (usually a tablespoon or two) into the cylinder through the spark plug hole before repeating the compression test. The oil temporarily seals the piston rings, so:

• If the compression reading increases significantly after adding oil: The problem is likely with the piston rings. The oil is sealing the gaps caused by worn or damaged rings.
• If the compression reading doesn't change much after adding oil: The problem is more likely with the valves. The oil won't seal valve leaks.

Common Issues and Maintenance Concerns

• Incorrect Tester Usage: Using the wrong type of compression tester or not sealing it properly in the spark plug hole can lead to inaccurate readings.
• Battery Condition: A weak battery can result in slow cranking speed, which will affect the compression readings. Make sure your battery is fully charged before performing the test.
• Engine Temperature: While a warm engine is sometimes preferred, a severely overheated engine can damage the compression tester. Avoid testing an engine that's excessively hot.
• Interpreting Results: It's important to understand that compression readings can vary depending on altitude, engine temperature, and other factors. Always compare your readings to the manufacturer's specifications for your specific vehicle.
• Damage to Spark Plug Threads: Be extremely careful when removing and installing spark plugs to avoid stripping the threads in the cylinder head. Use anti-seize compound on the spark plug threads to prevent them from seizing in the future.

Do's and Don'ts / Best Practices

• DO use a quality compression tester. A cheap tester can give inaccurate readings and waste your time.
• DO disconnect the ignition system completely. Accidentally starting the engine with a compression tester installed can damage both the tester and the engine.
• DO open the throttle fully during the test.
• DO record the compression reading for each cylinder carefully.
• DO consult your vehicle's repair manual for the correct compression specifications.
• DO use a wet compression test to help diagnose low compression issues.
• DON'T use excessive force when installing the compression tester. Hand-tighten it securely.
• DON'T ignore low compression readings. They can indicate serious engine problems that need to be addressed.
• DON'T forget to reconnect the ignition system and replace the spark plugs after completing the test.
• DON'T overtighten spark plugs when reinstalling them. Use a torque wrench and follow the manufacturer's specifications.

Conclusion

Performing a compression test is a valuable skill for any DIY mechanic. It provides crucial insights into the health of your engine and can help you diagnose a wide range of problems. By following the steps outlined in this article and paying attention to detail, you can accurately assess your engine's compression and make informed decisions about repairs or maintenance. If you're experiencing engine performance issues, performing a compression test is one of the first things you should do. However, remember that a compression test is just one piece of the diagnostic puzzle. If you're unsure about the results or how to proceed, it's always best to consult with a qualified mechanic.
