How To Do A Compression Test

A compression test is a crucial diagnostic procedure used to assess the health of your car's engine. It measures the cylinder pressure within each cylinder, providing valuable insights into the condition of the piston rings, valves, and cylinder head gasket. This test can help identify potential problems like worn piston rings, leaky valves, or a blown head gasket, allowing you to address them before they lead to more serious and costly engine damage.

Why is a Compression Test Important?

Understanding why a compression test is so vital lies in understanding how an engine works. An internal combustion engine relies on creating a tight seal within each cylinder to compress the air-fuel mixture. This compression is necessary for efficient combustion and optimal power output. When components like piston rings or valves wear down, or the head gasket fails, the seal weakens, leading to compression loss. This loss manifests in several ways:

Reduced Engine Power: Lower compression translates directly to reduced power output. You might notice sluggish acceleration or difficulty climbing hills.
Poor Fuel Economy: Inefficient combustion due to compression loss wastes fuel, leading to noticeably poorer gas mileage.
Rough Idling: A cylinder with low compression might cause the engine to idle roughly or even stall.
Misfires: The engine control unit (ECU) may detect misfires due to incomplete combustion in a cylinder with low compression.
Increased Emissions: Incomplete combustion leads to higher levels of harmful emissions.
Potential Engine Damage: Ignoring compression problems can lead to more significant damage, such as cylinder wall scoring or valve damage, requiring extensive and expensive repairs.

Performing a compression test allows you to proactively identify and address these issues early on, potentially saving you a significant amount of money and preventing further engine damage. It's a relatively inexpensive and straightforward diagnostic procedure that can provide a wealth of information about your engine's condition.

Choosing the Right Compression Tester

Selecting the appropriate compression tester is crucial for accurate results. There are two main types of compression testers:

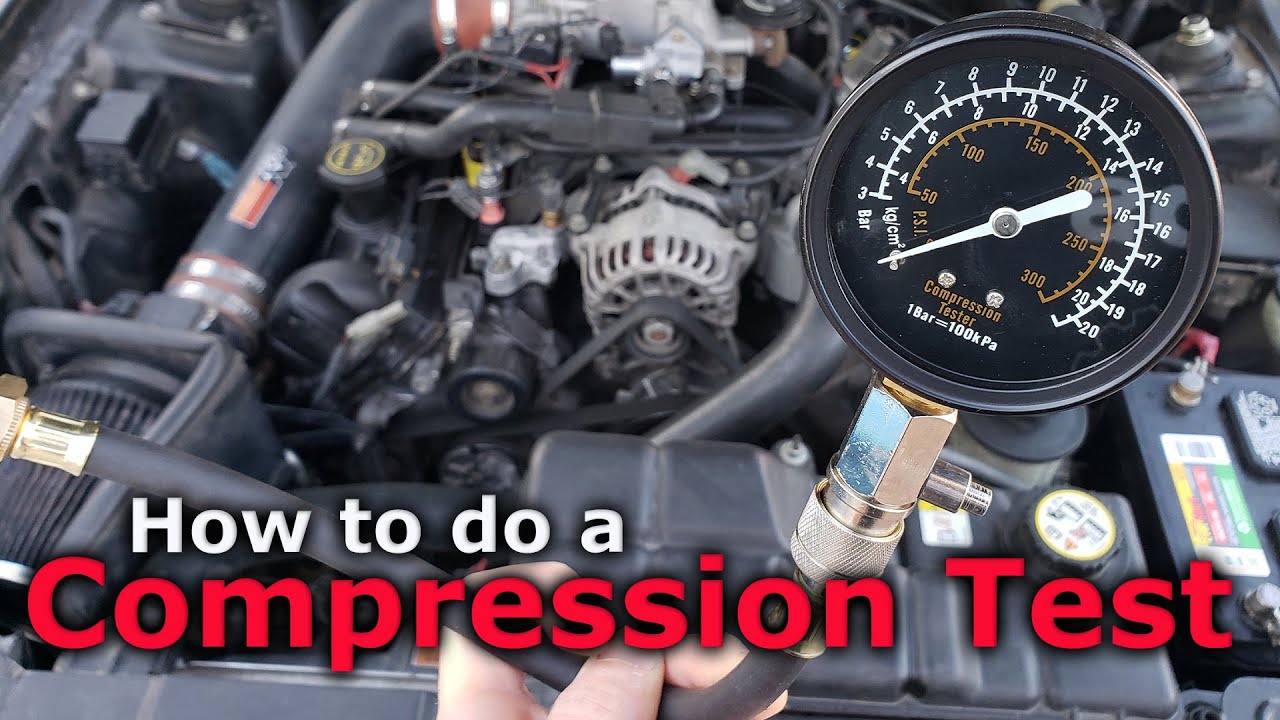

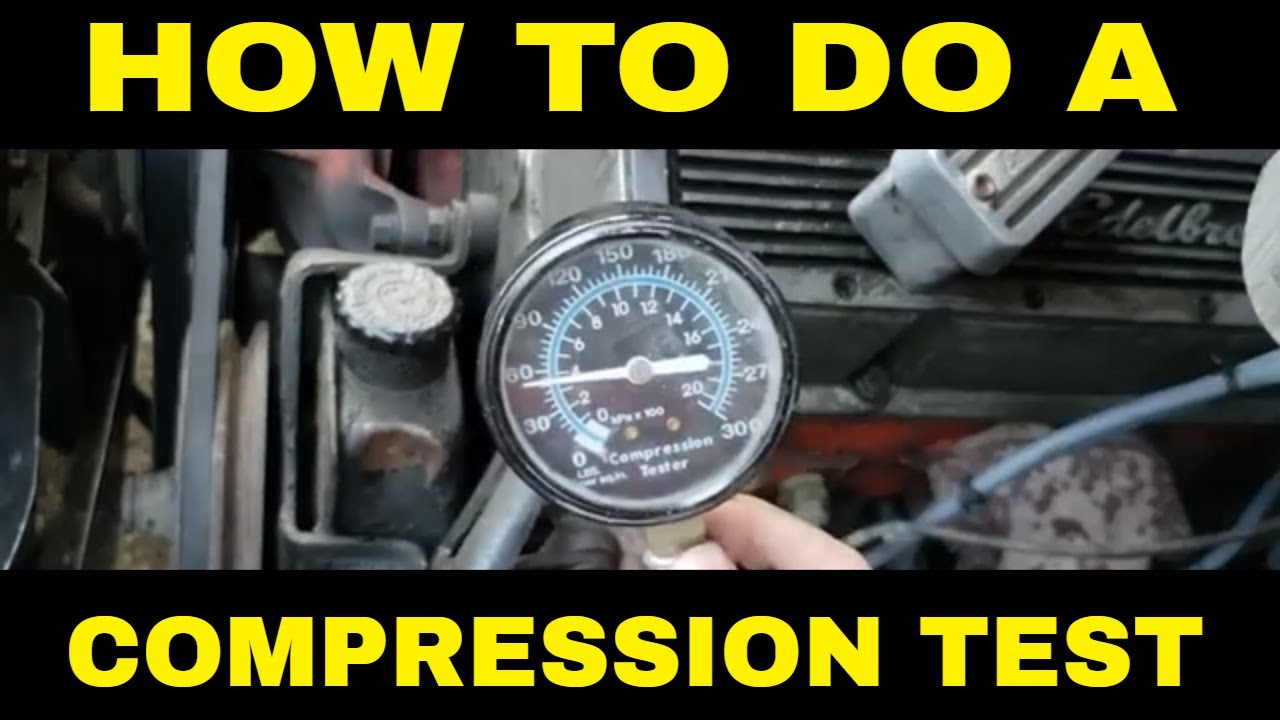

Standard Compression Tester: This type typically features a gauge and a hose with a threaded adapter that screws into the spark plug hole. The gauge displays the maximum pressure reached during cranking.
Leak-Down Tester: While not strictly a compression tester, a leak-down tester complements the compression test. It measures the percentage of air leaking from the cylinder, helping pinpoint the source of compression loss (piston rings, valves, or head gasket).

Here's what to consider when choosing a compression tester:

Gauge Range: Choose a tester with a gauge that covers the expected compression range for your engine. Consult your vehicle's service manual for the specified compression values. Most testers have a range suitable for common engines.
Adaptability: Ensure the tester comes with adapters that fit your vehicle's spark plug threads. Most testers include a variety of adapters to accommodate different spark plug sizes.
Durability: Opt for a tester made with quality materials that can withstand repeated use. Look for a gauge with a rubber boot for added protection.
Ease of Use: The tester should be easy to connect to the spark plug hole and the gauge should be easy to read. A clear and uncluttered gauge is essential.
Digital vs. Analog: Digital compression testers offer a digital readout, which can be easier to read and often store peak pressure values. Analog testers are generally less expensive and reliable.

For most DIYers, a standard compression tester will suffice. However, if you suspect a significant leak, a leak-down tester can provide more detailed diagnostic information. Consider purchasing both if you plan on performing engine diagnostics regularly.

How to Perform a Compression Test: Step-by-Step

Before starting, always consult your vehicle's service manual for specific instructions and safety precautions. Here's a general guide to performing a compression test:

Gather Your Tools and Materials: You'll need a compression tester, socket set, spark plug socket, ratchet, extension, screwdriver, rags, safety glasses, and gloves. Consult your service manual for the correct spark plug socket size.
Warm Up the Engine: Run the engine for a few minutes to warm it up. A warm engine provides a more accurate compression reading.
Disable the Ignition System: This prevents the engine from starting during the test, which could damage the ignition system and pose a safety hazard. Disconnect the fuel injector wiring harness or disable the ignition coil according to your vehicle's service manual.
Remove the Spark Plugs: Carefully remove all spark plugs. Inspect the spark plugs for signs of damage or excessive wear, as this can provide valuable clues about the engine's condition. Label each spark plug with the corresponding cylinder number to avoid confusion.
Install the Compression Tester: Screw the compression tester's adapter into the spark plug hole of the first cylinder you'll be testing. Ensure it's snug but not overtightened.
Crank the Engine: With the throttle fully open (to allow maximum airflow), crank the engine for 5-7 revolutions or until the gauge reading stabilizes. Note the reading.

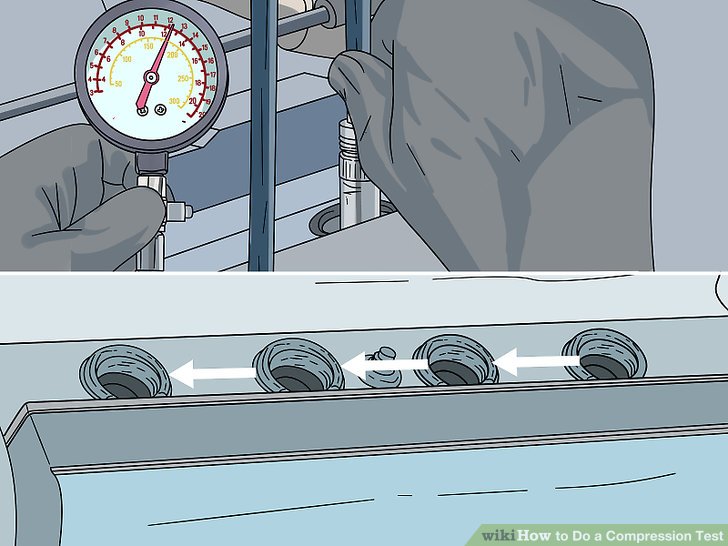

Repeat for Each Cylinder: Repeat steps 5 and 6 for each of the remaining cylinders.
Analyze the Results: Compare the compression readings for each cylinder.

Interpreting the Results:

Consistent Readings: If all cylinders have relatively similar compression readings within the manufacturer's specified range, the engine is likely in good condition. Consult your service manual for the acceptable range.
Low Compression in One Cylinder: Low compression in a single cylinder could indicate worn piston rings, leaky valves, or a damaged cylinder head gasket in that cylinder.
Low Compression in Adjacent Cylinders: Low compression in two adjacent cylinders often points to a blown head gasket between those cylinders.
Zero Compression: Zero compression in a cylinder indicates a severe problem, such as a broken connecting rod or a hole in the piston.

Important Considerations:

Wet Compression Test: If you suspect worn piston rings, perform a "wet" compression test. Add a small amount of oil (approximately a teaspoon) into the cylinder through the spark plug hole and repeat the compression test. If the compression reading increases significantly, it indicates that the oil is temporarily sealing the worn piston rings.

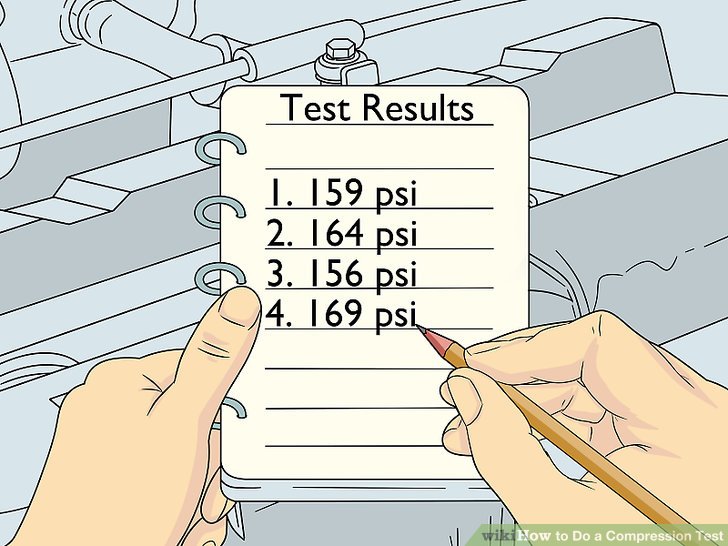

Record Your Results: Keep a record of the compression readings for each cylinder. This information can be helpful for future diagnostics.

Real-World Owner Experiences

Many car owners have successfully used compression tests to diagnose engine problems. Here are a couple of examples:

John, a DIY mechanic, noticed his car was running rough and had poor fuel economy. He performed a compression test and found that one cylinder had significantly lower compression than the others. After further investigation, he discovered a burnt valve, which he was able to replace, restoring his engine's performance.

Sarah's car was overheating frequently. She suspected a blown head gasket. A compression test revealed low compression in two adjacent cylinders. A subsequent leak-down test confirmed a head gasket leak between those cylinders. Replacing the head gasket resolved the overheating issue.

These examples highlight the value of compression testing as a diagnostic tool. By understanding the results of a compression test, you can make informed decisions about how to repair your engine and prevent further damage.

Frequently Asked Questions (FAQs)

Q: How often should I perform a compression test?

A: There's no fixed interval. Perform a compression test if you notice symptoms like reduced power, poor fuel economy, rough idling, or misfires. It's also a good idea to perform one before buying a used car to assess the engine's condition.

Q: Can I perform a compression test on a diesel engine?

A: Yes, but you'll need a diesel compression tester, which can handle the much higher compression pressures found in diesel engines. The procedure is similar, but you'll typically remove the glow plugs instead of spark plugs.

Q: What if all cylinders have low compression?

A: If all cylinders have uniformly low compression, it could indicate a problem affecting the entire engine, such as worn camshaft lobes, incorrect valve timing, or a severely worn engine.

Q: Is a compression test the same as a cylinder leak-down test?

A: No. A compression test measures the peak pressure achieved in each cylinder. A cylinder leak-down test measures the rate at which air leaks from the cylinder, helping pinpoint the source of the leak (piston rings, valves, or head gasket).

Q: Can a compression test damage my engine?

A: If performed correctly, a compression test is unlikely to damage your engine. However, it's crucial to disable the ignition system to prevent the engine from starting during the test. Overtightening the compression tester adapter can also damage the spark plug threads.

Q: Where can I find the proper compression readings for my car?

A: The proper compression readings for your car are located in your vehicle’s service manual. You may also be able to locate the information through a repair database online by searching for your car’s Year, Make, and Model.
