How To Do A Throttle Body Relearn

Is your car idling rough, stalling, or exhibiting sluggish acceleration after cleaning your throttle body or replacing a component of the engine management system? You might need to perform a throttle body relearn. This crucial procedure ensures your car's computer accurately controls the engine's air intake, restoring smooth operation and preventing potential long-term damage. Let’s dive into what a throttle body relearn is, why it's essential, and how to perform one effectively.

Symptoms You Might Be Experiencing

A malfunctioning or un-relearned throttle body can manifest in a variety of noticeable symptoms. Recognizing these early can save you from further complications. Here are some of the most common indicators:

• Rough Idling: The engine may vibrate excessively or feel unsteady when the car is stationary in drive or park.
• Stalling: The engine might suddenly shut off, especially when coming to a stop or idling.
• Hesitation or Lag During Acceleration: When you press the accelerator pedal, there might be a noticeable delay or lack of responsiveness.
• Erratic Idle Speed: The RPMs at idle may fluctuate wildly, either too high or too low.
• Check Engine Light (CEL): The CEL may illuminate, often accompanied by diagnostic trouble codes (DTCs) related to the throttle position sensor (TPS), idle air control (IAC) valve, or mass airflow (MAF) sensor. Common codes include P0505, P0506, P0507, P0121, P0120, and P0101, depending on the vehicle's make and model.
• Poor Fuel Economy: Because the engine isn't operating optimally, fuel consumption can increase noticeably.
• Transmission Issues: In some vehicles, a poorly calibrated throttle body can affect transmission shift points, leading to harsh or delayed shifts.

Understanding the Root Cause

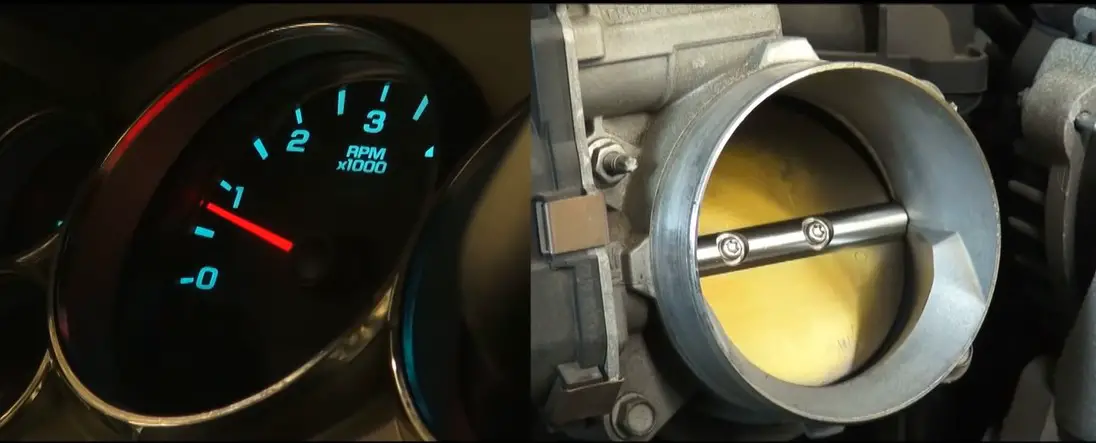

The throttle body regulates the amount of air entering the engine. Modern vehicles utilize an electronic throttle control (ETC) system, also known as "drive-by-wire," where the throttle plate is controlled electronically by the engine control unit (ECU) based on input from the accelerator pedal. Over time, the ECU learns the specific characteristics of the throttle body, including the minimum and maximum throttle positions. This learning process is crucial for maintaining a smooth and consistent idle, as well as optimal engine performance under varying loads.

When the throttle body is cleaned, replaced, or when the battery is disconnected, this learned information can be erased or altered. Cleaning removes carbon deposits and other debris that accumulate on the throttle plate and housing. This changes the airflow characteristics, making the ECU's previous settings inaccurate. Replacing the throttle body obviously introduces a completely new component with different tolerances. Disconnecting the battery can sometimes reset the ECU's memory, including the learned throttle position data. Consequently, the engine may struggle to maintain a stable idle, leading to the symptoms described earlier. A throttle body relearn procedure allows the ECU to re-learn these new characteristics and adjust the throttle position accordingly, restoring proper engine operation. This relearning process is essential for seamless integration of the throttle body with the rest of the engine management system.

Ignoring the Problem: Potential Consequences

Ignoring the need for a throttle body relearn can lead to several negative consequences:

• Continued Poor Performance: The symptoms mentioned earlier will persist, making the driving experience unpleasant and potentially unsafe.
• Increased Wear and Tear: The engine may be forced to work harder to compensate for the incorrect throttle position, leading to increased stress on other components.
• Catalytic Converter Damage: If the engine is running rich (too much fuel), unburnt fuel can enter the catalytic converter, potentially causing it to overheat and fail. Catalytic converter replacement is often a very expensive repair.
• Further Diagnostic Challenges: The incorrect throttle position data can interfere with other diagnostic procedures, making it more difficult to pinpoint other potential engine problems.
• Possible Legal Issues: In some areas, excessive emissions due to a poorly running engine can lead to fines or failure to pass emissions testing.

Therefore, addressing the need for a throttle body relearn promptly is vital for the longevity and performance of your vehicle.

Recommended Fixes: The Relearn Process

The throttle body relearn process varies depending on the make and model of your vehicle. There are generally three primary methods:

1. Scan Tool Relearn

This is the most reliable and recommended method. It involves using a professional-grade scan tool or diagnostic software to initiate the relearn procedure within the ECU. This tool communicates with the car's computer to directly command the relearn process. This method guarantees a precise and accurate relearn.

Procedure:

1. Connect the scan tool to the vehicle's OBD-II port.
2. Turn the ignition key to the "ON" position (do not start the engine).
3. Navigate to the ECU functions and look for options like "Throttle Body Relearn," "Idle Learn," or "ETC Reset."
4. Follow the on-screen instructions provided by the scan tool. This usually involves a series of steps, such as starting the engine, letting it idle for a specific period, and performing other actions as prompted.
5. Once the relearn process is complete, clear any diagnostic trouble codes (DTCs) that may have been generated during the procedure.

2. Idle Relearn Procedure (Manual Method)

Some vehicles can perform a throttle body relearn without a scan tool, using a specific sequence of steps. This method relies on the ECU's ability to automatically learn the throttle position based on specific engine conditions. This method is highly dependent on the specific vehicle. Always consult your vehicle's service manual for the correct procedure.

General Example Procedure (This may not work for all vehicles!):

1. Disconnect the negative battery cable for 10-15 minutes to reset the ECU.
2. Reconnect the battery cable.
3. Turn the ignition key to the "ON" position (do not start the engine) for approximately 3 minutes. This allows the throttle body to cycle and the ECU to begin learning.
4. Turn the ignition key to the "OFF" position for 1 minute.
5. Start the engine and let it idle in park (or neutral) for 10-15 minutes without touching the accelerator pedal or turning on any accessories (e.g., headlights, A/C). The engine RPM may fluctuate during this period as the ECU learns the throttle position.
6. After the idle period, turn on the A/C and observe the engine idle for another 5 minutes.
7. Finally, drive the vehicle under various conditions (e.g., city driving, highway driving) to allow the ECU to further refine the throttle position learning.

Important Considerations:

• The exact duration of each step can vary significantly between vehicle makes and models.
• Ensure all electrical accessories are switched off during the idle relearn process.
• If the engine stalls during the relearn process, repeat the procedure from the beginning.

3. Driving Cycle Relearn

Some vehicles rely on a specific driving cycle to relearn the throttle position after the battery has been disconnected or the throttle body has been cleaned. This typically involves a series of accelerations, decelerations, and cruising speeds. This method can be time-consuming and may not be as effective as other methods.

Example Procedure (Consult your vehicle's service manual for specific instructions):

1. Start the engine and allow it to warm up to operating temperature.
2. Drive the vehicle at a steady speed of 45-55 mph for approximately 5 minutes.
3. Decelerate to 20 mph without using the brakes.
4. Accelerate back to 45-55 mph and maintain that speed for another 5 minutes.
5. Repeat steps 2-4 several times.
6. Drive the vehicle in city traffic for approximately 10 minutes, including several stops and starts.

Cost Estimates and Shop Advice

The cost of a throttle body relearn can vary depending on the method used and the labor rates of the service provider. A scan tool relearn typically costs between $50 and $150 at a professional repair shop. This price includes the technician's labor time and the use of the scan tool. The manual idle relearn and driving cycle methods are free if you perform them yourself. However, if you are unsure about the procedure or lack the necessary tools, it's best to consult with a qualified mechanic.

Shop Advice:

• When seeking professional assistance, be sure to choose a reputable repair shop with experienced technicians and up-to-date diagnostic equipment.
• Ask for a written estimate before any work is performed.
• Inquire about the shop's experience with throttle body relearn procedures on your specific make and model.

Credibility and Additional Information

Several Technical Service Bulletins (TSBs) issued by various manufacturers address throttle body relearn procedures and related issues. These TSBs often provide specific instructions and recommendations for performing the relearn process on particular vehicle models. For example, some Nissan vehicles require a very specific idle air volume learning procedure that can only be accomplished using a Nissan Consult scan tool. Similarly, certain GM vehicles have TSBs addressing idle surge issues after throttle body cleaning, outlining specific relearn steps. Consulting these TSBs can provide valuable insight into the correct procedure for your vehicle.

Furthermore, online forums and communities dedicated to specific vehicle makes and models often contain valuable information regarding throttle body relearn procedures. These forums can provide real-world experiences and tips from other owners who have successfully performed the relearn process on their vehicles. However, always verify the information you find online with a reliable source, such as your vehicle's service manual or a qualified mechanic. Many cars between 60,000 and 100,000 miles start exhibiting throttle body issues that can be solved with cleaning and relearning.

By understanding the importance of a throttle body relearn and following the appropriate procedure, you can ensure smooth engine operation, optimal fuel economy, and prevent potential long-term damage to your vehicle.
