How To Eject Cd From Car Stereo

The dreaded moment has arrived: you’re cruising down the highway, ready to switch from that classic rock album to your meticulously curated road trip playlist, but the car stereo refuses to eject the CD. It's a frustrating situation many drivers have faced. Before you resort to drastic measures (like prying it out with a screwdriver – don't do that!), let’s explore the potential causes and, more importantly, how to troubleshoot the problem safely and effectively. We'll delve into the mechanics behind the ejection process, understand why it sometimes fails, and examine various solutions, from simple resets to more involved diagnostic procedures.

The Case of the Stuck CD: A Familiar Scenario

Imagine this: you’re running late for an important meeting. You reach for the eject button, expecting the familiar whir of the drive and the satisfying *thunk* of the CD popping out. Instead, you hear nothing. Maybe a faint click, maybe absolute silence. The display might flicker, or it might continue to show the album information as if nothing is wrong. Panic starts to set in. Are you now stuck with Abbey Road for the rest of your life? While that might not be the worst fate, we can definitely do better. This scenario highlights the core issue: a seemingly simple mechanical process has failed, leaving you stranded with a piece of circular polycarbonate and a growing sense of irritation. It’s like a vending machine refusing to dispense your chosen snack – infuriatingly inconvenient.

Under the Hood: How CD Ejection Systems Work

To understand why your CD is stubbornly refusing to leave, we need to understand how the ejection mechanism works. Most car CD players employ a combination of mechanical and electrical components to load and eject discs. Here's a breakdown:

1. The Drive Motor and Gear System:

At the heart of the system is a small DC motor. This motor provides the rotational force to move various gears and levers within the CD player. One of the crucial components is a worm gear, which translates the motor's rotational motion into linear motion. This linear motion is used to move the loading tray or clamping mechanism that holds the CD in place. Think of it like a tiny electric winch carefully pulling and releasing the CD.

2. The Loading Tray/Clamping Mechanism:

This is the physical structure that holds the CD during playback. It usually consists of a tray that slides in and out, or a clamping mechanism that raises and lowers to secure the disc. When you press the eject button, the motor activates, causing the worm gear to move the tray or clamping mechanism into the "eject" position. Springs are often used to provide the final push, ensuring the CD is presented for removal.

3. Sensors and Limit Switches:

The system relies on a series of sensors and limit switches to track the position of the tray and the CD. These sensors tell the control unit (the brains of the CD player) whether the tray is fully loaded, fully ejected, or in an intermediate position. If a sensor fails or becomes misaligned, the control unit might get confused and prevent the ejection process from completing. The limit switches act as a safety mechanism, preventing the motor from over-extending and damaging the mechanism.

4. The Control Unit (Firmware):

The control unit is the electronic brain of the CD player. It receives signals from the buttons (play, eject, etc.), the sensors, and the motor driver. Based on this information, it controls the motor, the display, and other functions. The control unit runs a firmware program that dictates how the system operates. Bugs in the firmware or corrupted data can sometimes cause the ejection mechanism to malfunction.

Why Ejection Fails: Potential Causes

Now that we understand the basics of how the ejection system works, let's look at some common reasons why it might fail:

• Mechanical Obstruction: The most common cause is a physical obstruction. This could be a bent CD, a foreign object lodged in the tray, or a damaged loading mechanism.
• Motor Failure: The DC motor that drives the ejection process can wear out over time or fail due to electrical problems. If the motor is weak or dead, it won't be able to move the tray.
• Sensor Malfunction: A faulty sensor can provide incorrect information to the control unit, preventing the ejection sequence from completing.
• Gear Problems: The gears within the CD player can become stripped, broken, or misaligned, hindering the smooth movement of the tray.
• Firmware Issues: As mentioned earlier, bugs in the firmware or corrupted data can cause the control unit to malfunction.
• Power Supply Problems: Insufficient power to the CD player can also cause ejection issues. This could be due to a faulty wiring connection or a problem with the car's electrical system.
• Environmental Factors: Extreme temperatures (both hot and cold) can affect the performance of the mechanical and electronic components. High humidity can also lead to corrosion and malfunctions.

Troubleshooting and Solutions

Okay, your CD is stuck. What do you do? Here’s a structured approach:

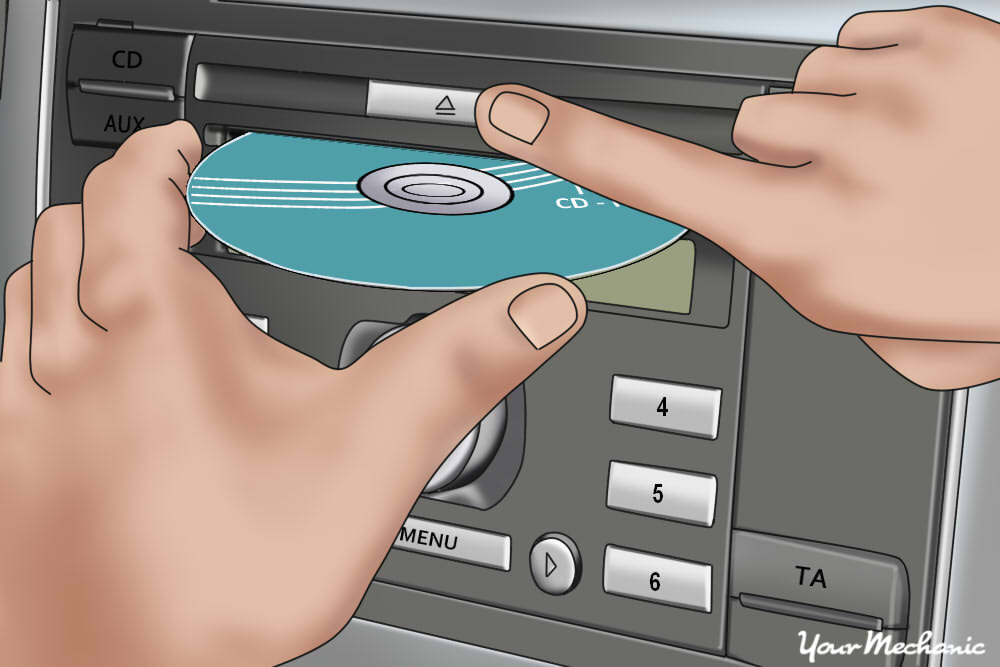

1. The Obvious: Press the Eject Button Again (and Again!): Sometimes, a simple retry is all it takes. The system might have encountered a momentary glitch that resolves itself with a second attempt.
2. Power Cycle: Turn off your car and remove the keys from the ignition. Wait a few minutes and then restart the car. This can reset the CD player and clear any temporary errors in the firmware.

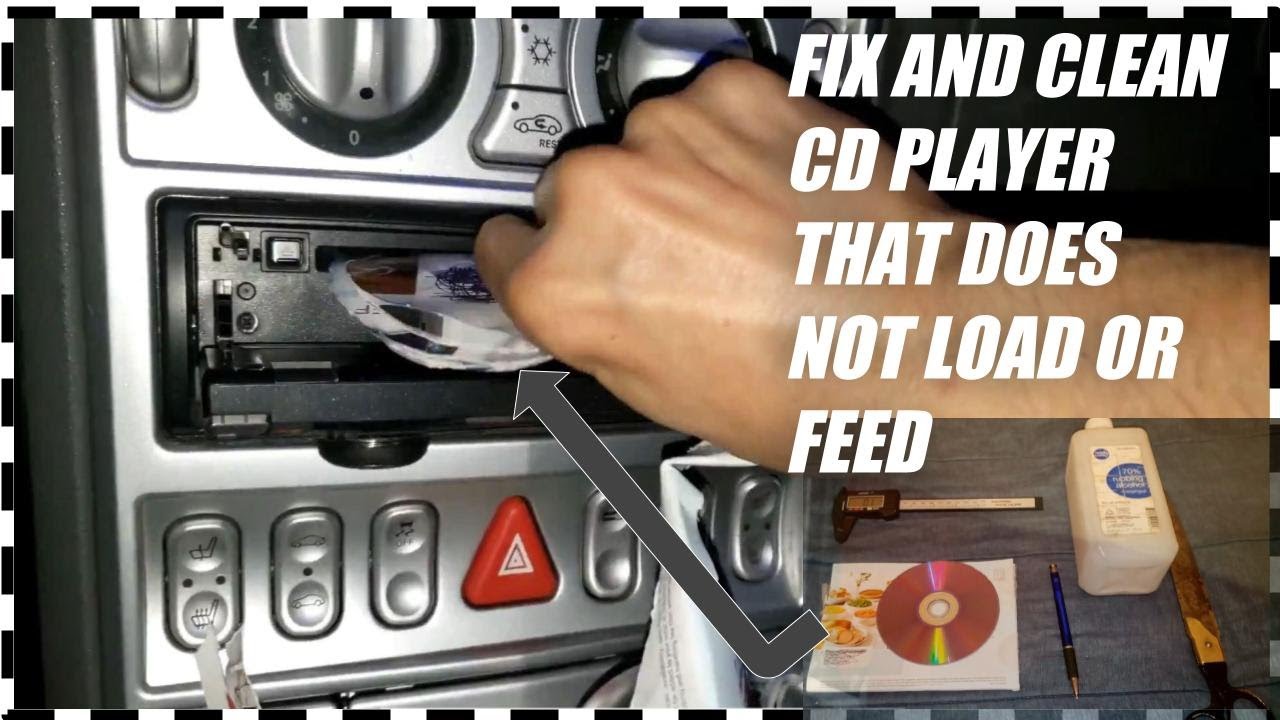

3. Check for Obstructions: Carefully inspect the CD slot for any visible obstructions. Use a flashlight if needed. If you see something, try to gently remove it with tweezers or a small, soft brush. Be extremely careful not to damage the CD player.
4. Reset Button (If Available): Some car stereos have a small reset button, usually located on the front panel. This button resets the CD player to its factory settings. Consult your owner's manual to locate the reset button and the proper procedure for using it.
5. Disconnect the Battery (Last Resort): This is a more drastic measure, but it can sometimes resolve stubborn ejection problems. Disconnecting the car battery will reset the entire electrical system, including the CD player. However, be aware that this will also reset other settings, such as your radio presets and clock. Before disconnecting the battery, make sure you know the security code for your car stereo, if applicable. Disconnect the negative terminal for about 15 minutes and then reconnect it.
6. The "Paperclip Trick" (Use with Caution): In some cases, there is a small emergency eject hole. This is usually very small (paperclip sized) and requires a straightened paperclip to trigger a manual eject mechanism. Consult your car stereo manual to check if this is an option. Again, proceed with extreme caution, as forcing the mechanism can cause damage.

Pros, Cons, Use Cases, and Manufacturer Examples

Different car manufacturers and stereo brands implement CD ejection systems with varying degrees of complexity and reliability. Some higher-end systems might incorporate more sophisticated error detection and recovery mechanisms, making them less prone to jamming. Let's compare examples:

• Alpine: Known for robust mechanisms, but even these are susceptible to failure over time, particularly in harsh environments. Alpine units often include diagnostic modes accessible by technicians.
• Pioneer: Offers a wide range of car stereos, from basic models to advanced units with touchscreens and navigation. Their eject mechanisms are generally reliable, but some models have been known to have issues with reading scratched CDs, which can lead to ejection problems.
• OEM (Original Equipment Manufacturer) Units: These units, which are integrated into the car's dashboard, are often designed for reliability and ease of use. However, they can be more difficult to repair or replace than aftermarket units.

Pros of modern CD ejection systems: Relatively simple and reliable under normal conditions; typically require minimal maintenance. Cons: Susceptible to mechanical failure, especially in harsh environments; can be rendered useless by a single damaged CD; becoming obsolete with the rise of digital music streaming. Use cases: Primarily for playing audio CDs; some systems can also play data CDs with MP3 files; often integrated with other entertainment features, such as radio and Bluetooth.

Real-World Insights and Recommendations

Based on real-world experience and feedback from car owners and technicians, here are some insights and recommendations:

• Handle CDs with Care: Avoid using scratched, bent, or dirty CDs, as these can damage the CD player and increase the risk of jamming.
• Keep the CD Slot Clean: Regularly clean the CD slot with a soft, dry cloth to remove dust and debris.
• Avoid Extreme Temperatures: Park your car in the shade during hot weather to prevent the CD player from overheating.
• Consider Digital Alternatives: With the widespread availability of streaming services and USB connectivity, consider switching to digital music formats to avoid the hassle of physical CDs.
• Consult a Professional: If you've tried all the troubleshooting steps and your CD is still stuck, it's best to consult a qualified car audio technician. Attempting to force the CD out can cause further damage and potentially void your warranty.

In conclusion, while a stuck CD can be a frustrating experience, understanding how the ejection system works and following a systematic troubleshooting approach can often resolve the issue. However, always prioritize safety and avoid any actions that could potentially damage your car stereo. And perhaps, consider embracing the convenience of digital music – it might save you a lot of headaches in the long run.
