How To Fix A Broken Speedometer

A malfunctioning speedometer can be more than just an annoyance. It directly impacts your ability to drive safely and legally. Without an accurate speed reading, maintaining safe speeds, avoiding speeding tickets, and even correctly diagnosing other vehicle issues becomes challenging. Let's dive into the common causes and fixes for a broken speedometer.

Symptoms of a Speedometer Malfunction

Identifying the specific symptoms your vehicle is exhibiting is crucial for diagnosing the problem. Here's a breakdown of the most common signs of a faulty speedometer:

• Erratic Needle Movement: The speedometer needle jumps around erratically, showing fluctuating speeds even when you're maintaining a constant velocity. This is often one of the first indicators of a problem.
• Sticking Needle: The needle might get stuck at a certain speed or fail to move at all, regardless of your actual speed. It might intermittently function then suddenly stop.
• Incorrect Speed Readings: The speedometer displays speeds that are significantly higher or lower than your actual speed, consistently or inconsistently. You may notice it only reads half of the speed you're going or doubles the speed.
• No Speed Reading at All: The speedometer needle remains at zero, even when the vehicle is in motion. This is a clear indication of a significant failure.
• Related Warning Lights: The check engine light (CEL), ABS (Anti-lock Braking System) light, or traction control light might illuminate in conjunction with a speedometer issue. This indicates that the problem might be related to a larger electronic system.
• Transmission Shifting Problems: In some vehicles, the speedometer signal is used by the transmission control module (TCM) to determine shift points. A faulty speedometer signal can lead to erratic or harsh shifting.
• Cruise Control Malfunction: Cruise control may not engage or disengage erratically if the speedometer signal is unreliable. The cruise control system relies on the speed signal to maintain a set speed.
• Odometer Not Working: The odometer, which tracks the total mileage of the vehicle, often shares the same sensor or system as the speedometer. If the speedometer is faulty, the odometer may also stop working or display incorrect mileage.

Root Causes of Speedometer Problems

Several factors can contribute to a malfunctioning speedometer. Here's a look at the most common culprits:

1. Faulty Speed Sensor:

The speed sensor (also known as a vehicle speed sensor or VSS) is the most common cause. This sensor, usually located on the transmission or wheel hub, generates an electrical signal proportional to the vehicle's speed. This signal is then sent to the speedometer and other electronic control units (ECUs) in the vehicle.

Details: These sensors can fail due to contamination (dirt, debris), physical damage, electrical shorts, or simply wear and tear over time. The sensor itself can be a magnetic pickup type or a Hall-effect sensor. Magnetic pickup sensors are more susceptible to metallic debris interference. Hall-effect sensors are generally more reliable but can still fail.

2. Wiring Issues:

Damaged or corroded wiring can disrupt the signal between the speed sensor and the speedometer. This includes broken wires, loose connections, and corroded connectors.

Details: Road salt, moisture, and physical stress can all contribute to wiring problems. Rodents can also chew on wiring harnesses, causing intermittent or complete signal loss.

3. Instrument Cluster Problems:

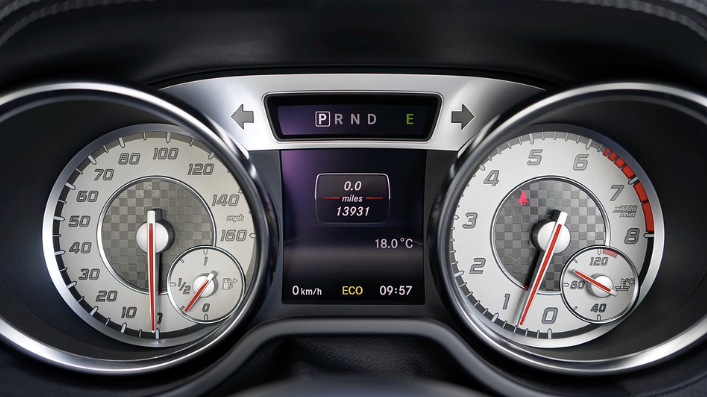

The speedometer itself, located within the instrument cluster, can fail. This is less common than a speed sensor issue but can occur due to electrical problems within the cluster, a faulty stepper motor controlling the needle, or damage to the circuit board.

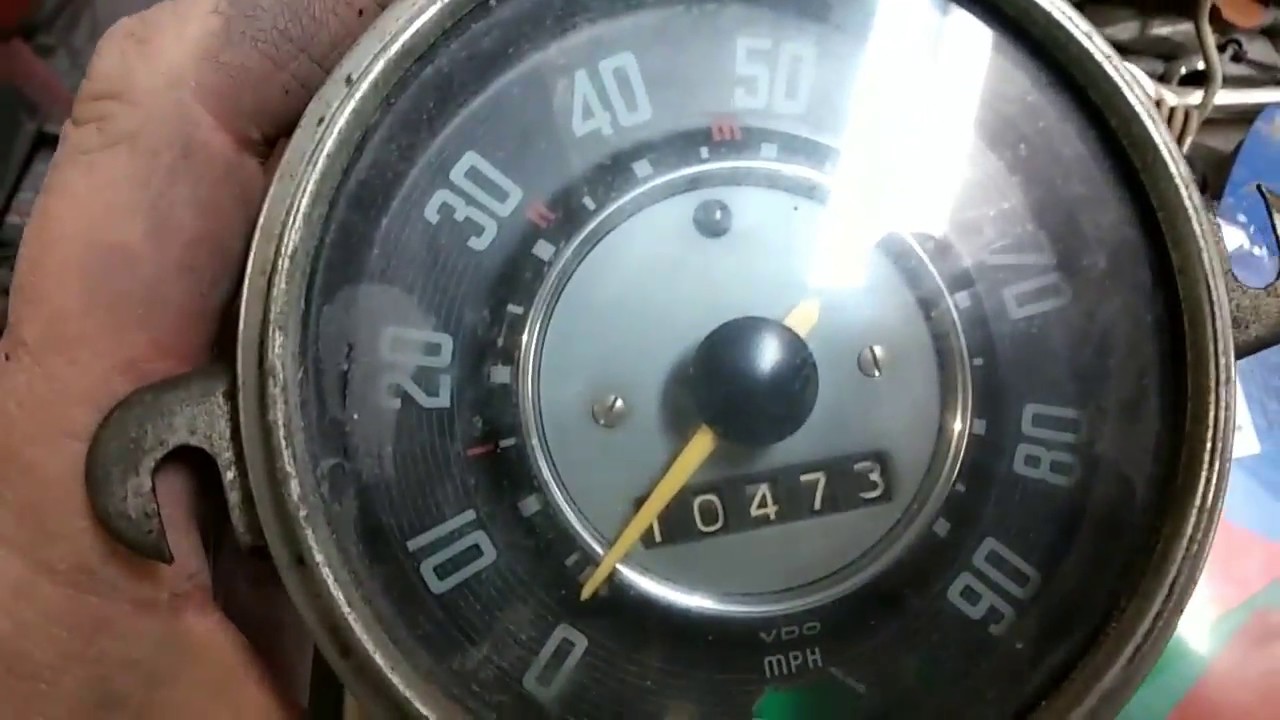

Details: Older vehicles with mechanical speedometers (cable-driven) can experience cable breakage or binding within the cable housing. Modern vehicles with electronic speedometers are more susceptible to electronic component failure.

4. Powertrain Control Module (PCM) Issues:

In some vehicles, the PCM (also known as the ECM - Engine Control Module) processes the speed sensor signal before sending it to the speedometer. A malfunctioning PCM can misinterpret or fail to relay the signal correctly.

Details: PCM failures are relatively rare but can occur due to electrical surges, internal component failure, or software corruption.

5. ABS Sensor Issues:

Some vehicles, particularly those with ABS, use wheel speed sensors as inputs for both the ABS system and the speedometer. If an ABS sensor fails, it can affect both the ABS and the speedometer readings. In this case, you will likely notice an ABS light on your dashboard.

Details: ABS sensors are exposed to harsh conditions near the wheels and are prone to damage from road debris, corrosion, and physical impacts.

6. Tire Size Variations:

While not a direct failure, using tires that are significantly different in size than the factory-recommended size can cause inaccuracies in the speedometer reading. The speed sensor is calibrated to a specific tire size, and deviating from that size will alter the signal it produces.

7. Differential Problems

While less common, problems within the differential, particularly with the gears that drive the speed sensor (in some older vehicles), can lead to speedometer malfunctions.

What Happens if Ignored?

Ignoring a broken speedometer can lead to several consequences:

• Speeding Tickets: Without an accurate speedometer, it's easy to unknowingly exceed speed limits, resulting in costly speeding tickets.
• Safety Hazards: Driving at inappropriate speeds can increase the risk of accidents. Maintaining a safe following distance and reacting to road conditions becomes more difficult without an accurate speed reference.
• Reduced Fuel Efficiency: Some vehicles use speed data to optimize fuel injection and transmission shifting. A faulty speedometer signal can disrupt these processes, leading to reduced fuel economy.
• Transmission Damage: As mentioned earlier, the transmission control module (TCM) relies on speed data for shifting. Incorrect data can cause erratic shifting and potential transmission damage.
• Failed Inspections: Many states require a functioning speedometer for vehicle inspections. A broken speedometer will result in a failed inspection.
• Difficulty Selling the Vehicle: A non-functional speedometer will significantly decrease the value of your vehicle and make it harder to sell.

Recommended Fixes

The appropriate fix depends on the underlying cause of the speedometer problem. Here's a step-by-step approach to diagnosing and resolving the issue:

1. Visual Inspection:

Start by visually inspecting the speed sensor, wiring, and connectors for any signs of damage, corrosion, or loose connections. Pay close attention to the wiring harness near the transmission and wheel hubs.

2. Scan for Diagnostic Trouble Codes (DTCs):

Use an OBD-II scanner to check for any diagnostic trouble codes (DTCs) related to the speed sensor, ABS system, or PCM. Common codes related to the speedometer include P0500 (Vehicle Speed Sensor A Malfunction), P0501 (Vehicle Speed Sensor Range/Performance), and similar codes. Note any codes present, as they can provide valuable clues.

3. Speed Sensor Testing:

Test the speed sensor using a multimeter. You can typically check for voltage or resistance within a specified range. Consult your vehicle's service manual for the correct testing procedure and specifications for your specific vehicle. Some sensors may require an oscilloscope to properly analyze the signal output.

4. Wiring Inspection and Repair:

If the wiring is damaged, repair or replace the affected sections. Use proper splicing techniques and protect the repaired wires with heat shrink tubing or electrical tape. Clean corroded connectors with a wire brush or electrical contact cleaner.

5. Speed Sensor Replacement:

If the speed sensor is faulty, replace it with a new one. Ensure you purchase the correct sensor for your vehicle's make, model, and year. The replacement procedure usually involves removing the old sensor and installing the new one, ensuring proper torque specifications.

6. Instrument Cluster Diagnosis:

Diagnosing instrument cluster problems can be more complex. You may need to consult a professional technician who has experience with instrument cluster repair. Some instrument clusters can be repaired, while others may need to be replaced.

7. PCM Diagnosis and Reprogramming:

If you suspect a PCM issue, it's best to consult a qualified technician. Diagnosing PCM problems requires specialized equipment and expertise. In some cases, the PCM may need to be reprogrammed or replaced.

8. Tire Size Verification:

Ensure that your tires are the correct size specified by the manufacturer. You can find this information in your owner's manual or on the sticker located on the driver's side doorjamb.

Cost Estimates and Shop Advice

The cost of repairing a broken speedometer can vary depending on the cause of the problem and the labor rates in your area. Here's a general estimate:

• Speed Sensor Replacement: $100 - $300 (parts and labor)
• Wiring Repair: $50 - $200 (depending on the extent of the damage)
• Instrument Cluster Repair: $200 - $500 (or more, depending on the complexity of the repair)
• Instrument Cluster Replacement: $300 - $800 (or more, depending on the vehicle)
• PCM Diagnosis and Reprogramming: $100 - $500 (or more, depending on the complexity of the issue)

Shop Advice: Before taking your vehicle to a repair shop, it's helpful to gather as much information as possible about the problem. Note any specific symptoms, warning lights, and diagnostic trouble codes. This will help the technician diagnose the issue more efficiently. Get a written estimate before authorizing any repairs, and be sure to ask about the shop's warranty policy.

DIY vs. Professional Repair: Replacing a speed sensor or repairing simple wiring issues can often be done by a competent DIY mechanic. However, more complex problems, such as instrument cluster repairs or PCM issues, are best left to professionals.

Credibility and Common Failure Points

Several factors contribute to the reliability of speedometers and related components. Technical Service Bulletins (TSBs) are issued by manufacturers to address known issues and provide repair procedures. For example, many manufacturers have issued TSBs regarding faulty speed sensors on specific models, often due to moisture intrusion or manufacturing defects. You can search for TSBs related to your vehicle and speedometer issues online or through a professional repair shop.

Common failure mileage can also provide insights. Speed sensors, for example, often start to fail around 100,000 to 150,000 miles, depending on driving conditions and maintenance. Instrument cluster failures can be more sporadic but are often seen in older vehicles with high mileage.

Online forums and communities dedicated to specific vehicle makes and models are also valuable resources. Other owners may have experienced similar speedometer problems and can share their experiences and solutions.

By understanding the common causes of speedometer problems and following a systematic diagnostic approach, you can effectively troubleshoot and repair your vehicle's speedometer, ensuring safe and legal driving.
