How To Fix A Cylinder 5 Misfire

A cylinder 5 misfire. It's a phrase that can send shivers down the spine of any car enthusiast, amateur mechanic, or even the average driver. It suggests something isn't quite right within the intricate dance of combustion happening under the hood. But before you start envisioning catastrophic engine failure, take a deep breath. While a misfire shouldn't be ignored, it's often a solvable problem, and understanding its causes can empower you to diagnose and even fix it yourself.

The Case of the Erratic Engine: Starting the Investigation

Imagine this scenario: You're cruising down the highway when suddenly, your engine starts to shudder. The check engine light illuminates, blinking ominously. Your car feels sluggish, lacking its usual pep. A quick scan with an OBD-II reader reveals the dreaded code: P0305 - Cylinder 5 Misfire Detected. What now?

The first step is to understand what a misfire actually is. Simply put, it means that the combustion process in cylinder 5 is incomplete or not happening at all. This throws off the engine's balance, leading to the symptoms you're experiencing. But why is cylinder 5 specifically failing to fire? The possibilities are numerous, ranging from simple fixes to more complex issues.

The Symphony of Combustion: How the Engine Works

To understand the potential causes, we need to delve into the inner workings of a typical four-stroke internal combustion engine. Each cylinder, including our culprit cylinder 5, goes through four distinct phases: Intake, Compression, Combustion, and Exhaust.

Intake: The intake valve opens, and the piston moves down, drawing a mixture of air and fuel into the cylinder.
Compression: The intake valve closes, and the piston moves up, compressing the air-fuel mixture. This increases its temperature and prepares it for ignition.
Combustion: The spark plug ignites the compressed mixture, creating a rapid expansion of gases that pushes the piston down, generating power.
Exhaust: The exhaust valve opens, and the piston moves up, pushing the burnt gases out of the cylinder.

A misfire in cylinder 5 signifies a breakdown in this carefully orchestrated sequence specifically within that cylinder. It means something is preventing the air-fuel mixture from igniting or burning properly.

Common Culprits: Diving Deeper into the Causes

Here are some of the most common causes of a cylinder 5 misfire:

Faulty Spark Plug: This is often the first suspect. A worn, damaged, or incorrectly gapped spark plug can fail to produce a strong enough spark to ignite the air-fuel mixture.
Bad Ignition Coil: Each cylinder typically has its own ignition coil (or a coil pack servicing multiple cylinders). This coil amplifies the voltage to create the spark. A failing coil can deliver a weak or nonexistent spark.
Fuel Injector Problems: The fuel injector sprays a precisely measured amount of fuel into the cylinder. A clogged, leaking, or malfunctioning injector can disrupt the air-fuel ratio, preventing proper combustion.
Vacuum Leaks: A vacuum leak can introduce unmetered air into the cylinder, leaning out the air-fuel mixture and causing a misfire. These leaks can occur in intake manifolds, vacuum hoses, or gaskets.
Low Compression: Low compression in cylinder 5 can indicate a more serious problem, such as worn piston rings, damaged valves, or a blown head gasket. Compression is essential for proper combustion.
Wiring Issues: Damaged or corroded wiring to the spark plug, ignition coil, or fuel injector can disrupt the electrical signal needed for proper operation.
Catalytic Converter Problems: While less direct, a clogged catalytic converter can create excessive backpressure, affecting engine performance and potentially causing misfires.

The Diagnostic Process: Sherlock Holmes Under the Hood

Diagnosing a cylinder 5 misfire is like playing detective. You need to systematically eliminate potential causes until you pinpoint the culprit. Here's a logical approach:

Read the Codes: Use an OBD-II scanner to confirm the P0305 code and check for any other related codes that might offer clues.
Visual Inspection: Carefully inspect the spark plug wire (if applicable), ignition coil, and fuel injector for any signs of damage, corrosion, or leaks. Check vacuum hoses for cracks or disconnections.

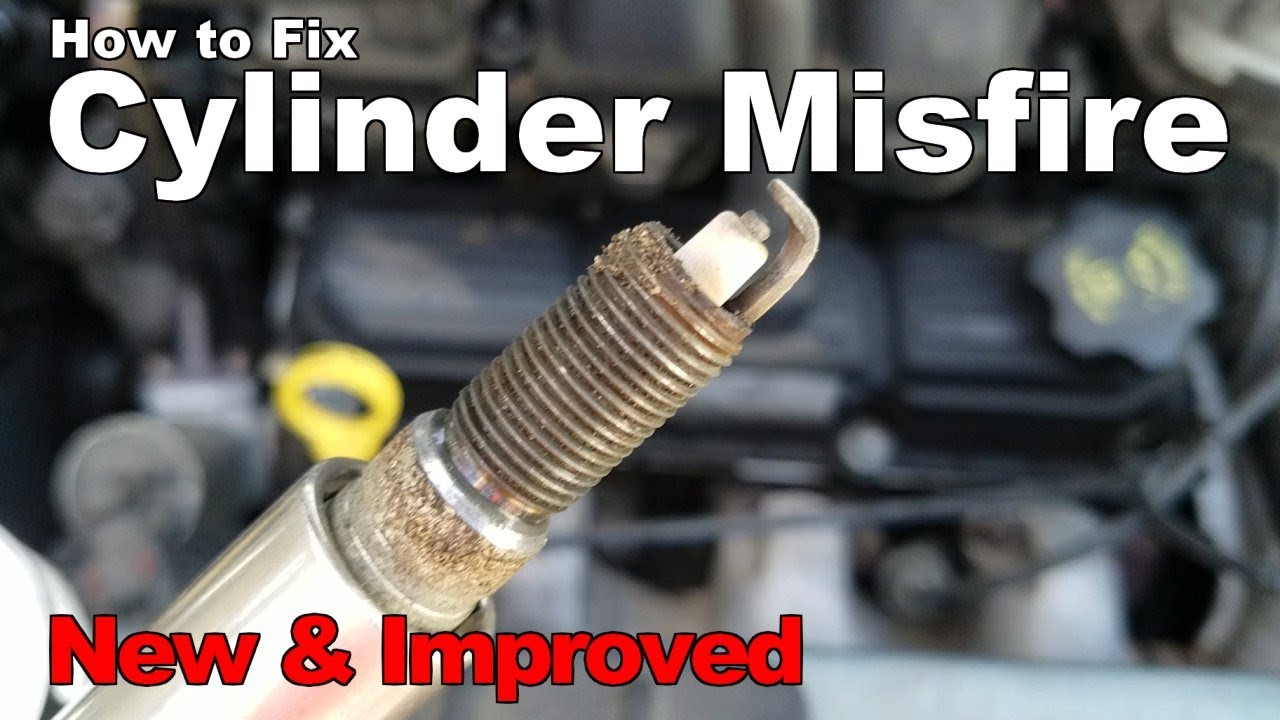

Spark Plug Check: Remove the spark plug from cylinder 5 and inspect its condition. Look for signs of wear, fouling (carbon buildup), or damage. Compare it to the spark plug from another cylinder.
Coil Pack Swap (If Applicable): If your engine has individual ignition coils, try swapping the coil from cylinder 5 with the coil from another cylinder (e.g., cylinder 1). Clear the codes and see if the misfire follows the coil to the new cylinder (P0301). If it does, the coil is likely the problem.
Fuel Injector Test: A mechanic can use specialized tools to test the fuel injector's spray pattern and flow rate. You can also listen to the injector with a stethoscope; it should make a consistent clicking sound.
Compression Test: This test measures the compression pressure in each cylinder. Low compression in cylinder 5 indicates a more serious internal engine problem.
Leak-Down Test: This test, often performed after a low compression test, helps pinpoint the source of the compression loss (e.g., valves, piston rings).

Pros and Cons of DIY vs. Professional Repair

Deciding whether to tackle the repair yourself or take your car to a professional depends on your mechanical skills, available tools, and the complexity of the problem.

DIY Repair:

Pros: Cost savings, learning experience, satisfaction of fixing it yourself.
Cons: Requires mechanical knowledge, tools, and time. Risk of misdiagnosis or further damage if not done correctly.
Use Cases: Simple fixes like replacing a spark plug or ignition coil, cleaning a fuel injector (using appropriate cleaning solutions), or tightening a vacuum hose.

Professional Repair:

Pros: Accurate diagnosis, professional repairs, warranty on parts and labor.
Cons: Higher cost, reliance on the mechanic's expertise.
Use Cases: Complex issues like low compression, fuel injector problems requiring specialized tools, or diagnosing and repairing internal engine damage.

Manufacturer Examples and Common Issues

Specific vehicles may be more prone to certain types of misfires. For example:

Ford F-150 (with the 5.4L Triton engine): Known for spark plug issues, particularly spark plugs breaking during removal due to their two-piece design.
BMW (various models): Prone to ignition coil failures, especially as the vehicles age. Vacuum leaks are also common.
Honda Civic (with high mileage): Valve adjustments may be necessary to maintain proper compression and prevent misfires.

These are just a few examples. Researching common issues specific to your vehicle's make, model, and engine can provide valuable insights during the diagnostic process.

The Repair: From Diagnosis to Solution

Once you've identified the cause of the misfire, the repair process will vary depending on the issue. Here are some common scenarios:

Replacing a Spark Plug: Ensure you use the correct spark plug type and gap for your vehicle. Torque the spark plug to the manufacturer's specifications.
Replacing an Ignition Coil: Disconnect the battery before replacing the coil. Ensure the coil is properly seated and connected.
Cleaning a Fuel Injector: You can use a fuel injector cleaning additive in your fuel tank, or remove the injector and clean it manually with a specialized cleaning kit (following the instructions carefully).
Repairing a Vacuum Leak: Replace damaged vacuum hoses or gaskets. Use a smoke machine to help locate hard-to-find leaks.
Addressing Low Compression: This often requires more extensive engine repairs, such as valve work, piston ring replacement, or head gasket replacement. Consulting a professional is highly recommended.

Real-World Insights and Recommendations

Based on real-world experiences, here are some additional tips and recommendations:

Preventive Maintenance: Regular maintenance, including spark plug replacement, fuel filter replacement, and vacuum hose inspections, can help prevent misfires.
Use Quality Parts: When replacing parts, opt for reputable brands to ensure reliability and longevity.
Don't Ignore Misfires: Addressing misfires promptly can prevent further engine damage and improve fuel economy. A prolonged misfire can damage the catalytic converter.
Check the Basics First: Before diving into complex diagnostics, check the simple things like spark plug condition, wiring connections, and vacuum hoses.
Be Patient: Diagnosing a misfire can take time and effort. Be patient and methodical in your approach.

A cylinder 5 misfire, while initially concerning, can often be diagnosed and resolved with a systematic approach, a basic understanding of engine mechanics, and a willingness to learn. By understanding the causes, the diagnostic process, and the potential repair options, you can empower yourself to tackle this common automotive problem and keep your engine running smoothly.
