How To Fix A Dead Cylinder

A dead cylinder – those words strike fear into the heart of any car enthusiast. It means your engine isn't performing at its best, and potentially indicates a serious underlying problem. This article will equip you with the knowledge to diagnose, and in many cases, fix a dead cylinder yourself. We’ll cover the basics, common causes, troubleshooting steps, and preventative measures, empowering you to get your engine firing on all cylinders again.

Engine Basics: A Quick Refresher

Before we dive into fixing a dead cylinder, let's briefly recap how a typical internal combustion engine works. We'll focus on four-stroke engines, the most common type found in passenger vehicles. The four strokes are:

Intake: The piston moves down, creating a vacuum that draws a mixture of air and fuel into the cylinder. The intake valve is open during this stroke.
Compression: The piston moves up, compressing the air-fuel mixture. Both the intake and exhaust valves are closed.
Combustion (Power): The spark plug ignites the compressed mixture, causing a rapid expansion of gases that forces the piston down. This is where the engine produces power.
Exhaust: The piston moves up, pushing the burnt gases out of the cylinder through the open exhaust valve.

Each cylinder in your engine goes through this cycle repeatedly. If one cylinder isn't functioning correctly – if it's "dead" – it disrupts the smooth operation of the engine, leading to noticeable symptoms.

Diagnosing a Dead Cylinder

A dead cylinder means that the combustion process isn't happening correctly in that specific cylinder. This can manifest in various ways:

Rough idling: The engine shakes or vibrates excessively when idling because the power output is unevenly distributed.
Loss of power: The engine feels sluggish and lacks its usual responsiveness, especially when accelerating.
Poor fuel economy: The engine has to work harder to compensate for the missing cylinder, leading to increased fuel consumption.
Check Engine Light (CEL): A dead cylinder will often trigger the CEL, and a diagnostic scan will reveal a specific misfire code (e.g., P0301 for cylinder 1 misfire).
Exhaust smell: You might notice a distinct smell of unburnt fuel from the exhaust pipe.

Identifying which cylinder is dead is the first crucial step. The diagnostic trouble code (DTC) from the CEL will tell you precisely which cylinder is misfiring. If you don't have a scan tool, many auto parts stores will read the codes for free.

Common Causes of a Dead Cylinder and How to Fix Them

Here are some of the most common culprits behind a dead cylinder, along with troubleshooting and repair steps:

1. Ignition System Issues

The ignition system is responsible for igniting the air-fuel mixture. Common problems include:

Faulty Spark Plug: The spark plug may be worn, fouled, or damaged, preventing it from generating a spark. Fix: Remove the spark plug and inspect it. Look for signs of wear, carbon buildup, oil fouling, or cracks. Replace the spark plug with a new one of the correct type and gap (refer to your vehicle's service manual). Ensure the spark plug gap is set correctly using a spark plug gapping tool.
Faulty Ignition Coil: The ignition coil provides the high-voltage electricity needed to create a spark. If the coil is defective, it won't generate a strong enough spark. Fix: Use a multimeter to test the coil's primary and secondary resistance. Compare the readings to the specifications in your vehicle's service manual. If the resistance is outside the specified range, replace the coil. You can also swap the coil with one from a known good cylinder and see if the misfire follows the coil.
Faulty Spark Plug Wire: (On older vehicles) The spark plug wire carries the high-voltage electricity from the coil to the spark plug. A damaged or deteriorated wire can leak voltage, resulting in a weak or nonexistent spark. Fix: Inspect the spark plug wire for cracks, cuts, or brittleness. Use a multimeter to check the wire's resistance. Replace the wire if it's damaged or if the resistance is too high.

2. Fuel System Issues

The fuel system delivers the correct amount of fuel to the cylinder. Problems here include:

Faulty Fuel Injector: The fuel injector sprays fuel into the cylinder. A clogged or malfunctioning injector won't deliver the correct amount of fuel. Fix: Use a noid light to check if the fuel injector is receiving a signal from the ECU (Engine Control Unit). If it's receiving a signal but not spraying fuel, the injector is likely clogged or defective. Try cleaning the injector with a fuel injector cleaner additive. If that doesn't work, replace the injector. You can also try swapping it with a known good cylinder to see if the misfire follows the injector. Be sure to relieve fuel system pressure before removing the injector.
Low Fuel Pressure: Insufficient fuel pressure can prevent the injectors from delivering enough fuel. Fix: Check the fuel pressure at the fuel rail using a fuel pressure gauge. Compare the reading to the specifications in your vehicle's service manual. If the fuel pressure is low, investigate the fuel pump, fuel filter, and fuel pressure regulator.

3. Compression Issues

Adequate compression is essential for the combustion process. Common causes of low compression include:

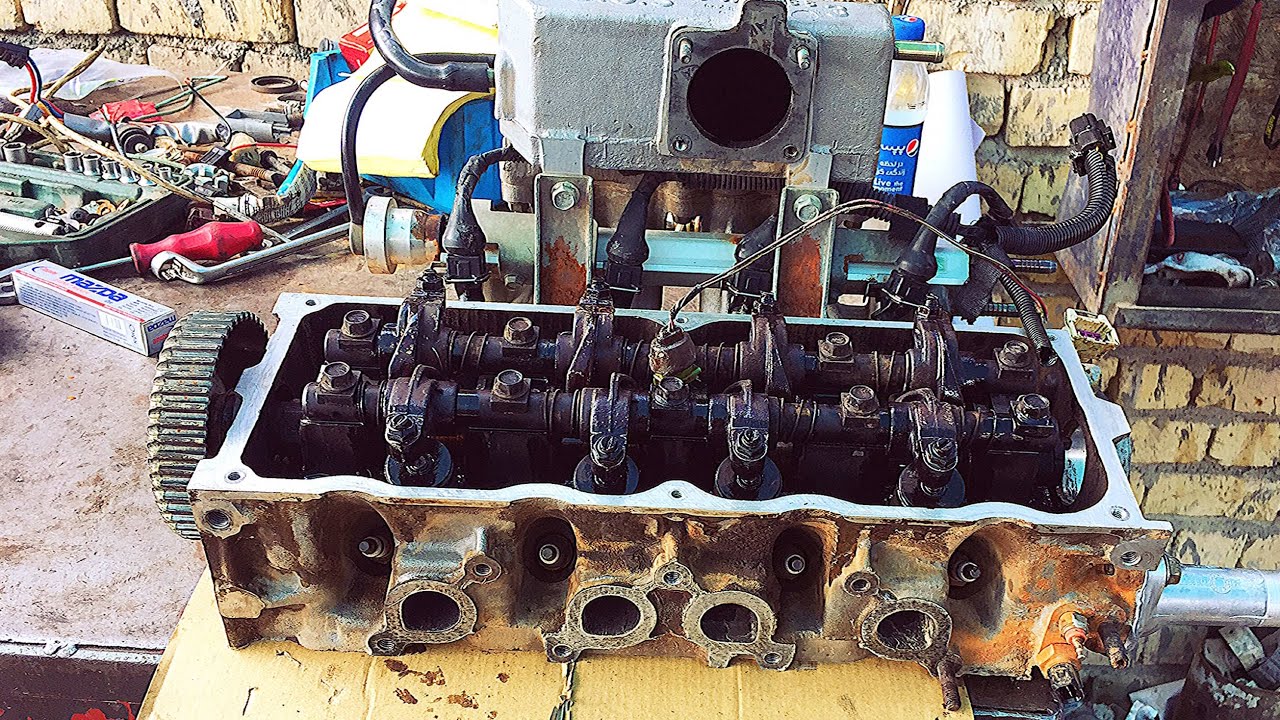

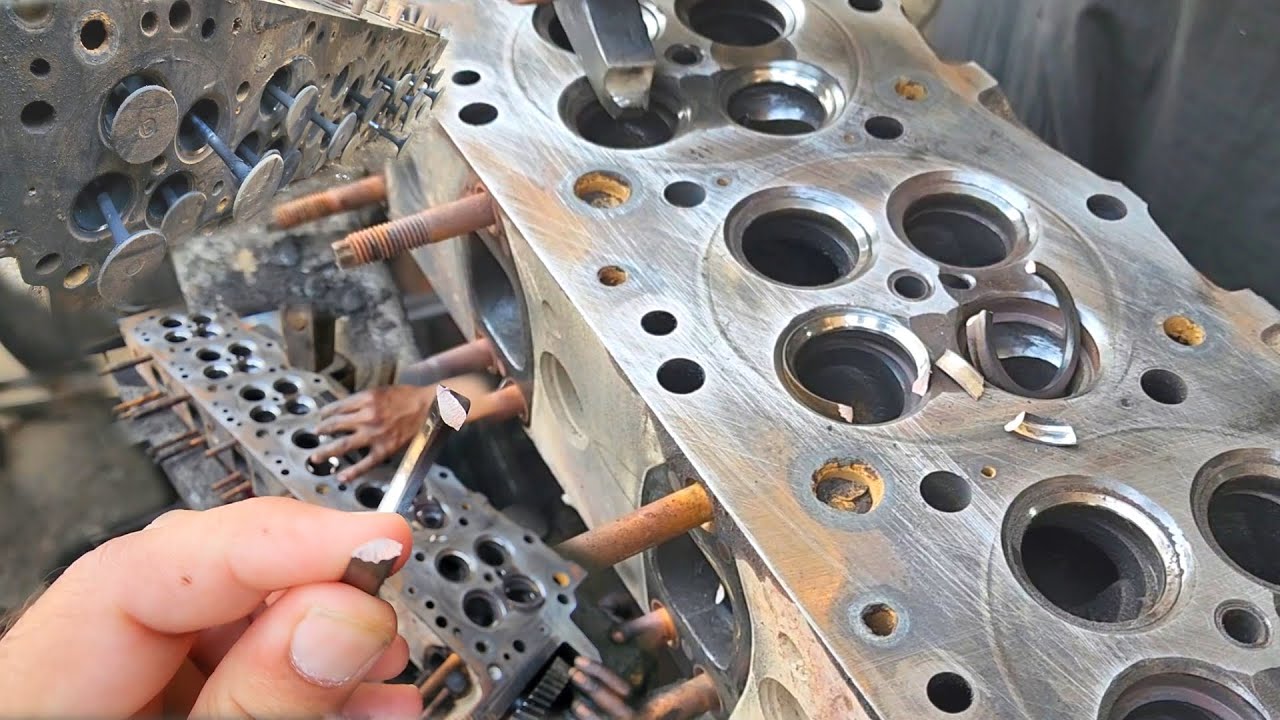

Leaking Valves: Worn or damaged valves can prevent the cylinder from sealing properly, resulting in low compression. Fix: Perform a compression test and a leak-down test. A compression test measures the pressure within the cylinder. A leak-down test injects compressed air into the cylinder and identifies where the air is leaking (e.g., through the valves, piston rings, or head gasket). If the tests indicate a valve leak, the cylinder head will need to be removed and the valves inspected and potentially replaced or re-seated. This is a more advanced repair typically best left to a professional.
Worn Piston Rings: Piston rings seal the gap between the piston and the cylinder wall. Worn or broken rings can allow combustion gases to escape, reducing compression. Fix: The leak-down test will often indicate leaking piston rings. This is another advanced repair requiring engine disassembly. Consider the overall condition of the engine before undertaking such a repair. It may be more economical to replace the engine.
Blown Head Gasket: A blown head gasket can cause a loss of compression between cylinders or into the cooling system. Fix: Look for signs of coolant in the oil (milky appearance) or excessive white smoke from the exhaust. The leak-down test can also help diagnose a blown head gasket. Replacing a head gasket requires removing the cylinder head and is a moderately complex repair.

4. Vacuum Leaks

Vacuum leaks can disrupt the air-fuel mixture, leading to misfires.

Vacuum Hoses: Check all vacuum hoses connected to the intake manifold for cracks, leaks, or loose connections. Fix: Inspect all hoses and replace any that are damaged or brittle. A smoke test can help identify hard-to-find vacuum leaks.
Intake Manifold Gasket: A leaking intake manifold gasket can create a vacuum leak. Fix: Spray carburetor cleaner around the intake manifold gasket while the engine is running. If the engine RPMs change, it indicates a leak. Replacing the intake manifold gasket is a moderately complex repair.

Do's and Don'ts / Best Practices

Do:

Start with the easiest and most common causes (spark plugs, ignition coils).
Use a diagnostic scan tool to identify the specific cylinder misfiring.
Refer to your vehicle's service manual for specifications and procedures.
Use quality replacement parts.
Disconnect the negative battery cable before working on the ignition or fuel systems.
Double-check all connections after making repairs.

Don't:

Ignore a dead cylinder. It can cause further engine damage.
Guess at the cause. Proper diagnosis is crucial.
Attempt repairs beyond your skill level.
Over-tighten spark plugs.
Use excessive force when removing parts.

Conclusion

Fixing a dead cylinder can be a challenging but rewarding DIY project. By systematically diagnosing the problem and following the appropriate repair procedures, you can often restore your engine's performance and save money on costly repairs. Remember to prioritize safety, use quality parts, and consult your vehicle's service manual for guidance. If you're uncomfortable performing any of these repairs, it's always best to seek the assistance of a qualified mechanic. A compression test showing very low readings should be brought to a trusted mechanic immediately because internal engine damage could result in needing an engine replacement. Good luck, and happy wrenching!
