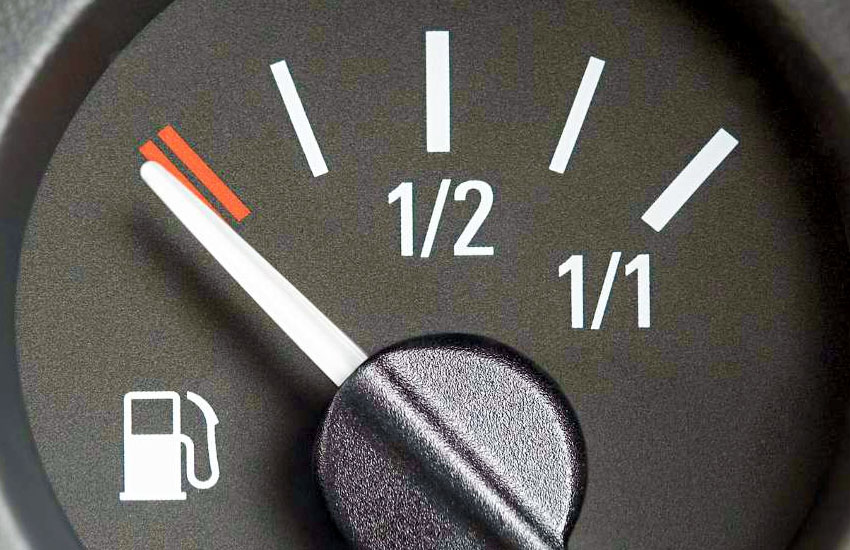

How To Fix A Fuel Gauge Needle

A malfunctioning fuel gauge can be more than just an annoyance; it can lead to running out of gas unexpectedly, potentially leaving you stranded. Accurately knowing your fuel level is crucial for safe and efficient driving. This article will guide you through diagnosing and fixing common fuel gauge issues, helping you understand the problem, identify the symptoms, and implement the right solution.

Symptoms of a Faulty Fuel Gauge

Before diving into repairs, let's pinpoint the specific symptoms you're experiencing. Recognizing the problem is half the battle! Common symptoms include:

• Inaccurate Reading: The gauge shows the tank is full when it's not, or empty when it's actually full.
• Fluctuating Needle: The needle bounces erratically, even on a smooth road, providing unstable readings.
• Sticking Needle: The needle gets stuck at a particular point (often empty or full) and doesn't move, regardless of the actual fuel level.
• No Reading: The needle remains at empty even after filling the tank, or it doesn't move at all after starting the car.
• Gauge Reads Full Constantly: Even after driving for a considerable distance, the fuel gauge stubbornly remains at the full mark.
• Gauge Reads Empty Constantly: The fuel gauge is always reading empty even when you know you have a full tank of gas.
• Fuel Light Stays On: The low fuel warning light illuminates even when the gauge indicates there's plenty of fuel.
• Intermittent Issues: The gauge works correctly sometimes, but exhibits problems at other times, making diagnosis difficult.

Root Causes of Fuel Gauge Problems

Several factors can cause a fuel gauge to malfunction. The most common culprits are:

1. Faulty Fuel Level Sensor (Sending Unit)

This is the most frequent cause. The fuel level sensor, located inside the fuel tank, consists of a float attached to a variable resistor. As the fuel level changes, the float moves up or down, altering the resistance. This resistance change is then interpreted by the fuel gauge as the fuel level. Corrosion, wear and tear, or physical damage to the float or resistor can cause inaccurate readings or complete failure. Sulfur content in gasoline can accelerate corrosion of the sending unit components.

2. Wiring Issues

Damaged, corroded, or loose wiring between the fuel level sensor, the fuel gauge, and the vehicle's electrical system can disrupt the signal. This includes:

• Open Circuits: A break in the wire prevents the signal from reaching the gauge.
• Short Circuits: A wire touching the vehicle's chassis or another wire causes an inaccurate signal.
• Corrosion: Corrosion on connectors or wires increases resistance, affecting the signal strength.
• Grounding Problems: A poor ground connection prevents the circuit from completing correctly.

3. Faulty Fuel Gauge

The fuel gauge itself can fail. This is less common than a problem with the sending unit or wiring, but it does happen. The gauge might be physically damaged, its internal circuitry could be faulty, or its calibration might be off.

4. Instrument Cluster Issues

In modern vehicles, the fuel gauge is often integrated into the instrument cluster, which is controlled by a computer. Problems within the instrument cluster's electronics or software can lead to fuel gauge malfunctions. This can also include issues with the stepper motor that physically moves the needle.

5. Corrosion Within the Fuel Tank

Rust and debris inside the fuel tank can interfere with the float's movement or damage the fuel level sensor. This is especially common in older vehicles or those that have been stored for extended periods.

6. PCM/BCM Issues

In some vehicles, the Powertrain Control Module (PCM) or Body Control Module (BCM) processes the fuel level sensor signal before sending it to the gauge. Problems within these modules can cause inaccurate readings.

What Happens if You Ignore a Faulty Fuel Gauge?

Ignoring a faulty fuel gauge can have serious consequences:

• Running Out of Gas: The most obvious risk is running out of fuel unexpectedly, leaving you stranded and potentially in a dangerous situation.
• Damage to Fuel Pump: Running the fuel tank very low can cause the fuel pump to overheat, shorten its lifespan, or even cause it to fail completely. Fuel acts as a coolant for the fuel pump.
• Inconvenience and Delays: Being stranded disrupts your schedule and can lead to missed appointments or work.
• Safety Risks: Being stranded in a hazardous location, such as on a busy highway or in a remote area, can put you at risk.
• Unnecessary Stress: Constantly worrying about your fuel level can be stressful and distracting while driving.

Recommended Fixes

The appropriate fix depends on the root cause of the problem. Here's a breakdown of recommended solutions:

1. Fuel Level Sensor Replacement

If the fuel level sensor is faulty, replacement is usually the best option. Procedure:

• Disconnect the negative battery cable.
• Access the fuel tank (usually from under the vehicle or through an access panel in the trunk).
• Drain the fuel tank.
• Remove the fuel pump/sending unit assembly.
• Replace the fuel level sensor.
• Reinstall the assembly.
• Refill the fuel tank.
• Reconnect the battery cable.

2. Wiring Repair

Inspect all wiring and connectors related to the fuel level sensor and gauge. Procedure:

• Repair or replace any damaged or corroded wires.
• Clean corroded connectors and apply dielectric grease.
• Ensure all connections are secure.
• Check the ground connection for the fuel tank and ensure it is clean and tight.

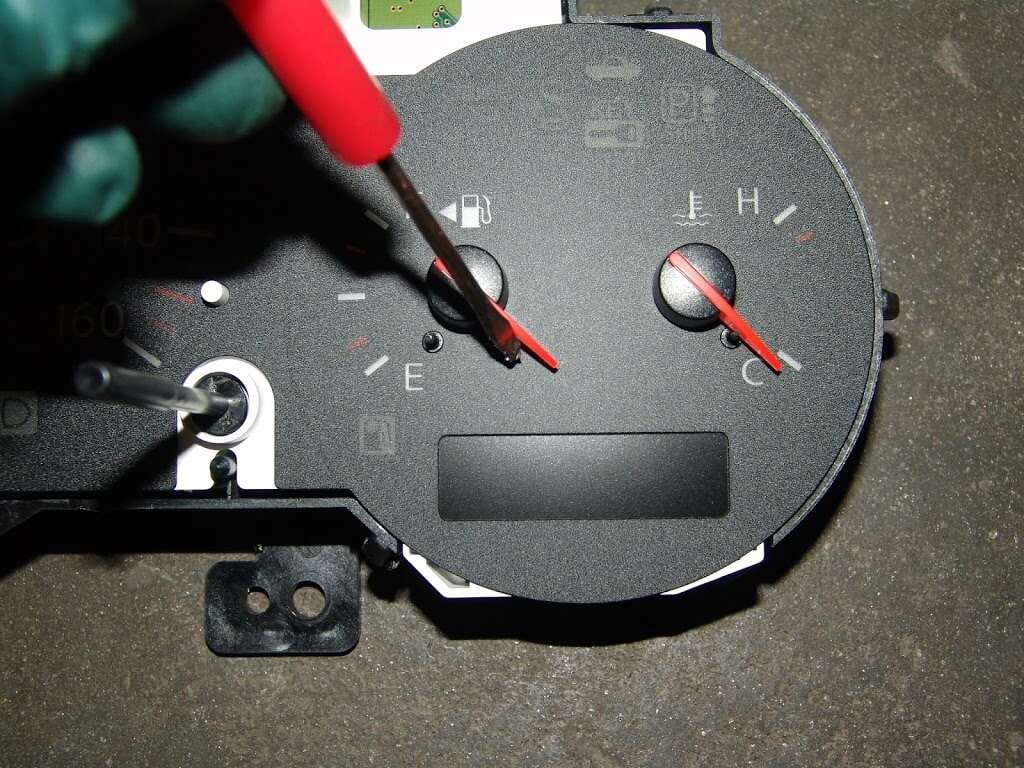

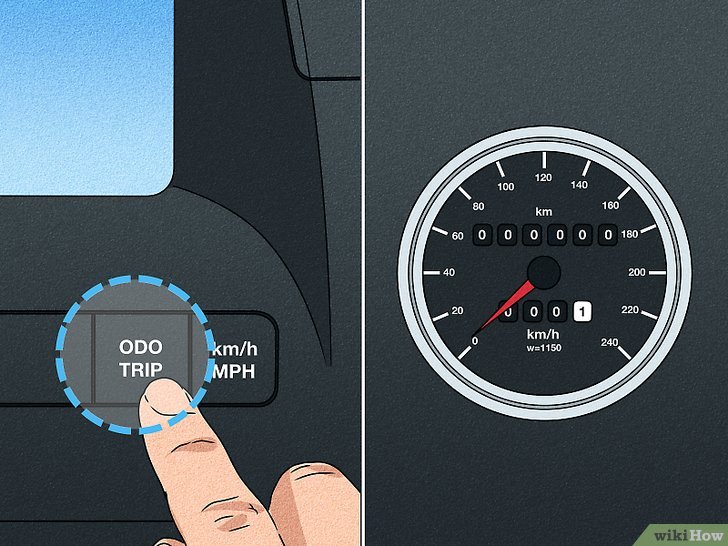

3. Fuel Gauge Repair or Replacement

If the fuel gauge itself is faulty, it may need to be repaired or replaced. Procedure:

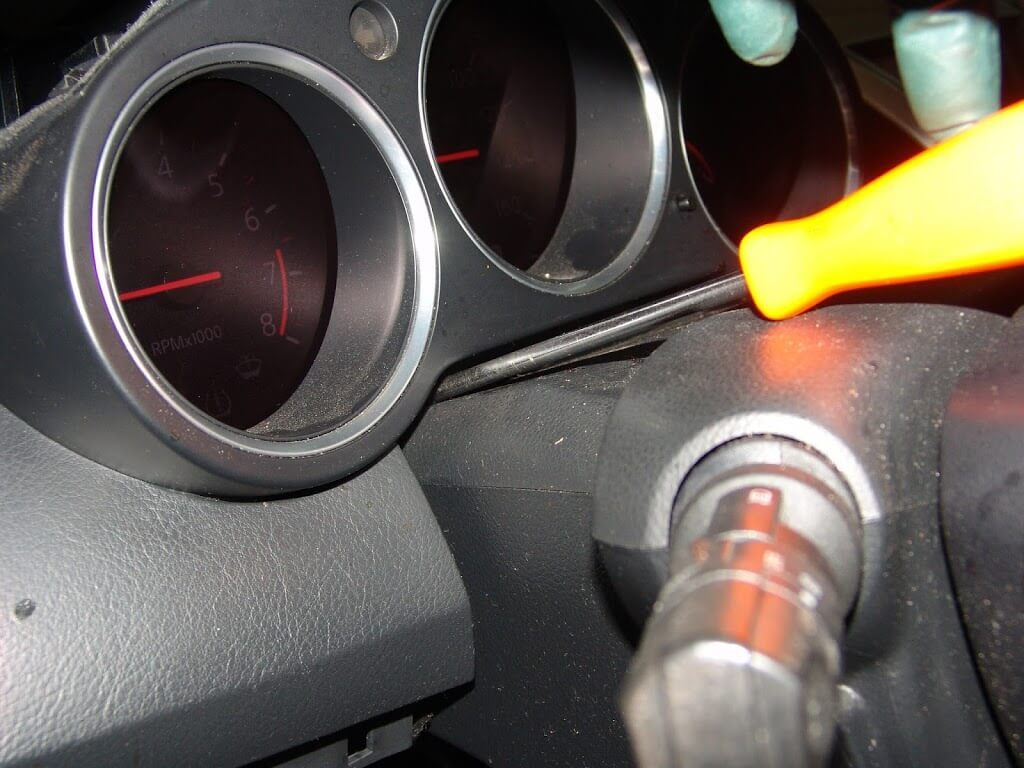

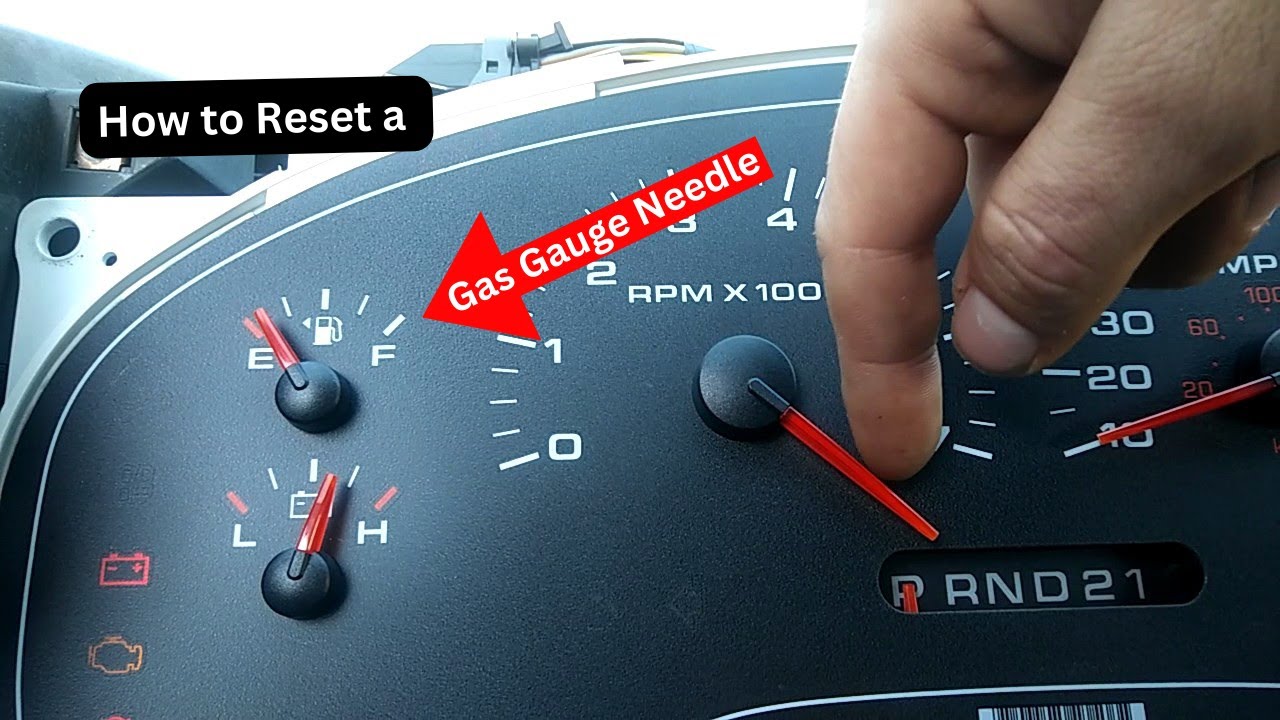

• Remove the instrument cluster from the dashboard.
• Test the fuel gauge using a multimeter or diagnostic tool.
• If repairable, attempt to fix the gauge.
• If unrepairable, replace the gauge with a new or refurbished unit.
• Reinstall the instrument cluster.

4. Instrument Cluster Repair or Replacement

If the instrument cluster is the source of the problem, it may require professional repair or replacement. This often involves specialized equipment and software. Contact a qualified mechanic or instrument cluster repair service. Newer vehicles may require programming of the new cluster to match the VIN and mileage.

5. Fuel Tank Cleaning

If there is excessive rust or debris in the fuel tank, it may need to be cleaned or replaced. Procedure:

• Drain the fuel tank completely.
• Remove the fuel tank from the vehicle.
• Thoroughly clean the tank using a suitable cleaning solution and method.
• Inspect the tank for damage and repair if necessary.
• Reinstall the fuel tank.
• Replace the fuel filter.
• Refill the fuel tank.

6. PCM/BCM Reprogramming or Replacement

If the PCM or BCM is causing the issue, it may need to be reprogrammed or, in rare cases, replaced. This requires specialized diagnostic tools and software, and should be performed by a qualified mechanic.

Cost Estimates and Shop Advice

The cost of fixing a fuel gauge can vary depending on the specific problem and the labor rates in your area. Here's a general estimate:

• Fuel Level Sensor Replacement: $150 - $500 (parts and labor). The sensor itself can range from $50 to $200, and labor can take 2-4 hours.
• Wiring Repair: $50 - $200 (depending on the extent of the damage).
• Fuel Gauge Repair/Replacement: $100 - $400 (depending on the gauge and complexity of the repair).
• Instrument Cluster Repair: $200 - $800 (depending on the repair needed).
• Instrument Cluster Replacement: $300 - $1200+ (including programming).
• Fuel Tank Cleaning: $200 - $500 (including labor to remove and reinstall the tank).

Shop Advice:

• Get a Proper Diagnosis: Don't just assume the problem is the sending unit. Have a qualified mechanic diagnose the issue to ensure the correct repair.
• Check for Technical Service Bulletins (TSBs): Search online for TSBs related to your vehicle's fuel gauge. Manufacturers often issue TSBs to address common problems and provide specific repair procedures. For example, some older GM vehicles had issues with fuel level sensors due to sulfur in the fuel, addressed in specific TSBs. Many common vehicle issues like this are searchable online using keywords like "Fuel Gauge TSB [Year] [Make] [Model]".
• Ask About Warranty: If your vehicle is still under warranty, the repair may be covered.
• Consider a Second Opinion: If you're unsure about the diagnosis or the estimated cost, get a second opinion from another mechanic.
• DIY with Caution: Replacing a fuel level sensor involves working with gasoline, which is flammable. If you're not comfortable working with fuel, it's best to leave this repair to a professional. Always disconnect the battery and take precautions to prevent sparks or flames.

Community Data: Online forums dedicated to your vehicle's make and model can be invaluable resources. Users often share their experiences with fuel gauge problems, including common causes and solutions. This data can provide valuable insights into the issue you're facing.

Common Mileage for Failure: While there's no hard and fast rule, fuel level sensors often start to fail around 100,000 to 150,000 miles, especially in vehicles that are regularly run with low fuel levels. Keep in mind that this is just a general estimate, and the actual lifespan can vary depending on driving conditions and maintenance practices.

By understanding the symptoms, root causes, and recommended fixes for fuel gauge problems, you can take the necessary steps to get your fuel gauge working accurately again, ensuring a safer and more reliable driving experience.
