How To Fix A Leaking Heater Core

The slow, sweet smell of antifreeze lingering in your car's cabin, the fogging windshield that stubbornly resists clearing, and the mysterious loss of coolant – these are the telltale signs of a leaking heater core. While often dismissed as a minor inconvenience, a leaking heater core can lead to significant problems, ranging from reduced heating performance and unpleasant odors to potential engine overheating. Before rushing to the mechanic, let's delve into the intricacies of the heater core and explore how to address this common automotive issue.

The Case of the Foggy Windshield: A Leaking Heater Core Scenario

Imagine this: It's a chilly morning. You hop into your car, crank up the heat, and begin your commute. However, instead of a blast of warm air, you're greeted with a hazy film that clings to the windshield, obstructing your view. You frantically toggle the defroster, but the fog persists, accompanied by a faint, sickly-sweet aroma. This scenario strongly suggests a leaking heater core. The leaking coolant, under pressure from the cooling system, is being forced into the ventilation system, vaporizing upon contact with the warm air and condensing on the cold windshield. The distinctive antifreeze smell confirms your suspicions.

Heater Core Anatomy and Operation: How It Works

To understand how to fix a leaking heater core, it's crucial to grasp its function within the vehicle's cooling and heating system. Think of the heater core as a miniature radiator located inside the passenger compartment. It's essentially a small heat exchanger that uses hot engine coolant to warm the air blown into the cabin. Here’s the breakdown:

• Coolant Circulation: Hot coolant, heated by the engine, is pumped through the heater core.
• Heat Transfer: The heater core's intricate network of fins and tubes maximizes surface area, facilitating efficient heat transfer from the coolant to the surrounding air.
• Airflow: A blower motor forces air across the heated fins of the heater core.
• Temperature Control: The blend door, a flap within the HVAC (Heating, Ventilation, and Air Conditioning) system, regulates the amount of air passing through the heater core, controlling the temperature of the air entering the cabin.

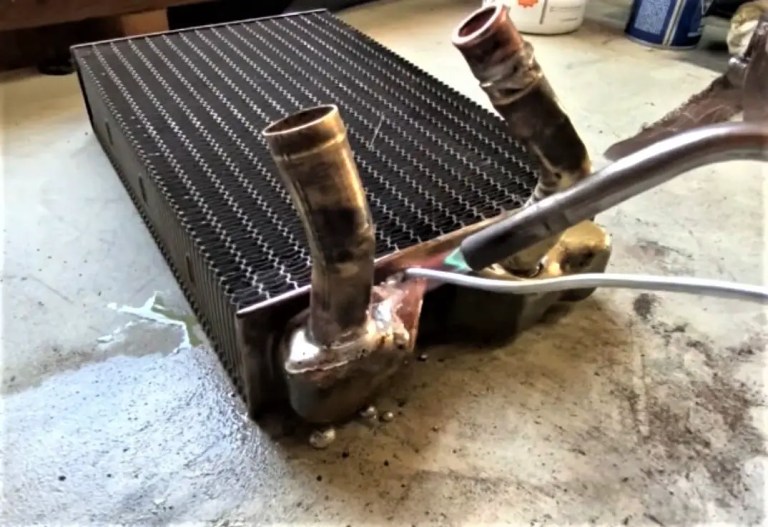

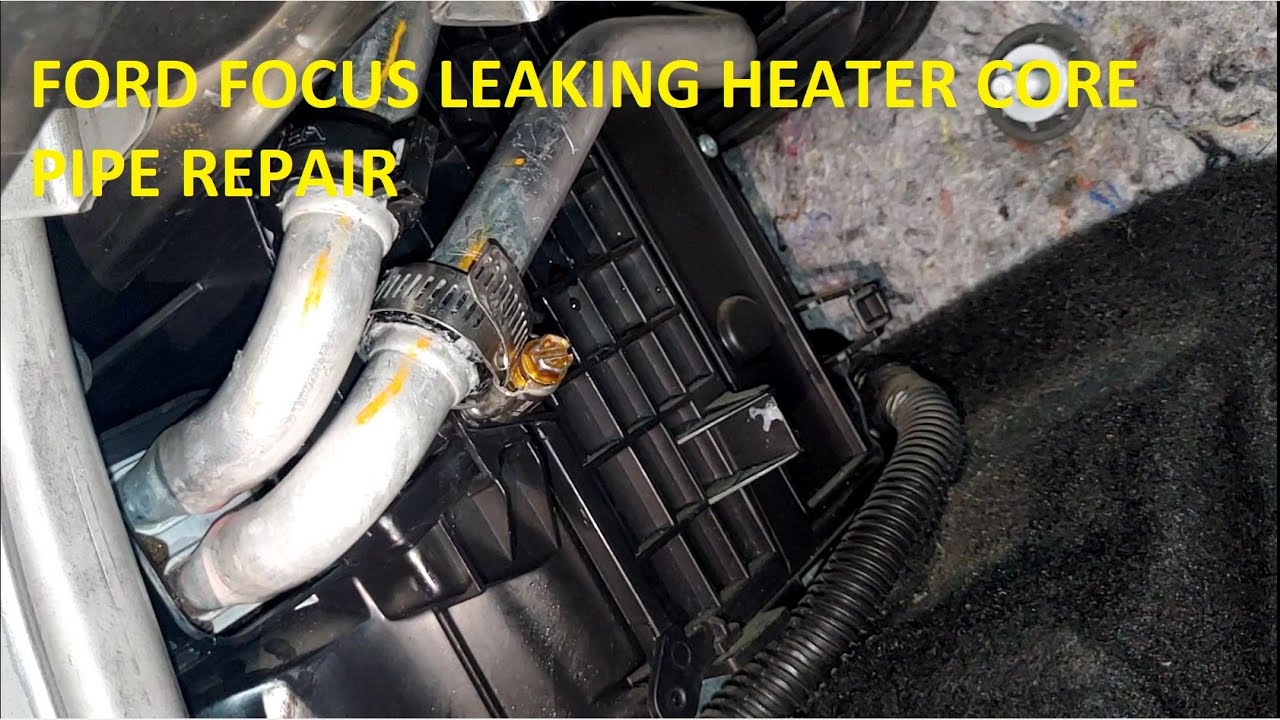

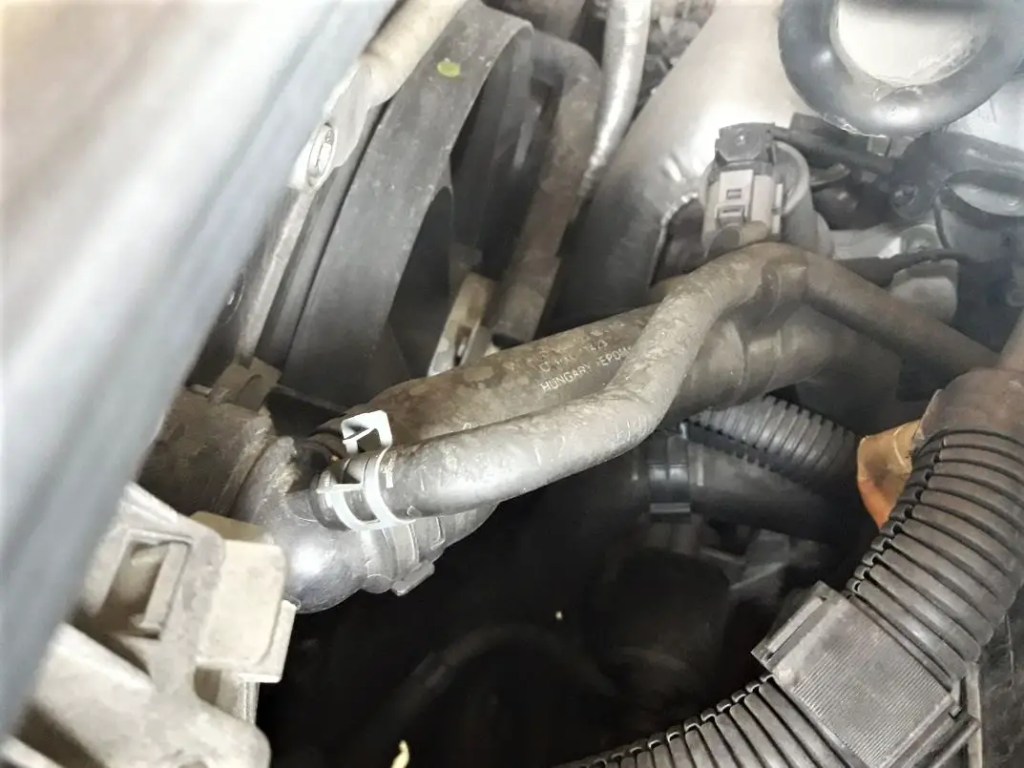

The heater core is typically constructed of aluminum or copper, materials known for their excellent thermal conductivity. It's connected to the engine's cooling system by two hoses: an inlet hose that supplies hot coolant and an outlet hose that returns the cooled coolant to the engine. Over time, factors such as corrosion, electrolysis, and physical damage can compromise the integrity of the heater core, leading to leaks.

Diagnosing a Leaking Heater Core: Beyond the Fog

While the foggy windshield and antifreeze smell are strong indicators, a thorough diagnosis is essential. Here are some additional signs to look for:

• Coolant Loss: A noticeable drop in coolant level in the radiator or overflow tank, with no visible external leaks elsewhere in the system.
• Wet Passenger-Side Floor: Coolant leaking from the heater core can accumulate on the passenger-side floor, making the carpet damp or soaked. Note that condensation from the A/C evaporator can also cause this, so carefully examine the liquid to determine if it's coolant.
• Low Heat Output: A severely leaking heater core may not be able to effectively heat the air, resulting in reduced heating performance.
• Pressure Test: A cooling system pressure test can help pinpoint the location of the leak. By pressurizing the system and observing for pressure drops, you can confirm whether the heater core is the culprit.

Repair Options: Sealing vs. Replacing

Once you've confirmed that the heater core is leaking, you have two primary repair options: using a coolant sealant or replacing the heater core. Each approach has its pros and cons:

Coolant Sealants: The Quick Fix (Maybe)

Pros:

• Relatively inexpensive and easy to apply.
• Can temporarily seal small leaks, extending the life of the heater core.

Cons:

• Often a temporary solution, the leak may reappear.
• Can clog the cooling system, potentially leading to overheating and damage to other components, such as the radiator and water pump.
• Not effective for large or severely damaged heater cores.

Use Cases: Coolant sealants are best suited for small, slow leaks in older vehicles where a complete heater core replacement is not feasible or cost-effective. It’s also worth noting that some sealants specifically market themselves as non-clogging, containing smaller particles designed to target pinhole leaks.

Heater Core Replacement: The Permanent Solution

Pros:

• Provides a permanent solution to the leaking heater core problem.
• Restores the heating system to its original performance.
• Eliminates the risk of clogging the cooling system.

Cons:

• More expensive than using a sealant.
• Can be a labor-intensive and time-consuming repair, requiring significant disassembly of the dashboard.

Use Cases: Heater core replacement is the recommended solution for moderate to severe leaks, as well as for vehicles where a long-term, reliable repair is desired. This is also the preferred method for newer vehicles, where maintaining the integrity of the cooling system is paramount.

The Replacement Process: A Step-by-Step Guide

Replacing a heater core is a complex task that often requires specialized tools and experience. It typically involves the following steps:

1. Preparation: Disconnect the battery, drain the cooling system, and gather the necessary tools (socket set, screwdrivers, pliers, drain pan, etc.). Consult your vehicle's repair manual for specific instructions and torque specifications.
2. Dashboard Disassembly: Remove the dashboard panels, trim pieces, and other components necessary to access the heater core housing. This can be a challenging and time-consuming process, requiring careful attention to detail to avoid damaging fragile parts.
3. Heater Core Removal: Disconnect the heater hoses from the heater core and carefully remove the old heater core from its housing. Be prepared for some coolant spillage during this step.
4. Heater Core Installation: Install the new heater core in its housing, ensuring that the hoses are properly connected and secured.
5. Reassembly: Reassemble the dashboard and other components in the reverse order of disassembly.
6. Refill and Bleed: Refill the cooling system with the correct type of coolant and bleed any air from the system.
7. Testing: Start the engine and check for leaks. Verify that the heating system is functioning properly.

Manufacturer Examples: The complexity of heater core replacement varies significantly depending on the vehicle make and model. For example, some older GM vehicles have a relatively accessible heater core, while many modern European cars require extensive dashboard removal, sometimes including the steering wheel and airbag system. Brands like BMW and Audi are notorious for having complex HVAC systems, often requiring specialized tools and diagnostic software to properly access and replace the heater core.

Prevention: Protecting Your Heater Core

While heater core failure is often inevitable due to age and wear, there are steps you can take to prolong its life:

• Use the Correct Coolant: Using the recommended type and concentration of coolant is crucial for preventing corrosion and scaling within the cooling system.
• Maintain Coolant Levels: Regularly check and maintain the proper coolant level to prevent overheating and corrosion.
• Flush the Cooling System: Periodically flush the cooling system to remove accumulated sediment and contaminants.
• Address Leaks Promptly: Repair any leaks in the cooling system as soon as they are detected to prevent further damage.

Real-World Insights and Recommendations

Based on real-world experience, attempting a heater core replacement yourself should only be undertaken if you possess strong mechanical skills, a comprehensive understanding of automotive systems, and access to detailed repair information specific to your vehicle. The potential for damaging dashboard components, air conditioning systems, or even triggering airbags can quickly escalate a seemingly simple repair into a costly and frustrating ordeal. If you're unsure of your abilities, it's best to entrust the job to a qualified mechanic. Furthermore, when purchasing a replacement heater core, opting for a reputable brand like Denso, Spectra Premium, or Valeo ensures quality and durability. Generic or low-cost aftermarket parts may be tempting, but their lifespan and performance can be significantly compromised. Finally, remember that a seemingly minor coolant leak can have major consequences. Prompt diagnosis and repair are essential for maintaining the health of your vehicle and preventing more serious and expensive problems down the road. Don't let that sweet smell turn into a sour situation – address the issue before it leaves you stranded in the cold.
