How To Fix A Loose Rear View Mirror

A wobbly, vibrating rear-view mirror is more than just annoying; it's a serious safety hazard. Trying to decipher what's behind you through a shaky reflection can be distracting and even lead to accidents. Luckily, fixing a loose rear-view mirror is often a straightforward DIY project, saving you a trip to the mechanic and giving you the satisfaction of a job well done. This guide will walk you through the process, covering common causes and solutions to get your mirror firmly back in place.

Understanding Rear-View Mirror Mounting Systems

Before we dive into the repairs, let's understand the mechanics involved. Modern rear-view mirrors typically attach to the windshield using one of two primary methods:

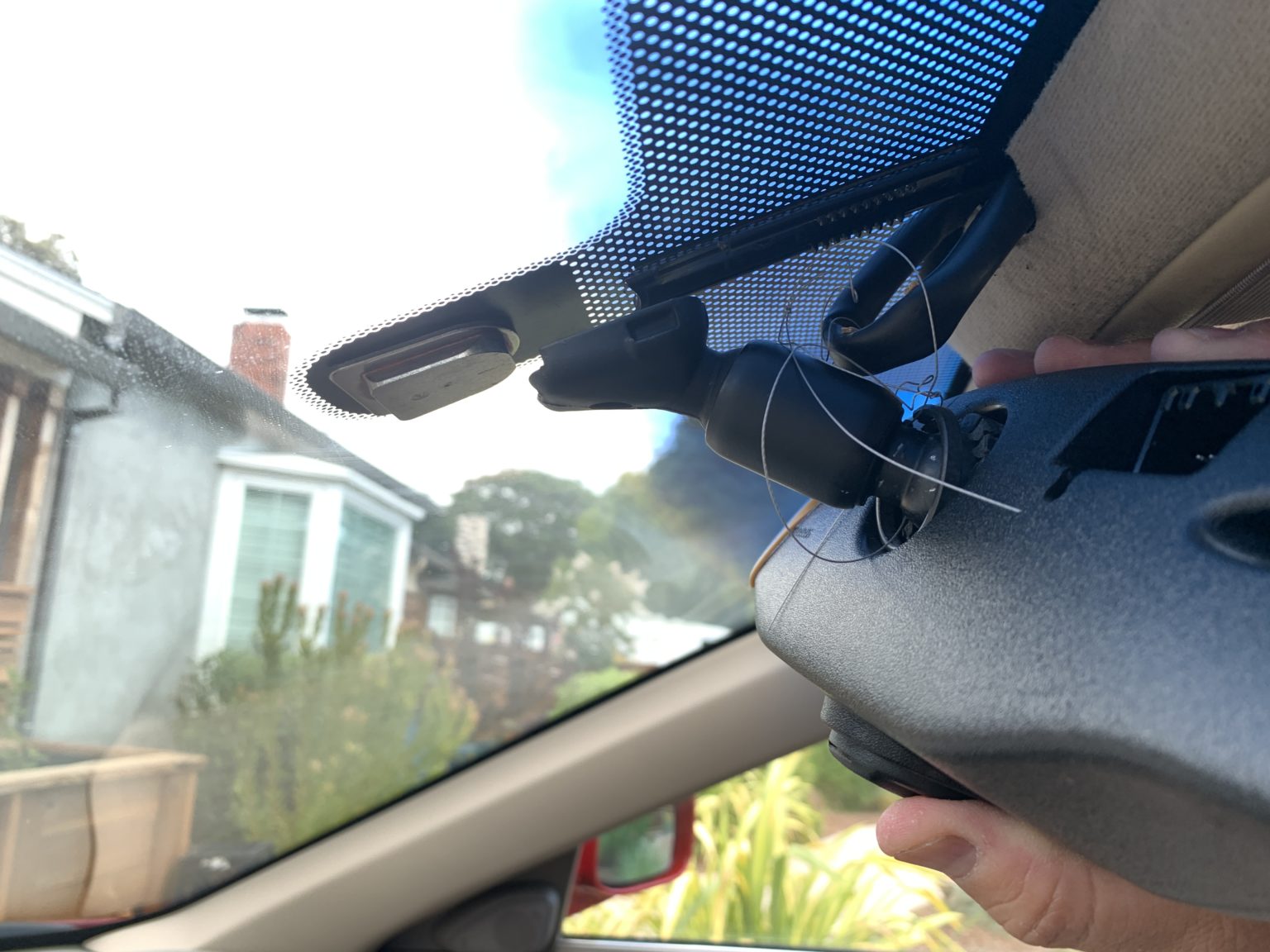

1. The Button and Wedge Mount

This is the most common system. It involves a small metal button, permanently bonded to the inside of the windshield. The mirror itself has a mounting arm with a corresponding slot or channel that slides onto this button. A small wedge screw (often a set screw) then tightens against the button, creating friction and holding the mirror in place. Some variations use a spring-loaded clip instead of a wedge screw.

Technical Terms:

• Button: The small metal disc bonded to the windshield.
• Mounting Arm: The portion of the mirror assembly that connects to the button.
• Wedge Screw (Set Screw): A small screw that tightens against the button to secure the mirror. Typically uses a hex key or Torx driver.

2. The Ball and Socket Mount

Less common, this system uses a ball-shaped joint integrated into the mirror. This ball sits within a socket attached to the windshield, often via a short arm. Tension, sometimes adjustable, within the socket holds the ball in place, allowing for a wide range of mirror adjustments. Loosening of the socket or wear on the ball are common causes of looseness.

Technical Terms:

• Ball Joint: A spherical joint allowing for multi-directional movement.
• Socket: The receiving part that houses the ball joint, providing support and allowing movement.

Diagnosing the Problem

Pinpointing the exact cause of the looseness is crucial for an effective fix. Here’s a breakdown of common issues:

1. Loose Wedge Screw (Button and Wedge Mount)

This is the most frequent culprit. Over time, vibration and temperature changes can cause the wedge screw to loosen, reducing the friction between the mirror mount and the button. The symptom is often a mirror that slowly droops downwards or easily moves with minimal force.

2. Stripped Wedge Screw (Button and Wedge Mount)

If you've been repeatedly tightening the wedge screw, or if excessive force was used previously, the screw threads (either in the screw itself or in the mirror mount) can become stripped. This prevents the screw from effectively tightening, resulting in a consistently loose mirror.

3. Debonded Button (Button and Wedge Mount)

In some cases, the adhesive holding the button to the windshield can fail. This results in the entire button coming loose, either moving slightly or detaching completely. This requires re-bonding the button to the glass.

4. Worn Ball Joint (Ball and Socket Mount)

With the ball and socket system, the plastic or composite material of the socket can wear down over time, leading to a looser fit. In some cases, the ball itself may become worn.

5. Loose Socket Adjustment (Ball and Socket Mount)

Some ball and socket mounts have an adjustment mechanism to control the socket tension. This mechanism might become loose, resulting in a wobbly mirror. Look for a screw or adjustment knob on the socket assembly.

Step-by-Step Repair Guides

Now, let's tackle the repairs. Remember to exercise caution when working with glass and small screws.

Fixing a Loose Wedge Screw (Button and Wedge Mount)

1. Identify the Wedge Screw: Locate the small screw on the mirror mount, usually on the underside or side. It will typically require a small Allen wrench (hex key) or a Torx driver.
2. Tighten the Screw: Using the appropriate tool, carefully tighten the screw. Do not overtighten, as this can strip the threads or damage the mount. A snug fit is sufficient. Test the mirror for stability.
3. If the Screw is Stripped: If the screw spins freely without tightening, it's likely stripped. You have a few options:
   • Replace the Screw: The ideal solution is to find a replacement screw of the same size and thread pitch. Check automotive parts stores or online retailers.
   • Use a Slightly Larger Screw: If a direct replacement isn't available, you might try a slightly larger screw of the same thread type. This might re-engage some of the threads. Exercise extreme caution; forcing the screw could further damage the mount.
   • Helicoil Repair: For a more robust repair, consider using a Helicoil kit. This involves drilling out the stripped hole and inserting a new threaded insert. This is a more advanced procedure but provides a very secure fix.

Rebonding a Debonded Button (Button and Wedge Mount)

Important: This repair requires a rear-view mirror adhesive kit, readily available at auto parts stores. Do not use ordinary household glue. These kits are specifically designed to bond metal to glass and withstand temperature changes.

1. Clean the Surfaces: Thoroughly clean both the windshield and the back of the button with the provided cleaner (usually alcohol-based). Remove any old adhesive residue. Ensure both surfaces are completely dry.
2. Apply the Primer: Most kits include a primer. Apply it to both the windshield (where the button will be located) and the back of the button, following the kit's instructions. Let the primer dry completely.
3. Apply the Adhesive: Apply the adhesive to the back of the button, as instructed in the kit.
4. Position the Button: Carefully position the button on the windshield in the original location (mark the location with masking tape before removal if necessary). Press firmly and hold in place for the recommended time (usually several minutes).
5. Cure Time: Allow the adhesive to cure completely, following the kit's instructions. This typically takes several hours, or even overnight. Avoid touching or disturbing the button during the curing process.
6. Reattach the Mirror: Once the adhesive is fully cured, reattach the mirror to the button.

Adjusting a Ball and Socket Mount

1. Locate the Adjustment Mechanism: Look for a screw, nut, or adjustment knob near the socket of the ball joint. This might be on the front, back, or side of the socket assembly.
2. Tighten the Adjustment: Using the appropriate tool (screwdriver, wrench, etc.), carefully tighten the adjustment mechanism. Start with small increments and test the mirror after each adjustment. Be careful not to overtighten, as this could damage the socket.
3. If No Adjustment Exists: If there's no visible adjustment mechanism, the socket may be worn. In this case, you might try:
   • Applying Friction Material: A thin piece of rubber or fabric placed inside the socket can add friction. Cut a small piece of material and carefully insert it between the ball and the socket.
   • Replacing the Entire Mirror Assembly: If the socket is significantly worn, replacing the entire mirror assembly is often the best solution.

Do's and Don'ts / Best Practices

• Do use the correct tools for the job. Using the wrong tool can damage the screw, mount, or windshield.
• Do clean the surfaces thoroughly before applying adhesive. Contaminants can weaken the bond.
• Do follow the instructions on the adhesive kit carefully.
• Do allow the adhesive to cure completely before reattaching the mirror.
• Don't overtighten screws. This can strip the threads or damage the mount.
• Don't use excessive force. If something feels difficult, stop and re-evaluate the situation.
• Don't use household glue to reattach the button. It will not hold up to the temperature changes and vibrations in a vehicle.
• Don't ignore a loose mirror. It's a safety hazard and should be addressed promptly.

Conclusion

Fixing a loose rear-view mirror is a manageable task for most DIYers. By understanding the type of mounting system, diagnosing the root cause of the problem, and following these step-by-step instructions, you can restore your mirror's stability and improve your driving safety. If you're uncomfortable with any of these procedures, or if the damage is extensive, it's always best to consult a qualified mechanic. However, for most common issues, a little patience and the right tools can get you back on the road with a clear and steady view of what's behind you. If you are planning to re-bond the mirror button, I would recommend purchasing a high quality adhesive kit, as the cheap ones sometimes don't hold up.
