How To Fix A Splash Shield

The splash shield, also known as an undercarriage shield or engine shield, is an often-overlooked but critical component of your vehicle. This article will delve into the function, common problems, and repair techniques for splash shields, arming you with the knowledge to keep your car protected. Whether you're a seasoned DIY mechanic or a weekend warrior, understanding how to properly maintain or repair your splash shield can save you time, money, and potential headaches down the road.

Background: The Splash Shield's Role

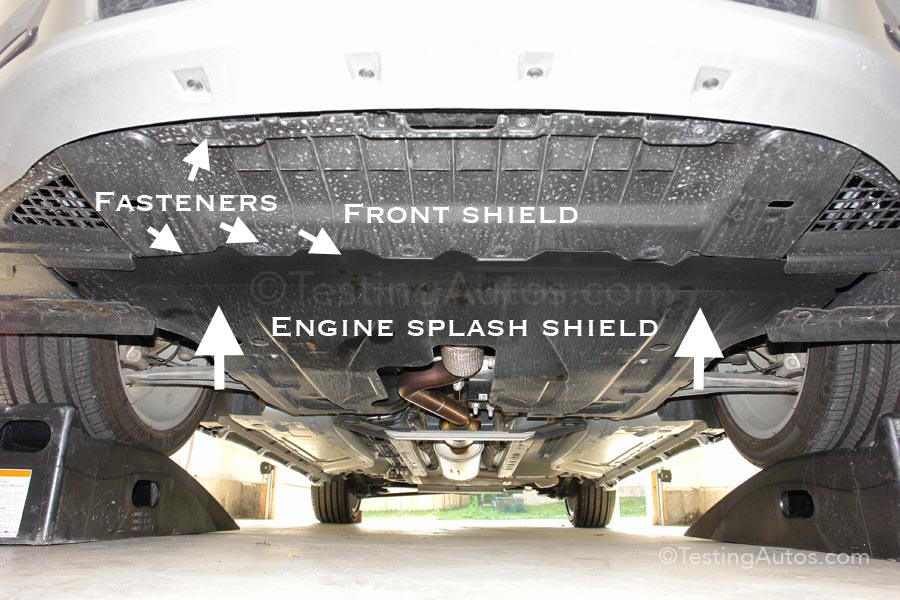

Modern vehicles, particularly passenger cars and light trucks, are designed with aerodynamics and component protection in mind. The splash shield contributes significantly to both. Located underneath the engine bay and often extending towards the transmission area, it acts as a barrier against road debris, water, salt, and other contaminants. Without it, your engine and vital components are vulnerable to premature wear and corrosion. Understanding its purpose is the first step in appreciating its importance.

Aerodynamic Benefits

Beyond protection, the splash shield also plays a role in aerodynamics. By creating a smoother underbody surface, it reduces air turbulence and drag. This contributes to improved fuel efficiency, especially at higher speeds. While the impact of a single splash shield might seem minimal, manufacturers consider it as part of the overall aerodynamic package of the vehicle.

Material Composition

Splash shields are typically constructed from durable plastic materials, like polyethylene (PE) or polypropylene (PP), offering a balance of flexibility and impact resistance. Some high-performance vehicles may utilize aluminum or composite materials for enhanced durability and weight reduction. The choice of material depends on factors like cost, weight, and the intended application of the vehicle. Note that the attachment hardware is frequently made of steel, which is prone to rust.

Technical Breakdown: How a Splash Shield Works

The splash shield's design is relatively simple, but its effectiveness lies in its strategic placement and secure attachment. It's essentially a large panel that covers the underside of the engine compartment. Its job is to redirect water and debris away from sensitive engine components.

Attachment Methods

The splash shield is secured to the vehicle's undercarriage using a combination of fasteners, including:

• Bolts and Screws: Typically used to attach the shield to the frame or subframe of the vehicle.
• Plastic Clips: These are push-in or screw-in clips that secure the shield to plastic trim pieces or directly to the body. They are very common, and very fragile.
• Retainers: These can be a variety of mechanisms, often involving a bayonet-style twist-lock, where you push and rotate to secure.

The precise type and number of fasteners vary depending on the vehicle make and model. A torque wrench is not typically needed for plastic fasteners, as they can be easily overtightened, but a torque stick can be used on metal bolts to prevent over-tightening. Using the correct fasteners is critical, as incorrect ones can damage the shield or the vehicle's undercarriage.

Drainage and Ventilation

While the primary function is protection, the splash shield is not completely sealed. It typically incorporates drainage holes to allow water to escape and ventilation openings to prevent heat buildup in the engine bay. These openings are strategically placed to minimize the ingress of contaminants while maintaining adequate airflow.

Common Issues and Maintenance Concerns

Despite their durability, splash shields are susceptible to damage from various sources.

Road Debris Impact

Hitting potholes, road debris, or high curbs can cause cracks, breaks, or even complete detachment of the splash shield. This is the most common cause of failure. The plastic clips are often the first point of failure.

Corrosion of Fasteners

Exposure to road salt and moisture can cause corrosion of the metal fasteners, leading to weakening and eventual failure. This can cause the shield to droop or become completely detached.

Improper Installation

Incorrect installation after maintenance or repair can also lead to problems. Missing or improperly tightened fasteners can cause the shield to vibrate, become loose, or fall off completely. Frequently, a mechanic performing an oil change will not properly re-attach the splash shield.

Oil Leaks and Fluid Accumulation

Oil leaks or other fluid leaks can accumulate on the splash shield, accelerating its degradation and potentially causing a fire hazard. Any oil leaks should be addressed promptly to prevent damage to the shield and other components.

Sagging and Dragging

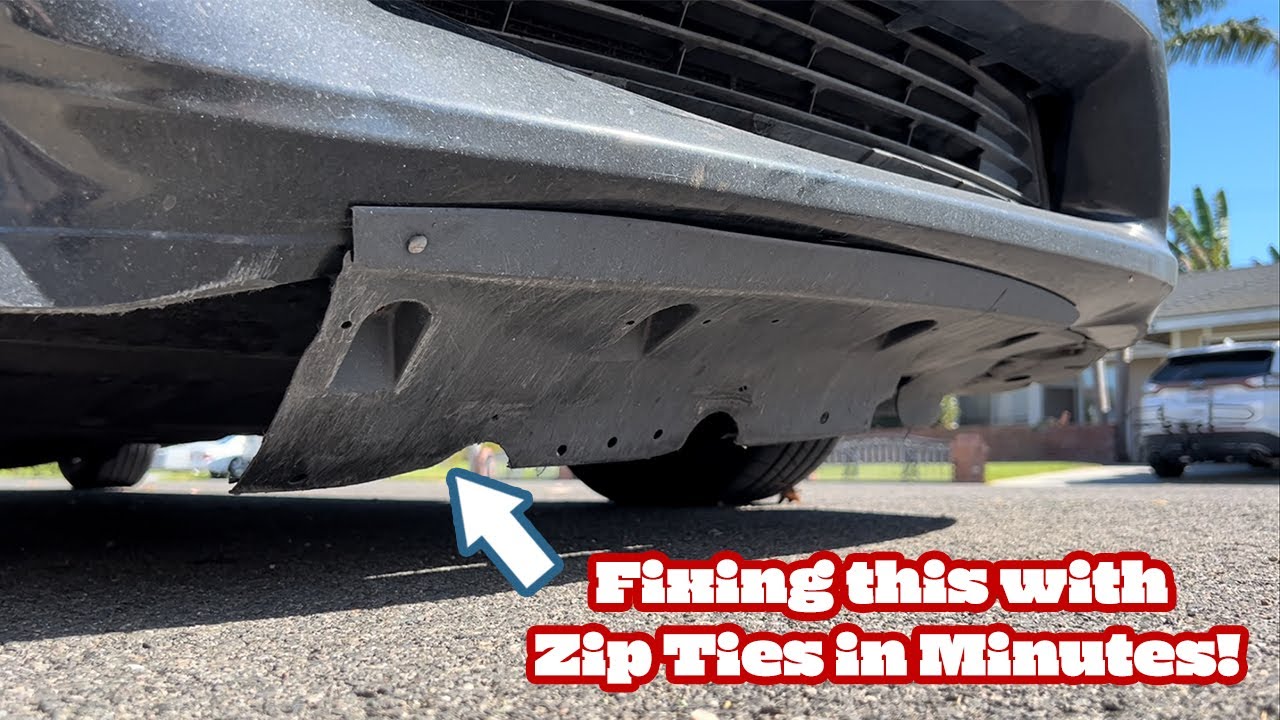

Over time, the splash shield can sag due to material fatigue or damaged mounting points. This can cause it to drag on the ground, increasing the risk of damage and creating unwanted noise.

Repair and Replacement Procedures

Depending on the extent of the damage, you may be able to repair or replace the splash shield yourself. Here's a step-by-step guide:

Inspection

Begin by thoroughly inspecting the splash shield for cracks, breaks, missing fasteners, and signs of damage. Check the mounting points on the vehicle's undercarriage for corrosion or damage.

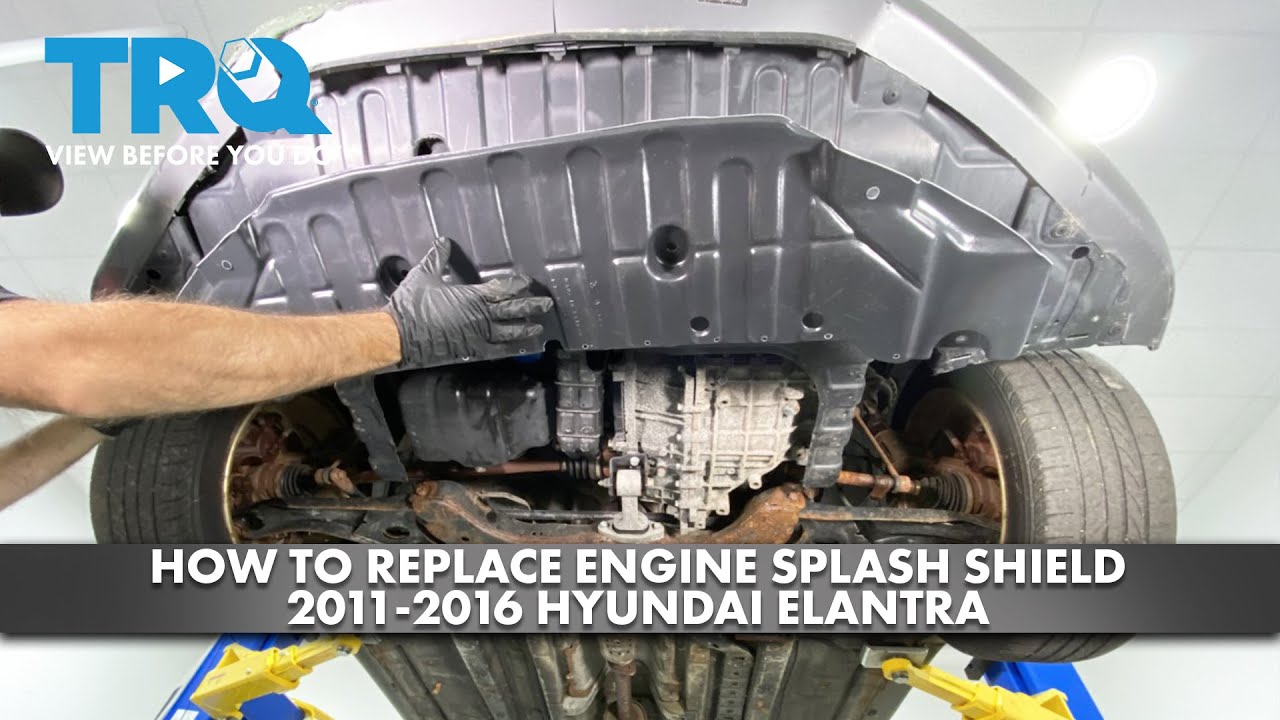

Removal

Safely lift the vehicle using a jack and secure it with jack stands. Locate and remove all the fasteners securing the splash shield. Be careful not to strip or damage the fasteners. You may need specialized tools, such as a trim removal tool, to remove plastic clips without breaking them. Remember to support the shield as you remove the last few fasteners to prevent it from falling.

Repair (If Applicable)

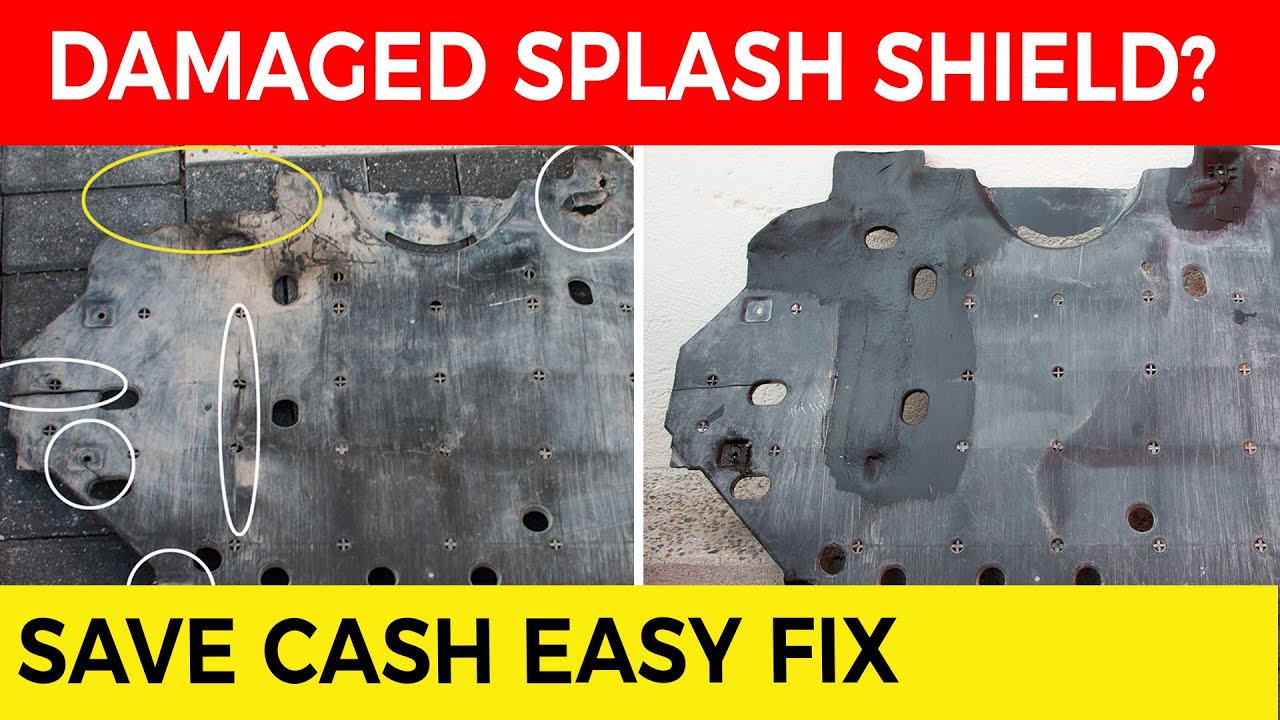

Small cracks or breaks can sometimes be repaired using plastic welding or epoxy. Clean the damaged area thoroughly and apply the repair material according to the manufacturer's instructions. Reinforce the repair with fiberglass mesh for added strength. Note that this is a temporary fix, and a full replacement is recommended for significant damage. For more extensive damage, replacement is always the best option.

Replacement

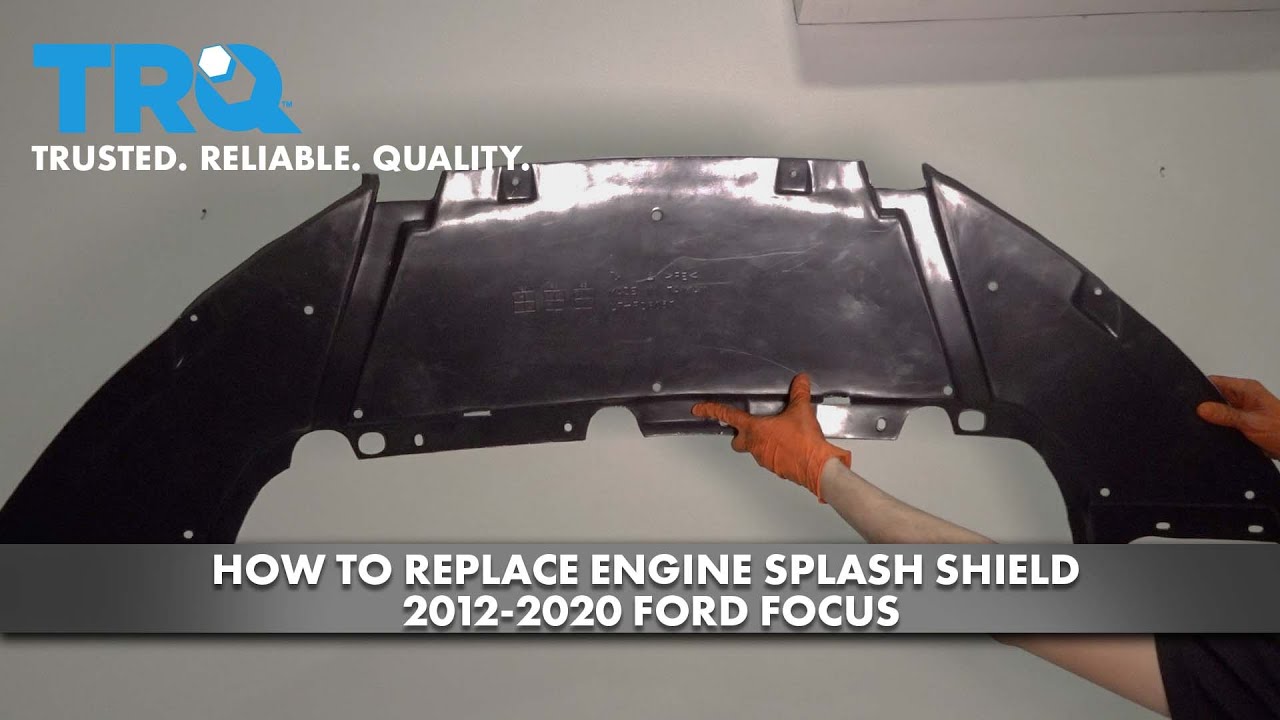

Purchase a replacement splash shield that is specifically designed for your vehicle make and model. Compare the new shield to the old one to ensure it is the correct part. Install the new shield by aligning it with the mounting points on the vehicle's undercarriage. Secure it with new fasteners, ensuring they are properly tightened. Avoid over-tightening plastic fasteners, as this can damage them. A dab of anti-seize on metal bolts can prevent future corrosion.

Do's and Don'ts / Best Practices

Do's

• Do use the correct fasteners for your vehicle. Consult your owner's manual or a parts catalog to identify the correct type and size.
• Do clean the mounting surfaces before installing the new shield. This will ensure a secure and proper fit.
• Do inspect the splash shield regularly for damage, especially after driving on rough roads or encountering road debris.
• Do address any oil leaks or fluid leaks promptly to prevent damage to the shield.
• Do use jack stands when working under the vehicle. Never rely solely on a jack to support the weight of the car.
• Do wear safety glasses to protect your eyes from debris.

Don'ts

• Don't drive with a severely damaged or missing splash shield. This can expose your engine and other components to damage.
• Don't over-tighten plastic fasteners. This can strip the threads or break the clips.
• Don't attempt to repair a severely damaged splash shield. Replacement is usually the best option.
• Don't use generic or universal splash shields. These may not fit properly or provide adequate protection.
• Don't ignore sagging or dragging issues. Address them promptly to prevent further damage.
• Don't use a torch or open flame near the plastic.

Conclusion

The splash shield is a vital component that protects your engine and contributes to your vehicle's aerodynamics. Regular inspection and prompt repair or replacement of damaged shields can save you money and prevent costly repairs down the road. While minor damage might be repairable, replacement is typically the most effective and long-lasting solution. By understanding the function, common issues, and repair procedures outlined in this article, you can confidently maintain or repair your splash shield and keep your car running smoothly. If you're uncomfortable performing the work yourself, consult a qualified mechanic.
