How To Fix A Stuck Blend Door

Few things are as frustrating as battling a car's climate control system that seems to have a mind of its own. One minute you're basking in warm air, the next you're shivering. More often than not, the culprit behind this discomfort is a stuck blend door. This article will guide you through the process of diagnosing and fixing this common automotive woe, empowering you to restore comfortable temperatures to your ride.

Background: The Car's Climate Control System

Understanding the climate control system is key to tackling a stuck blend door. Think of it as a carefully orchestrated symphony of components working in harmony. The core of the system relies on the heater core and the evaporator core. The heater core is essentially a small radiator filled with hot engine coolant. The evaporator core, on the other hand, is a heat exchanger that cools refrigerant, creating cold air.

The blower motor forces air through either the heater core, the evaporator core, or a combination of both, depending on the temperature setting. This airflow is then directed through various ducts to vents throughout the cabin.

The key to managing this process is the blend door, sometimes referred to as the air mix door. It's a movable flap that controls the ratio of air flowing through the heater core versus the evaporator core. When you select "full heat," the blend door directs almost all air through the heater core. When you choose "full AC," it directs nearly all air through the evaporator core. And when you select a temperature somewhere in between, the blend door adjusts to mix the air accordingly.

Technical Breakdown: How the Blend Door Works

The blend door itself is a relatively simple component—a hinged flap, usually made of plastic. What's more complex is the mechanism that controls its movement. Older vehicles often used a vacuum-operated system. Newer vehicles almost exclusively utilize an electric blend door actuator. This actuator is a small motor, typically with a series of gears, that moves the blend door. It receives signals from the climate control module (or the vehicle's computer) based on your temperature setting. The actuator then translates that signal into precise movement of the blend door.

Here’s a more detailed look at the electric actuator’s operation:

Temperature Selection: You set your desired temperature using the climate control panel in your car.
Signal Transmission: The climate control panel sends a signal to the vehicle's main computer (ECU/PCM) or a dedicated HVAC control module. This signal contains information about the desired temperature.
Actuator Control: The computer/HVAC module interprets the signal and sends a corresponding signal to the blend door actuator. The signal tells the actuator how much to rotate the blend door. This signal is usually a Pulse Width Modulated (PWM) signal, controlling the speed and direction of the DC motor.
Actuator Movement: The blend door actuator's internal motor turns, driving a series of gears that connect to the blend door. The gears amplify the motor's torque, allowing it to move the blend door against any resistance.
Feedback (Potentiometer): Many blend door actuators have a built-in potentiometer. This potentiometer provides feedback to the computer/HVAC module about the blend door's actual position. This allows the system to precisely control the door and detect if it's not moving as expected.

Common Issues and Maintenance Concerns

A stuck blend door can manifest in various ways. You might experience:

Only hot air, regardless of the setting. This usually indicates the blend door is stuck in the "full heat" position.
Only cold air, regardless of the setting. This suggests the blend door is stuck in the "full AC" position.
One side hot, one side cold. This can happen if a vehicle has dual-zone climate control (separate blend doors for the driver and passenger sides), and one of the actuators is malfunctioning.
Clicking or thumping noises behind the dashboard. This often indicates a failing blend door actuator, where the gears are stripped or broken.
Intermittent temperature control. Sometimes the temperature works fine, and other times it gets stuck. This might indicate a wiring problem or a failing actuator.

The most common culprits behind a stuck blend door are:

Failed Blend Door Actuator: This is the most frequent problem. The actuator motor can burn out, the gears can strip, or the internal electronics can fail.
Broken Blend Door: The plastic blend door itself can sometimes break, especially if it's been subjected to extreme temperatures or stress.
Debris Obstruction: Leaves, dirt, or other debris can sometimes get lodged in the blend door mechanism, preventing it from moving freely.
Wiring Problems: A broken wire or loose connection in the actuator's wiring harness can prevent it from receiving the necessary signals.
Faulty Climate Control Module: In rare cases, the climate control module itself can fail, sending incorrect signals to the actuator.

Diagnosing the Issue:

Listen for Noises: Turn on the ignition (but don't start the engine) and adjust the temperature settings. Listen carefully for clicking, thumping, or grinding noises behind the dashboard. This can help pinpoint the location of a failing actuator.

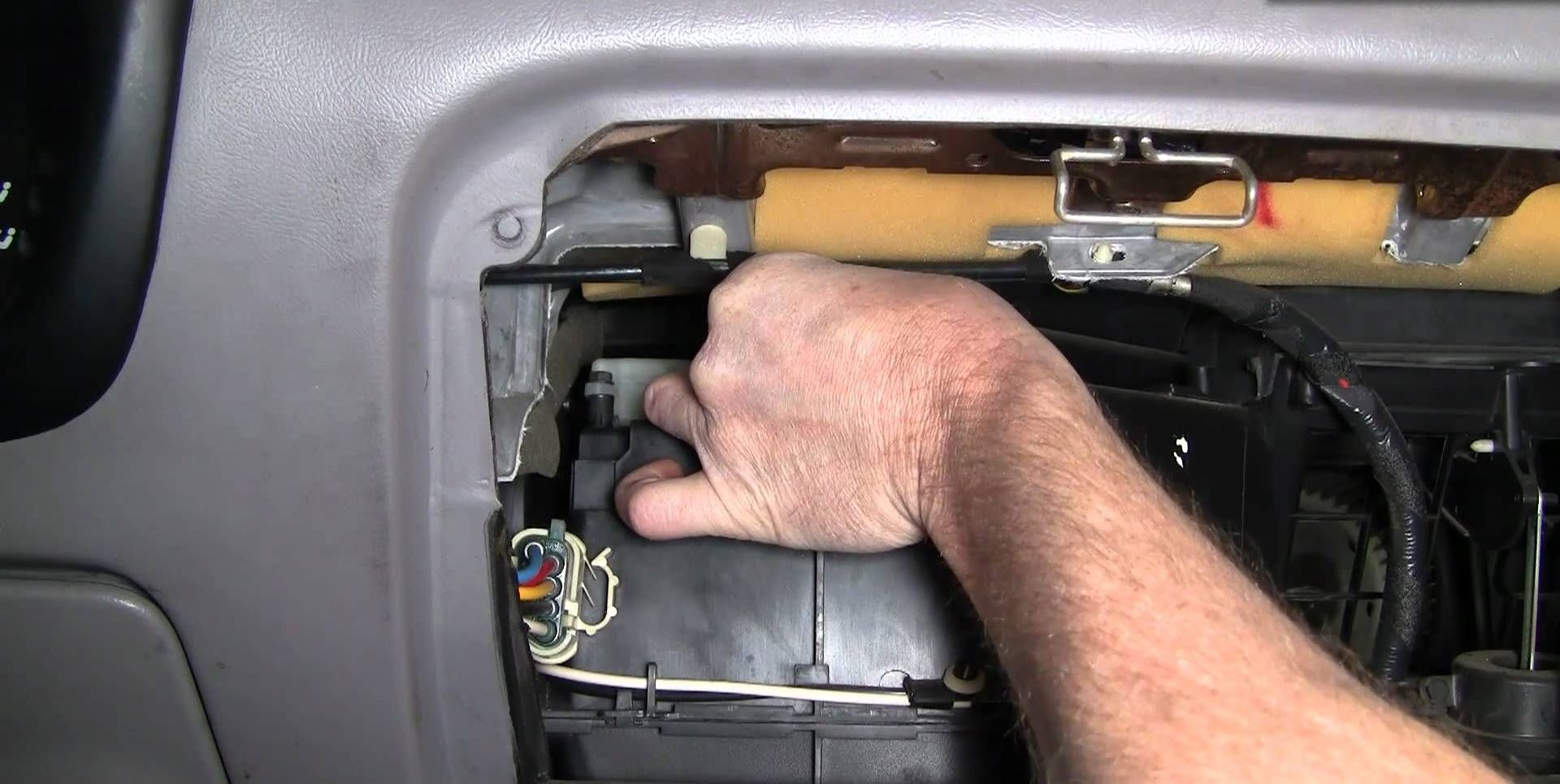

Visual Inspection: If possible, try to locate the blend door actuator(s). They are usually located behind the dashboard, often near the center console or the footwells. Check for any obvious signs of damage or loose connections. Consult your vehicle's service manual for specific actuator locations.
Scan for Error Codes: Use an OBD-II scanner to check for any diagnostic trouble codes (DTCs) related to the climate control system. Common codes include B0229 (Blend Door Actuator Circuit Range/Performance), B0230 (Blend Door Actuator Circuit Low), and B0231 (Blend Door Actuator Circuit High). These codes can provide valuable clues about the nature of the problem.
Actuator Testing: If you suspect a faulty actuator, you can test it with a multimeter. Disconnect the actuator's wiring harness and check for voltage at the power and ground wires. Then, use the multimeter to check the actuator's resistance. Compare your readings to the values specified in your vehicle's service manual. You can also use a scan tool that supports bidirectional control to command the actuator to move and verify its operation.

Do's and Don'ts / Best Practices

Do's:

Consult a Service Manual: Before starting any work, consult your vehicle's service manual. It will provide detailed instructions and diagrams specific to your make and model.
Disconnect the Battery: Always disconnect the negative battery terminal before working on any electrical components in your vehicle. This will prevent accidental shorts and electrical damage.
Use Quality Replacement Parts: When replacing a blend door actuator or blend door, use high-quality replacement parts from a reputable manufacturer. Cheap aftermarket parts may not last as long or perform as well.
Mark Wiring Connectors: Before disconnecting any wiring connectors, use masking tape and a pen to label them. This will help you reassemble everything correctly.

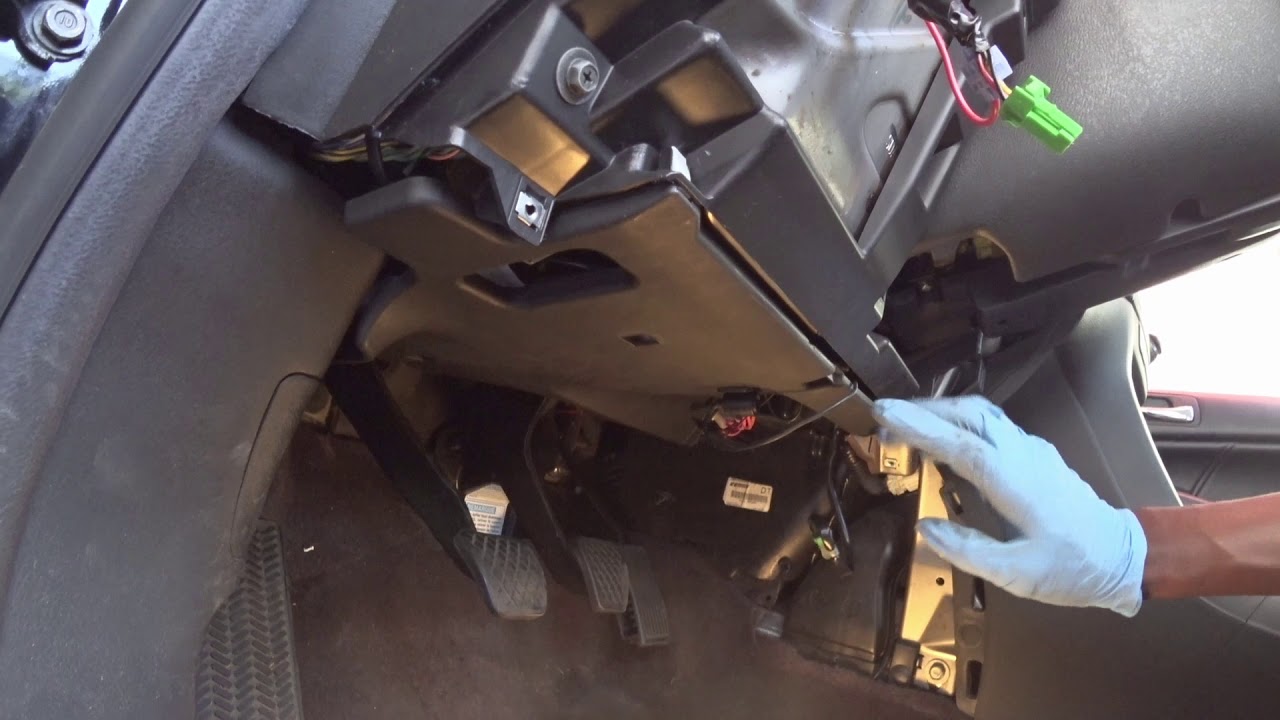

Be Patient and Careful: Removing the dashboard can be a time-consuming and delicate process. Take your time, and be careful not to damage any components.
Calibrate the Actuator (If Required): Some vehicles require you to calibrate the blend door actuator after replacing it. This involves using a scan tool to teach the actuator its end positions. Consult your vehicle's service manual for instructions.

Don'ts:

Force Anything: If you encounter resistance when removing a dashboard panel or component, don't force it. Double-check that you've removed all the necessary screws and fasteners.
Ignore Error Codes: If your vehicle throws error codes related to the climate control system, don't ignore them. These codes can provide valuable clues about the nature of the problem.
Use Excessive Force on the Blend Door: Avoid manually forcing the blend door to move, as this could damage the actuator or the door itself.
Forget to Reconnect Wiring Harnesses: Before reassembling the dashboard, double-check that you've reconnected all the wiring harnesses.

Conclusion

Fixing a stuck blend door can range from a simple actuator replacement to a more involved dashboard removal. If you're comfortable with basic automotive repairs, diagnosis using a multimeter, and careful disassembly, you can likely tackle this project yourself. However, if you're not confident in your abilities, or if you encounter any unexpected challenges, it's best to take your vehicle to a qualified mechanic. While the parts themselves may be inexpensive, improperly installed actuators can create bigger issues down the road. A qualified technician will have the necessary tools and expertise to diagnose and repair the problem correctly, ensuring your climate control system is working optimally. Furthermore, if the blend door itself is broken, this typically requires dashboard removal to access and replace it. If you're unsure, it's always better to err on the side of caution and seek professional assistance.
