How To Fix Aux Jack In Car

The auxiliary (aux) input jack in your car is a simple yet crucial interface that bridges the gap between your personal audio devices and your car's sound system. When it works flawlessly, it provides a clean and direct audio connection. However, like any mechanical and electrical component, the aux jack is susceptible to wear, tear, and various issues. This article provides an in-depth guide to diagnosing and fixing common problems with your car's aux jack, empowering you to restore your audio connectivity without the expense of professional repair.

Background: The Humble Aux Jack

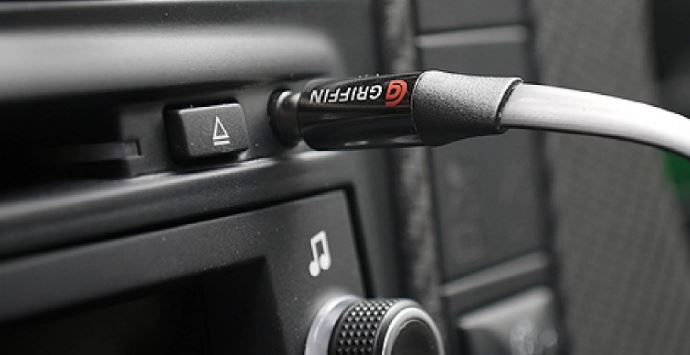

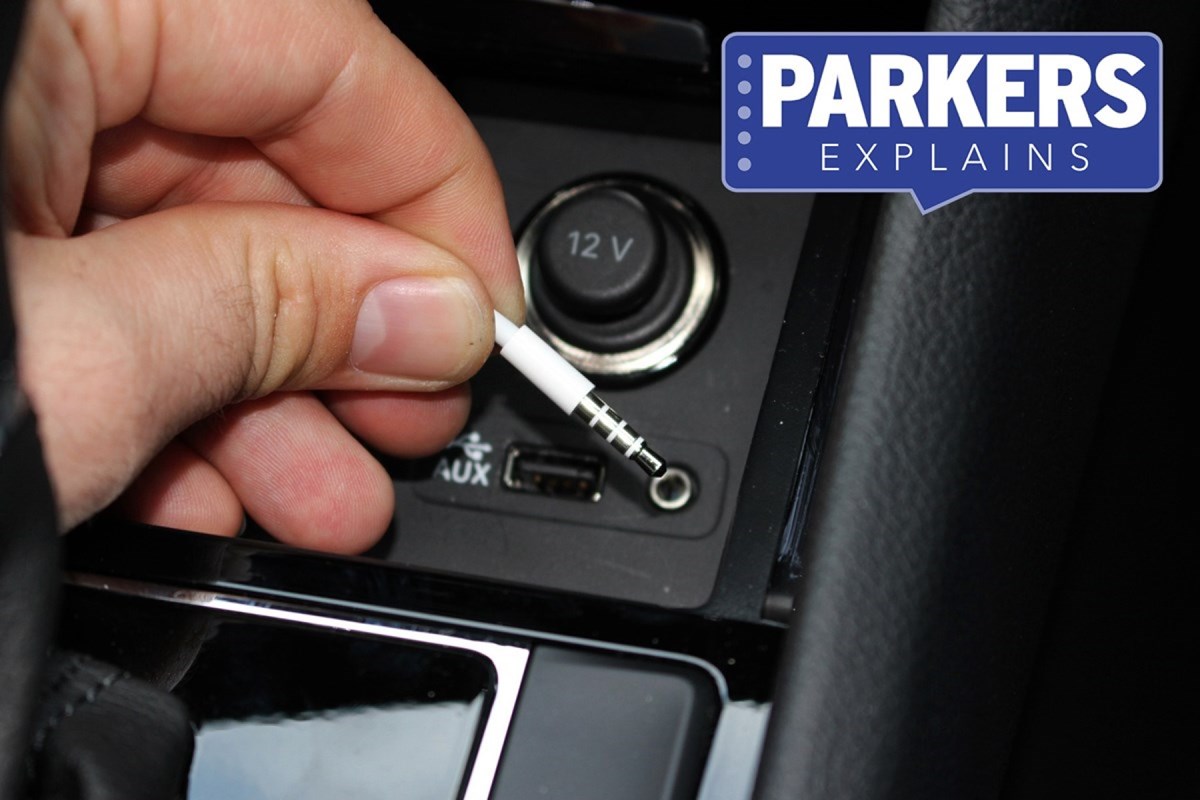

Before diving into troubleshooting, let's understand what an aux jack is and its role in your car's audio system. The term "auxiliary" simply means "additional" or "supplementary." In the context of car audio, it refers to an input port that allows you to connect external audio sources, such as smartphones, MP3 players, or portable CD players, directly to your car's amplifier and speakers. The standard aux jack is a 3.5mm (1/8 inch) TRS connector. TRS stands for Tip, Ring, Sleeve, referring to the three conductive sections of the connector separated by insulating rings. Each section carries a specific audio signal: Left Channel (Tip), Right Channel (Ring), and Ground (Sleeve).

Technical Breakdown: How the Aux Jack Works

The aux jack is a relatively straightforward component, but understanding its basic operation is key to effective troubleshooting. Here's a technical overview:

1. Signal Path

When you plug your audio device into the aux jack, the audio signal flows along the following path:

• Source Device (e.g., Smartphone): Your device generates an analog audio signal.
• 3.5mm Cable: The cable carries the analog signal to the aux jack.
• Aux Jack Connector: The connector inside the jack makes physical contact with the cable's TRS connector. Each section of the cable (Tip, Ring, Sleeve) aligns with its corresponding contact point within the jack.
• Internal Wiring: The connector is wired to the car's audio system, specifically to the head unit (the radio/infotainment system) or, in some older systems, directly to an external amplifier.
• Head Unit/Amplifier: The head unit (or amplifier) receives the analog audio signal from the aux jack. It then amplifies this signal and sends it to the car's speakers.
• Speakers: The speakers convert the amplified electrical signal into audible sound waves.

2. Connector and Wiring Details

The aux jack itself consists of a small receptacle with internal spring-loaded contacts. When you insert a plug, these contacts press against the corresponding sections of the TRS connector on the plug, creating an electrical connection. The quality of these contacts is crucial for signal integrity. Oxidation, corrosion, or physical damage to these contacts can lead to signal loss or distortion. The internal wiring connecting the aux jack to the head unit is typically thin-gauge wire. Any breaks, shorts, or loose connections in this wiring can also disrupt the audio signal.

Common Aux Jack Issues and Maintenance Concerns

Several factors can contribute to aux jack problems. Here are the most common culprits:

1. Physical Damage

This is perhaps the most frequent cause. Inserting and removing plugs repeatedly can wear down the internal contacts. Forcing a plug in or out, or using a plug that's bent or damaged, can also damage the jack. A physically damaged jack may have bent or broken internal contacts, preventing a secure connection.

2. Oxidation and Corrosion

Over time, the metallic contacts inside the aux jack can oxidize or corrode, especially in humid environments. This oxidation creates a barrier that inhibits the flow of electricity, resulting in a weak or intermittent signal. Signs of oxidation may be visible as a dull or tarnished appearance on the connector.

3. Loose Connections

The internal wiring connecting the aux jack to the head unit can come loose over time, especially due to vibrations from driving. A loose connection can cause the audio signal to cut in and out, or disappear entirely.

4. Debris and Contamination

Dust, dirt, and other debris can accumulate inside the aux jack, interfering with the contact between the plug and the internal connectors. This is more common in cars where the aux jack is located in an exposed area.

5. Head Unit Malfunction

While less common, problems within the head unit itself can sometimes mimic aux jack issues. For example, the aux input selection circuit inside the head unit might be faulty.

6. Cable Issues

Don't always assume the problem is the jack! A faulty aux cable with internal breaks or damaged connectors can cause the same symptoms as a broken jack. Always test with a known good cable first.

Troubleshooting and Repair Steps

Here's a systematic approach to diagnosing and fixing aux jack problems:

1. Visual Inspection

Start by carefully examining the aux jack for any visible signs of damage, such as bent or broken plastic, corrosion, or debris. Use a flashlight to get a better view inside the jack. Also, inspect the aux cable for any signs of wear, kinks, or broken connectors.

2. Testing with a Known Good Cable and Device

Eliminate the possibility of a faulty cable or source device. Use a different aux cable and a different audio source (e.g., a different smartphone or MP3 player) to see if the problem persists. This is a critical step to isolate the issue.

3. Cleaning the Aux Jack

If you suspect debris or oxidation, try cleaning the aux jack. Do this with the car turned off and the keys removed for safety!

• Compressed Air: Use a can of compressed air to blow out any loose debris.
• Contact Cleaner: Apply a small amount of electronic contact cleaner (like DeoxIT) to a cotton swab and gently clean the inside of the aux jack. Do not spray the cleaner directly into the jack. The swab should be damp, not soaked. Allow the cleaner to dry completely before using the jack. Contact cleaner helps to dissolve oxidation and improve electrical conductivity.

4. Checking for Loose Connections

This step requires a bit more disassembly and technical knowledge. You'll need to access the back of the head unit to inspect the wiring connected to the aux jack.

• Locate the Head Unit: Consult your car's repair manual or online resources to find instructions on how to remove the head unit. This often involves removing trim panels and unscrewing mounting brackets. Disconnect the negative terminal of the car battery before working on any electrical components.
• Inspect Wiring: Once the head unit is accessible, carefully inspect the wires connected to the aux jack for any loose connections, frayed wires, or signs of damage. The aux jack might be directly integrated into the head unit, or it might be a separate module connected by a cable.
• Test Continuity: Use a multimeter to check the continuity of the wires connecting the aux jack to the head unit. Set the multimeter to the continuity setting (usually indicated by a diode symbol or a sound). Place one probe on a contact point inside the aux jack and the other probe on the corresponding terminal on the head unit. If the multimeter shows no continuity (no beep or a very high resistance reading), the wire is broken or disconnected.
• Resolder/Reconnect: If you find a loose connection, try to reconnect it securely. If a wire is broken, you may need to resolder it or replace the entire wire. If you are not comfortable soldering or working with electrical components, it's best to consult a professional.

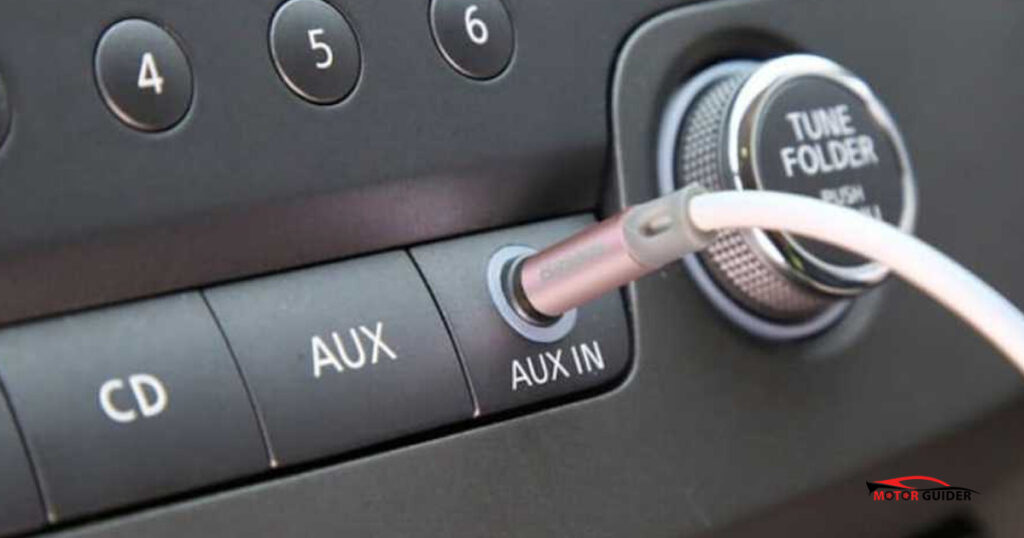

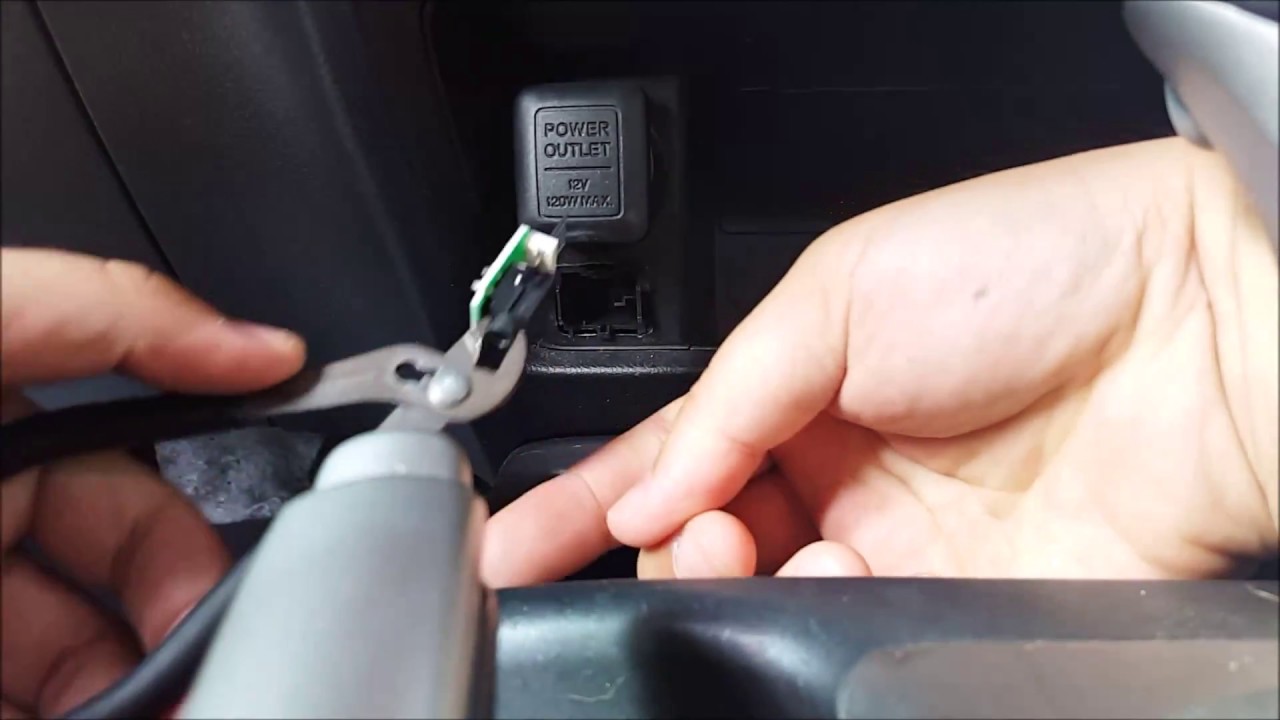

5. Replacing the Aux Jack

If the aux jack is physically damaged beyond repair, you may need to replace it. You can often find replacement aux jacks online or at automotive parts stores. Ensure you get the correct type and size for your car model.

• Disconnect the Old Jack: Carefully disconnect the wiring from the old aux jack. Take pictures or make notes of the wiring configuration to ensure you connect the new jack correctly.
• Install the New Jack: Connect the wiring to the new aux jack, following your notes or pictures. Ensure all connections are secure.
• Reassemble: Reinstall the head unit and any trim panels you removed. Reconnect the negative terminal of the car battery.

6. Testing After Repair

After performing any repairs, thoroughly test the aux jack to ensure it's working properly. Connect your audio device and play some music. Check for clear sound, no static, and no intermittent dropouts.

Do’s and Don’ts / Best Practices

• Do use high-quality aux cables to minimize signal loss and ensure a secure connection.
• Do clean the aux jack periodically to prevent debris buildup and oxidation.
• Do be gentle when inserting and removing plugs to avoid damaging the jack.
• Do disconnect the negative battery terminal before working on any electrical components.
• Don't force plugs into the aux jack. If a plug doesn't fit easily, check for damage or debris.
• Don't spray contact cleaner directly into the aux jack. Always use a cotton swab.
• Don't use excessive force when tightening screws or connectors.
• Don't attempt repairs if you are not comfortable working with electrical components. Seek professional assistance.

Conclusion

Troubleshooting and repairing a car's aux jack is a manageable task for the experienced DIYer. By understanding the aux jack's function, identifying common problems, and following the steps outlined in this guide, you can often restore your audio connectivity and avoid costly repairs. Remember to prioritize safety by disconnecting the battery and taking your time. If you're uncomfortable with any of the procedures, especially those involving electrical components, it's always best to consult a qualified automotive technician. Regularly cleaning the jack and using quality cables are simple preventative measures that can significantly extend the life of your aux input.
