Alright, let's talk about the dreaded C1130 code on your Nissan. This little gremlin can cause some serious headaches, impacting your vehicle's handling and potentially leading to unsafe driving conditions. You're probably here because your Nissan's ABS, VDC (Vehicle Dynamic Control), or Slip indicator lights are illuminated, and a scan tool has revealed the C1130 code lurking in the ECU. Don't panic! While it points to a potentially serious problem, with a bit of understanding and some careful troubleshooting, you can often diagnose and even fix this issue yourself, saving you a trip to the mechanic.

Background: The Yaw Rate Sensor and Vehicle Dynamics

Before diving into the specifics of the C1130 code, let's quickly review the system it pertains to. Modern vehicles, especially those equipped with VDC or stability control, rely on a sophisticated network of sensors to monitor the vehicle's motion and prevent skidding. One of the crucial sensors in this system is the yaw rate sensor.

What is Yaw Rate? Think of "yaw" as the rotational movement of your car around a vertical axis. Imagine looking down on your car from above. Yaw rate measures how quickly your car is spinning left or right. It’s measured in degrees per second.

Yaw Rate Sensor Function: The yaw rate sensor is typically located near the center of the vehicle, often under the center console. It uses gyroscopic principles (often piezoelectric or MEMS technology – Micro-Electro-Mechanical Systems) to accurately measure the vehicle's yaw rate. This data, along with information from other sensors like wheel speed sensors, steering angle sensor, and lateral acceleration sensor, is fed into the ABS/VDC control module. The module then uses this data to determine if the vehicle is behaving as intended or if it's entering a skid. If a skid is detected, the system will selectively apply the brakes to individual wheels to help the driver maintain control.

The Nissan system utilizes all of these sensors to help maintain control under adverse conditions. When one component fails, or provides an implausible value, the whole system can shut down and trigger codes.

Technical Breakdown: C1130 Code – Yaw Rate Sensor Malfunction

The C1130 code specifically indicates a problem with the yaw rate sensor signal. It essentially means that the ABS/VDC control module is either not receiving a signal from the sensor, receiving a signal that is out of range, or receiving a signal that is inconsistent with other sensor data.

Here's a more detailed breakdown of what could be happening:

Sensor Failure: The yaw rate sensor itself could be faulty. The internal components might have degraded, leading to inaccurate or nonexistent readings. This is the most straightforward cause and often requires sensor replacement.
Wiring Issues: The wiring harness connecting the yaw rate sensor to the ABS/VDC control module could be damaged. This includes:
- Open circuits: A broken wire preventing the signal from reaching the module.
- Short circuits: A wire that is shorted to ground or another wire, corrupting the signal.
- High resistance: Corrosion or loose connections creating resistance in the circuit, weakening the signal.
Connector Problems: The connectors at the yaw rate sensor or the ABS/VDC control module could be corroded, loose, or damaged, leading to poor electrical contact.

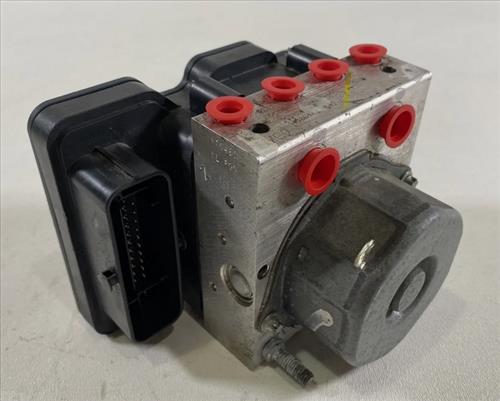

ABS/VDC Control Module Failure: In rare cases, the ABS/VDC control module itself could be faulty, preventing it from properly processing the signal from the yaw rate sensor.
Related System Issues: Issues with other sensors, like the wheel speed sensors or steering angle sensor, can sometimes indirectly trigger the C1130 code if their data conflicts with the yaw rate sensor data, causing the module to flag an inconsistency.
Software/Calibration Issues: Sometimes, after other repairs or module replacements, the yaw rate sensor might require calibration. An improperly calibrated sensor can send incorrect data, leading to the C1130 code. Some scan tools can perform this calibration, or Nissan's Consult-III tool is required.

Common Issues and Maintenance Concerns

Several factors can contribute to the C1130 code:

Corrosion: Moisture and road salt can corrode the wiring connectors and sensor terminals, leading to poor electrical contact.
Physical Damage: The yaw rate sensor and its wiring can be damaged by impacts, vibrations, or even rodents.
Improper Installation: Aftermarket modifications or repairs that involve the ABS/VDC system can sometimes lead to installation errors that trigger the C1130 code.
Age: Like any electronic component, the yaw rate sensor can degrade over time, leading to failure.

Troubleshooting and Repair Steps

Here's a step-by-step guide to troubleshooting the C1130 code:

Visual Inspection: Start by visually inspecting the yaw rate sensor and its wiring harness. Look for any signs of damage, corrosion, or loose connections. Pay close attention to the connectors. Disconnect and reconnect the connectors to ensure a good connection. Clean the connectors with electrical contact cleaner.
Wiring Diagram: Obtain a wiring diagram for your specific Nissan model. This will help you identify the correct wires and their functions. A resource like ALLDATA is helpful here.
Voltage and Ground Tests: Use a multimeter to check for proper voltage and ground at the yaw rate sensor connector. The wiring diagram will tell you the expected voltage levels. If voltage and ground are absent, trace the wiring back to the ABS/VDC control module, checking for open circuits or short circuits along the way.
Continuity Test: Disconnect the yaw rate sensor and the ABS/VDC control module. Use a multimeter to perform a continuity test on the wiring harness between the sensor and the module. This will verify that there are no open circuits or high resistance in the wires.
Sensor Resistance Test: Use a multimeter to measure the resistance of the yaw rate sensor. Compare your readings to the specifications in the service manual. An out-of-spec resistance reading indicates a faulty sensor.
Scan Tool Data Monitoring: Use a scan tool that can read live data from the ABS/VDC system. Monitor the yaw rate sensor output while driving the vehicle. See if the sensor is providing a plausible reading that changes with vehicle movement. A static or erratic reading suggests a faulty sensor or wiring issue.
Sensor Calibration: If you suspect the sensor might be miscalibrated, use a scan tool that supports yaw rate sensor calibration to perform the procedure.
ABS/VDC Module Check: If all other tests fail, the ABS/VDC control module may be faulty. This is the least likely cause, and replacing the module requires special programming and coding. Consult with a qualified technician.

Do's and Don'ts / Best Practices

Do's:

Be methodical: Follow a systematic approach to troubleshooting. Don't just start replacing parts randomly.
Use quality parts: When replacing the yaw rate sensor, use a genuine Nissan part or a reputable aftermarket brand.
Consult the service manual: Refer to the service manual for your specific Nissan model for accurate wiring diagrams, specifications, and procedures.
Disconnect the battery: Disconnect the negative battery terminal before working on the electrical system to prevent short circuits.
Double-check your work: Before starting the engine, double-check all connections and wiring.

Don'ts:

Ignore warning lights: Don't ignore ABS, VDC, or Slip indicator lights. They indicate a potential safety issue.
Use cheap parts: Avoid using cheap, unreliable aftermarket parts, as they can cause further problems.
Force connectors: Don't force connectors together. If they don't fit easily, check for damage or corrosion.
Forget to clear the code: After repairing the problem, clear the C1130 code with a scan tool.

Conclusion

The C1130 code on your Nissan can be a frustrating issue, but with a methodical approach and a bit of technical know-how, you can often diagnose and repair it yourself. Remember to start with a thorough visual inspection, followed by voltage, ground, and continuity tests. If all else fails, the yaw rate sensor itself may need to be replaced. Always consult the service manual for your specific vehicle model and use quality parts. If you're not comfortable performing these tests yourself, don't hesitate to seek help from a qualified mechanic. Addressing this issue promptly is crucial for maintaining the safety and handling of your vehicle.

Recommendation: Start with the easiest steps – visual inspection and cleaning connections. If the problem persists, invest in a multimeter and learn to use it to check voltage, ground, and continuity. This will be valuable for future automotive repairs as well.
