How To Fix Chassis Control System Fault

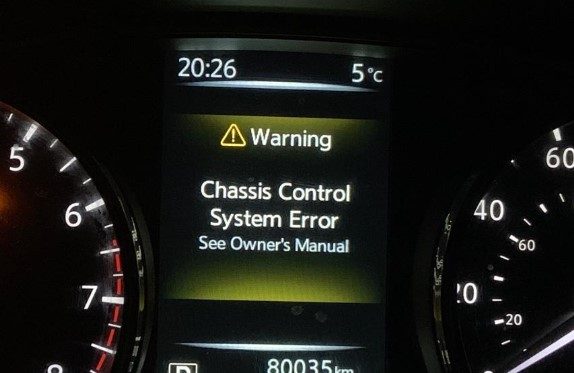

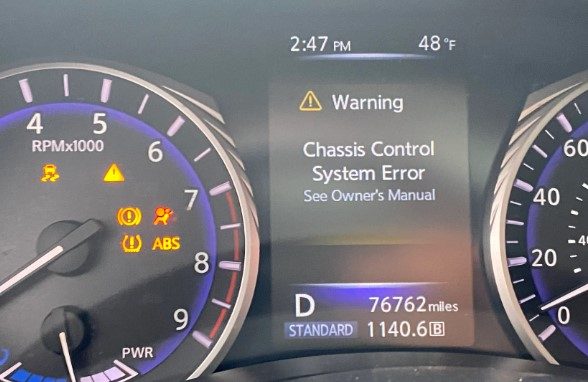

That dreaded message flashes on your dashboard: "Chassis Control System Fault." Your initial reaction might be panic, envisioning a cascade of expensive repairs. However, before rushing to the nearest dealership, let's take a deep dive into understanding what this fault means, how the system works, and potential avenues for troubleshooting. While some repairs require specialized tools and expertise, gaining knowledge empowers you to communicate effectively with your mechanic and potentially identify simpler solutions.

Starting the Solution: Understanding the Warning

Think of your car's chassis control system as a conductor leading an orchestra. It's responsible for orchestrating various subsystems like the Electronic Stability Control (ESC), Adaptive Suspension, Active Steering, and sometimes even the Anti-lock Braking System (ABS). The "Chassis Control System Fault" message is a general alert indicating a problem within this orchestra. It doesn't pinpoint the exact instrument malfunctioning, but rather signals a disruption in the harmonious operation of the system. Therefore, the first step is understanding that the warning is broad and requires further diagnosis.

Decoding the Fault: A Scenario

Imagine you're driving along a winding road. Your car's Electronic Stability Control (ESC), a key component of the chassis control system, is constantly monitoring your steering angle, wheel speeds, and yaw rate (the rate at which the car is turning). Suddenly, you encounter a patch of ice. The ESC detects that the car is starting to slide – the yaw rate doesn't match the steering input. The system instantaneously intervenes, applying brakes to individual wheels to counteract the skid and keep you on course. Now, let's say one of the wheel speed sensors fails. The ESC receives conflicting information – three wheels report normal speed, while one reports zero. This discrepancy triggers the "Chassis Control System Fault" message because the ESC can no longer accurately assess the vehicle's dynamics and intervene safely. This scenario highlights how a seemingly minor component failure can cascade into a broader system alert.

Diving into the Mechanics: How the System Works

The chassis control system is an integrated network of sensors, actuators, and a central control unit (ECU). Here’s a breakdown of the key components and their functions:

Sensors: The Eyes and Ears of the System

Wheel Speed Sensors: These sensors, typically located near each wheel hub, measure the rotational speed of each wheel. They provide critical data to the ESC, ABS, and traction control systems.
Steering Angle Sensor: Located in the steering column, this sensor measures the angle of the steering wheel, providing information about the driver's intended direction.
Yaw Rate Sensor: This sensor, usually located near the car's center of gravity, measures the vehicle's rotation rate around its vertical axis (yaw). It helps the ESC determine if the car is turning as intended.
Lateral Acceleration Sensor: Measures the car's acceleration sideways. Helps the ESC determine if the car is sliding.
Suspension Height Sensors: In vehicles with adaptive suspension, these sensors monitor the ride height at each corner, allowing the system to adjust damping and ride characteristics.

Actuators: The Muscles of the System

Hydraulic Control Unit (HCU): The HCU is a key component of the ABS and ESC systems. It uses solenoid valves to precisely control brake pressure at individual wheels, enabling the system to apply braking force independently to correct skids or maintain stability.
Adaptive Dampers: Found in vehicles with adaptive suspension, these dampers contain electronically controlled valves that adjust the damping force based on road conditions and driving style.
Active Steering System: Some vehicles feature active steering systems that use an electric motor to adjust the steering ratio, making the steering feel lighter at low speeds and more precise at high speeds.

The Brain: The Electronic Control Unit (ECU)

The ECU is the central processing unit of the chassis control system. It receives data from all the sensors, analyzes the information, and commands the actuators to take appropriate actions. The ECU uses sophisticated algorithms to determine if the vehicle is behaving as intended and to intervene if necessary to maintain stability, optimize ride quality, or enhance handling.

Pros and Cons of Advanced Chassis Control Systems

Pros:

Enhanced Safety: ESC and ABS significantly reduce the risk of accidents by helping drivers maintain control in emergency situations.
Improved Handling: Adaptive suspension and active steering systems can optimize handling performance for various driving conditions, providing a more enjoyable and confident driving experience.
Increased Comfort: Adaptive suspension can improve ride quality by smoothing out bumps and vibrations.

Cons:

Increased Complexity: Advanced chassis control systems are complex, with many sensors, actuators, and electronic components. This complexity can lead to higher repair costs and potential reliability issues.
Potential for False Alarms: Sensor malfunctions or software glitches can trigger false alarms, leading to unnecessary diagnostic work.
Cost: Vehicles equipped with advanced chassis control systems are typically more expensive than those without.

Use Cases and Manufacturer Examples

BMW's Adaptive Drive: Combines active roll stabilization and variable damping control to enhance handling and ride comfort.
Mercedes-Benz's Active Body Control (ABC): Uses hydraulic actuators to actively counteract body roll, pitch, and dive, providing a remarkably smooth and stable ride.
Porsche's Porsche Stability Management (PSM): An advanced ESC system that integrates with other chassis control systems to optimize handling and stability.
Tesla's Autopilot: While primarily known for autonomous driving features, Autopilot relies heavily on the chassis control system for lane keeping, adaptive cruise control, and emergency braking.

Troubleshooting and Diagnosis: A Step-by-Step Approach

While professional diagnostics are often necessary, here are some steps you can take to begin troubleshooting a "Chassis Control System Fault":

Check for Obvious Issues: Visually inspect the tires for uneven wear, which could indicate a suspension problem. Also, check for any loose wiring or damaged connectors near the wheel hubs and suspension components.
Check the Brake Fluid Level: A low brake fluid level can sometimes trigger the warning light, especially if the ABS system relies on it.
Use an OBD-II Scanner: Connect an OBD-II scanner to your car's diagnostic port and retrieve the trouble codes. These codes provide valuable clues about the specific problem area. Note the codes down!
Research the Trouble Codes: Once you have the trouble codes, research them online. Many online forums and automotive websites provide information about common problems associated with specific codes.
Clear the Codes (Carefully): After researching the codes and addressing any obvious issues, you can try clearing the codes with the OBD-II scanner. If the problem is intermittent, the warning light may not reappear. However, if the problem persists, the light will come back on, and the codes will reappear. Important: Only clear codes after recording them. Clearing codes without addressing the underlying issue will simply mask the problem.
Consider Recent Repairs: Think back to any recent repairs or maintenance. Did the issue start after a brake job, tire rotation, or suspension work? A loose connection or improperly installed component could be the culprit.

When to Seek Professional Help

While basic troubleshooting can be helpful, the "Chassis Control System Fault" warning often requires professional diagnosis and repair. Here are situations where it's best to consult a qualified mechanic:

You're Uncomfortable Working on Your Car: If you're not experienced with automotive repairs, it's best to leave this to the professionals.
The Trouble Codes Indicate a Complex Problem: Some trouble codes point to issues that require specialized tools and expertise, such as ABS module failures or adaptive damper problems.
The Problem Persists After Basic Troubleshooting: If you've tried the basic troubleshooting steps and the warning light remains on, it's time to seek professional help.
The Car's Handling is Significantly Affected: If the car's handling feels unstable or unpredictable, it's crucial to have it checked immediately.

Real-World Insights and Recommendations

In the real world, a "Chassis Control System Fault" can stem from a variety of causes. One common culprit is a faulty wheel speed sensor, especially on older vehicles where the sensors can become corroded or damaged. Replacing a wheel speed sensor is a relatively straightforward repair, but it's essential to use a high-quality replacement sensor to ensure proper function and avoid future problems. Another common issue is low battery voltage, which can sometimes trigger false alarms in the chassis control system. Ensure your battery is in good condition and properly charged.

Preventative maintenance is key to minimizing the risk of chassis control system problems. Regularly inspect your tires for wear and tear, and ensure that your brakes are properly maintained. Have your suspension components checked periodically for signs of wear or damage. By taking these proactive steps, you can help keep your car's chassis control system in good working order and avoid costly repairs down the road.

Furthermore, don't ignore the warning signs. While a "Chassis Control System Fault" might seem like a minor inconvenience, it's essential to address it promptly to ensure your safety and the longevity of your vehicle. Early diagnosis and repair can prevent more serious problems from developing and keep you safely on the road.
