How To Fix Cylinder 3 Misfire

A cylinder 3 misfire, indicated by your car's check engine light and a diagnostic trouble code (DTC) like P0303, means that the third cylinder in your engine isn't firing correctly. This essentially means the combustion process – which requires air, fuel, and spark – isn't happening efficiently, or at all, in that cylinder. The result can be a rough-running engine, reduced power, poor fuel economy, and potentially even damage to other engine components if left unaddressed.

Why a Cylinder 3 Misfire Matters

Ignoring a cylinder 3 misfire isn't just about dealing with an annoying engine vibration. There are several important reasons why you need to address it promptly:

• Engine Damage: Unburnt fuel from the misfiring cylinder can enter the catalytic converter, potentially causing it to overheat and fail. Catalytic converter replacements can be very expensive. Moreover, raw fuel can wash down the cylinder walls, diluting the engine oil and leading to premature wear on pistons, rings, and bearings.
• Poor Fuel Economy: A misfiring cylinder means the engine is working harder to produce the same amount of power. This translates to significantly reduced fuel efficiency, costing you money at the pump.
• Reduced Performance: You'll likely notice a decrease in acceleration and overall engine power. The car may feel sluggish and hesitant, especially when climbing hills or accelerating quickly.
• Emissions Issues: A misfire results in increased emissions, which can contribute to air pollution and could cause you to fail an emissions test.
• Drivability Problems: The engine may stumble, stall, or run roughly, making driving unpleasant and potentially unsafe.

Diagnosing a Cylinder 3 Misfire: A Step-by-Step Approach

Before you start throwing parts at the problem, it's crucial to diagnose the cause of the misfire accurately. Here's a logical troubleshooting process:

1. Reading the Diagnostic Trouble Codes (DTCs):

The first step is to use an OBD-II scanner to confirm the presence of a P0303 code (Cylinder 3 Misfire Detected). Note any other codes that appear as well. These can offer valuable clues about the underlying cause. For instance, codes related to fuel injectors, ignition coils, or oxygen sensors can point you in the right direction.

2. Visual Inspection:

Perform a thorough visual inspection of the engine. Look for any obvious signs of damage, such as:

• Loose or damaged wiring to the ignition coil and fuel injector for cylinder 3.
• Cracked or damaged spark plug wires (if applicable).
• Vacuum leaks (hoses that are cracked, disconnected, or brittle).
• Oil leaks around the valve cover or cylinder head.

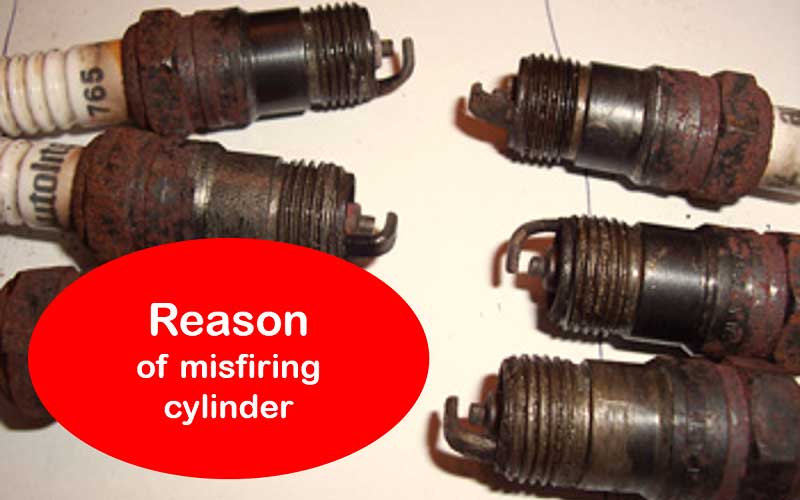

3. Spark Plug Inspection:

Remove the spark plug from cylinder 3 and carefully inspect it. Look for the following:

• Fouling: Is the spark plug covered in oil, carbon, or fuel? This can indicate a rich fuel mixture, oil leakage, or a worn piston ring.
• Damage: Is the spark plug cracked, chipped, or worn?
• Gap: Is the spark plug gap within the manufacturer's specifications?

Compare the spark plug from cylinder 3 to the spark plugs from other cylinders. A significant difference can indicate a problem specific to that cylinder. If the spark plug is old or damaged, replace it with a new one that meets the manufacturer's specifications.

4. Ignition System Testing:

The ignition system is a common culprit in misfires. Here are a few things to check:

• Ignition Coil: If your engine has individual ignition coils for each cylinder, swap the coil from cylinder 3 with the coil from another cylinder (e.g., cylinder 1). Clear the DTCs and see if the misfire moves to the cylinder you swapped the coil with (P0301 would indicate the misfire moved to cylinder 1). If it does, the ignition coil is likely the problem.
• Spark Plug Wires: If your engine uses spark plug wires, check them for resistance using a multimeter. Compare the readings to the manufacturer's specifications. Replace any wires that are damaged or have excessive resistance.

5. Fuel System Testing:

A faulty fuel injector can also cause a misfire. Here's how to investigate:

• Fuel Injector: Use a stethoscope or a long screwdriver to listen to the fuel injector on cylinder 3 while the engine is running. You should hear a clicking sound, indicating that the injector is opening and closing. If you don't hear a click, the injector may be faulty. You can also use a multimeter to check the injector's resistance, comparing it to the manufacturer's specifications. As with the ignition coils, you can swap the fuel injector from cylinder 3 with another cylinder to see if the misfire follows.

6. Compression Testing:

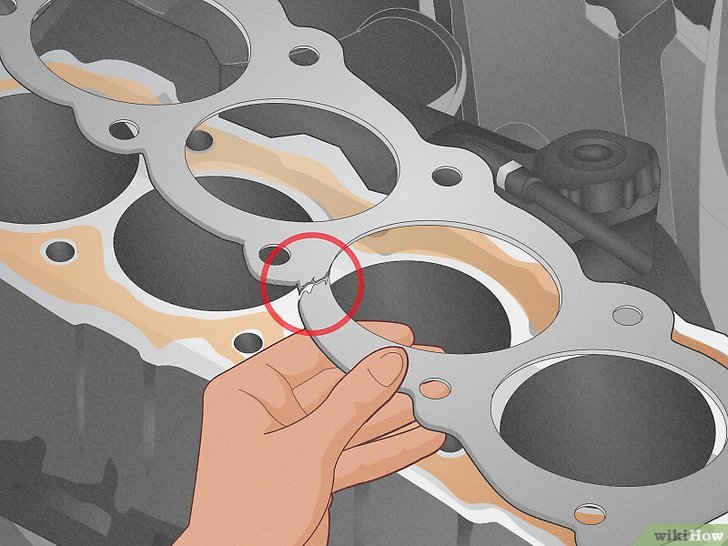

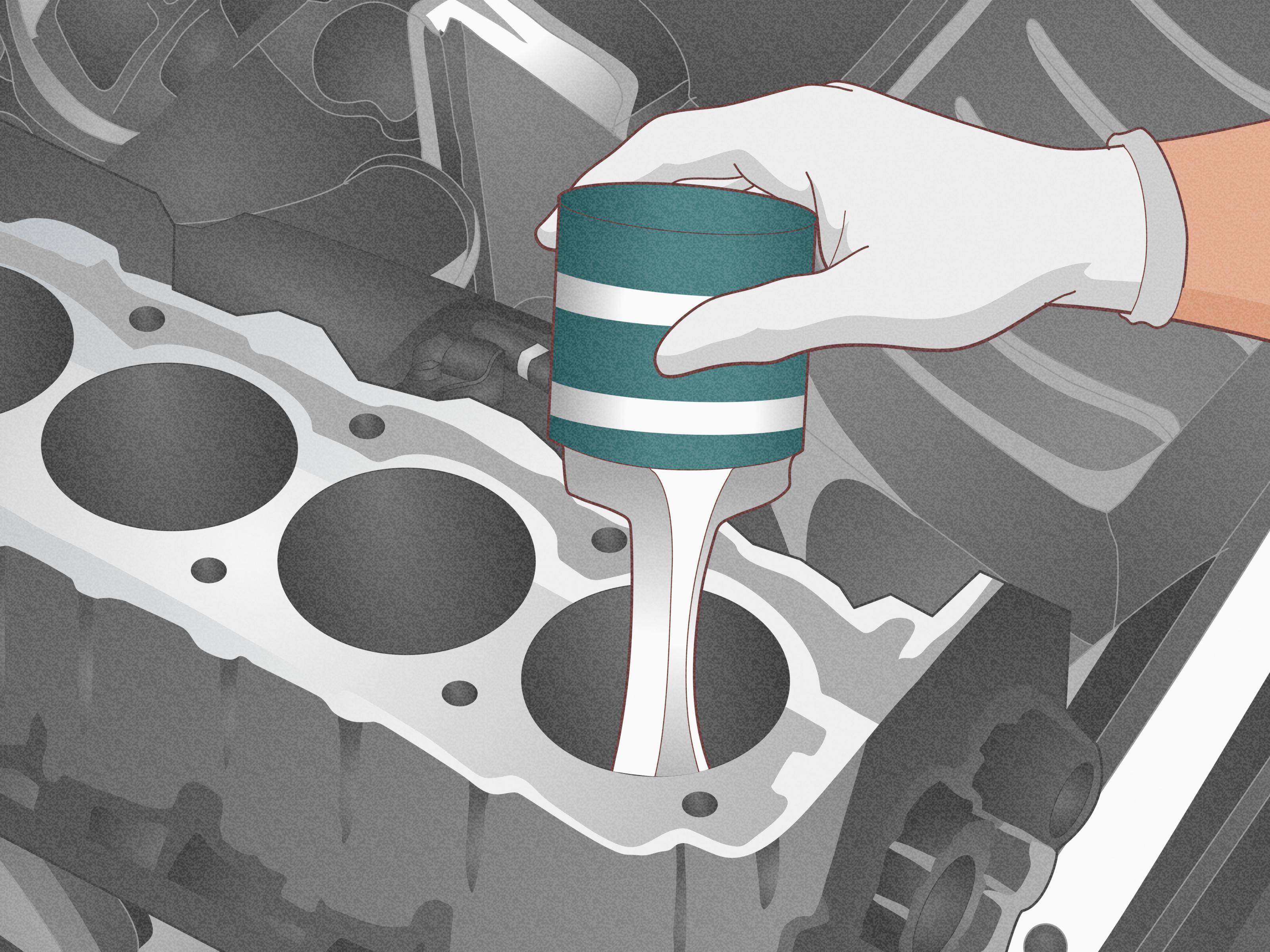

A compression test checks the mechanical integrity of the cylinder. Low compression can indicate worn piston rings, damaged valves, or a blown head gasket. This is a more involved test requiring specialized tools.

• Performing a Compression Test: Remove all spark plugs. Insert a compression tester into the spark plug hole of cylinder 3. Crank the engine for several seconds and record the reading. Repeat this process for all other cylinders.
• Interpreting the Results: Compare the compression readings for all cylinders. The readings should be within the manufacturer's specifications and should be relatively consistent across all cylinders. A significantly lower reading in cylinder 3 indicates a potential problem with the cylinder's internal components.

7. Other Potential Causes:

If you've ruled out the ignition system, fuel system, and compression issues, consider these other possibilities:

• Vacuum Leaks: A vacuum leak can disrupt the air-fuel mixture in a cylinder, causing a misfire. Use a smoke machine or spray carburetor cleaner around vacuum lines to identify leaks.
• EGR Valve: A faulty EGR valve can cause misfires, especially at idle.
• Timing Issues: Incorrect engine timing can also lead to misfires.
• PCM (Powertrain Control Module) Issues: In rare cases, a faulty PCM can cause a misfire.

How to Choose the Right Parts

When replacing parts, always use high-quality components that meet or exceed the manufacturer's specifications. Avoid cheap, generic parts, as they may not perform as well and could fail prematurely. Consider these factors when selecting parts:

• Brand Reputation: Choose reputable brands known for their quality and reliability.
• OEM vs. Aftermarket: OEM (Original Equipment Manufacturer) parts are typically more expensive but are guaranteed to fit and perform as intended. Aftermarket parts can be a more affordable option, but it's important to research the brand and quality before purchasing.
• Warranty: Look for parts that come with a warranty. This provides protection in case the part fails prematurely.
• Reviews: Read online reviews from other customers to get an idea of the part's performance and reliability.

Real-World Owner Experiences

Many car owners have experienced cylinder misfires. Here are some common scenarios and solutions:

• Scenario 1: A P0303 code appeared after filling up with gas. The problem turned out to be contaminated fuel. Draining the fuel tank and refilling with fresh fuel resolved the issue.
• Scenario 2: A persistent P0303 code remained even after replacing the spark plugs and ignition coil. A compression test revealed low compression in cylinder 3 due to worn piston rings. The engine required a rebuild.
• Scenario 3: A P0303 code appeared intermittently. The problem was traced to a loose connection in the wiring harness to the fuel injector. Cleaning and tightening the connection fixed the issue.

Frequently Asked Questions (FAQs)

Here are some frequently asked questions about cylinder 3 misfires:

Q: Can I drive with a cylinder 3 misfire?

A: It's generally not recommended to drive with a cylinder 3 misfire for an extended period. It can damage the catalytic converter and other engine components. It's best to address the problem as soon as possible.

Q: How much does it cost to fix a cylinder 3 misfire?

A: The cost can vary depending on the cause of the misfire. Replacing a spark plug or ignition coil might cost around $50-$200. More extensive repairs, such as replacing a fuel injector or repairing a blown head gasket, can cost several hundred to several thousand dollars.

Q: What does cylinder 3 refer to in the engine?

A: Cylinder numbering varies depending on the engine's configuration (inline, V-shaped, etc.). Generally, cylinder 1 is located at the front of the engine, and cylinders are numbered sequentially from front to back. Consult your vehicle's repair manual to determine the exact cylinder numbering for your engine.

Q: Can a bad oxygen sensor cause a cylinder 3 misfire?

A: While a bad oxygen sensor can affect engine performance and trigger misfire-related codes, it's less likely to directly cause a misfire isolated to a single cylinder. However, a faulty oxygen sensor could contribute to an overall lean or rich condition, potentially exacerbating a misfire caused by another issue.

Q: Is it possible to fix a cylinder 3 misfire myself?

A: It depends on your mechanical skills and the cause of the misfire. Replacing a spark plug or ignition coil is a relatively straightforward task that most DIYers can handle. However, more complex repairs, such as compression testing or fuel injector replacement, may require specialized tools and expertise.

By following this comprehensive guide, you can systematically diagnose and repair a cylinder 3 misfire, restoring your engine's performance and preventing further damage.
