How To Fix Fuel Gauge Needle

Let's talk about fuel gauges. Specifically, let's dive into troubleshooting and fixing a fuel gauge needle that's giving you grief. A faulty fuel gauge can be a constant source of anxiety. Is it lying to you and you're about to run out of gas? Is it stuck on full despite you've driven hundreds of miles? Nobody likes surprises when it comes to fuel, and a working fuel gauge is crucial for planning trips and, frankly, peace of mind. This guide will walk you through the inner workings of the fuel gauge system, common problems, and practical steps you can take to diagnose and repair it yourself. We'll cover everything from checking the sending unit to understanding resistance values. This guide assumes you have some basic mechanical knowledge and are comfortable using tools and a multimeter.

Background: Fuel Gauge Systems

The fuel gauge system, in its essence, is a relatively simple electrical circuit. It's been around for decades with only incremental changes, so understanding the fundamentals will allow you to troubleshoot most cars, old or new. The system comprises primarily of three main components: the fuel tank sending unit, the fuel gauge indicator (the needle and display in your instrument cluster), and the wiring connecting them, all relying on a power source, usually +12V from the car’s electrical system, and a ground connection.

The Fuel Tank Sending Unit

The fuel tank sending unit is the component submerged inside your fuel tank. Its primary function is to measure the fuel level and translate that measurement into an electrical signal that the fuel gauge can understand. Typically, it consists of a float attached to a lever arm. As the fuel level changes, the float rises or falls, moving the lever arm. This arm is connected to a variable resistor, also known as a potentiometer. The potentiometer alters its electrical resistance based on the float's position. When the tank is full, the resistance is typically low; when the tank is empty, the resistance is high. The sending unit needs a good ground connection to the chassis of the vehicle to function correctly.

The Fuel Gauge Indicator

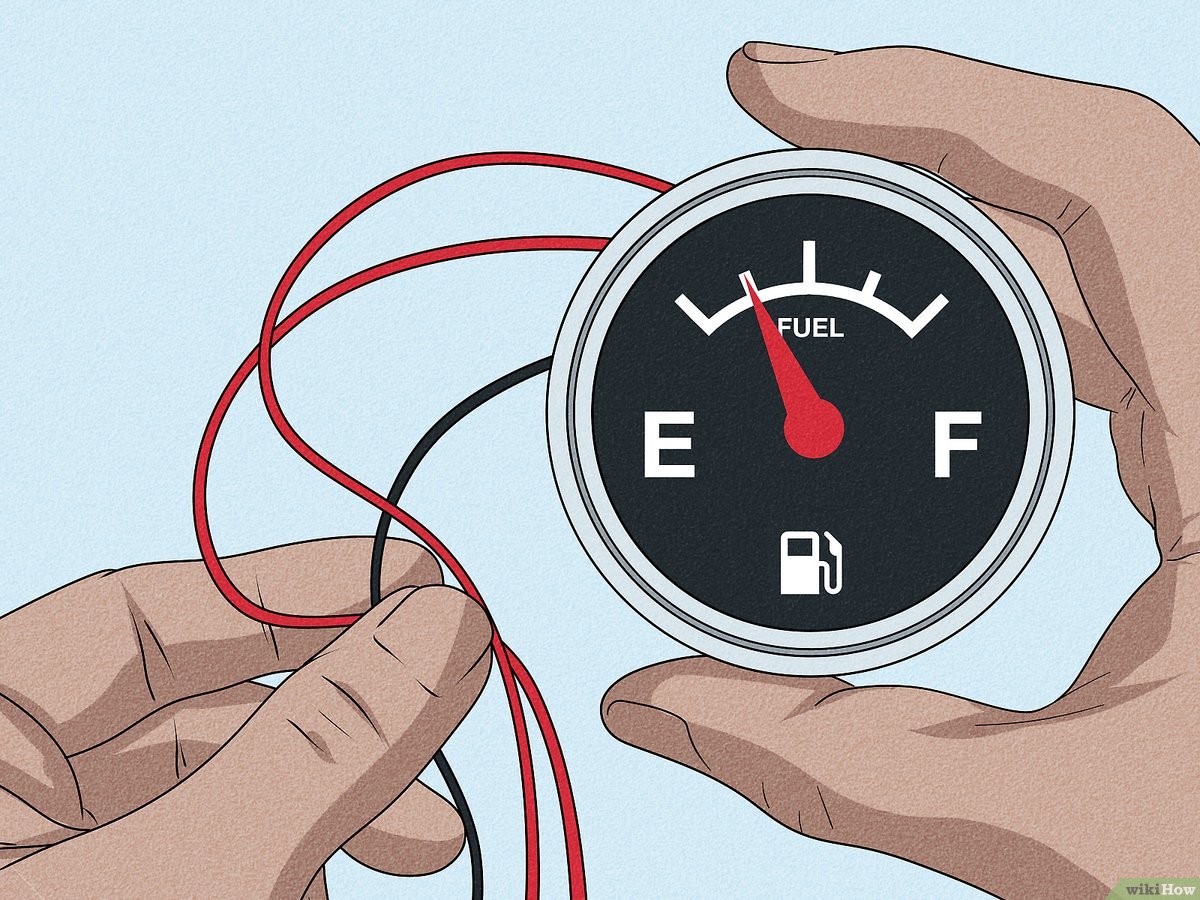

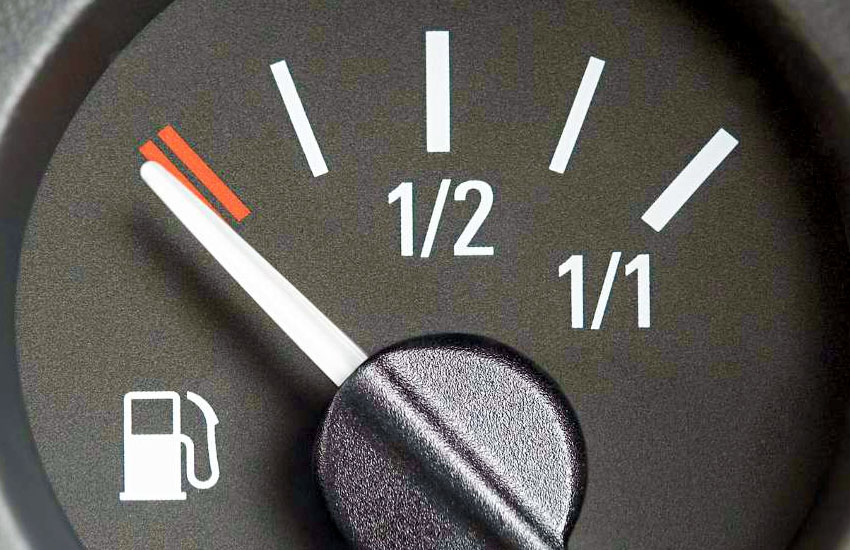

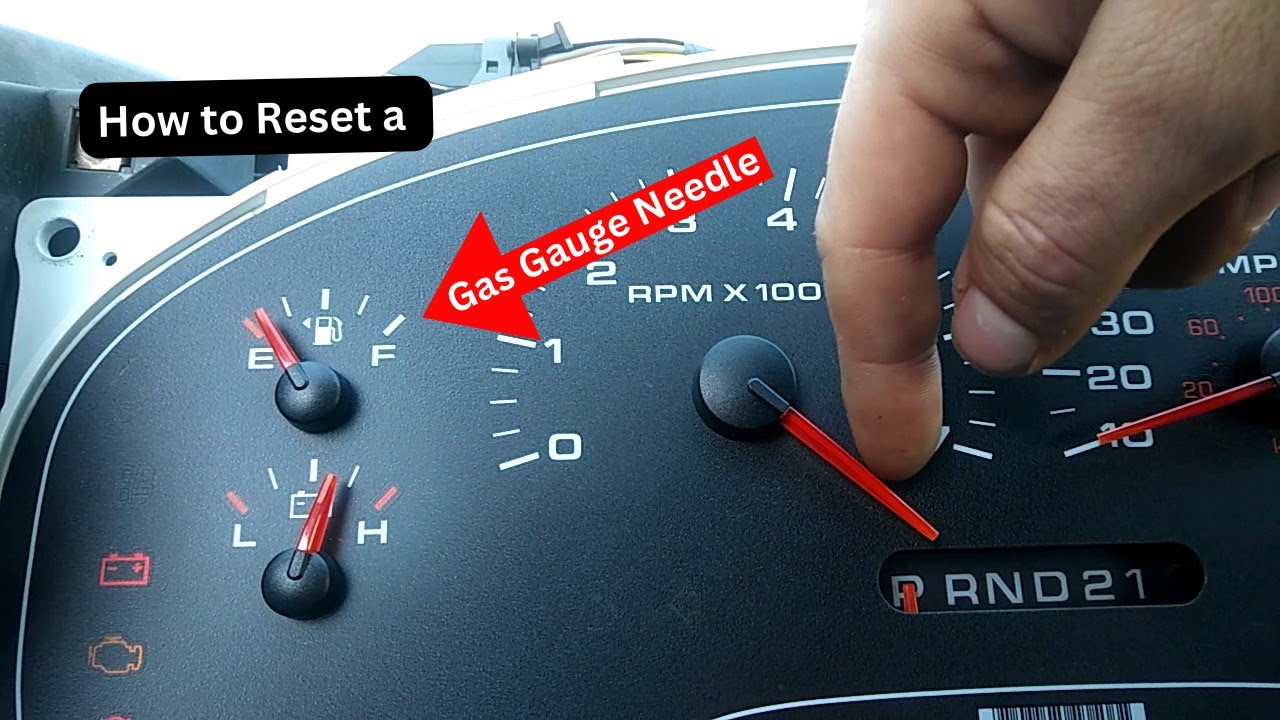

The fuel gauge indicator, located within the instrument cluster, receives the electrical signal (resistance) from the sending unit and displays the fuel level to the driver. Older vehicles often used a bimetallic strip or a magnetic gauge. These gauges work by heating a bimetallic strip or manipulating magnetic fields based on the current flowing through them. Newer vehicles generally use electronic gauges controlled by the car's computer (ECU or PCM). The computer receives the signal from the sending unit and controls the gauge accordingly. These electronic gauges are often more precise and can incorporate warning lights or other features. No matter the type, the gauge receives power and a ground connection as well.

Wiring and Connectors

The wiring connecting the sending unit to the gauge is just as important as the two main components. A break in the wire, a corroded connector, or a short to ground can all cause the fuel gauge to malfunction. Most systems use a single wire running from the sending unit to the gauge, using the chassis of the car for the ground. Therefore, proper grounding is vital for accurate readings. Connectors can accumulate corrosion over time, increasing resistance and disrupting the signal. Also, aftermarket accessories poorly wired in or near fuel system wiring can cause issues with the integrity of the wire runs to the fuel gauge.

Technical Breakdown: How It Works

Let's delve into the technicalities of how the fuel gauge system operates.

In a traditional system, the sending unit acts as a voltage divider. The sending unit is wired in series with the fuel gauge itself. A constant voltage (typically 12V) is applied to this series circuit. The sending unit, with its variable resistance, determines how much voltage is dropped across the fuel gauge. When the tank is full (low resistance in the sending unit), more voltage is dropped across the fuel gauge, causing the needle to move towards the "Full" mark. Conversely, when the tank is empty (high resistance in the sending unit), less voltage is dropped across the fuel gauge, and the needle moves towards the "Empty" mark.

To illustrate, imagine a simple circuit with a 12V power source, a 100-ohm resistor representing the fuel gauge, and a variable resistor (the sending unit) ranging from 20 ohms (full) to 250 ohms (empty). When the sending unit is at 20 ohms, the voltage across the fuel gauge (100 ohms) will be significantly higher than when the sending unit is at 250 ohms. This voltage difference is what drives the movement of the needle.

In modern vehicles, the ECU/PCM often plays a central role. The sending unit's resistance value is sent as a signal to the ECU, which then processes the signal and sends a command to the fuel gauge motor. These systems may incorporate damping algorithms to prevent the needle from fluctuating excessively due to fuel sloshing in the tank. They may also provide more detailed fuel level information than traditional systems.

Regardless of the system type, the key principle remains the same: the fuel level is translated into an electrical resistance, which then dictates the position of the fuel gauge needle.

Common Issues and Maintenance Concerns

Here are some of the most common culprits behind a malfunctioning fuel gauge:

Faulty Sending Unit: This is the most frequent cause. The potentiometer can wear out over time, leading to inaccurate readings or a completely dead gauge. Corrosion within the tank can also affect the float or the potentiometer itself.
Wiring Problems: Damaged or corroded wiring, loose connections, or shorts to ground can disrupt the signal between the sending unit and the gauge. This is especially common in older vehicles where the wiring insulation can become brittle.
Grounding Issues: A poor ground connection for the sending unit or the gauge can result in erratic or inaccurate readings.
Gauge Malfunction: The gauge itself can fail, particularly in older vehicles with bimetallic strip or magnetic gauges. The internal components can wear out or become damaged.
Instrument Cluster Issues: In modern vehicles, the instrument cluster contains electronic circuitry that can fail, affecting the fuel gauge and other indicators.
ECU/PCM Problems: While less common, a problem with the ECU/PCM can sometimes cause fuel gauge issues.
Fuel Slosh: Fuel moving around inside the tank is a common cause of needle fluctuation. However, this usually isn't a gauge malfunction.

Maintenance is primarily focused on prevention. Keeping the fuel system clean can help prevent corrosion. Using fuel additives that contain fuel system cleaners can remove deposits from the sending unit. Inspecting and cleaning wiring connections periodically can also prevent problems. Addressing any fuel leaks promptly can prevent further damage to the sending unit and wiring. If you notice your fuel gauge acting erratically, it's best to investigate the problem before it leads to a complete failure.

Do’s and Don’ts / Best Practices

Here are some crucial do's and don'ts to keep in mind when troubleshooting and repairing a fuel gauge:

Do’s:

Safety First: Disconnect the negative battery cable before working on any electrical components, especially near the fuel tank. Fuel is highly flammable, and safety precautions are vital.
Use a Multimeter: A multimeter is your best friend for diagnosing fuel gauge problems. Use it to check voltage, resistance, and continuity.
Check the Ground Connections: Ensure that the sending unit and the gauge have solid ground connections. Clean any corroded connections with a wire brush.
Inspect the Wiring: Carefully examine the wiring harness for any signs of damage, corrosion, or shorts. Use a wiring diagram to trace the circuits.
Test the Sending Unit: Remove the sending unit and test its resistance range. Compare the readings to the specifications in your vehicle's service manual.
Consult a Wiring Diagram: Obtain a wiring diagram for your specific vehicle. This will help you understand the circuit layout and identify the correct wires to test.
Document Everything: Take notes and pictures as you work. This will help you remember what you've done and identify any potential problems.

Don’ts:

Smoke Near the Fuel Tank: This should be obvious, but never smoke or use open flames near the fuel tank.
Use Excessive Force: Be gentle when removing and installing components. Over-tightening screws or forcing connectors can cause damage.
Ignore Warning Signs: If you notice any unusual behavior, such as erratic gauge readings or fuel leaks, address the problem immediately.
Assume the Gauge is Always Correct: Always verify the fuel level before undertaking a long journey, especially if your gauge has been acting up.
Bypass Safety Features: Never disable or bypass any safety features, such as fuel cut-off switches or rollover valves.
Use Improper Tools: Use the correct tools for the job. Using the wrong tools can cause damage or injury.

Best Practices:

Use High-Quality Replacement Parts: When replacing components, use high-quality parts from reputable manufacturers. Cheap aftermarket parts may not be as reliable.
Apply Dielectric Grease: Apply dielectric grease to electrical connectors to prevent corrosion.
Properly Torque Fasteners: Use a torque wrench to tighten fasteners to the specified torque values.
Test After Repairs: After making any repairs, thoroughly test the fuel gauge system to ensure that it is working correctly.

Conclusion

Troubleshooting a fuel gauge issue can seem daunting, but by understanding the system's components and following a logical diagnostic approach, you can often identify and fix the problem yourself. Remember to prioritize safety, use the right tools, and consult your vehicle's service manual. Start with the simplest checks first, such as ground connections and wiring. If those are okay, move on to testing the sending unit and gauge. In many cases, replacing the sending unit is the most effective solution. While modern vehicle fuel gauges can be complex, applying these techniques and using a methodical approach will give you the greatest chance of success. If you're not comfortable working on the fuel system or have any doubts about your abilities, it's always best to consult a qualified mechanic. But with the right knowledge and tools, you can keep your fuel gauge accurate and reliable, giving you the peace of mind you need on the road.
