How To Fix Heater Core Leak

A leaking heater core is a common but frustrating problem that can plague vehicles of all makes and models. It's essentially a small radiator located inside your dashboard, responsible for providing heat to the cabin. When it springs a leak, it can lead to a range of issues, from a persistent sweet smell to a dangerously fogged windshield. Addressing this problem promptly is crucial for your comfort, safety, and the overall health of your vehicle.

Identifying a Heater Core Leak: Recognizing the Symptoms

Catching a heater core leak early can prevent more extensive damage. Here's a breakdown of the most common symptoms:

Sweet, Maple Syrup-Like Smell: This is often the first and most noticeable sign. The coolant circulating through your heater core contains ethylene glycol, which has a distinctive sweet scent. If you smell this inside your car, especially when the heater is on, a leak is highly likely.
Foggy Windshield (with an oily residue): A leaking heater core can release coolant into the ventilation system. This coolant evaporates and condenses on your windshield, creating a hazy film that's difficult to remove. The residue is often oily to the touch.
Wet or Damp Passenger Side Floorboard: Coolant leaking from the heater core will often pool on the passenger side floorboard. The carpet may feel damp or sticky. Check under the floor mats for evidence of coolant.
Loss of Coolant: You may notice that your coolant level is consistently dropping, requiring you to add coolant more frequently than usual. Keep in mind that coolant loss can be due to other issues as well, but it should raise suspicion, especially if combined with other symptoms listed here.
Poor Heater Performance: The heater may not be blowing as hot as it used to, or it may be intermittent. This is because air pockets caused by the leaking coolant can disrupt the flow of hot fluid through the core.
Engine Overheating (in severe cases): While less common, a significant heater core leak can lead to a loss of coolant severe enough to cause the engine to overheat. This is a serious situation that requires immediate attention.

Understanding the Root Cause: Why Heater Cores Leak

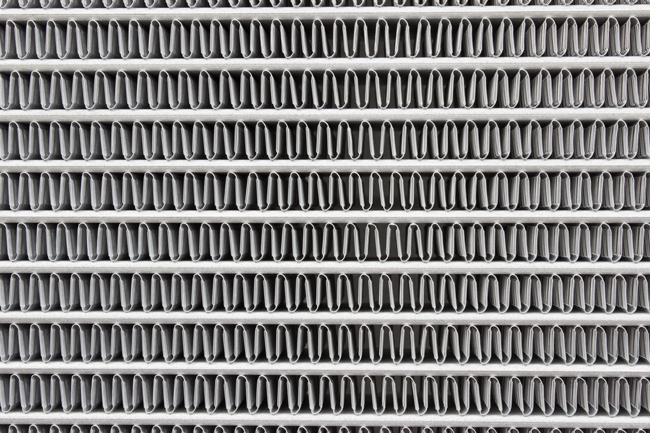

Heater cores are typically constructed from copper or aluminum, similar to radiators. Over time, they can develop leaks due to several factors:

Corrosion: Coolant contains additives that prevent corrosion. If the coolant is not changed regularly (typically every 2-5 years or 30,000-60,000 miles), these additives deplete, and the coolant becomes acidic. This acidic coolant can corrode the metal of the heater core, leading to pinhole leaks. This is the most common cause of heater core failure.
Electrolysis: Stray electrical currents in the cooling system can also cause corrosion. This is less common than corrosion from depleted coolant, but it can be a contributing factor. Proper grounding of the engine and electrical components is essential to prevent electrolysis.
Pressure: The cooling system operates under pressure. Over time, repeated pressure fluctuations can weaken the heater core and cause it to crack. Using the correct radiator cap with the proper pressure rating is critical.
Physical Damage: In rare cases, the heater core can be damaged by debris entering the cooling system or by improper maintenance procedures.
Age: Simply put, age is a factor. Hoses and metal components degrade over time, making older vehicles more susceptible to heater core leaks.

The Consequences of Ignoring a Heater Core Leak

Ignoring a heater core leak is never a good idea. The problem will only worsen over time, and the consequences can be significant:

Engine Damage: As mentioned earlier, a significant leak can lead to coolant loss and engine overheating, potentially causing serious and expensive engine damage, including a blown head gasket or warped cylinder head.
Electrical Damage: Coolant leaking onto electrical components can cause shorts and corrosion, leading to further electrical problems and potentially immobilizing the vehicle.
Mold and Mildew: A wet floorboard creates a perfect breeding ground for mold and mildew, which can cause unpleasant odors and pose health risks, especially for individuals with allergies or respiratory problems.
Compromised Safety: A foggy windshield significantly reduces visibility, increasing the risk of accidents.
Increased Repair Costs: A small leak can turn into a major problem if left unattended, resulting in more extensive and costly repairs down the line.

Recommended Fixes: Addressing the Leak

The primary solution for a leaking heater core is replacement. While there are temporary stop-leak products available, they are generally not recommended as a long-term fix. These products can clog the cooling system and potentially cause more harm than good.

Here's a breakdown of the recommended steps:

Diagnosis Confirmation: While the symptoms mentioned above are strong indicators of a heater core leak, it's always best to have a qualified mechanic confirm the diagnosis. They can perform pressure tests and inspect the cooling system to pinpoint the source of the leak.

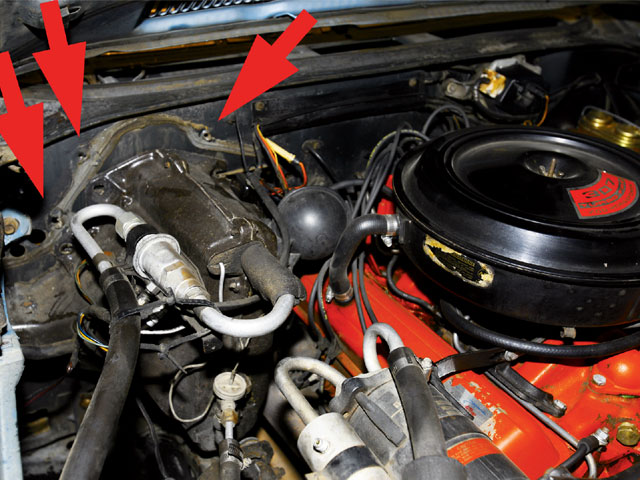

Heater Core Replacement: This involves removing the dashboard, which can be a complex and time-consuming process. It requires specialized tools and knowledge of vehicle-specific procedures. It is generally recommended to have a professional mechanic perform this repair.

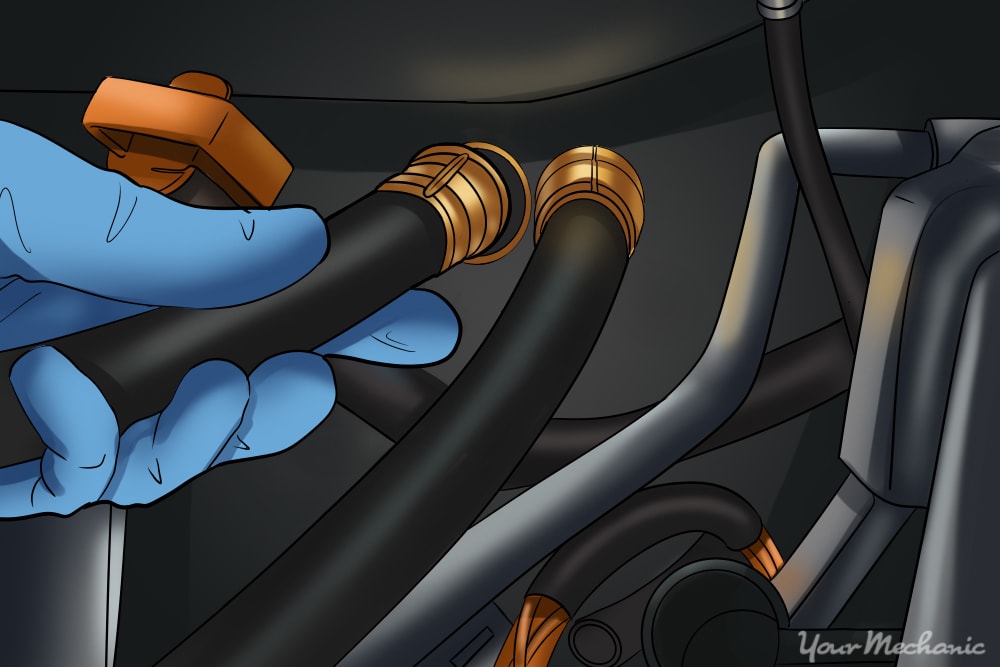

Flushing the Cooling System: After replacing the heater core, it's important to thoroughly flush the cooling system to remove any remaining coolant and debris. This will help prevent future corrosion and ensure optimal cooling system performance.
Using Quality Coolant: Refill the cooling system with the correct type of coolant specified by the vehicle manufacturer. Using the wrong type of coolant can accelerate corrosion and damage the cooling system.
Pressure Testing: After the repair, the cooling system should be pressure tested to ensure there are no remaining leaks.

Heater Core Stop Leak Products: A Word of Caution

While stop-leak products might seem like a quick and easy fix, they often contain particulate matter that can clog narrow passages within the cooling system, including the radiator and thermostat. This can lead to overheating and further damage. In most cases, the long-term consequences of using stop-leak products outweigh the short-term benefits.

Cost Estimates and Shop Advice

The cost of replacing a heater core can vary depending on the make and model of your vehicle, the labor rates in your area, and the complexity of the dashboard removal. Generally, you can expect to pay between $500 and $1500 for a complete heater core replacement, including parts and labor. The labor cost is typically the most significant factor.

Here's some advice when seeking professional repair:

Get Multiple Quotes: Obtain quotes from several reputable repair shops in your area to compare prices and services.
Ask About Warranty: Inquire about the warranty offered on the parts and labor. A reputable shop will typically offer a warranty of at least one year.
Check Online Reviews: Before choosing a repair shop, check online reviews and ratings to get an idea of their reputation and customer satisfaction.
Ask About OEM vs. Aftermarket Parts: Discuss the option of using Original Equipment Manufacturer (OEM) parts versus aftermarket parts. OEM parts are generally more expensive but are designed to meet the exact specifications of your vehicle.

While this repair can be tackled by experienced DIY mechanics, it's generally recommended to seek professional assistance due to the complexity of the job and the potential for causing further damage if not done correctly.

Technical Service Bulletins and Common Failure Points

While not always available or widely publicized for specific heater core leaks, manufacturers sometimes issue Technical Service Bulletins (TSBs) related to cooling system issues that might indirectly relate to heater core failures. These TSBs often address issues like improper coolant mixtures or faulty radiator caps that could contribute to premature heater core corrosion. Always check with your mechanic to see if any TSBs apply to your vehicle's cooling system.

Additionally, online forums and vehicle-specific communities can provide valuable information about common failure points and repair experiences related to heater cores. For example, some vehicle models are known to have heater cores that are more prone to leaks around a certain mileage (e.g., 80,000-120,000 miles) due to specific design flaws or material weaknesses. These resources can help you anticipate potential problems and make informed decisions about maintenance and repairs.

By understanding the symptoms, causes, and consequences of a leaking heater core, you can take proactive steps to protect your vehicle and ensure your safety and comfort on the road. Remember to prioritize regular cooling system maintenance, including coolant flushes, and address any suspected leaks promptly.
