How To Fix Injector Circuit Malfunction

Experiencing an injector circuit malfunction in your vehicle can be frustrating. The engine control unit (ECU) relies on properly functioning fuel injectors to deliver the correct amount of fuel for optimal combustion. When the ECU detects a problem in the injector circuit, it triggers a fault code, potentially leading to reduced engine performance, poor fuel economy, and even engine damage. Addressing this issue promptly is crucial for maintaining your vehicle's reliability and efficiency.

Symptoms of an Injector Circuit Malfunction

Identifying the symptoms early can help you diagnose the problem and prevent further damage. Common symptoms associated with an injector circuit malfunction include:

Check Engine Light: This is the most obvious indicator. The light illuminates when the ECU detects a fault in the injector circuit. A diagnostic scan tool will be needed to retrieve the specific trouble code(s).
Rough Idling: If one or more injectors are not functioning correctly, the engine may idle roughly or stall.
Misfiring: A faulty injector can cause the engine to misfire, resulting in a noticeable jerking or hesitation during acceleration.
Reduced Fuel Economy: Improper fuel delivery due to injector problems can lead to a decrease in fuel efficiency.
Poor Acceleration: The engine may struggle to accelerate if it's not receiving the correct amount of fuel.
Engine Stalling: In severe cases, the engine may stall, especially at low speeds or when idling.
Fuel Smell: A strong fuel odor may be present, particularly if an injector is leaking.
Increased Emissions: A malfunctioning injector can cause the engine to produce excessive emissions, potentially leading to a failed emissions test.

Root Cause of Injector Circuit Malfunction

The term "injector circuit malfunction" is a broad one, and the root cause can vary. Here are the most common culprits:

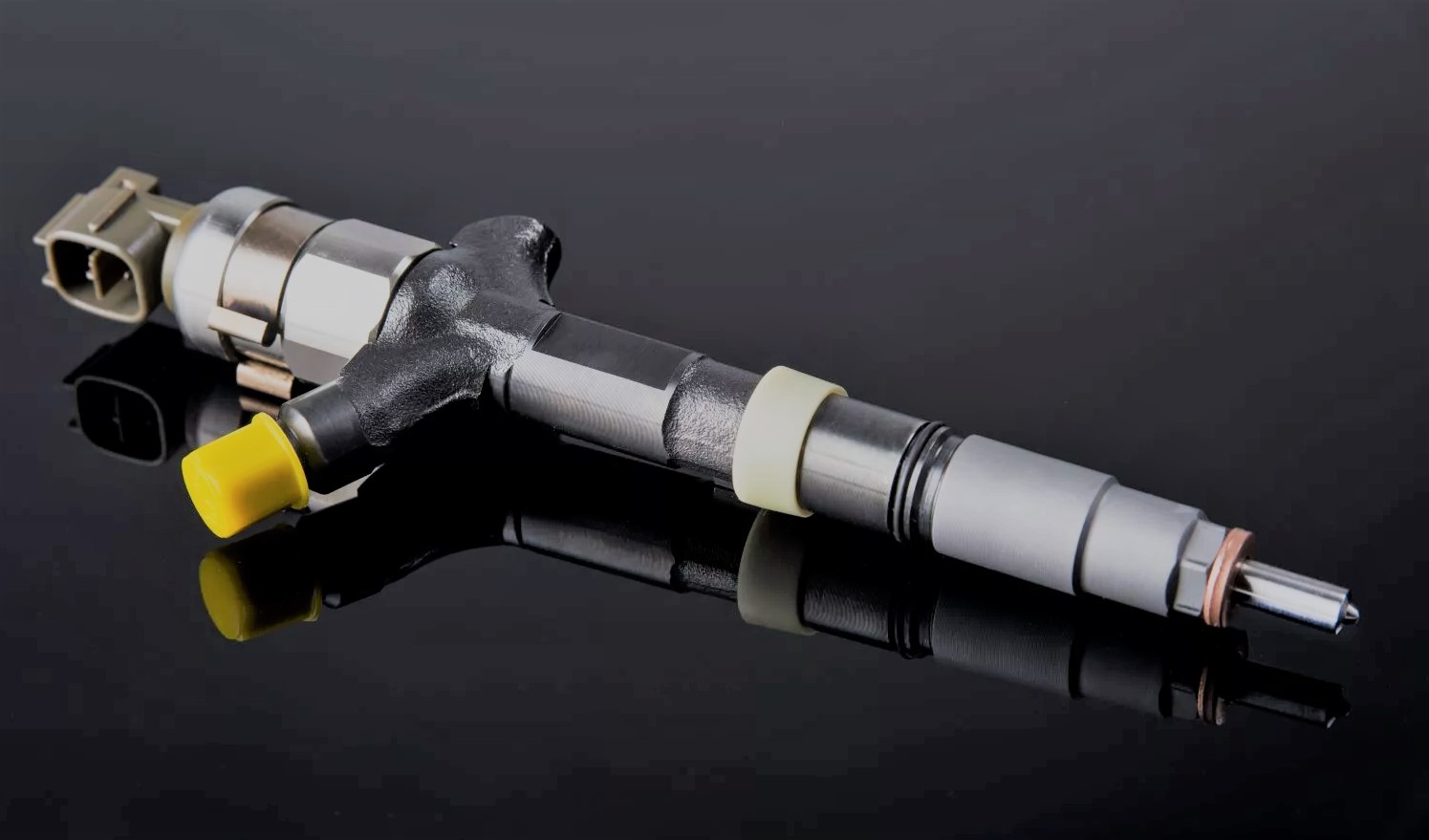

Faulty Fuel Injector: The injector itself may be defective, either electrically or mechanically. This could involve a short circuit, open circuit, or a clogged injector nozzle. Over time, fuel injectors can become clogged with deposits, hindering their ability to spray fuel effectively.
Wiring Issues: Damaged or corroded wiring in the injector circuit can disrupt the electrical signal. This could include frayed wires, loose connections, or broken connectors. Rodents often chew on wiring harnesses, especially in parked vehicles.
Connector Problems: The connector that plugs into the fuel injector can become corroded or damaged, leading to a poor electrical connection.

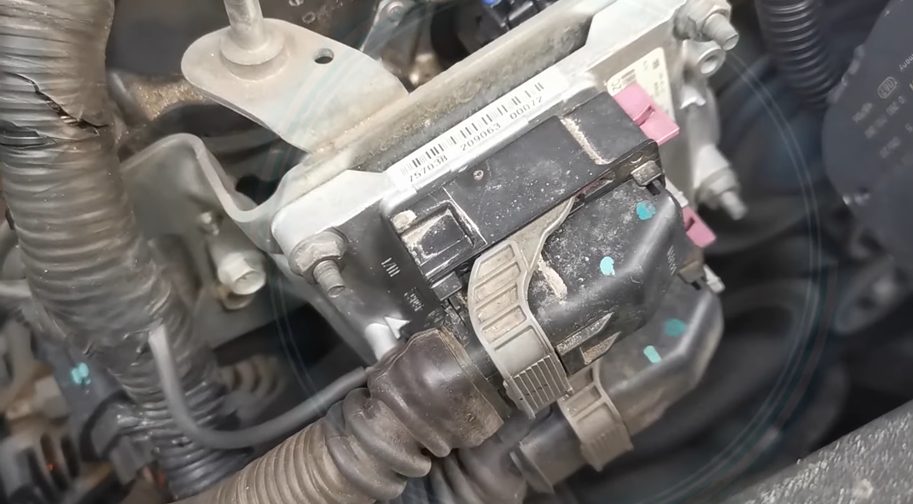

ECU (Engine Control Unit) Problems: In rare cases, the ECU itself may be faulty, causing it to send incorrect signals to the fuel injectors or misinterpret the injector's performance. This is usually the least likely cause and is often diagnosed after ruling out other possibilities.
Fuel Pump Issues: While not directly part of the injector circuit, a weak or failing fuel pump can indirectly cause injector problems by providing insufficient fuel pressure, leading to misfires and injector codes.
Relay Problems: Some vehicles use relays to provide power to the fuel injectors. A faulty relay can interrupt the power supply, causing the injectors to malfunction.

Understanding the specific trouble code retrieved from the ECU can help narrow down the source of the problem. For example, codes related to "injector circuit open" or "injector circuit short to ground" point to electrical issues, while codes indicating "injector performance" might suggest a clogged or malfunctioning injector.

Consequences of Ignoring the Problem

Ignoring an injector circuit malfunction can lead to several serious consequences:

Catalytic Converter Damage: Misfires caused by injector problems can send unburned fuel into the catalytic converter, potentially overheating and damaging it. Replacing a catalytic converter is an expensive repair.
Engine Damage: Continued misfires can lead to cylinder head or piston damage. In severe cases, it could even result in complete engine failure.
Reduced Vehicle Performance: The vehicle will experience reduced power, poor fuel economy, and rough running conditions.
Safety Concerns: Stalling or misfiring can create unsafe driving conditions, especially in heavy traffic or at high speeds.
Failed Emissions Test: As mentioned earlier, injector problems can increase emissions, leading to a failed emissions test and preventing you from legally operating your vehicle.

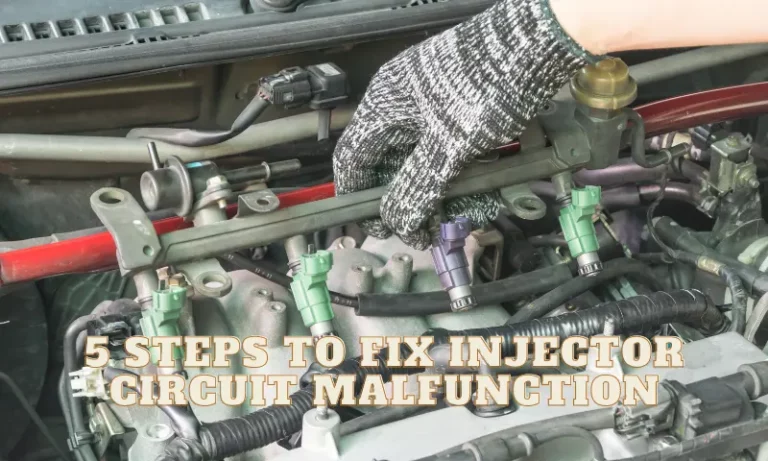

Recommended Fixes

The appropriate fix depends on the root cause of the malfunction. Here's a breakdown of common solutions:

Diagnostic Scan: Start by retrieving the diagnostic trouble codes (DTCs) from the ECU using an OBD-II scanner. This will provide valuable information about the specific nature of the problem.

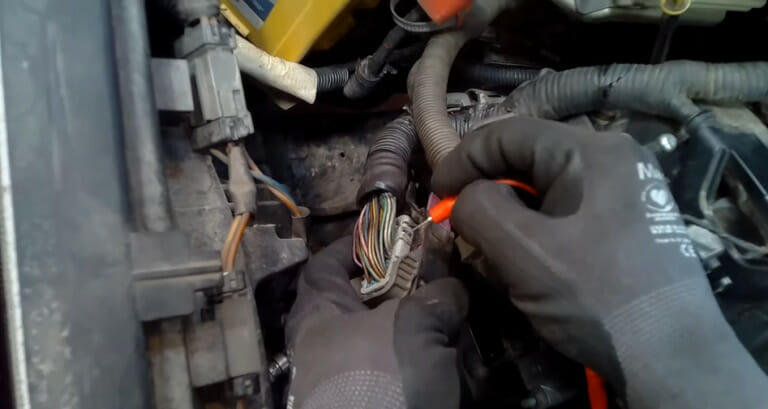

Inspect Wiring and Connectors: Carefully inspect the wiring harness and connectors associated with the affected fuel injector(s). Look for signs of damage, corrosion, or loose connections. Clean corroded connectors with electrical contact cleaner and repair or replace any damaged wiring.
Test Fuel Injector Resistance: Use a multimeter to measure the resistance of the fuel injector(s). Compare the readings to the manufacturer's specifications. A significant deviation from the specified range indicates a faulty injector.
Fuel Injector Cleaning: If the injector is suspected to be clogged, consider having it professionally cleaned. Many auto repair shops offer fuel injector cleaning services that use specialized equipment to remove deposits. Alternatively, you can use fuel injector cleaner additives, but these are typically less effective for severe clogs.
Fuel Injector Replacement: If the injector is faulty beyond repair, replacement is necessary. It's generally recommended to replace all injectors at the same time if one fails, as the others may be nearing the end of their lifespan as well.
Check Fuel Pressure: Use a fuel pressure gauge to verify that the fuel pump is providing adequate fuel pressure. If the pressure is low, the fuel pump may need to be replaced.
Inspect Relays and Fuses: Check the fuel injector relay and fuse to ensure they are functioning correctly. Replace any blown fuses or faulty relays.
ECU Diagnosis: If all other potential causes have been ruled out, the ECU may be the source of the problem. This requires specialized diagnostic equipment and expertise, and it's best left to a qualified mechanic.

Important Safety Tip: When working with fuel systems, always disconnect the negative battery cable to prevent accidental sparks or electrical shocks. Work in a well-ventilated area and avoid smoking or open flames.

Cost Estimates and Shop Advice

The cost of repairing an injector circuit malfunction can vary depending on the severity of the problem and the specific components that need to be replaced.

Diagnostic Scan: $75 - $150
Fuel Injector Cleaning: $100 - $300 (for all injectors)
Fuel Injector Replacement: $150 - $300 per injector (including labor)
Wiring Repair: $50 - $200 (depending on the extent of the damage)
Fuel Pump Replacement: $300 - $700 (including labor)
ECU Replacement: $800 - $2000 (including programming)

Shop Advice:

Get Multiple Quotes: Obtain estimates from several reputable auto repair shops before committing to any repairs.
Ask About Warranty: Inquire about the warranty offered on parts and labor.
Check Online Reviews: Research the shop's reputation by reading online reviews.
Ask for a Detailed Explanation: Request a detailed explanation of the problem and the proposed solution.

Technical Service Bulletins (TSBs): It's always a good idea to check if there are any TSBs related to injector circuit malfunctions for your specific vehicle make and model. TSBs are issued by manufacturers to address common problems and provide recommended solutions. You can usually find TSB information online or through a reputable auto repair shop.

Keep in mind that injector issues can also be mileage related. Vehicles with over 100,000 miles are often more prone to injector clogging and failure simply due to age and wear. Online forums and communities dedicated to your specific vehicle can also provide valuable insights into common problems and potential solutions. Many owners share their experiences and troubleshooting tips, which can be helpful in diagnosing and resolving injector circuit malfunctions.
