How To Fix Instrument Cluster Lights

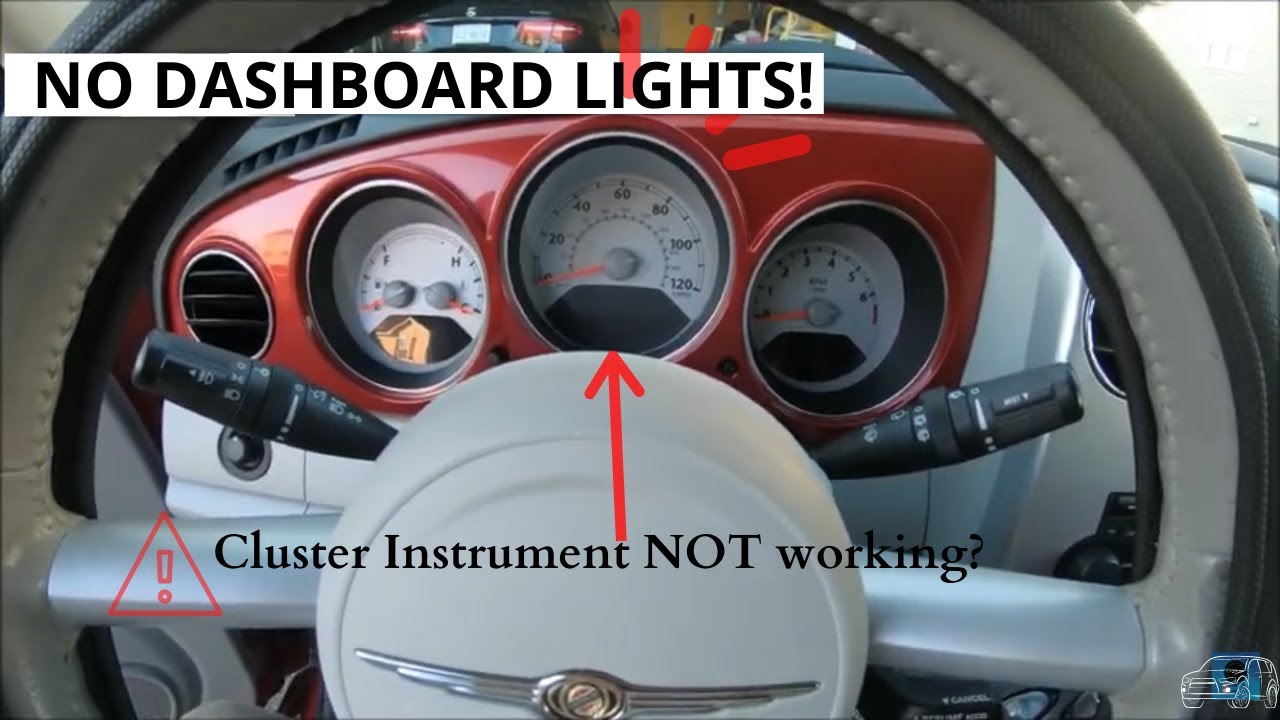

Have you ever noticed that the lights on your car's instrument cluster, the dashboard area displaying speed, fuel level, and other vital information, are dimming, flickering, or even going out completely? This can be frustrating and, more importantly, dangerous. A malfunctioning instrument cluster can prevent you from seeing critical warnings, leading to potential mechanical issues or even accidents. This article will guide you through common causes and troubleshooting steps to help you fix your instrument cluster lights.

Why Fixing Instrument Cluster Lights Matters

A functioning instrument cluster is essential for safe driving. Here's why:

• Safety: The instrument cluster displays crucial information such as speed, engine temperature, fuel level, and warning lights (check engine, oil pressure, ABS, etc.). Ignoring these warnings can lead to serious mechanical damage or dangerous driving conditions. A dim or non-functional cluster obscures these vital indicators.
• Legality: In some jurisdictions, driving with a malfunctioning speedometer or other critical instrument cluster functions can be illegal.
• Maintenance: Being able to monitor your vehicle's performance allows you to identify and address potential problems early, preventing costly repairs down the road. For example, noticing an overheating engine immediately can prevent severe engine damage.
• Resale Value: A fully functioning instrument cluster is a sign that a vehicle has been well-maintained, increasing its resale value.

Ignoring faulty instrument cluster lights is simply not worth the risk. Understanding the common causes and knowing how to diagnose the problem is the first step to getting them fixed.

Troubleshooting and Fixing Instrument Cluster Lights: A Step-by-Step Guide

Before you take your car to a mechanic, there are several things you can check yourself. This can potentially save you time and money.

1. Check the Fuses

This is the easiest and often the most common cause. A blown fuse can cut power to the instrument cluster lights. Here's how to check:

1. Locate the Fuse Box(es): Your car typically has one or more fuse boxes. The location is usually indicated in your owner's manual. Common locations include under the dashboard, in the glove compartment, or under the hood near the battery.
2. Identify the Correct Fuse: Consult your owner's manual or a fuse box diagram (often printed on the fuse box cover) to find the fuse that controls the instrument cluster lights. The diagram will indicate the function of each fuse.
3. Inspect the Fuse: Remove the fuse using a fuse puller (usually included in the fuse box) or a pair of needle-nose pliers. Examine the fuse closely. If the thin wire inside the fuse is broken, the fuse is blown.
4. Replace the Fuse: Replace the blown fuse with a new fuse of the same amperage. The amperage rating is printed on the fuse itself. Using a fuse with a higher amperage can be dangerous and could damage your electrical system.
5. Test: Turn on your car's ignition and check if the instrument cluster lights are working. If they are, you've solved the problem. If the fuse blows again quickly, there may be a short circuit in the wiring. Seek professional help to diagnose and repair the electrical issue.

2. Check the Dimmer Switch

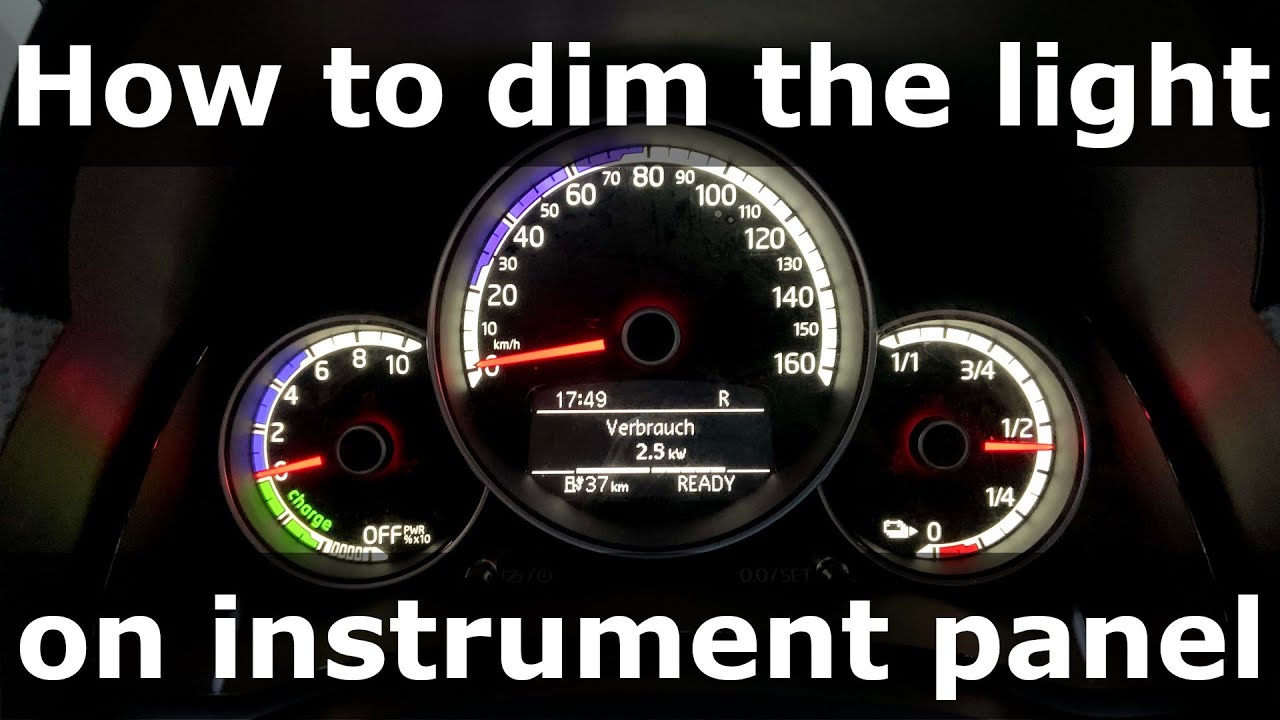

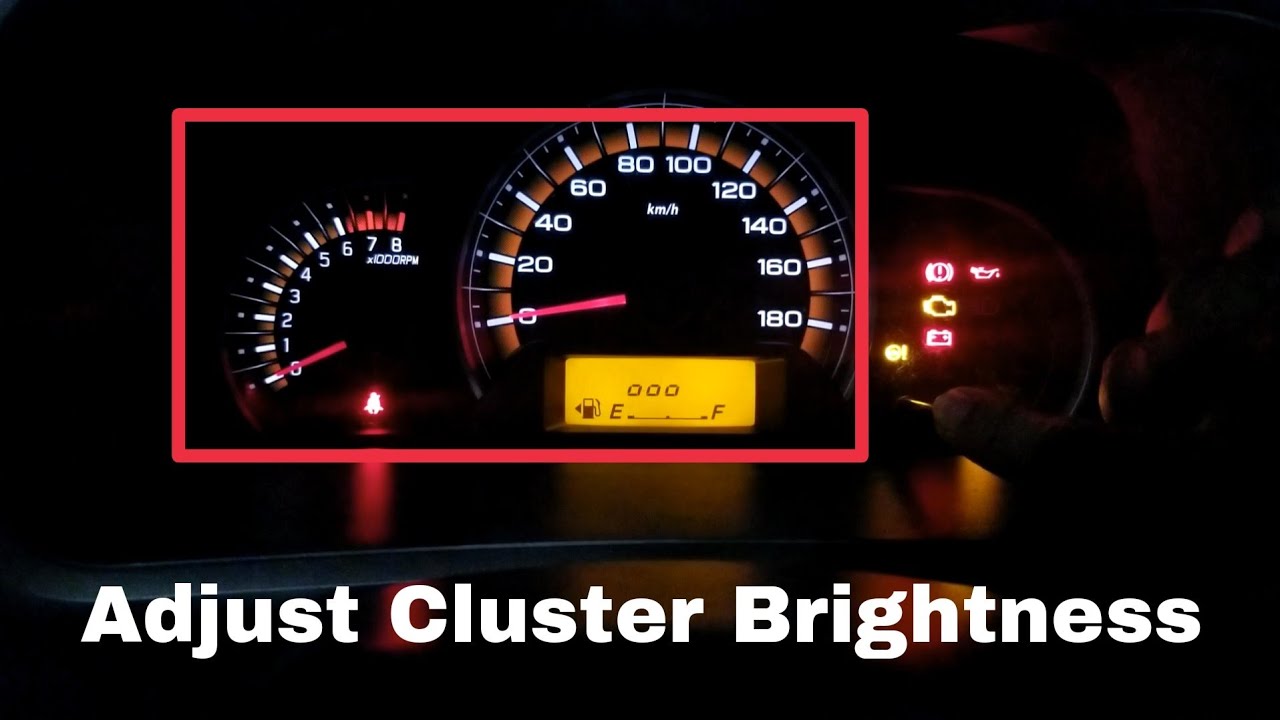

Sometimes, the problem is as simple as a faulty dimmer switch. The dimmer switch controls the brightness of the instrument cluster lights.

1. Locate the Dimmer Switch: The dimmer switch is usually located on the dashboard near the headlight switch or instrument cluster.
2. Test the Switch: Turn the dimmer switch all the way up and down to see if the lights respond. If the lights flicker or are intermittent, the dimmer switch may be faulty.
3. Clean the Switch: Sometimes, dirt and corrosion can build up inside the dimmer switch, causing it to malfunction. You can try cleaning the switch with electrical contact cleaner. Spray the cleaner into the switch and work it back and forth.
4. Replace the Switch: If cleaning doesn't work, the dimmer switch may need to be replaced. This is a relatively inexpensive and straightforward repair that can often be done yourself. You can find replacement switches online or at your local auto parts store. Be sure to get a switch that is compatible with your car's make and model.

3. Inspect the Wiring and Connections

Loose or corroded wiring connections can also cause problems with instrument cluster lights. This requires a bit more patience and attention to detail.

1. Disconnect the Battery: Before working on any electrical components, disconnect the negative terminal of your car's battery to prevent electrical shock.

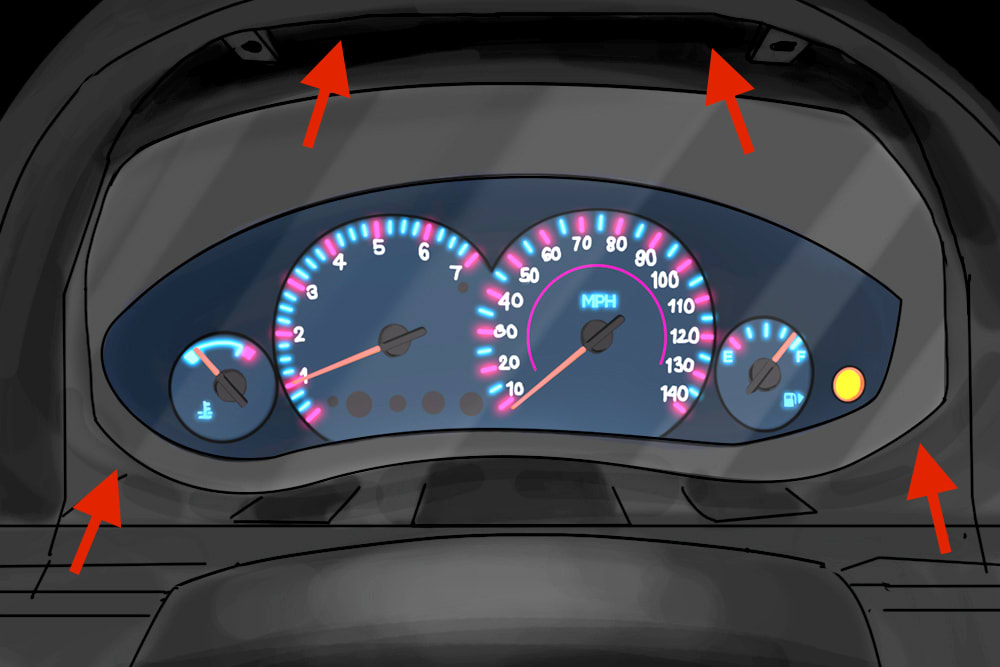

2. Locate the Instrument Cluster Wiring: The wiring harness for the instrument cluster is located behind the instrument cluster itself. You may need to remove some dashboard trim to access the cluster. Consult your car's repair manual or online resources for specific instructions on how to remove the instrument cluster.
3. Inspect the Connectors: Carefully inspect the connectors that plug into the back of the instrument cluster. Look for loose connections, corrosion, or damaged wires.
4. Clean the Connections: Clean any corroded connections with electrical contact cleaner. Use a small brush or cotton swab to remove any debris.
5. Secure the Connections: Make sure all the connectors are securely plugged into the instrument cluster.
6. Reconnect the Battery: Reconnect the negative terminal of the battery and test the lights.

4. Check the Bulbs

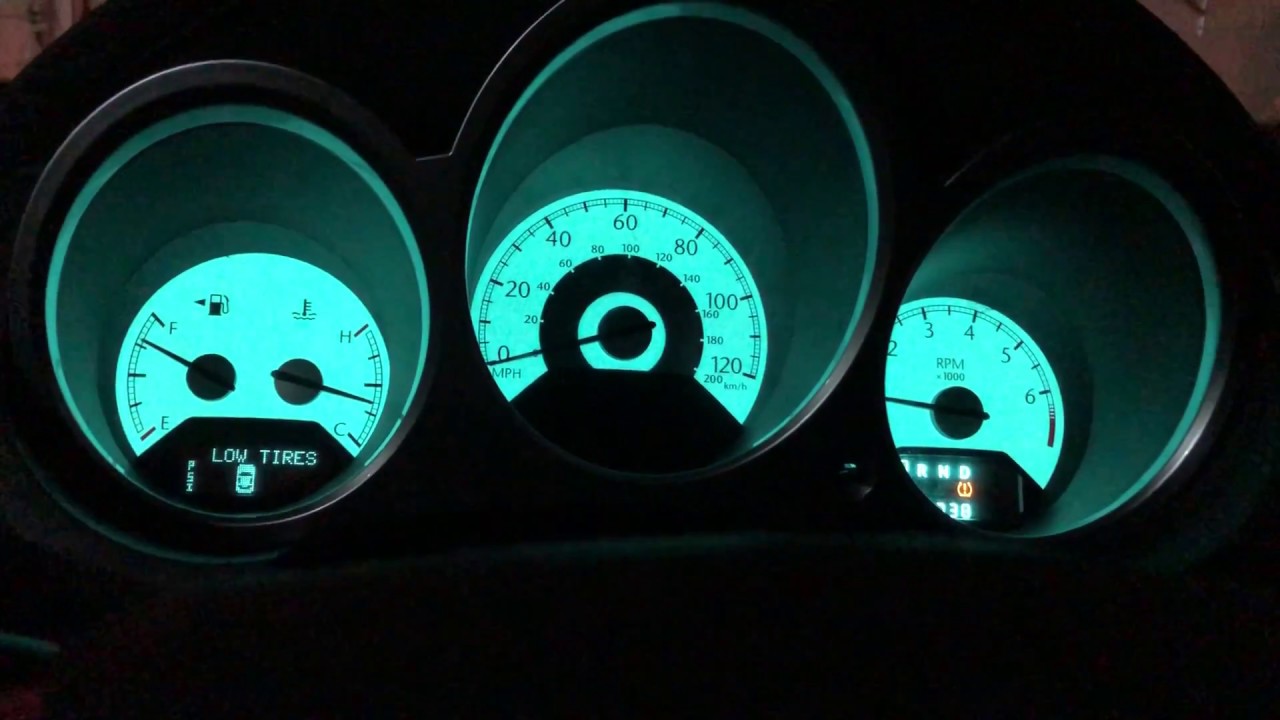

In older vehicles, individual bulbs illuminate the instrument cluster. These bulbs can burn out over time.

1. Access the Bulbs: This typically involves removing the instrument cluster, as described in the wiring inspection section.
2. Identify the Bulbs: Once the cluster is removed, locate the bulbs that illuminate the areas that are dark. Consult your car's repair manual or online resources to identify the correct type of bulb.
3. Test the Bulbs: You can test the bulbs with a multimeter to see if they are still functional.
4. Replace the Bulbs: Replace any burnt-out bulbs with new bulbs of the correct type.
5. Reassemble the Cluster: Reassemble the instrument cluster and reinstall it in the dashboard.

5. Consider a Faulty Instrument Cluster

If you've checked the fuses, dimmer switch, wiring, and bulbs, and the lights still don't work, the instrument cluster itself may be faulty. This is more common in older vehicles and can be due to internal electronic component failure.

Repair or Replace: A faulty instrument cluster can sometimes be repaired by a specialized automotive electronics repair shop. They can diagnose and repair the internal components. Alternatively, you can replace the entire instrument cluster with a new or used unit. A used unit will need to be programmed to your specific vehicle. This programming is essential for features like mileage tracking and security systems.

How to Choose the Right Professional

If you're not comfortable performing these repairs yourself, or if you suspect a more complex problem, it's best to take your car to a qualified mechanic or automotive electrician. Here's how to choose the right professional:

• Experience: Look for a mechanic or electrician with experience in diagnosing and repairing instrument cluster problems.
• Reputation: Read online reviews and ask for recommendations from friends and family.
• Diagnostic Equipment: Make sure the shop has the necessary diagnostic equipment to accurately diagnose the problem.
• Warranty: Ask about the warranty on the repairs.
• Transparent Pricing: Get a written estimate before any work is performed.

Real-World Owner Experiences

Many car owners have experienced problems with instrument cluster lights. Here are a few examples:

John, 2010 Honda Civic: "My speedometer light went out. I checked the fuse, and it was blown. I replaced it, and it worked perfectly. Saved me a trip to the mechanic!"

Sarah, 2005 Ford Explorer: "My instrument cluster lights were flickering. I took it to a mechanic, and they found a loose connection in the wiring harness. They cleaned the connection and secured it, and the problem was solved."

Michael, 2012 Toyota Camry: "My entire instrument cluster went dark. I tried checking the fuses, but they were all good. I took it to a repair shop, and they said the instrument cluster itself was faulty. They replaced it with a new unit."

FAQs About Instrument Cluster Lights

Q: How much does it cost to fix instrument cluster lights?

A: The cost can vary depending on the cause of the problem. Replacing a fuse is usually inexpensive. Replacing a dimmer switch can cost between $50 and $150. Replacing an instrument cluster can cost several hundred dollars or more.

Q: Can I drive with a malfunctioning instrument cluster?

A: While it might be tempting to delay the repair, driving with a malfunctioning instrument cluster is not recommended. It can be dangerous because you may not be able to see critical warnings. It may also be illegal in some jurisdictions.

Q: How do I know if my instrument cluster is faulty?

A: If you've checked the fuses, dimmer switch, wiring, and bulbs, and the lights still don't work, the instrument cluster itself may be faulty.

Q: Can I replace my instrument cluster with a used unit?

A: Yes, you can replace your instrument cluster with a used unit. However, the used unit will need to be programmed to your specific vehicle. This programming is essential for features like mileage tracking and security systems.

By following these troubleshooting steps, you can often diagnose and fix instrument cluster light problems yourself. Remember to prioritize safety and consult a qualified professional if you're unsure about any aspect of the repair.
