How To Fix Instrument Panel Lights

Instrument panel lights, the unsung heroes of your dashboard, provide crucial information about your vehicle's performance and status. They illuminate your speedometer, fuel gauge, warning indicators, and more, allowing you to monitor critical systems, especially when driving at night or in low-light conditions. But what happens when these lights start to dim, flicker, or, worse, completely fail? Knowing how to troubleshoot and fix instrument panel lights can save you money, time, and potentially prevent a dangerous situation.

Why Working Instrument Panel Lights Matter

The importance of functioning instrument panel lights extends far beyond mere convenience. Consider these crucial aspects:

• Safety: A lit dashboard allows you to monitor your speed, preventing unintentional speeding and potential accidents. Warning lights alert you to critical issues like low oil pressure, overheating, or brake malfunctions, giving you time to react before a minor problem becomes a major catastrophe.
• Vehicle Maintenance: Dashboard lights provide early warnings about potential mechanical problems. Ignoring these signals can lead to costly repairs down the road. A malfunctioning indicator light might signal a simple fix, but left unattended, it could result in significant engine damage or system failure.
• Legal Compliance: In many jurisdictions, driving with a malfunctioning speedometer or other critical instrument panel lights can be a violation of traffic laws, resulting in fines or other penalties.
• Resale Value: A fully functional instrument panel demonstrates that the vehicle has been properly maintained, increasing its appeal and resale value when you decide to sell or trade it in.

Troubleshooting Instrument Panel Light Problems

Before diving into repairs, it's essential to accurately diagnose the issue. Here's a step-by-step guide to troubleshooting:

1. Identifying the Symptoms

Start by carefully observing the symptoms. Are all the lights out, or just some? Are they dim, flickering, or completely non-functional? Note exactly which lights are affected and under what circumstances (e.g., only at night, only when the engine is cold). Detailed observations are crucial for accurate diagnosis.

2. Checking the Fuses

The first and simplest check involves the fuses. Consult your vehicle's owner's manual to locate the fuse box and identify the fuse(s) responsible for the instrument panel lights. Use a fuse puller (or pliers, carefully) to remove the fuse and visually inspect it. A blown fuse will have a broken filament. Replace any blown fuses with a new fuse of the exact same amperage rating. Never use a fuse with a higher amperage, as this could damage the electrical system.

3. Inspecting the Light Bulbs

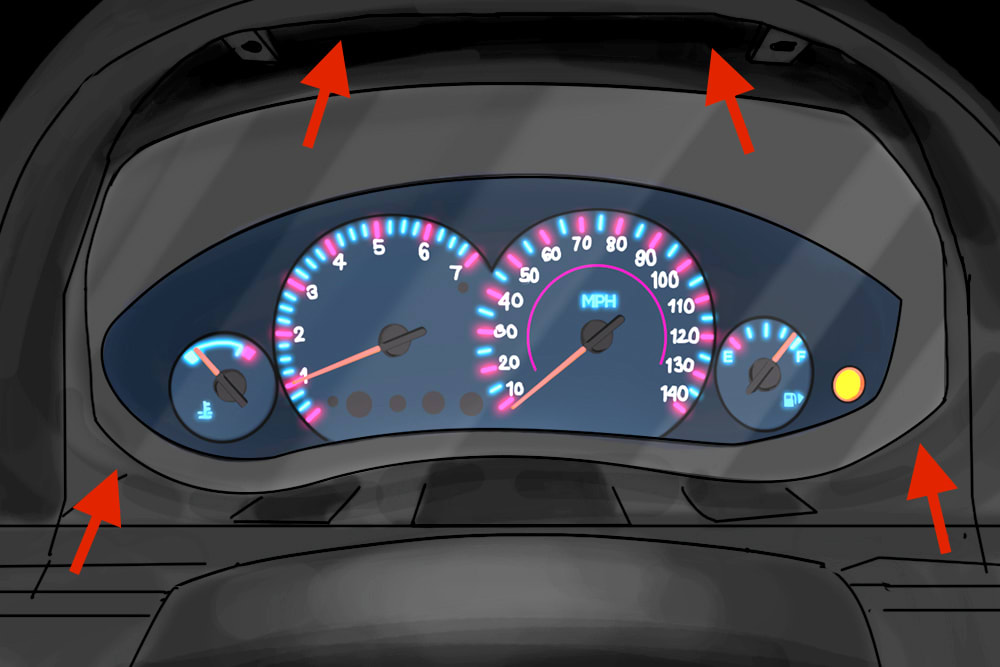

If the fuses are intact, the next step is to check the individual light bulbs. Gaining access to the bulbs usually requires removing the instrument panel trim. Consult your vehicle's repair manual or online resources for specific instructions on removing the instrument panel. Once you have access to the bulbs, visually inspect them for burnt filaments or blackened glass. Replace any faulty bulbs with the correct type specified in your owner's manual or a parts catalog.

4. Examining the Wiring

Wiring problems are a common cause of instrument panel light failure. Look for any signs of damaged, frayed, or corroded wires around the instrument panel, bulb sockets, and fuse box. Pay close attention to ground wires, as a poor ground connection can cause a variety of electrical problems. If you find any damaged wires, repair them using electrical tape, heat shrink tubing, or wire connectors. For corroded connections, clean them with a wire brush or electrical contact cleaner.

5. Checking the Dimmer Switch

The dimmer switch controls the brightness of the instrument panel lights. Sometimes, a faulty dimmer switch can cause the lights to flicker or fail completely. Try adjusting the dimmer switch to see if it has any effect on the lights. If the switch feels loose or doesn't seem to be working properly, it may need to be replaced. You can test the dimmer switch with a multimeter to confirm its functionality.

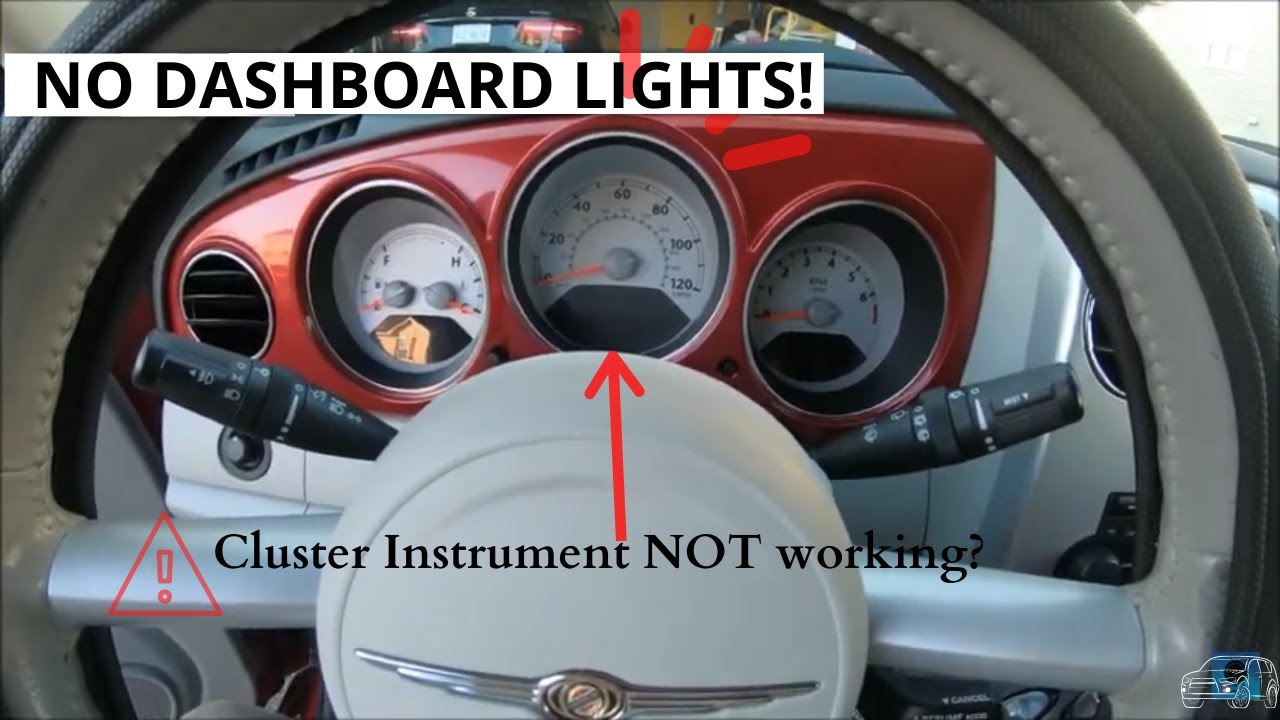

6. Considering a Faulty Instrument Cluster

In some cases, the problem may lie within the instrument cluster itself. This is more likely if multiple lights are malfunctioning or if you've already ruled out fuses, bulbs, and wiring issues. A faulty instrument cluster may require professional repair or replacement. This can be an expensive repair, so it's best to have it diagnosed by a qualified mechanic.

Choosing the Right Replacement Parts

When replacing fuses, bulbs, or other components, it's crucial to choose the correct parts for your vehicle. Here are some tips:

• Refer to your owner's manual: Your owner's manual will provide a list of recommended fuse and bulb types for your vehicle.
• Use a parts catalog: Online parts catalogs or your local auto parts store can help you identify the correct parts based on your vehicle's make, model, and year.
• Match the specifications: Ensure that the replacement parts match the original parts in terms of voltage, wattage, and amperage.
• Consider quality: While cheaper parts may be tempting, investing in higher-quality parts can often save you money in the long run by providing better performance and longer lifespan. Reputable brands often offer superior reliability.

Real-World Owner Experiences

Many car owners have encountered instrument panel light issues. Here are a few common scenarios and solutions:

• Scenario 1: "My speedometer light went out. I checked the fuse, and it was blown. I replaced it, and the light worked for a few days, then the fuse blew again. What's going on?" Solution: A repeatedly blowing fuse indicates a short circuit in the wiring. You'll need to trace the wiring for the affected circuit to locate and repair the short.
• Scenario 2: "All of my dashboard lights are very dim, even at night." Solution: This could be a problem with the dimmer switch, a poor ground connection, or a failing instrument cluster. Start by checking the ground connections and the dimmer switch.
• Scenario 3: "My airbag light is on, but my airbags are fine." Solution: An illuminated airbag light indicates a problem with the airbag system. This could be a sensor malfunction, a wiring issue, or a problem with the airbag control module. This issue requires professional diagnosis and repair, as tampering with the airbag system can be dangerous.

Frequently Asked Questions (FAQs)

Q: How much does it cost to fix instrument panel lights?

The cost of repairing instrument panel lights can vary depending on the problem. Replacing a fuse or bulb is relatively inexpensive, typically costing between $5 and $20. However, repairing wiring issues or replacing the instrument cluster can be more expensive, ranging from $100 to $500 or more.

Q: Can I fix instrument panel lights myself?

Yes, many instrument panel light problems can be fixed with basic tools and knowledge. Replacing fuses, bulbs, and repairing simple wiring issues are within the capabilities of many DIYers. However, more complex repairs, such as instrument cluster replacement or electrical troubleshooting, may require professional assistance.

Q: When should I take my car to a mechanic for instrument panel light issues?

You should take your car to a mechanic if you're not comfortable working on electrical systems, if you've tried troubleshooting the problem yourself without success, or if the issue involves complex systems like the airbag system or ABS. Additionally, if you suspect a faulty instrument cluster, it's best to seek professional diagnosis and repair.

Q: Why are my instrument panel lights flickering?

Flickering instrument panel lights can be caused by a loose connection, a faulty dimmer switch, a dying bulb, or voltage fluctuations. Start by checking the connections and the dimmer switch. If the problem persists, the bulb may be nearing the end of its life, or there may be an underlying electrical issue.

Q: Can I use LED bulbs in my instrument panel?

Yes, you can often replace incandescent bulbs with LED bulbs in your instrument panel. However, it's important to choose LED bulbs that are compatible with your vehicle's electrical system and have the correct base and brightness. Some LED bulbs may require resistors to prevent hyper-flashing or error messages.

By following these tips and guidelines, you can effectively troubleshoot and fix many instrument panel light problems, ensuring a safer and more enjoyable driving experience. Remember to prioritize safety and seek professional help when needed. Regular maintenance and prompt attention to warning lights can prevent minor issues from escalating into major repairs.
