How To Fix Oil On Spark Plugs

Oil on spark plugs is a common problem that can plague internal combustion engines, leading to poor performance, reduced fuel economy, and even engine damage if left unaddressed. This article will guide you through identifying the causes of oil fouling on spark plugs and provide detailed instructions on how to fix them. This information is geared toward the intermediate DIY mechanic, assuming a basic understanding of engine components and repair procedures.

Understanding the Internal Combustion Engine and Spark Plug Function

Before diving into the diagnosis and repair, let's recap the fundamentals. An internal combustion engine (ICE) operates on a four-stroke cycle: intake, compression, combustion, and exhaust. During the intake stroke, the piston moves down, drawing a mixture of air and fuel into the cylinder. In the compression stroke, the piston moves up, compressing the mixture. At the peak of compression, the spark plug ignites the mixture, causing a rapid expansion of gases that forces the piston down during the combustion stroke. Finally, the exhaust stroke pushes the burnt gases out of the cylinder.

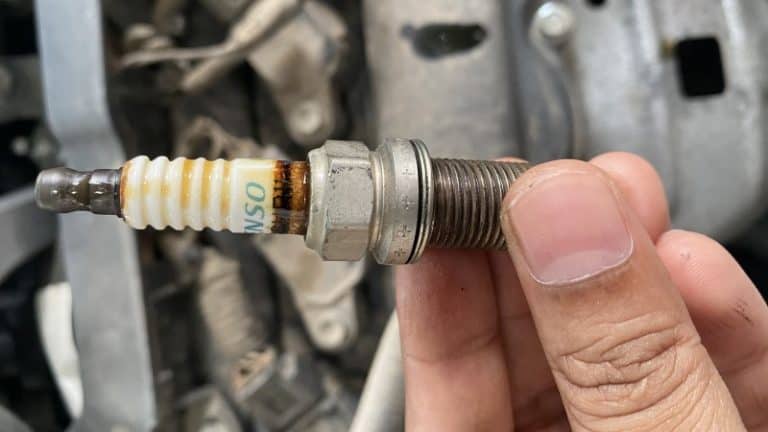

Spark plugs are crucial components of this process. They provide the electrical spark that initiates combustion. A spark plug consists of a central electrode surrounded by an insulator, typically made of ceramic. This insulator is encased in a metal shell that is threaded to screw into the cylinder head. The spark jumps across a small gap between the central electrode and a side electrode, igniting the air-fuel mixture. The condition of the spark plugs is a good indicator of the engine's overall health. Clean, tan-colored spark plugs typically indicate a healthy engine, while oily, fouled spark plugs suggest a problem.

Technical Breakdown: How Oil Reaches Spark Plugs

Oil contamination of spark plugs indicates that engine oil is finding its way into the combustion chamber. This is undesirable for several reasons: Oil doesn't burn efficiently, leading to incomplete combustion, carbon deposits, and reduced engine power. It can also damage the catalytic converter and other emission control components.

There are two primary pathways for oil to enter the combustion chamber:

1. Valve Stem Seals

Valve stem seals are small rubber or Teflon seals that fit around the valve stems, where they pass through the cylinder head. Their purpose is to prevent oil from leaking down the valve stems and into the combustion chamber. Over time, these seals can harden, crack, or wear out, allowing oil to seep past them. This is especially noticeable when the engine is cold, as the seals are less pliable and less effective. As the engine warms up, the seals may swell slightly and reduce the leak, but the problem will persist to some degree.

Technically, the seals work by providing a tight wiping action on the valve stem. The valve stem has an incredibly precise clearance where it passes through the valve guide. Without a functioning valve stem seal, even the smallest amount of oil present on the valve train can gradually find its way into the intake or exhaust ports, and subsequently, the combustion chamber.

2. Piston Rings

Piston rings are metallic rings that fit into grooves on the piston. They serve several critical functions: they seal the combustion chamber, preventing gases from escaping; they transfer heat from the piston to the cylinder walls; and they scrape excess oil from the cylinder walls, preventing it from entering the combustion chamber. Piston rings are usually composed of 2 or 3 rings, an upper compression ring, a lower oil scraper ring and sometimes an intermediate compression ring. There can be multiple pieces to an oil scraper ring.

Worn or damaged piston rings can lose their ability to effectively seal the combustion chamber and scrape oil from the cylinder walls. This allows oil to pass by the rings and enter the combustion chamber. Piston ring wear can be caused by factors such as high mileage, poor maintenance (e.g., infrequent oil changes), or engine overheating. A common scenario is when carbon deposits build up in the ring grooves, restricting the rings' ability to expand and seal properly. Cylinder wear and cylinder wall scoring can also lead to increased oil consumption due to compromised ring sealing.

Common Issues and Maintenance Concerns

Several factors can contribute to oil on spark plugs:

• High Mileage: Engines with high mileage are more prone to wear and tear on valve stem seals and piston rings.
• Poor Maintenance: Infrequent oil changes and using low-quality oil can accelerate wear on engine components. Old and/or poor quality oil does not lubricate as well, leading to increased friction and wear.
• Overheating: Overheating can damage valve stem seals and piston rings, causing them to lose their sealing ability.
• Aggressive Driving: Frequent high-RPM operation can place excessive stress on engine components, accelerating wear.
• Turbocharging/Supercharging: Forced induction engines generally operate under higher stresses, potentially accelerating wear on valve stem seals and piston rings if not properly maintained. Some turbochargers themselves can leak oil if their seals fail, though this generally causes blue smoke from the exhaust, not oil on the spark plugs directly.

Troubleshooting and Diagnostics

To determine the source of the oil contamination, consider the following:

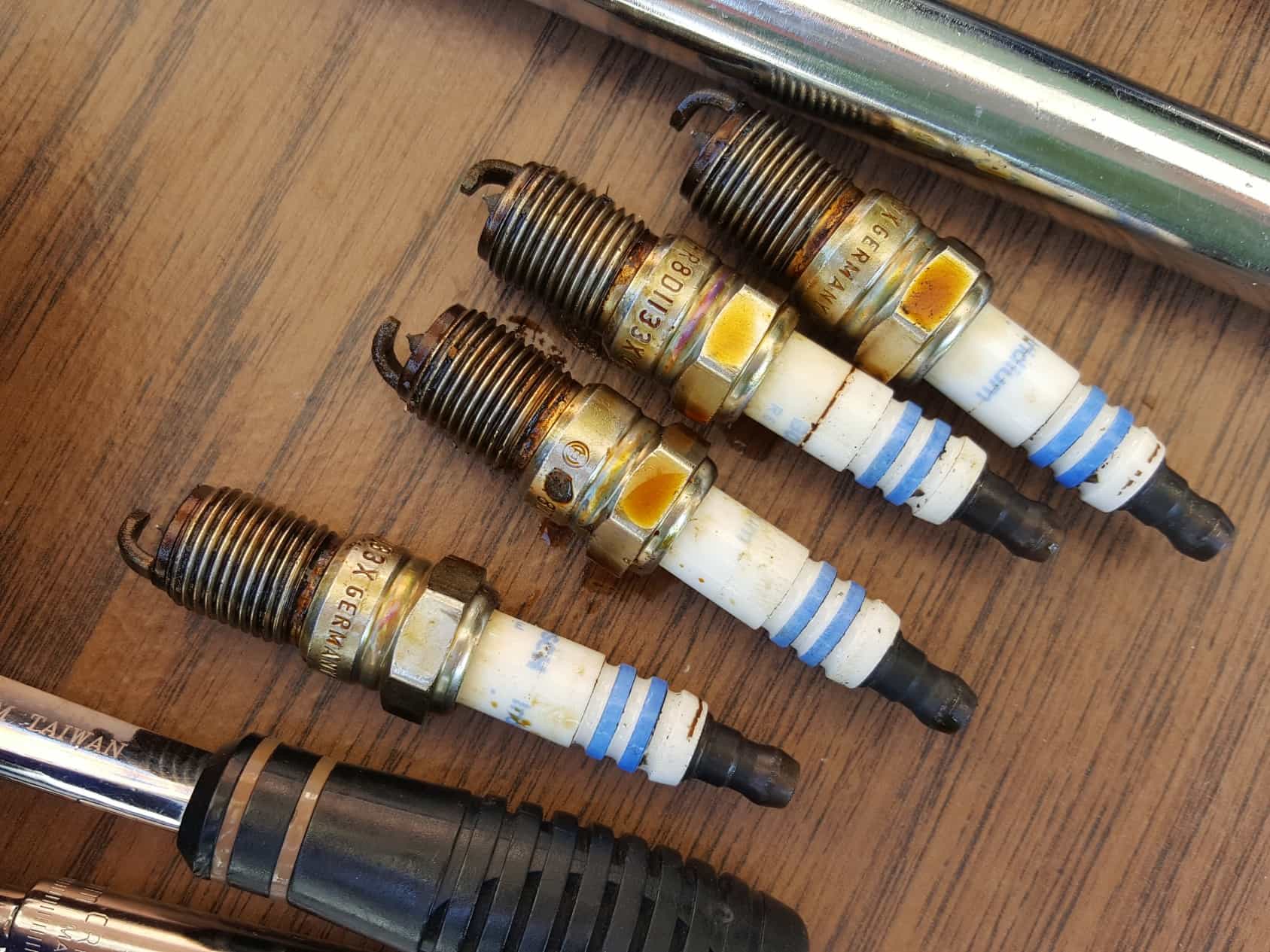

1. Inspect the Spark Plugs: Examine the spark plugs from all cylinders. If only one or two plugs are oily, the problem is likely localized to those cylinders (e.g., worn valve stem seals on those cylinders). If all plugs are oily, the problem is more likely related to the piston rings or overall engine condition. A compression test or leak-down test can help assess the condition of the piston rings and valves.
2. Check for Blue Smoke: Observe the exhaust for blue smoke, especially when starting the engine or accelerating. Blue smoke indicates that oil is being burned in the combustion chamber.
3. Monitor Oil Consumption: Keep track of how much oil the engine is consuming. Excessive oil consumption is a strong indicator of a problem.
4. Perform a Compression Test: A compression test measures the pressure in each cylinder. Low compression can indicate worn piston rings or leaky valves.
5. Perform a Leak-Down Test: A leak-down test involves injecting compressed air into each cylinder and measuring the rate at which the air leaks out. This test can help pinpoint the source of the leak (e.g., piston rings, valves, head gasket).

Do's and Don'ts / Best Practices

Do's:

• Use the Correct Oil: Use the manufacturer-recommended oil viscosity and type. Using the wrong oil can lead to increased wear and oil consumption.
• Change Oil Regularly: Follow the manufacturer's recommended oil change interval.
• Address Overheating Issues Promptly: Overheating can cause significant engine damage.
• Use Quality Parts: When replacing valve stem seals or piston rings, use high-quality parts from reputable manufacturers.
• Consider a Professional: If you are not comfortable performing the repairs yourself, seek the assistance of a qualified mechanic.

Don'ts:

• Ignore the Problem: Oil on spark plugs is a sign of an underlying problem that needs to be addressed. Ignoring it can lead to more serious engine damage.
• Use Oil Additives as a Substitute for Repair: While some oil additives claim to reduce oil consumption, they are not a substitute for addressing the underlying cause of the problem. They may provide temporary relief, but the problem will eventually return.
• Overfill the Oil: Overfilling the oil can increase oil pressure and force oil past seals and rings.
• Use Cheap Parts: Using cheap, low-quality parts can lead to premature failure and more problems down the road.

Repairing the Problem

The repair process will depend on the source of the oil contamination:

1. Replacing Valve Stem Seals

Replacing valve stem seals involves removing the valve cover, valve springs, and valve retainers. A valve spring compressor is needed for this task. The old seals are then removed, and the new seals are installed. This repair can often be done with the cylinder head still on the engine, but it requires specialized tools and some mechanical skill. If the valve guides are worn, the valve stem seals will not seal properly, and the valve guides will need to be replaced, which typically involves removing the cylinder head and taking it to a machine shop.

2. Replacing Piston Rings

Replacing piston rings is a more involved repair that typically requires removing the engine from the vehicle and disassembling it. The pistons are removed from the cylinders, and the old rings are removed and replaced with new ones. The cylinder walls should be inspected for wear and scoring. If the cylinders are worn, they may need to be honed or rebored. Honing smooths the cylinder walls, while reboring enlarges the cylinder diameter to accommodate oversized pistons. If the cylinders are worn beyond repair, the engine may need to be replaced. It's crucial to clean all parts thoroughly and ensure proper ring end gap during installation. All new gaskets and seals should be used during reassembly.

Conclusion

Oil on spark plugs is a common engine problem with potentially serious consequences. Properly diagnosing the root cause, whether it be worn valve stem seals or piston rings, is crucial for effective repair. By understanding the engine's fundamentals, performing thorough diagnostics, and following best practices, you can successfully address this issue and restore your engine's performance. Remember to prioritize regular maintenance and use high-quality parts to prevent future problems. If you are unsure about any aspect of the repair process, seek the advice of a qualified mechanic. Ignoring the problem will only lead to more extensive and costly repairs in the long run. Addressing it promptly will save you time, money, and frustration.
