How To Fix Rack And Pinion Leak

The dreaded power steering groan. That telltale puddle of reddish-brown fluid under your car. These are often the harbingers of a leaky rack and pinion steering system, a vital component that translates your steering wheel input into directional control. While a trip to the mechanic is always a valid option, understanding the system and exploring potential fixes can be both empowering and economical. This guide aims to equip you with the knowledge to diagnose and, in some cases, address a rack and pinion leak yourself.

First Steps: Diagnosis and Assessment

Before diving into repairs, accurate diagnosis is paramount. A common scenario: you notice your power steering fluid reservoir consistently low, requiring frequent top-ups. You might also experience increased steering effort, especially at low speeds, or that aforementioned groaning noise, particularly when turning the wheel fully. The next step involves a visual inspection.

Park your car on a level surface and turn the steering wheel lock-to-lock several times. This will pressurize the system and potentially exacerbate the leak, making it easier to spot. Now, carefully examine the following areas:

Power Steering Pump: Check for leaks at the pump itself and around the hose connections. Fluid tracking upward from the rack could originate here.
Power Steering Hoses: Inspect the high-pressure and low-pressure hoses connecting the pump to the rack. Look for cracks, bulges, or loose connections. Often, a simple tightening of a hose clamp can resolve a minor leak.

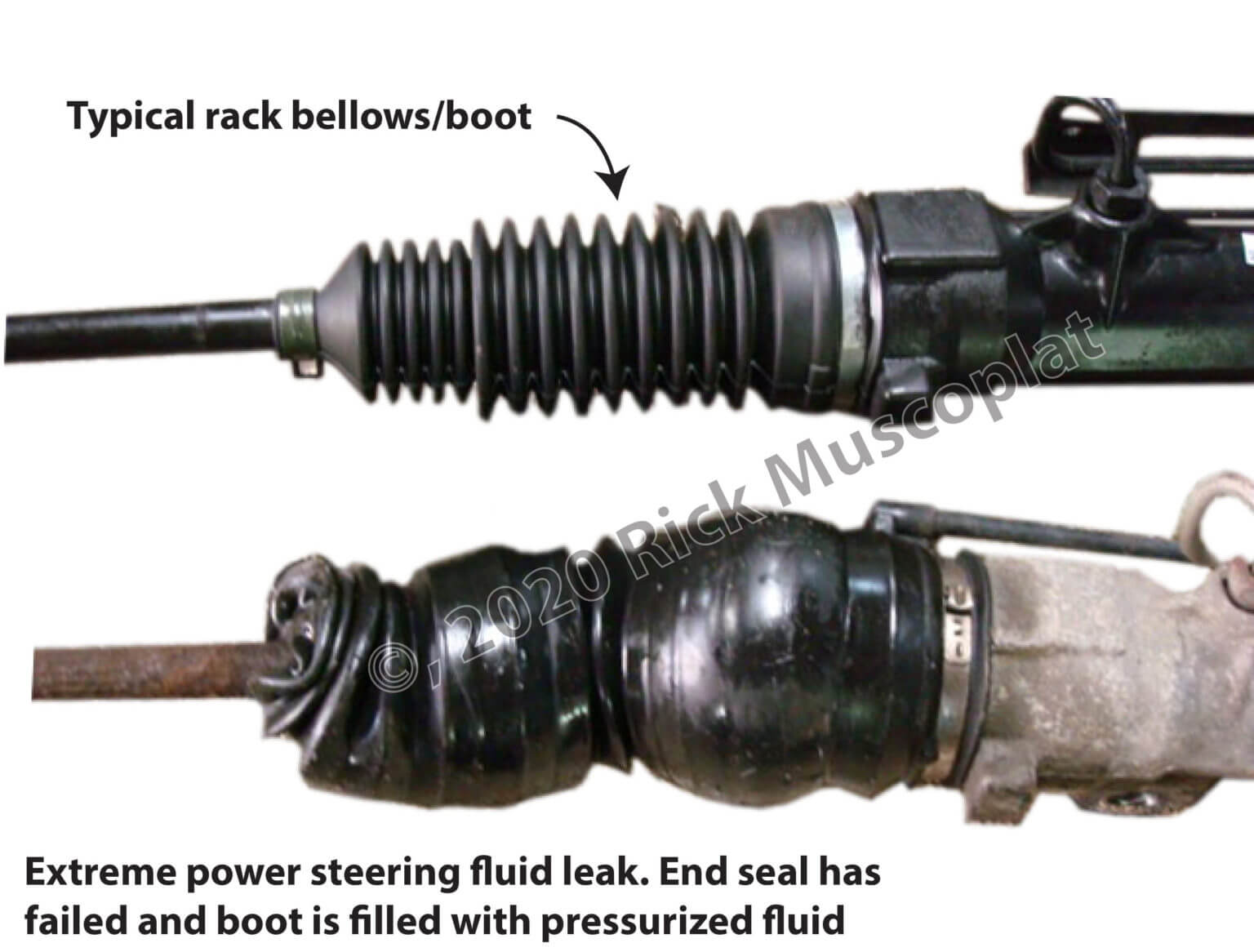

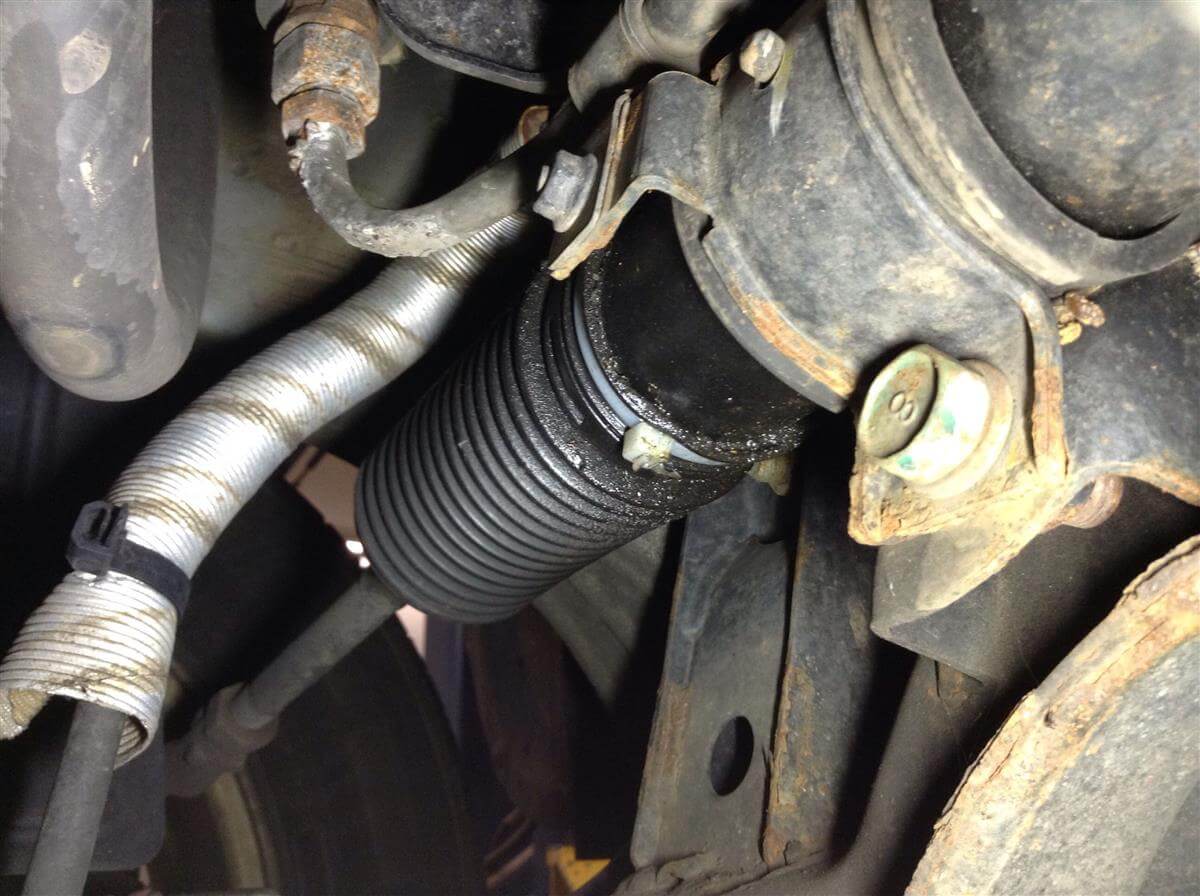

Rack and Pinion Unit: This is the primary suspect. Look for fluid leaking from the main housing, the pinion shaft seal (where the steering shaft connects), or the rack seals (behind the boots at either end of the rack). Torn or damaged boots are a significant indicator of rack seal failure.
Power Steering Cooler (if equipped): Some vehicles, especially those used for towing or heavy-duty applications, have a power steering cooler. Check its connections and core for leaks.

A helpful trick is to clean the suspected area thoroughly with degreaser and then dry it. After a short drive, the leak will become more apparent, allowing for a more precise determination of its origin.

Understanding the Rack and Pinion System

Imagine a simple screw and nut. As you rotate the screw, the nut moves linearly along its threads. The rack and pinion system operates on a similar principle, but with much higher precision and force multiplication.

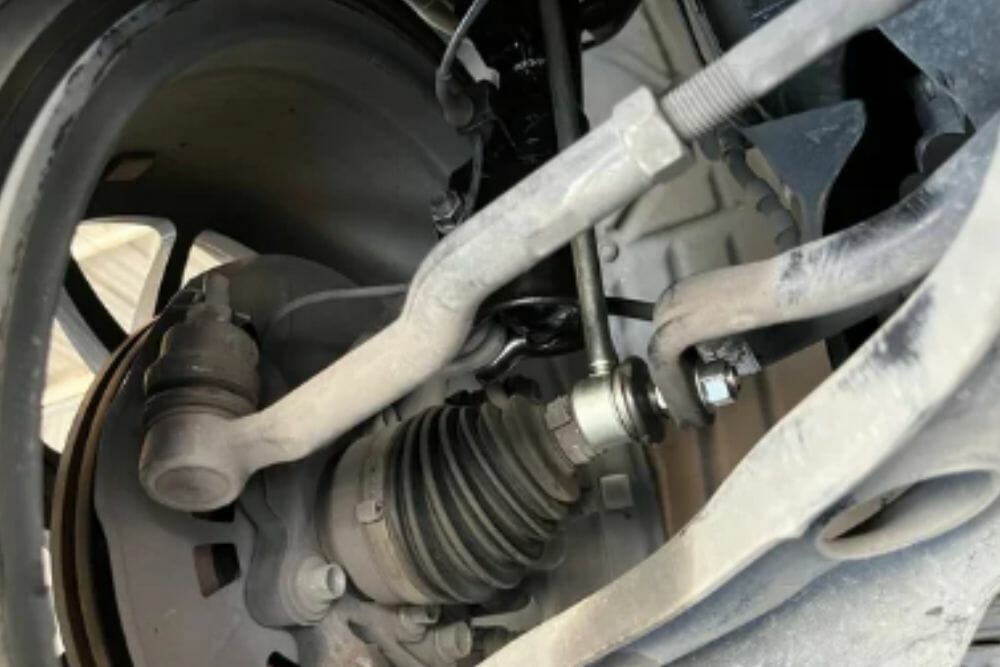

The pinion gear is a small, circular gear connected to the steering shaft. When you turn the steering wheel, you rotate the pinion gear. This gear meshes with the rack, which is a long, toothed bar. As the pinion gear rotates, it pushes the rack either left or right, depending on the direction of rotation. The rack is connected to the tie rod ends, which in turn connect to the steering knuckles. The movement of the rack thus pushes or pulls the steering knuckles, turning the wheels.

Power assist is provided by a hydraulic system. A rotary valve within the rack and pinion unit directs high-pressure power steering fluid to either side of a piston inside the rack housing. This piston is connected to the rack. The fluid pressure assists the driver in moving the rack, reducing steering effort, especially at low speeds.

The seals within the rack and pinion are critical for maintaining hydraulic pressure and preventing leaks. These include:

Pinion Seal: Seals the pinion shaft where it enters the rack housing.
Rack Seals: Seal the piston within the rack housing, preventing fluid from bypassing the piston. These are the most common source of leaks, especially when the protective boots are damaged, allowing contaminants to enter.
End Seals: Seals located at the ends of the rack housing to prevent fluid leakage.

Potential Solutions and Their Limitations

The severity of the leak dictates the appropriate course of action. Here's a breakdown of common solutions, along with their pros and cons:

1. Power Steering Fluid with Stop-Leak Additives

Pros: Inexpensive, easy to apply, can temporarily reduce minor leaks.

Cons: Not a permanent fix, can potentially damage the system if the seals are severely deteriorated, effectiveness varies widely depending on the product and the severity of the leak. Some additives can swell seals, but this is a temporary effect and may lead to premature seal failure in the long run. Can also clog up the small passages in the power steering system.

Use Case: Suitable for very minor leaks where you want to buy some time before a more comprehensive repair.

Manufacturer Examples: Lucas Power Steering Stop Leak, Bar's Leaks Power Steering Repair.

2. Hose Replacement or Clamp Tightening

Pros: Relatively inexpensive, can address leaks from damaged hoses or loose connections.

Cons: Only addresses leaks originating from hoses or connections, not internal rack and pinion seal failures.

Use Case: Ideal when a visual inspection reveals a cracked hose or a loose clamp at a hose connection.

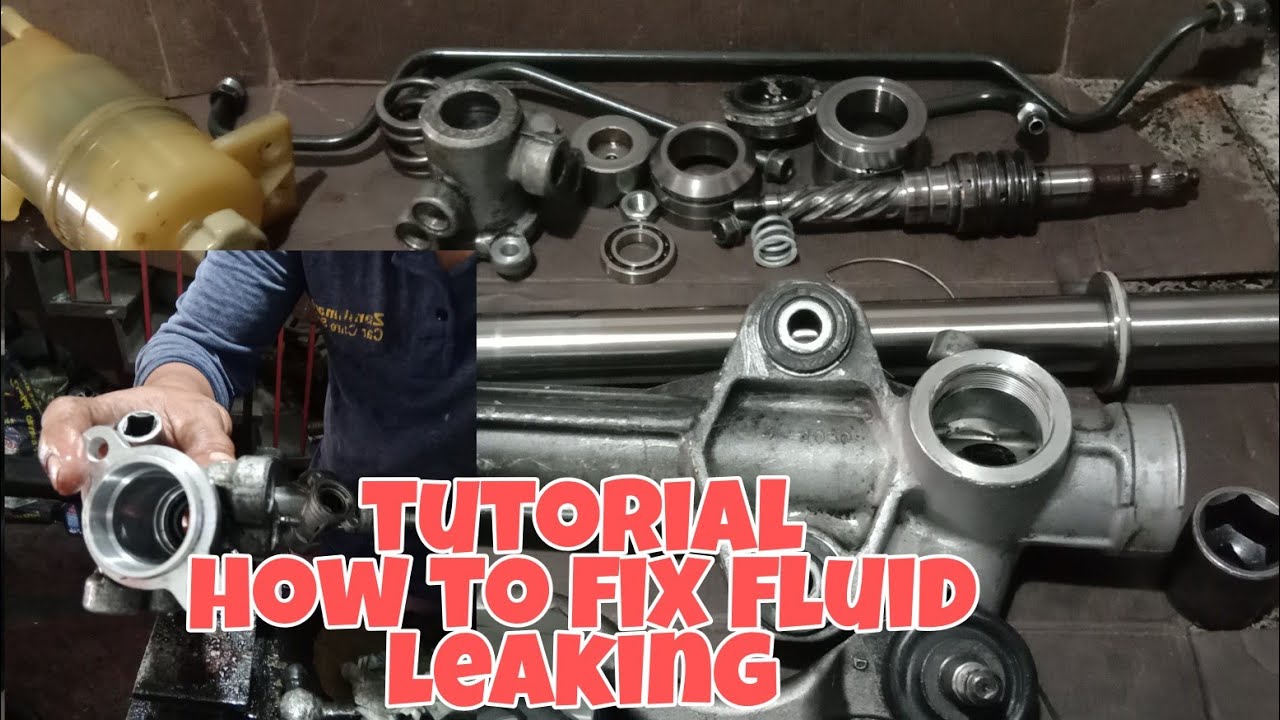

3. Rack and Pinion Seal Replacement (DIY - Advanced)

Pros: Potentially cost-effective if you have the skills and tools, addresses the source of the leak.

Cons: Requires specialized tools (seal pullers, rack holding tools), significant mechanical expertise, meticulous cleaning procedures, and the risk of damaging internal components if not performed correctly. Requires complete disassembly and reassembly of the rack and pinion unit.

Use Case: Only recommended for experienced mechanics with a solid understanding of hydraulic systems.

Manufacturer Examples: Seal kits are available from various aftermarket suppliers (e.g., Edelmann, ATP).

4. Rack and Pinion Replacement (DIY or Professional)

Pros: Addresses all potential leak sources within the rack and pinion unit, restores steering performance.

Cons: More expensive than seal replacement, requires careful alignment after installation. Can still be cheaper than paying for a professional seal replacement as labor costs are very high for the seal replacement process.

Use Case: Recommended for severe leaks, internal rack damage, or when seal replacement is beyond your skill level.

Manufacturer Examples: Remanufactured racks from Cardone, new racks from ZF (original equipment manufacturer for many vehicles).

Mechanical Considerations and Examples

When considering a rack and pinion replacement, you have two main options: a new unit or a remanufactured unit. New units offer the best performance and longevity but come at a higher cost. Remanufactured units are typically more affordable and involve a process of disassembling, cleaning, inspecting, and replacing worn or damaged components in a used rack. Quality can vary significantly between remanufacturers.

For example, ZF (Zahnradfabrik Friedrichshafen), a German manufacturer, is a prominent OEM supplier of rack and pinion systems for many European vehicles. Their new units offer exceptional quality and performance. Cardone, on the other hand, is a well-known remanufacturer, offering a more budget-friendly option. However, it's crucial to research the specific remanufacturer and read reviews to ensure a reliable product.

Consider the gear ratio of the rack and pinion. A lower gear ratio (e.g., 13:1) provides quicker steering response but requires more steering effort. A higher gear ratio (e.g., 16:1) provides easier steering but less responsiveness. It's generally recommended to stick with the original gear ratio specified for your vehicle to maintain optimal steering characteristics. Some aftermarket rack and pinions may offer different gear ratios, potentially affecting handling.

Real-World Insights and Recommendations

Based on experiences from various mechanics and car enthusiasts, here are some key insights:

Prioritize Quality: When replacing the rack and pinion, opt for a reputable brand, whether new or remanufactured. Cheap, low-quality units can fail prematurely, leading to repeat repairs.
Flush the System: After replacing the rack and pinion, thoroughly flush the power steering system to remove any contaminants. Use the correct type of power steering fluid specified for your vehicle.
Alignment is Crucial: A wheel alignment is essential after replacing the rack and pinion. This ensures proper tire wear and steering geometry.

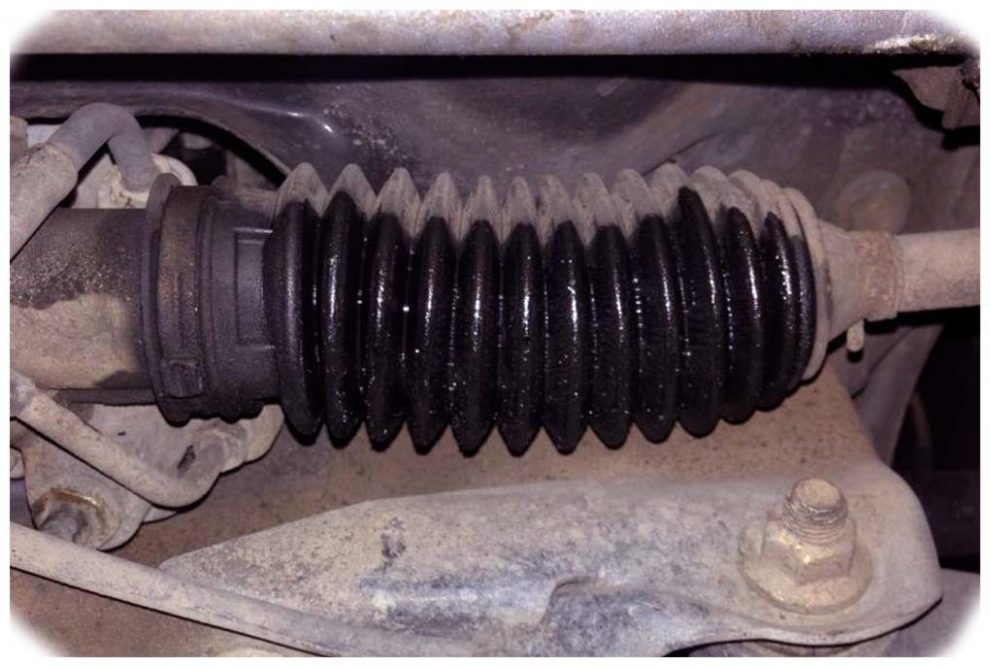

Inspect the Boots: Regularly inspect the rack and pinion boots for cracks or tears. Replacing damaged boots promptly can prevent contaminants from entering the rack and causing seal damage.

Ultimately, tackling a rack and pinion leak requires a careful assessment of your skills, tools, and budget. While stop-leak additives might offer a temporary respite, they are rarely a permanent solution. A complete rack and pinion replacement, though more expensive upfront, often provides the most reliable and long-lasting fix. Whether you choose to DIY or enlist the help of a professional, understanding the inner workings of the system will empower you to make informed decisions and ensure your vehicle's steering remains safe and responsive.
