How To Fix Rough Idle When Ac Is On
Rough idle, especially when the air conditioning is on, is a common complaint among car owners. It's not just annoying; it can also indicate an underlying problem that, if left unaddressed, could lead to more serious and expensive repairs. In this article, we'll delve into the technical aspects of why this happens, how to diagnose the cause, and, most importantly, how to fix it. We’ll approach this as if you're an experienced DIYer, comfortable with tools and basic automotive concepts, but perhaps needing some guidance on this specific issue.
Background: The Engine and Idle Control System
To understand why the AC can cause a rough idle, we need a basic understanding of how an engine idles and how the AC system interacts with it. Modern gasoline engines rely on a carefully calibrated mixture of air and fuel. When the engine is idling (i.e., running with the throttle closed, typically around 600-900 RPM), the Engine Control Unit (ECU), also known as the Powertrain Control Module (PCM), is responsible for maintaining a stable idle speed. The ECU achieves this by controlling the amount of air entering the engine, even with the throttle plate closed.
Older vehicles (pre-fuel injection) used a mechanical idle speed screw on the carburetor to manually adjust the idle. However, modern cars employ an electronic system. The primary component for idle control is typically the Idle Air Control (IAC) valve or, in some newer systems, an electronically controlled throttle body that can slightly open the throttle plate itself.
The AC compressor, driven by the engine via a belt, places a significant load on the engine. When the AC is engaged, the compressor clutch engages, causing the compressor to start working. This sudden load tries to slow down the engine's rotation. Without compensation, the engine would stall or idle very roughly. That's where the ECU comes in.
Technical Breakdown: How the System Works Under Load
When you turn on the AC, the following sequence of events occurs:
- AC Request Signal: The AC control panel sends a signal to the ECU indicating that the AC system is requesting cooling.
- ECU Response: The ECU receives this signal and recognizes the impending load on the engine.
- Idle Speed Compensation: The ECU increases the amount of air entering the engine to compensate for the anticipated load. This is typically achieved by opening the IAC valve further, allowing more air to bypass the closed throttle plate. In drive-by-wire systems, the ECU will subtly open the throttle plate itself.
- Fuel Adjustment: The ECU also increases the amount of fuel injected into the cylinders to maintain the correct air-fuel ratio. This ensures that the engine has enough power to overcome the load of the AC compressor and maintain the desired idle speed.
- RPM Stabilization: The ECU continuously monitors the engine RPM and adjusts the IAC valve (or throttle plate) and fuel injection to maintain a stable idle speed. Feedback from the Crankshaft Position Sensor (CKP) and sometimes the Camshaft Position Sensor (CMP) is critical for this monitoring process.
The system is a closed-loop control system, meaning it constantly monitors and adjusts based on feedback from various sensors. If any of these components malfunction or if there's an imbalance in the system, it can lead to a rough idle when the AC is turned on.
Common Issues and Maintenance Concerns

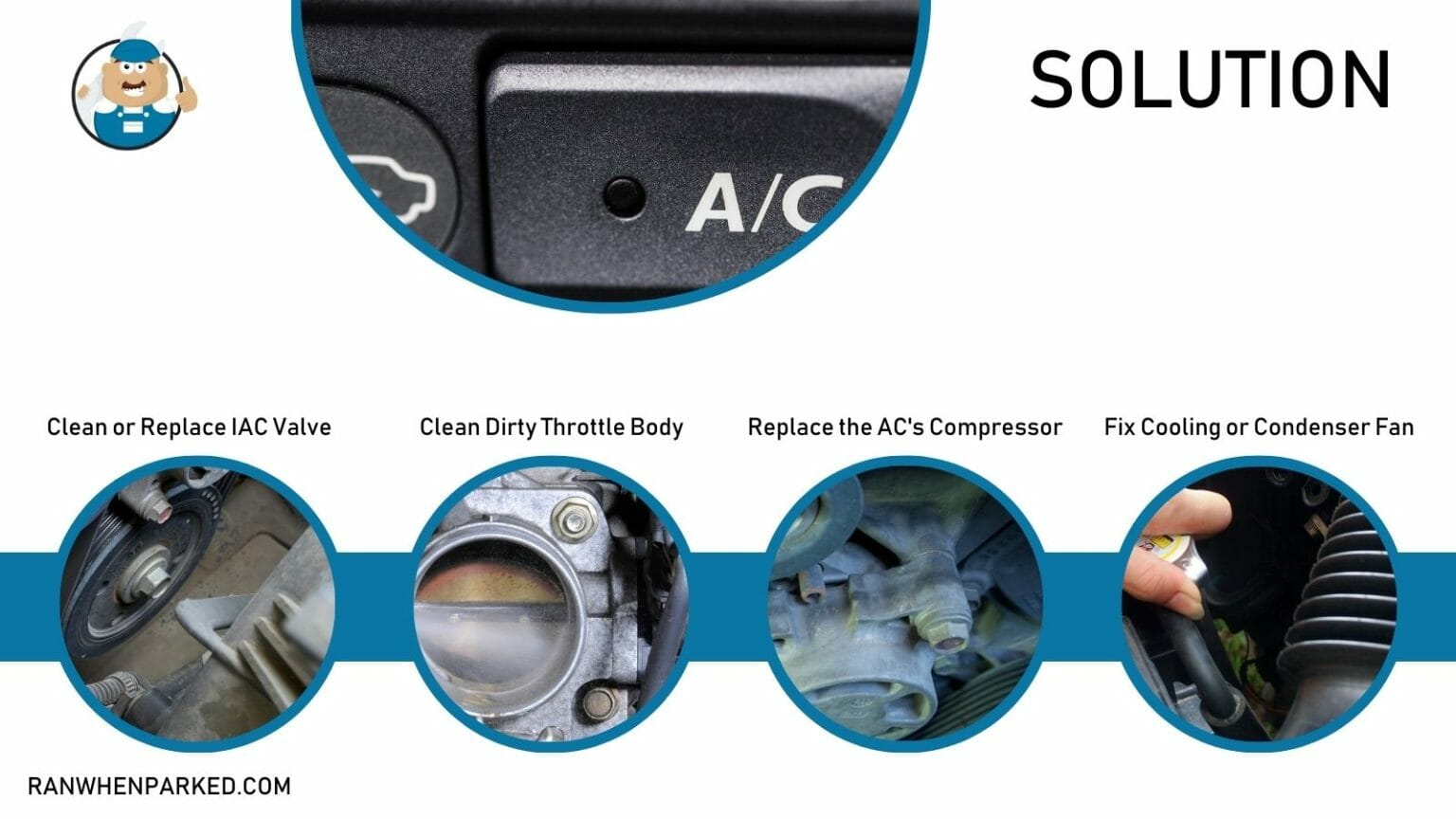

Several issues can cause a rough idle when the AC is engaged. Here's a breakdown of the most common culprits:
1. Dirty or Faulty IAC Valve
The IAC valve can become clogged with carbon deposits and dirt over time, restricting its ability to properly control airflow. This is especially true on older vehicles. A malfunctioning IAC valve can prevent the ECU from properly compensating for the AC load.
Diagnosis: Inspect the IAC valve for visible dirt and carbon buildup. Use a diagnostic scanner to check for IAC valve-related trouble codes (e.g., P0505). You can sometimes test the IAC valve's operation by carefully observing it while turning the AC on and off. Its position should change visibly.
Solution: Clean the IAC valve with throttle body cleaner. Do not use carburetor cleaner, as it can damage the valve's internal components. If cleaning doesn't resolve the issue, the IAC valve may need to be replaced.
2. Vacuum Leaks

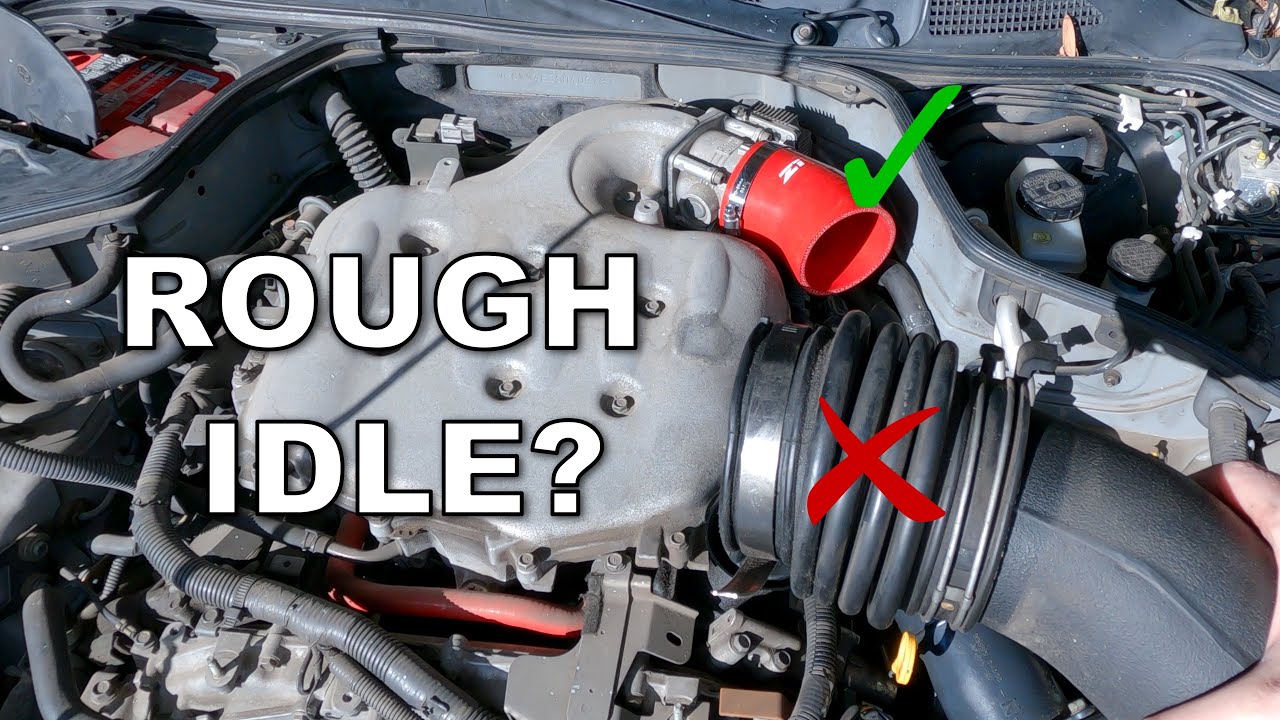

Vacuum leaks introduce unmetered air into the engine, disrupting the air-fuel ratio. This can be exacerbated when the AC is on, as the engine is already under increased load. Common sources of vacuum leaks include cracked or disconnected vacuum hoses, leaky intake manifold gaskets, and faulty PCV valves.
Diagnosis: Visually inspect all vacuum hoses for cracks, leaks, and proper connections. A common technique is to use a spray bottle with soapy water and spray it around vacuum lines and intake manifold gaskets. If the engine RPM changes or you hear a hissing sound, you've likely found a leak. A smoke test is a more definitive way to find vacuum leaks, where smoke is introduced into the intake system, and any leaks are easily visible.
Solution: Replace any cracked or damaged vacuum hoses. Tighten intake manifold bolts to the manufacturer's specified torque. Replace leaky intake manifold gaskets or PCV valves as needed.
3. Faulty Mass Airflow (MAF) Sensor
The MAF sensor measures the amount of air entering the engine. If it's faulty, it can send incorrect information to the ECU, leading to an improper air-fuel mixture. A dirty or damaged MAF sensor can cause a rough idle, especially under load.
Diagnosis: Use a diagnostic scanner to check for MAF sensor-related trouble codes (e.g., P0101, P0102). You can also try cleaning the MAF sensor with a specialized MAF sensor cleaner. Do not touch the sensing wires inside the MAF sensor, as they are very delicate.
Solution: Clean the MAF sensor. If cleaning doesn't resolve the issue, the MAF sensor may need to be replaced.
4. Weak Engine Mounts
While not directly related to the engine's operation, worn or broken engine mounts can exacerbate a rough idle. The increased vibrations from the engine under load (due to the AC compressor) can be more noticeable if the mounts are failing to dampen those vibrations properly.
Diagnosis: Visually inspect the engine mounts for cracks, tears, or signs of deterioration. You can also perform a simple test by putting the car in drive (with your foot firmly on the brake) and revving the engine slightly. Excessive engine movement indicates worn or broken mounts.
Solution: Replace worn or broken engine mounts.
5. Low Refrigerant Level
While counterintuitive, a low refrigerant level can cause the AC compressor to cycle on and off rapidly. This rapid cycling puts a fluctuating load on the engine, potentially causing a rough idle. This is more of a chattering sensation than a true rough idle.
Diagnosis: Check the refrigerant level using a manifold gauge set. You can also look for visual signs of leaks, such as oily residue around AC fittings.
Solution: Recharge the AC system with the correct type and amount of refrigerant. Address any leaks in the system before recharging.
6. Issues with the AC Compressor
A failing AC compressor can place excessive load on the engine, leading to a rough idle. This is often accompanied by unusual noises from the compressor itself.
Diagnosis: Listen for unusual noises coming from the AC compressor. Inspect the compressor clutch for proper engagement and disengagement. Check the compressor's high and low side pressures with a manifold gauge set.
Solution: Replace the AC compressor. This is a more complex repair and may require the expertise of a professional mechanic.
Do’s and Don’ts / Best Practices
- Do use a diagnostic scanner to check for trouble codes. This can significantly narrow down the possible causes.
- Do visually inspect all vacuum hoses and connections.
- Do clean the IAC valve and MAF sensor regularly as part of your maintenance routine.
- Do use the correct cleaners for the IAC valve and MAF sensor.
- Don't use carburetor cleaner on the IAC valve.
- Don't touch the sensing wires inside the MAF sensor.
- Don't ignore the problem. A rough idle can lead to other issues, such as reduced fuel economy and increased emissions.
- Best Practice: Start with the simplest and most common solutions first, such as cleaning the IAC valve and checking for vacuum leaks.
Conclusion
Troubleshooting a rough idle when the AC is on requires a systematic approach. By understanding how the engine and AC system interact and by carefully diagnosing the potential causes, you can often resolve the issue yourself. Remember to start with the simplest solutions first and to use a diagnostic scanner to guide your troubleshooting. If you're uncomfortable performing any of these repairs, it's always best to consult with a qualified mechanic. Addressing a rough idle promptly will not only improve your driving experience but also prevent potential damage to other engine components. Good luck!
