How To Fix Vdc Off Light

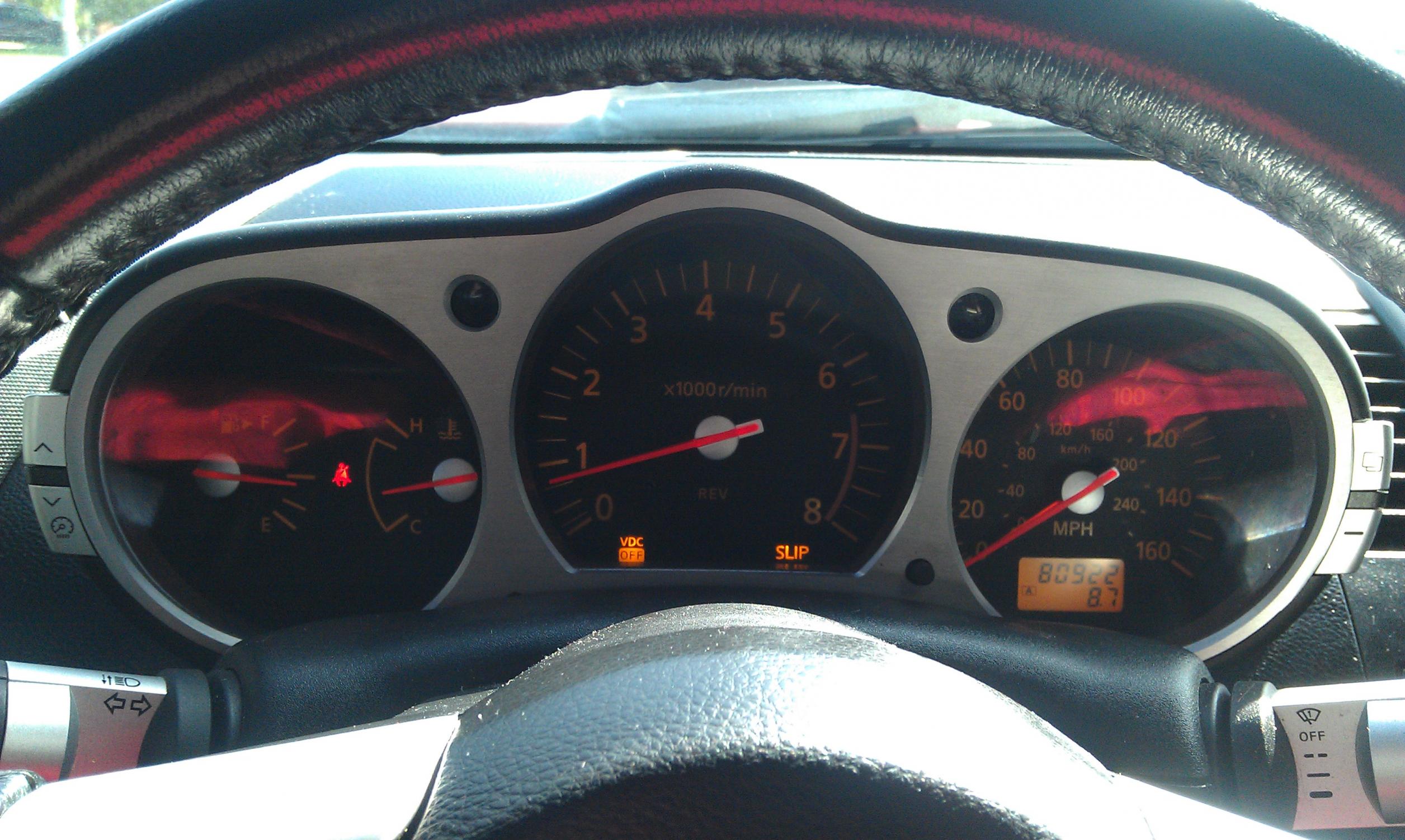

The dreaded "VDC OFF" light. It's a common sight on many dashboards, especially in Subaru vehicles, but can appear in other makes and models equipped with Vehicle Dynamics Control (VDC). While it might seem alarming, it doesn't always indicate a catastrophic failure. Often, it's a signal that the system has been temporarily disabled for a specific reason, ranging from a minor sensor glitch to a more serious issue affecting stability. Understanding why this light illuminates and how to address it can save you time, money, and unnecessary trips to the mechanic. This article will provide a detailed breakdown of the VDC system, common causes for the "VDC OFF" light, and troubleshooting steps you can perform yourself.

Background: Understanding Vehicle Dynamics Control (VDC)

VDC, also known as Electronic Stability Control (ESC) in some brands, is a crucial safety system designed to prevent skidding and loss of control, particularly in challenging driving conditions. It's an evolution of earlier anti-lock braking systems (ABS) and traction control systems (TCS), building upon their capabilities to provide a more comprehensive approach to vehicle stability.

Think of VDC as a sophisticated electronic co-driver, constantly monitoring your vehicle's behavior and intervening when it detects a potential loss of control. It uses a network of sensors to track various parameters, including:

Wheel Speed: Individual wheel speed sensors monitor the rotation of each wheel. Discrepancies between wheel speeds can indicate wheel slip or a pending skid.
Steering Angle: A steering angle sensor measures the driver's intended direction.
Yaw Rate: The yaw rate sensor measures the vehicle's rotation around its vertical axis (its tendency to spin).
Lateral Acceleration: This sensor measures the vehicle's sideways acceleration.
Brake Pressure: Sensors monitor the pressure in the brake lines.

The VDC system's Electronic Control Unit (ECU), also known as a module or computer, analyzes this data and compares it to the driver's intended path. If the ECU detects a significant difference between the intended path and the vehicle's actual trajectory, it intervenes to correct the situation. This intervention can take several forms:

Selective Braking: The VDC system can apply braking force to individual wheels to counteract oversteer (rear-end sliding out) or understeer (front-end plowing). This is often done almost imperceptibly to the driver.
Engine Torque Reduction: The system can reduce engine power to limit wheelspin and improve traction.

Technical Breakdown: How VDC Works

The core of the VDC system is its sophisticated control algorithm. This algorithm constantly processes sensor data to determine the vehicle's stability. Here's a more detailed look at the process:

Data Acquisition: The sensors constantly transmit data to the VDC ECU.
Data Processing: The ECU uses mathematical models to calculate the vehicle's predicted behavior based on driver inputs (steering angle, throttle position, braking).
Stability Assessment: The ECU compares the predicted behavior with the actual behavior (yaw rate, lateral acceleration, wheel speeds).
Intervention Decision: If the difference between the predicted and actual behavior exceeds a predefined threshold, the ECU determines that intervention is necessary.
Actuation: The ECU sends signals to the hydraulic control unit (HCU) to apply braking force to individual wheels and/or reduces engine torque.
Monitoring: The ECU continuously monitors the system's performance and adjusts its interventions as needed.

The HCU is a critical component. It's essentially a sophisticated valve system that allows the ECU to precisely control the brake pressure at each wheel independently. This is what enables the VDC system to apply selective braking. The HCU works in conjunction with the vehicle's existing ABS system.

The "VDC OFF" light indicates that the system has been disabled. This can happen for several reasons:

Manual Deactivation: Many vehicles have a button that allows the driver to manually disable the VDC system. This is often done for specific situations, such as driving in deep snow or mud, where wheelspin is desirable.
System Fault: A fault in any of the VDC system's components (sensors, ECU, HCU) can trigger the "VDC OFF" light. The ECU disables the system to prevent potentially incorrect interventions.
Related System Fault: Problems with other systems, such as the ABS or engine management system, can indirectly cause the VDC to be disabled. Since VDC relies on data from these systems, a malfunction in one can affect the others.

Common Issues and Maintenance Concerns

Several common issues can trigger the "VDC OFF" light. Here's a breakdown:

Wheel Speed Sensor Issues: These are perhaps the most frequent culprits. The sensors can become dirty, damaged, or disconnected. A faulty sensor will send incorrect data to the ECU, leading to VDC deactivation. Rust and corrosion are common enemies.
Steering Angle Sensor Calibration: The steering angle sensor needs to be properly calibrated. If it's out of alignment, the VDC system won't be able to accurately determine the driver's intended direction. This can happen after wheel alignments or suspension work.
Yaw Rate Sensor Problems: These sensors are typically located under the seats or in the center console. They can be sensitive to vibrations and impacts and can sometimes fail.
Brake System Issues: Problems with the ABS system, such as a faulty ABS pump or sensor, can also trigger the "VDC OFF" light. Brake fluid levels can also impact this system.
ECU Fault: While less common, the VDC ECU itself can fail. This usually requires replacement of the unit.
Low Battery Voltage: Many modern vehicles are incredibly sensitive to low voltage. A weak battery can cause a cascade of error codes, including the "VDC OFF" light.
Loose Gas Cap: Believe it or not, a loose gas cap can sometimes trigger seemingly unrelated warning lights, including the "VDC OFF" light, due to its effect on the engine management system.

Regular maintenance can help prevent many of these issues. Here are some key areas to focus on:

Wheel Speed Sensor Cleaning: Periodically inspect and clean the wheel speed sensors, especially if you live in an area with harsh weather or road conditions.
Brake Fluid Flush: Replace your brake fluid every two to three years to prevent corrosion and maintain optimal braking performance.
Battery Maintenance: Ensure your battery is in good condition and properly charged.
Wheel Alignment: Get your wheels aligned regularly to prevent premature tire wear and ensure proper steering angle sensor calibration.

Do's and Don'ts / Best Practices

Do's:

Check the Basics First: Before diving into complex diagnostics, ensure the VDC system hasn't been manually deactivated. Also, check your gas cap.
Use a Scan Tool: Invest in a decent OBD-II scan tool. This will allow you to read Diagnostic Trouble Codes (DTCs) that can pinpoint the source of the problem. Always record the codes before clearing them.
Inspect Wheel Speed Sensors: Visually inspect the wheel speed sensors for damage, dirt, and corrosion. Clean them carefully with a soft brush and electrical contact cleaner.
Check Wiring and Connectors: Inspect the wiring harnesses and connectors associated with the VDC system for damage or corrosion. Ensure all connections are secure.
Consult a Repair Manual: A factory service manual or a reputable aftermarket repair manual can provide detailed information about the VDC system and troubleshooting procedures for your specific vehicle.
Test the Battery: A load test will confirm if the battery is strong enough. Many auto parts stores offer this service for free.

Don'ts:

Ignore the Warning Light: The "VDC OFF" light indicates a potential problem with your vehicle's stability control system. Ignoring it could compromise your safety.
Assume It's Just a Sensor: While a faulty sensor is a common cause, the problem could be more complex. Proper diagnosis is crucial.
Use Excessive Force: When working on sensors or connectors, avoid using excessive force. You could damage the components.
Disassemble the HCU: The hydraulic control unit (HCU) is a complex component that should only be serviced by qualified technicians.
Drive Recklessly: If the VDC system is disabled, drive cautiously and avoid aggressive maneuvers.

Best Practices:

Document Everything: Keep detailed records of your troubleshooting steps, including the DTCs you found, the tests you performed, and the results you obtained.
Work Methodically: Follow a logical troubleshooting process, starting with the simplest and most common causes and then moving on to more complex issues.
Use Quality Parts: When replacing components, use high-quality parts from reputable manufacturers.
Cleanliness Matters: Keep your work area clean and organized to prevent contamination and ensure accuracy.

Conclusion

The "VDC OFF" light can be a frustrating issue, but with a methodical approach and a bit of technical knowledge, you can often diagnose and resolve the problem yourself. Remember to start with the basics, use a scan tool to retrieve DTCs, and follow the troubleshooting steps outlined in a repair manual. If you're not comfortable performing any of these procedures, it's always best to consult a qualified mechanic. Addressing the underlying cause of the "VDC OFF" light will ensure your vehicle's stability control system is functioning properly, keeping you and your passengers safe on the road. Prioritize safety above all else, and don't hesitate to seek professional help when needed.
