How To Get A Blend Door Unstuck

Staying comfortable in your car, whether battling summer heat or winter chill, relies heavily on a properly functioning HVAC (Heating, Ventilation, and Air Conditioning) system. And at the heart of that system, controlling the temperature of the air flowing into your cabin, lies the blend door. A stuck blend door can leave you sweltering in summer or shivering in winter, regardless of your temperature settings. This article dives into the intricacies of blend doors, common causes of failure, and how to diagnose and potentially remedy a stuck blend door yourself.

Background: The Automotive HVAC System

Before we delve into the blend door specifically, let's review the basics of an automotive HVAC system. The core components include:

Compressor: Compresses refrigerant, increasing its temperature and pressure. Driven by the engine's accessory belt.
Condenser: Radiates heat from the compressed refrigerant, turning it into a high-pressure liquid.
Expansion Valve (or Orifice Tube): Meters the flow of refrigerant into the evaporator, causing a pressure drop and rapid cooling.
Evaporator: Absorbs heat from the air passing over it, cooling the air that enters the cabin.
Heater Core: A small radiator that circulates hot engine coolant, providing heat when needed.
Blower Motor: Forces air across the evaporator and/or heater core, and then into the cabin through the vents.
Ductwork: Channels the conditioned air to the appropriate vents (dashboard, floor, defrost).
Control Panel: Allows the driver to adjust temperature, fan speed, and airflow direction.

The blend door plays a crucial role in regulating the temperature of the air delivered to the cabin. It's a relatively simple component, but its malfunction can significantly impact your driving experience.

Technical Breakdown: How the Blend Door Works

The blend door is essentially a flap inside the HVAC housing that controls the proportion of air flowing through the heater core versus bypassing it. When you select the coldest setting, the blend door typically closes off airflow to the heater core, directing all the air across the evaporator. Conversely, when you select the hottest setting, the blend door directs all the air through the heater core. Intermediate settings adjust the door's position to blend air from both sources, achieving the desired temperature.

The blend door is moved by an actuator. Actuators can be either:

Vacuum-operated: These older systems use engine vacuum to control a diaphragm within the actuator, which moves the blend door via a linkage.
Cable-operated: A cable directly connects the temperature control knob to the blend door. Turning the knob physically moves the door.
Electric: These are the most common in modern vehicles. An electric motor (the actuator) is controlled by the HVAC control module (often part of the Body Control Module or BCM), based on the temperature setting. The motor rotates, driving a gear mechanism that moves the blend door. These actuators often have feedback circuits, allowing the control module to monitor the door's position.

Electric actuators are usually controlled via a pulse-width modulated (PWM) signal, which allows for precise positioning of the blend door. The control module receives input from temperature sensors within the cabin and outside the vehicle to adjust the blend door position automatically to maintain the set temperature. This is the basis of automatic climate control.

Common Issues and Maintenance Concerns

A stuck blend door is a frequent problem, especially in older vehicles. Here are some common causes:

Broken Actuator: The electric motor can fail, the gears inside the actuator can strip, or the electronic components can malfunction. This is probably the most common cause of blend door issues.
Vacuum Leaks (Vacuum-operated systems): Leaks in the vacuum lines can prevent the actuator from receiving sufficient vacuum to move the blend door.
Broken Linkage: The physical linkage connecting the actuator to the blend door can break or become disconnected. This is more common in older systems with plastic linkages.
Physical Obstruction: Debris, such as leaves or small objects, can become lodged in the HVAC housing, obstructing the blend door's movement. This is more likely if the cabin air filter is missing or damaged.

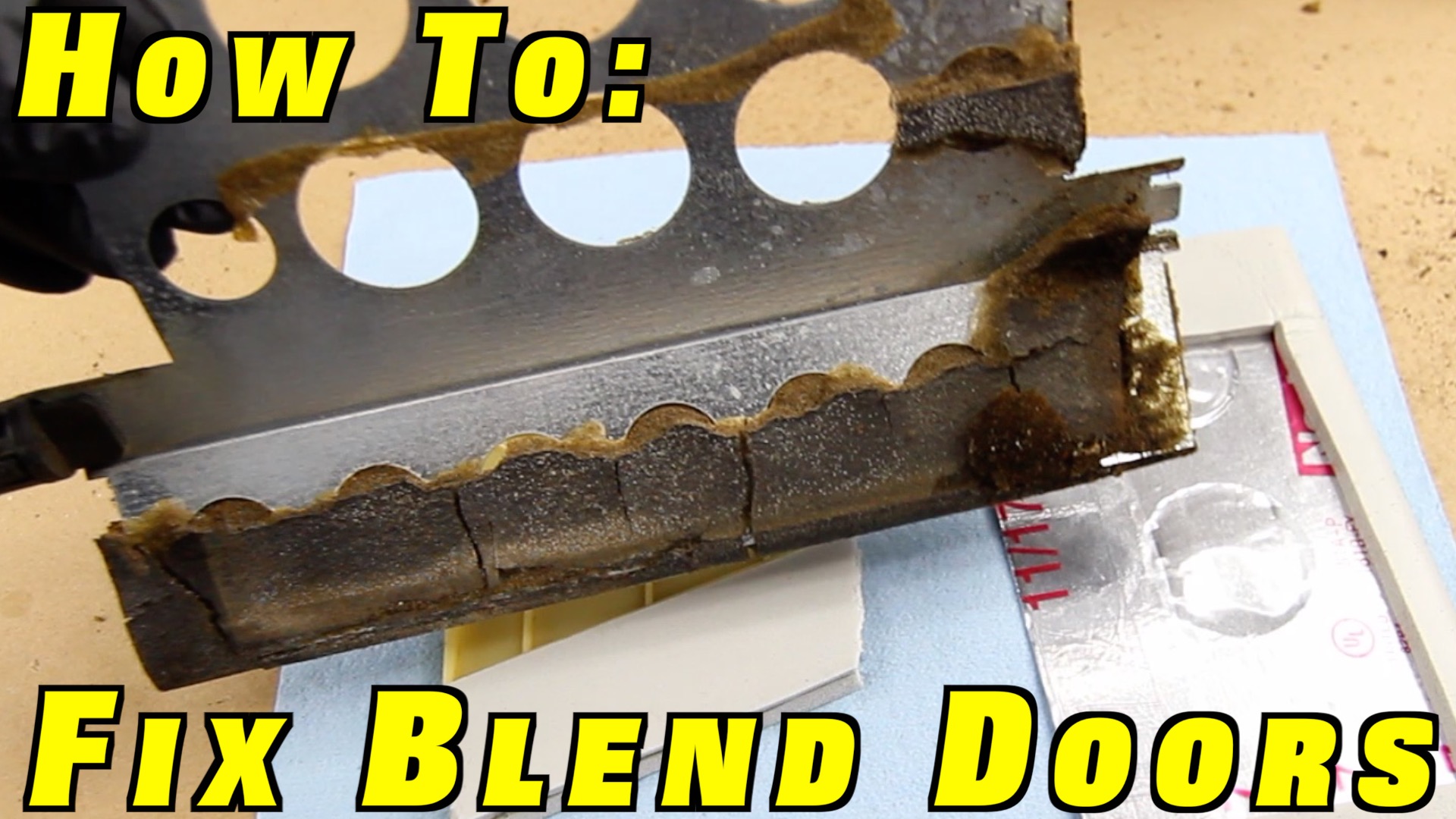

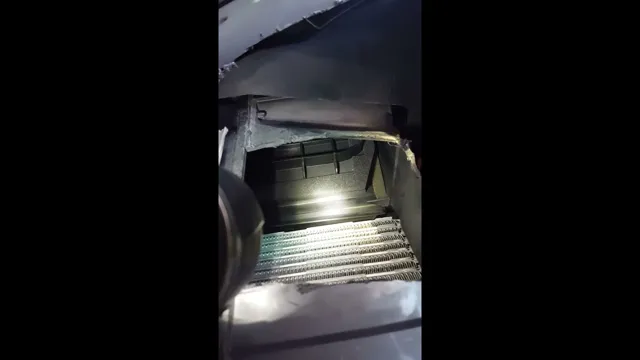

Sticking Door: Over time, the blend door itself can become sticky due to dust, debris, or degradation of the foam seals around the door.
Faulty Control Module: While less common, a malfunctioning HVAC control module can send incorrect signals to the actuator, preventing it from operating correctly.

Symptoms of a stuck blend door can include:

Air blowing only hot, only cold, or one temperature on one side of the vehicle and another on the other side (dual-zone systems).
Clicking or grinding noises coming from behind the dashboard when the temperature is adjusted. This often indicates a stripped gear in the actuator.
Inability to change the air temperature, regardless of the temperature setting.

Diagnosis can involve the following steps:

Visual Inspection: Try to locate the blend door actuator(s). They are usually located behind the dashboard, often near the center console. Check for any obvious damage or loose connections. Consult your vehicle's service manual for specific location information.
Listening: Turn the ignition on (but don't start the engine) and adjust the temperature settings. Listen carefully for the actuator motor operating. If you hear clicking or grinding noises, it likely indicates a faulty actuator.
OBD-II Scan: Use an OBD-II scanner to check for HVAC-related diagnostic trouble codes (DTCs). Many modern vehicles will store codes related to blend door actuator failures. Common codes include B0229, B0230, B0234, and B0235.
Actuator Testing: If you suspect a faulty actuator, you can test it directly. Disconnect the electrical connector and use a multimeter to check for voltage at the connector when the temperature is adjusted. You can also apply voltage directly to the actuator motor to see if it operates. Refer to the vehicle's wiring diagram for correct pin assignments.
Vacuum Testing (Vacuum-operated systems): Use a vacuum gauge to check for vacuum at the actuator. A lack of vacuum indicates a leak in the system.

Do's and Don'ts / Best Practices

Do consult your vehicle's service manual before attempting any repairs. The location of the blend door and actuator(s) can vary significantly between vehicles.
Do disconnect the negative battery terminal before working on the electrical system. This will prevent accidental shorts and potential damage.
Do label all connectors and vacuum lines before disconnecting them. This will make reassembly much easier.
Do use quality replacement parts. Cheap aftermarket actuators may not last as long or function as reliably as OEM (Original Equipment Manufacturer) parts.
Do consider replacing the cabin air filter when you're working on the HVAC system. A clean filter will improve airflow and prevent debris from entering the system.
Don't force any components. If something is not coming apart easily, double-check that you have removed all fasteners and that you are using the correct tools.
Don't ignore clicking or grinding noises coming from behind the dashboard. These noises usually indicate a failing actuator, and addressing the problem early can prevent further damage.
Don't attempt repairs that are beyond your skill level. If you're not comfortable working on the electrical system or disassembling the dashboard, it's best to take your vehicle to a qualified mechanic.
Best Practice: When replacing an actuator, consider calibrating it using a scan tool if your vehicle supports it. Some actuators require calibration to ensure proper operation.

Potential Fixes

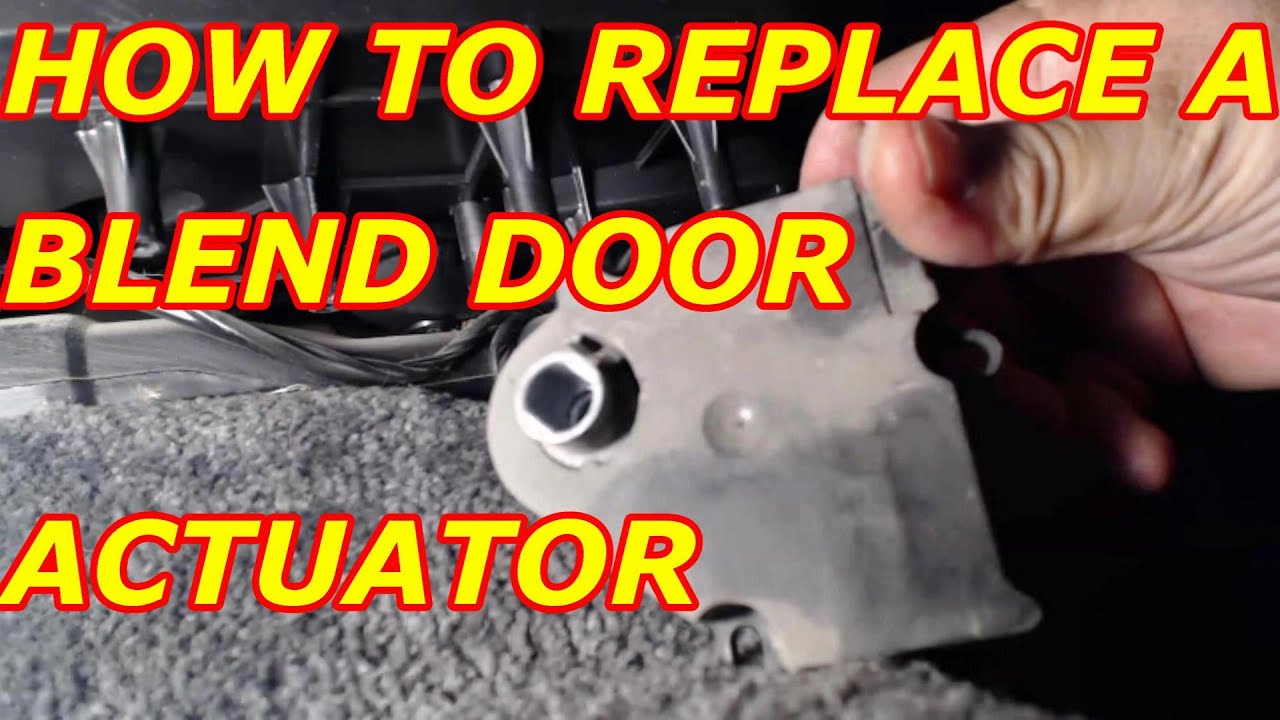

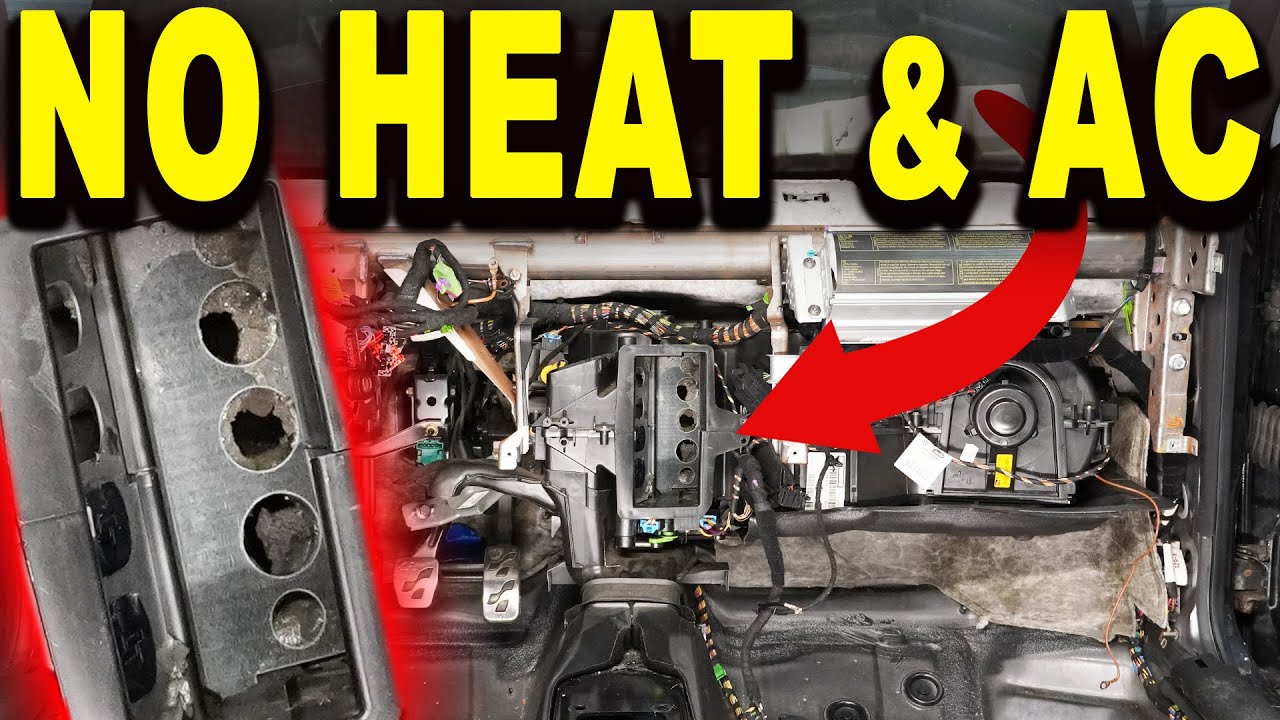

Actuator Replacement: The most common solution for blend door problems is replacing the faulty actuator. Ensure you get the correct part number for your vehicle's year, make, and model. Some actuators may require programming using a scan tool after installation.
Vacuum Line Repair (for vacuum systems): Locate and repair any leaks in the vacuum lines. Replace any cracked or brittle lines.
Linkage Repair: If the linkage is broken or disconnected, attempt to repair or replace it. You may be able to fabricate a replacement linkage from metal or plastic.
Door Lubrication: Sometimes, the blend door itself sticks due to friction. Applying a small amount of silicone lubricant to the door's pivot points may free it up. Be careful not to use petroleum-based lubricants, as they can damage plastic components.

Conclusion

Diagnosing and fixing a stuck blend door can be a challenging but rewarding DIY project. By understanding how the HVAC system and blend door work, performing thorough diagnostics, and following best practices, you can potentially save money and restore comfortable climate control to your vehicle. However, be honest about your mechanical abilities. If you're uncomfortable with electrical testing, dashboard disassembly, or scan tool usage, it's always best to consult a qualified mechanic. A good starting point is getting the DTC codes read from your car's computer. Many auto parts stores will do this for free. Good luck, and stay comfortable out there!
