How To Get Air Out Of Heater Core

Air trapped in your vehicle's cooling system, specifically within the heater core, can be a frustrating issue. It often manifests as poor or no heat from your vents despite the engine reaching operating temperature. This article will delve into the intricacies of diagnosing and resolving airlocks within the heater core, providing you with the knowledge and techniques to effectively tackle this common automotive problem.

Understanding the Cooling System and Heater Core

Before diving into the solution, let's establish a solid understanding of the cooling system's architecture. The cooling system is a closed-loop system responsible for regulating engine temperature. It circulates coolant – a mixture of water and antifreeze (ethylene glycol or propylene glycol) – through the engine block and cylinder head, absorbing heat generated during combustion. This heated coolant then flows to the radiator, where it dissipates heat to the atmosphere via airflow. A thermostat regulates coolant flow to maintain a consistent operating temperature.

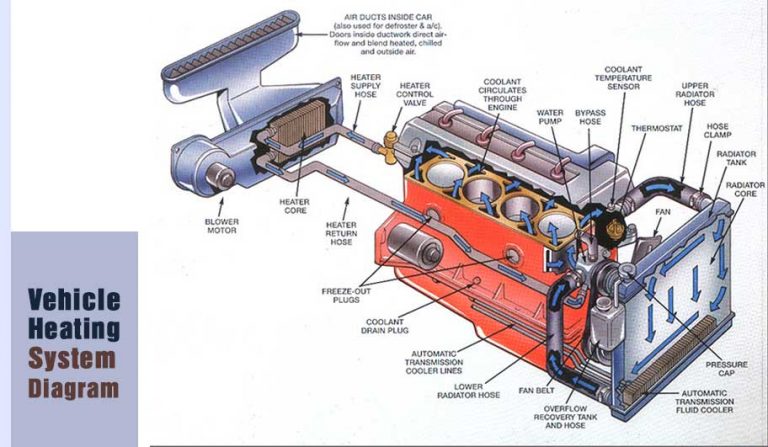

The heater core is essentially a small radiator located inside the vehicle's cabin, typically behind the dashboard. Hot coolant is circulated through the heater core, and a blower motor forces air across its fins. This heated air is then directed through the vents into the passenger compartment, providing warmth. The heater core is integrated into the overall cooling system loop, usually branching off from the main coolant lines.

How the System Works: Coolant Flow and Heat Transfer

The cooling system relies on a water pump to circulate coolant. The water pump is usually driven by the engine's serpentine belt (or timing belt in some older vehicles). It creates pressure, forcing coolant through the engine passages, radiator, heater core, and connecting hoses. The thermostat plays a crucial role by opening and closing to control coolant flow to the radiator based on engine temperature. When the engine is cold, the thermostat remains closed, preventing coolant from circulating to the radiator and allowing the engine to warm up quickly. Once the engine reaches operating temperature, the thermostat opens, allowing coolant to flow through the radiator for efficient heat dissipation.

The heater core receives hot coolant through an inlet hose and returns cooled coolant through an outlet hose. A heater control valve (either mechanically or electronically controlled) regulates the amount of coolant flowing through the heater core. When you adjust the temperature control in your vehicle, you're typically adjusting the position of this valve, thereby controlling the amount of heat transferred to the cabin. The blower motor then blows air across the heater core fins, transferring the heat into the cabin air.

Technical Breakdown: Diagnosing and Removing Air from the Heater Core

The primary symptom of air trapped in the heater core is a lack of heat, or inconsistent heat, from the vents. Even with the engine fully warmed up and the temperature set to maximum heat, the air coming from the vents may be cool or lukewarm. Other potential symptoms include:

Gurgling sounds from behind the dashboard, indicating air movement within the coolant lines.
Overheating, although this is more likely if there's a significant amount of air in the entire cooling system, not just the heater core.
Coolant loss, which can introduce air into the system.

Bleeding the System: The Core Procedure

The most effective method for removing air from the heater core is to bleed the cooling system. This process involves opening a bleed valve (if your vehicle is equipped with one) or using other techniques to allow trapped air to escape. Here's a step-by-step guide:

Safety First: Ensure the engine is cool before starting. Working on a hot cooling system can result in severe burns. Wear safety glasses and gloves.
Locate the Bleed Valve(s): Many vehicles have bleed valves located on the thermostat housing, radiator, or near the heater core hoses. Consult your vehicle's service manual to find the exact location. Some vehicles do not have dedicated bleed valves.
Raise the Front of the Vehicle: Elevating the front of the vehicle helps encourage air to migrate towards the highest point in the cooling system, which is often where the bleed valve is located. This can be achieved using ramps or jack stands. Always use jack stands when working under a vehicle.
Open the Radiator Cap: Carefully remove the radiator cap. It's best to do this when the engine is completely cool to avoid pressure release and potential burns.

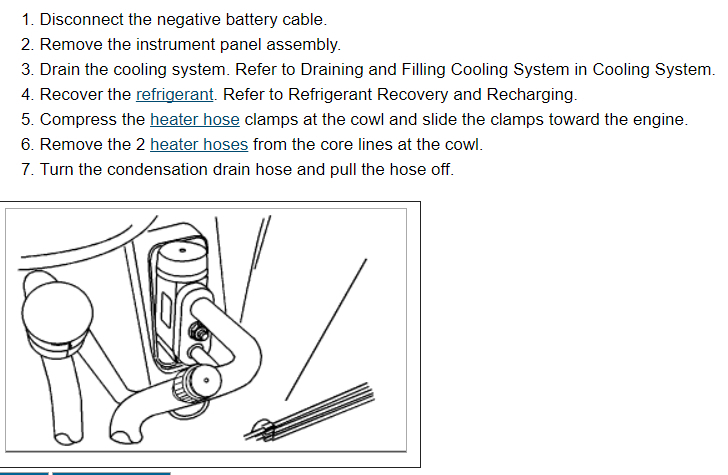

Locate and Open the Heater Core Inlet and Outlet Hoses: Identify the heater core hoses. These are typically two hoses connected to the firewall on the engine side. Gently loosen the clamps on both hoses, being careful not to damage the hoses. You may need to use pliers or a hose clamp tool.
Squeeze the Heater Core Inlet Hose: With the radiator cap off, gently squeeze the heater core inlet hose. You should see air bubbles escaping from the radiator opening. Repeat this process several times.
Open Bleed Valve (If Applicable): If your vehicle has a bleed valve, carefully open it. You may need a wrench or screwdriver. Allow coolant to flow out until it is free of air bubbles. Once a steady stream of coolant emerges, close the bleed valve.
Top Off Coolant: Check the coolant level in the radiator and top it off with the correct coolant mixture (usually a 50/50 mix of antifreeze and distilled water).
Start the Engine: Start the engine and let it run for several minutes with the radiator cap off. Observe the coolant level in the radiator. You may see more air bubbles escaping.
Repeat as Needed: Continue to squeeze the heater core inlet hose, open the bleed valve (if applicable), and top off the coolant as needed until no more air bubbles are visible.
Reinstall Radiator Cap: Once you're confident that all the air has been removed, carefully reinstall the radiator cap.
Test the Heater: Turn on the heater and verify that it's blowing hot air.
Check for Leaks: Inspect all hoses, clamps, and the radiator cap for leaks.

Vehicles Without Bleed Valves: Alternative Methods

If your vehicle doesn't have dedicated bleed valves, you can use the following alternative method:

Follow steps 1-6 from the previous procedure.
With the radiator cap off and the engine running (after topping off coolant), carefully observe the coolant level.
Gently rev the engine slightly (around 1500-2000 RPM) to increase coolant flow. This can help dislodge trapped air.
Continue to monitor the coolant level and add coolant as needed.
After a few minutes, carefully reinstall the radiator cap and test the heater.

Common Issues and Maintenance Concerns

Several factors can contribute to air getting trapped in the cooling system:

Coolant Leaks: Leaks in hoses, the radiator, water pump, or head gasket can allow air to enter the system as coolant is lost.
Improper Coolant Mixing: Using the wrong coolant mixture or failing to use distilled water can lead to corrosion and the formation of air pockets.
Recent Cooling System Work: Any time the cooling system is opened (e.g., replacing the radiator, water pump, or thermostat), air can be introduced.
Head Gasket Failure: A blown head gasket can allow combustion gases to enter the cooling system, creating air pockets and potentially causing overheating.
Clogged Heater Core: A partially clogged heater core can restrict coolant flow and make it more difficult to remove air.

Do's and Don'ts / Best Practices

Do use the correct type of coolant specified for your vehicle. Mixing different types of coolant can lead to corrosion and other problems.
Do use distilled water when mixing coolant. Tap water contains minerals that can cause corrosion.
Do properly dispose of used coolant. Antifreeze is toxic and harmful to the environment.
Do inspect your cooling system hoses regularly for cracks, leaks, or swelling. Replace them as needed.
Do consider using a coolant pressure tester to check for leaks in the cooling system.
Don't remove the radiator cap when the engine is hot. This can cause serious burns.
Don't over-tighten hose clamps. This can damage the hoses.
Don't ignore signs of overheating. Overheating can cause serious engine damage.
Don't use stop-leak products as a long-term solution. These products can clog the cooling system and cause further problems.

Conclusion

Removing air from the heater core is a critical step in maintaining a properly functioning cooling system and ensuring comfortable cabin temperatures. By understanding the system's operation, following the recommended bleeding procedures, and adhering to best practices, you can effectively resolve airlocks and keep your vehicle running smoothly. If you're uncomfortable performing these procedures yourself, or if the problem persists despite your efforts, it's always best to consult with a qualified mechanic for professional assistance.
