How To Grease Tie Rod Ends
Keeping your steering system in tip-top shape is crucial for both safety and vehicle performance. One often-overlooked but vital maintenance task is greasing your tie rod ends. This article provides a detailed guide on how to properly grease tie rod ends, ensuring smooth steering, preventing premature wear, and ultimately saving you money in the long run. We'll cover the why, the how, and the common pitfalls to avoid.
Understanding Your Steering System and Tie Rod Ends
Before diving into the practical steps, let's understand the role of tie rod ends within your vehicle's steering system. Your steering system is a complex network of components designed to translate the rotational input from your steering wheel into linear motion that turns your wheels. The key players in this system include the:
- Steering Wheel: Where it all begins.
- Steering Column: Connects the steering wheel to the steering gear.
- Steering Gear (Rack and Pinion or Steering Box): This component translates the rotational motion of the steering wheel into linear motion. Most modern vehicles use a rack and pinion system, which is more efficient and provides better feedback. Older vehicles, especially trucks and SUVs, may use a steering box.
- Tie Rods: These are the crucial links connecting the steering gear to the steering knuckles (or spindles) on each wheel.
- Steering Knuckles/Spindles: The part that holds the wheel bearing assembly, hub, and wheel. The tie rod connects to the steering knuckle to move the wheel.
Tie rods are essentially rods with threaded ends. Each tie rod assembly consists of two main parts:
- Inner Tie Rod: Connects directly to the steering gear (rack or box). This often has a ball joint on the rack end and a threaded end to connect to the outer tie rod.
- Outer Tie Rod: Connects to the steering knuckle. This also contains a ball joint, which allows for movement and articulation as the suspension moves and the wheels turn.
The connection between the inner and outer tie rods is adjustable, allowing for toe adjustment during wheel alignment. Toe refers to the angle of the wheels relative to the vehicle's centerline. Proper toe is critical for tire wear and handling.
How Tie Rod Ends Work

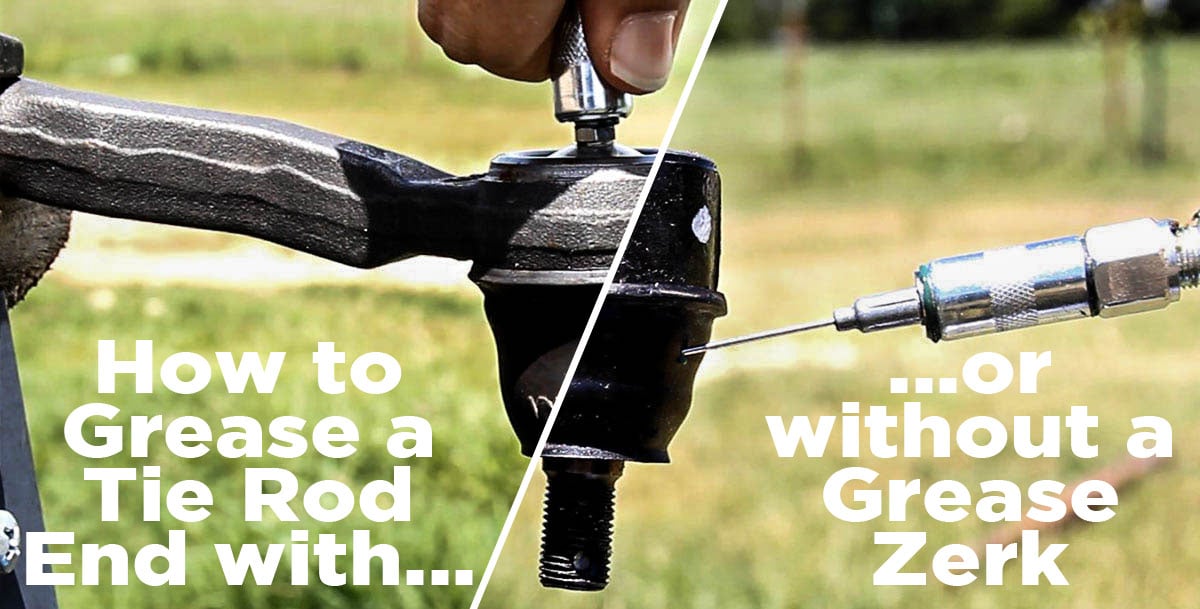

The heart of a tie rod end is the ball joint. This joint allows for pivotal movement, accommodating the up-and-down motion of the suspension and the turning of the wheels. The ball is encased in a socket, usually with a grease fitting (also known as a zerk fitting). This grease fitting allows you to inject grease into the joint to lubricate the ball and socket, reducing friction and wear.
Without proper lubrication, the ball joint will wear down quickly. The grease provides a cushion between the metal surfaces, preventing metal-on-metal contact. It also helps to keep out contaminants like dirt, water, and salt, which can accelerate corrosion and wear.
The Technical Breakdown: How to Grease Tie Rod Ends
Here's a step-by-step guide on how to properly grease your tie rod ends:
- Gather Your Tools and Supplies:
- Grease Gun: A hand-operated grease gun is the most common and effective tool for this task. Make sure it's filled with the correct type of grease.
- Grease: Use a high-quality lithium-based or synthetic grease specifically designed for chassis lubrication. Check your vehicle's service manual for the recommended grease type.
- Wrench (if needed): Some grease fittings are recessed and may require a special grease gun adapter or a wrench to access them.
- Clean Rags: For wiping away excess grease.
- Gloves: To keep your hands clean.
- Safety Glasses: To protect your eyes.
- Locate the Grease Fittings:

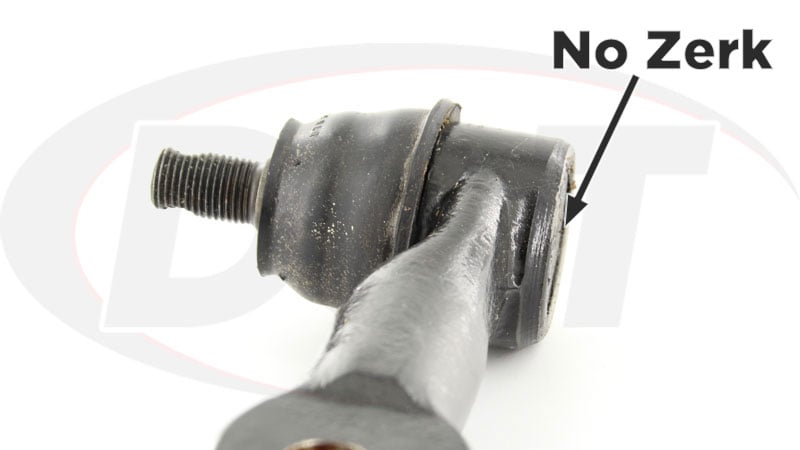

Tie rod ends typically have one grease fitting each. They are small, metal nipples protruding from the ball joint housing. You'll find them on both the inner and outer tie rod ends. Inspect all tie rod ends, and also other steering and suspension components like ball joints, to see if they have grease fittings.
- Clean the Grease Fittings:
Before attaching the grease gun, thoroughly clean the grease fitting with a rag. This removes any dirt or debris that could be forced into the joint when you inject the grease. A small wire brush can be helpful for stubborn dirt.
- Attach the Grease Gun:
Firmly attach the grease gun nozzle to the grease fitting. Ensure a tight seal to prevent grease from escaping around the fitting. Some grease guns have locking nozzles that provide a more secure connection. If grease is escaping, try readjusting the nozzle or cleaning the fitting again.
- Pump the Grease:

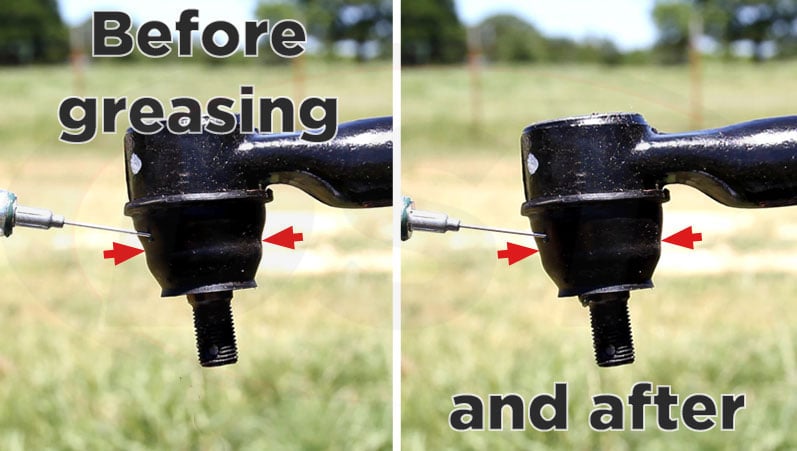

Slowly and steadily pump the grease gun handle. Watch the rubber boot (also known as a dust boot or bellows) around the ball joint. You want to see the boot slightly expand. Do not over-grease! Over-greasing can rupture the boot, allowing contaminants to enter and shorten the lifespan of the joint. A few pumps are usually sufficient. If the boot looks very old and brittle, be extra cautious.
- Wipe Away Excess Grease:

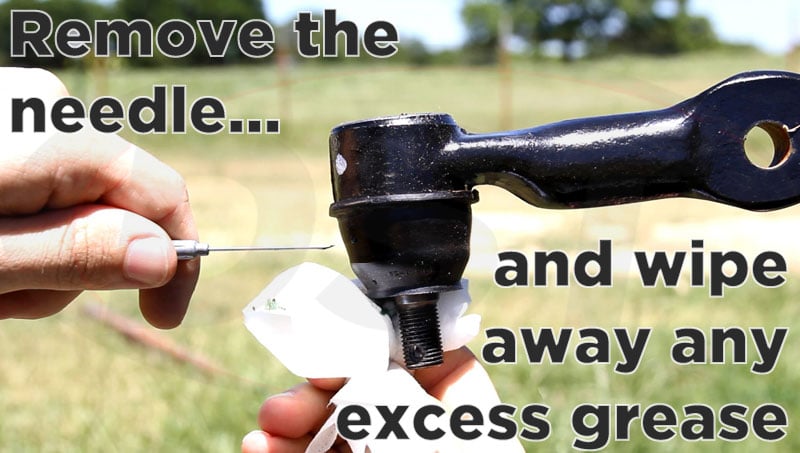

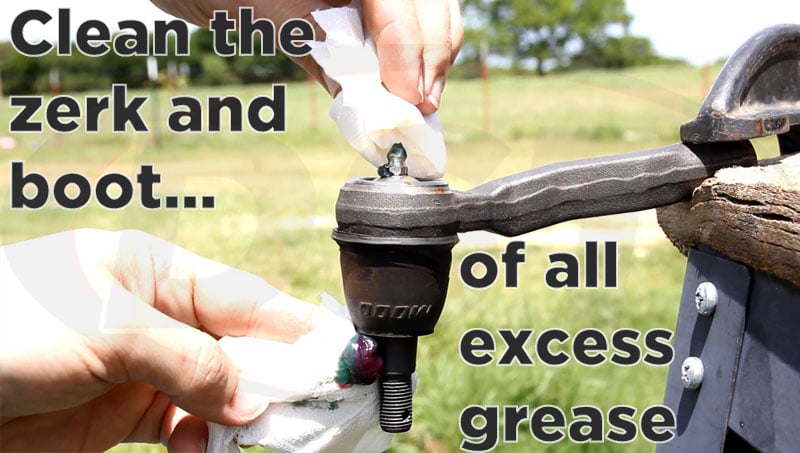

Once you've added enough grease, detach the grease gun and wipe away any excess grease from around the fitting and the surrounding area. Excess grease can attract dirt and grime.
- Repeat for All Tie Rod Ends:
Repeat steps 2-6 for all greaseable tie rod ends on your vehicle. Remember to inspect the boots for any signs of damage (cracks, tears) while you're at it.
Common Issues and Maintenance Concerns
- Stuck or Clogged Grease Fittings: If you can't get grease into the fitting, it may be clogged with old grease or debris. Try cleaning it thoroughly with a wire brush and penetrating oil. If that doesn't work, you may need to replace the fitting. A special tool called a "grease fitting rethreader/cleaner" can sometimes help.
- Ruptured Boots: If you see cracks or tears in the rubber boot, the joint is exposed to contaminants. This is a serious problem that requires immediate attention. You should replace the tie rod end as soon as possible. Driving with a damaged boot will significantly shorten the lifespan of the joint and can lead to steering problems.
- Play in the Tie Rod End: If you can feel excessive play in the tie rod end, even after greasing, it's likely worn out and needs to be replaced. This can be checked by jacking up the front of the car and attempting to move the wheel (with your hands at 3 and 9 o'clock positions) and feeling for play in the steering components.
- Grease Type: Using the wrong type of grease can be detrimental. Some greases are incompatible with certain materials or may not provide adequate lubrication. Always refer to your vehicle's service manual for the recommended grease type.
Do's and Don'ts / Best Practices
- DO grease your tie rod ends regularly. Check your vehicle's service manual for the recommended interval (typically every 3,000-5,000 miles or every oil change).
- DO use a high-quality grease specifically designed for chassis lubrication.
- DO clean the grease fittings before attaching the grease gun.
- DO pump the grease slowly and steadily.
- DO watch the rubber boot and avoid over-greasing.
- DO wipe away excess grease.
- DO inspect the boots for damage regularly.
- DON'T use excessive force when attaching the grease gun, as this can damage the fitting.
- DON'T use the wrong type of grease.
- DON'T over-grease the tie rod ends.
- DON'T ignore damaged boots.
- DON'T drive with excessive play in the steering components.
- Best Practice: After greasing, turn the steering wheel lock-to-lock several times to distribute the grease throughout the joint. This also helps to identify any binding or unusual noises that might indicate a problem.
Conclusion
Greasing your tie rod ends is a simple but essential maintenance task that can significantly extend the life of your steering components and improve your vehicle's handling. By following the steps outlined in this article and adhering to the best practices, you can ensure that your tie rod ends are properly lubricated and protected from wear. Regular greasing not only prevents costly repairs but also contributes to a safer and more enjoyable driving experience. Make it a part of your routine maintenance schedule – your steering system will thank you for it!
