How To Hollow Out A Catalytic Converter

This article provides detailed information on the process of hollowing out a catalytic converter. Before proceeding, it is crucial to understand that removing or disabling a catalytic converter is illegal in many jurisdictions and can result in significant fines. Furthermore, it can have a detrimental impact on the environment due to increased emissions. This information is provided for informational purposes only and should not be construed as encouragement to violate any laws. It is the sole responsibility of the reader to ensure compliance with all applicable regulations.

Background: The Catalytic Converter and the Exhaust System

To understand why someone might consider hollowing out a catalytic converter and the potential consequences, let's first delve into its function within the vehicle's exhaust system. The exhaust system is responsible for channeling burnt gases from the engine to the atmosphere, while also reducing noise and harmful emissions. Key components typically include the exhaust manifold, catalytic converter, muffler, resonator (sometimes), and tailpipe. Each element contributes to the overall efficiency and environmental impact of the vehicle.

The Engine's Role

The internal combustion engine works by burning a mixture of fuel and air. This process produces energy to power the vehicle, but it also generates a number of byproducts, including:

• Hydrocarbons (HC): Unburnt fuel.
• Carbon Monoxide (CO): A poisonous gas resulting from incomplete combustion.
• Nitrogen Oxides (NOx): Formed when nitrogen and oxygen react at high temperatures. These contribute to smog and acid rain.

These are the primary pollutants that the catalytic converter is designed to address.

Catalytic Converter Function: A Technical Breakdown

The catalytic converter is a crucial component in reducing harmful emissions from the exhaust gases produced by an internal combustion engine. It's essentially a chemical reactor that uses catalysts – typically platinum, palladium, and rhodium – to facilitate chemical reactions that convert harmful pollutants into less harmful substances. There are primarily two types of catalytic converters:

• Two-Way Catalytic Converter: Primarily oxidizes HC and CO into carbon dioxide (CO2) and water (H2O). Older vehicles often used this type.
• Three-Way Catalytic Converter: More modern and efficient. It simultaneously reduces NOx into nitrogen (N2) and oxygen (O2), and oxidizes HC and CO into CO2 and H2O.

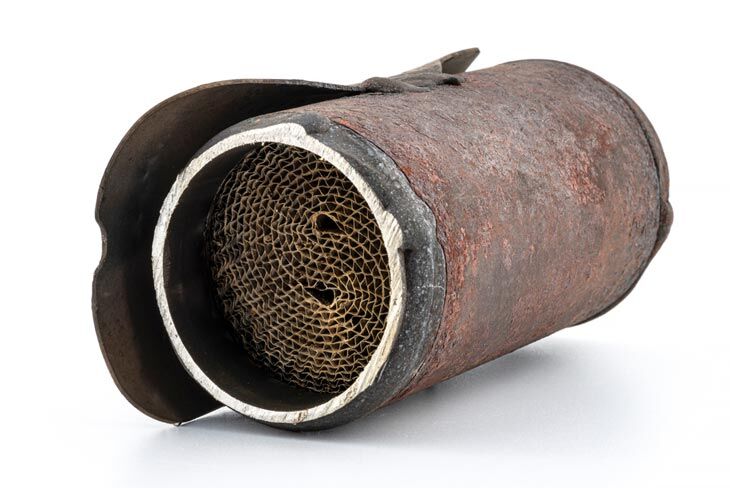

The internal structure of a catalytic converter is typically a ceramic honeycomb coated with the precious metal catalysts. This honeycomb structure provides a large surface area for the exhaust gases to come into contact with the catalysts, maximizing the efficiency of the reactions. The converter is encased in a metal shell to protect the delicate honeycomb and contain the high temperatures generated by the chemical reactions.

The reactions that occur inside a three-way catalytic converter are:

1. Reduction of NOx: 2NOx → N2 + xO2 (Nitrogen oxides are reduced to nitrogen and oxygen)
2. Oxidation of CO: 2CO + O2 → 2CO2 (Carbon monoxide is oxidized to carbon dioxide)
3. Oxidation of HC: 4HC + xO2 → 2H2O + xCO2 (Hydrocarbons are oxidized to water and carbon dioxide)

Why Hollowing Out a Catalytic Converter is (Sometimes) Considered

Despite the environmental and legal consequences, some individuals consider hollowing out a catalytic converter for a few perceived benefits, which are often outweighed by the drawbacks:

• Increased Exhaust Flow: A clogged or restricted catalytic converter can impede exhaust flow, potentially reducing engine power. Hollowing it out is incorrectly perceived as improving airflow and increasing horsepower.
• Troubleshooting: To diagnose if a clogged catalytic converter is causing performance issues.
• Off-Road Use (Highly Discouraged): In some limited off-road applications (again, legality is key), the converter might be damaged, and removal might be a temporary solution (but a replacement is always preferable).

It's important to note that modern engine control units (ECUs) often use oxygen sensors (O2 sensors) located both upstream and downstream of the catalytic converter. These sensors monitor the efficiency of the converter. Removing the converter will almost certainly trigger a check engine light and may cause the ECU to enter a "limp mode," severely restricting engine performance. Aftermarket solutions like O2 sensor spacers or ECU tuning can sometimes mitigate these issues, but they are not always reliable and may further violate emissions regulations.

The (Ill-Advised) Process of Hollowing Out a Catalytic Converter

Again, it's crucial to understand the legal and environmental implications before considering this. This information is for educational purposes only.

1. Safety First: Disconnect the negative battery terminal. Ensure the exhaust system is cool to avoid burns. Wear safety glasses, gloves, and a dust mask. Work in a well-ventilated area.

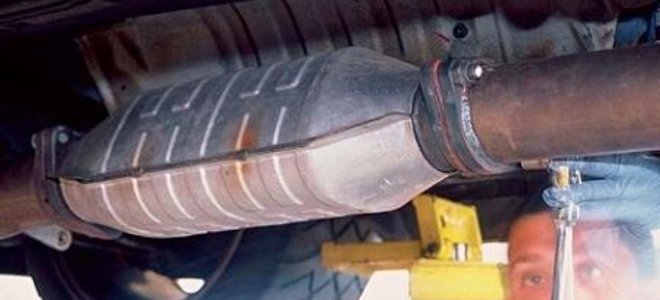

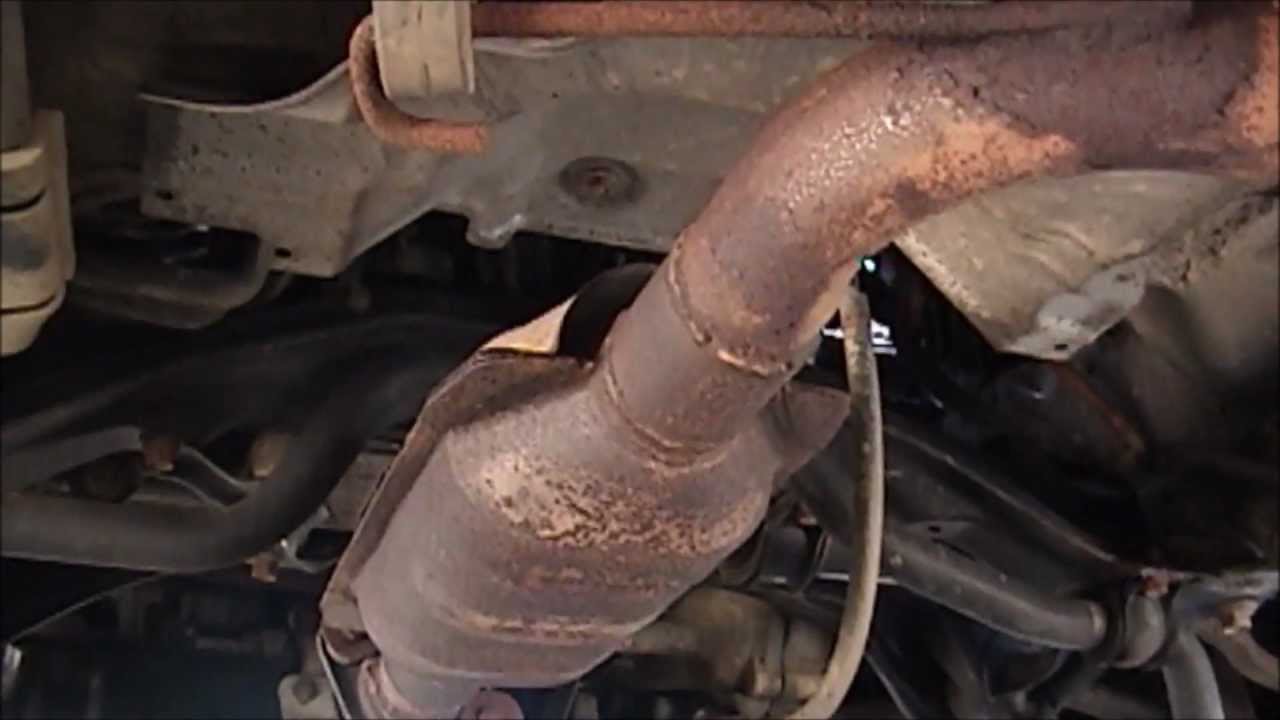

2. Access the Converter: Locate the catalytic converter. This is typically found along the exhaust system, often between the exhaust manifold and the muffler. You may need to raise the vehicle using jack stands. Never work under a vehicle supported only by a jack.
3. Removal (Optional, but Recommended): Ideally, remove the catalytic converter from the vehicle. This makes the hollowing process easier and less likely to damage other exhaust components. You'll likely need wrenches or sockets to disconnect it from the exhaust pipes. Be prepared for rusted bolts. Penetrating oil can help.
4. Cutting (If Necessary): If removal is impossible, you may need to cut an access point into the converter casing. Use a cutting tool such as an angle grinder or a reciprocating saw with a metal-cutting blade. Make a clean cut, leaving enough material to weld it back together later.
5. Hollowing: Using a long, sturdy metal rod or a specialized catalytic converter removal tool (if one exists), break up the ceramic honeycomb inside the converter. This process will generate a lot of dust, so ensure you have adequate ventilation and are wearing a dust mask. Be prepared for the honeycomb to be very brittle and difficult to remove completely.
6. Removal of Debris: Thoroughly remove all the broken honeycomb material from the converter casing. Use a vacuum cleaner or compressed air to ensure all debris is removed.
7. Re-welding (If Necessary): If you cut an access point, weld it back together. Ensure the weld is airtight to prevent exhaust leaks. This requires welding experience and appropriate equipment.
8. Reinstallation: Reinstall the catalytic converter back into the exhaust system. Tighten all bolts securely. Reconnect the oxygen sensors.
9. Post-Installation: Reconnect the negative battery terminal. Start the engine and listen for exhaust leaks. Check for any check engine lights. Be aware that a check engine light is highly probable, given the absence of the converter's function.

Common Issues and Maintenance Concerns (with Hollowing)

Hollowing out a catalytic converter introduces a multitude of potential problems:

• Check Engine Light: Almost guaranteed. The ECU will detect the lack of catalytic activity and trigger a fault code related to catalyst efficiency.
• Reduced Fuel Economy: The ECU may adjust fuel trims in an attempt to compensate for the altered exhaust flow, potentially leading to reduced fuel economy.
• Failed Emissions Test: The vehicle will almost certainly fail an emissions test due to the absence of the catalytic converter's emission-reducing function.
• Illegal Modification: Hollowing out a catalytic converter is illegal in many jurisdictions and can result in fines.
• Increased Pollution: The vehicle will emit significantly more harmful pollutants into the atmosphere.
• Potential Damage to Other Components: Altered exhaust flow can potentially affect other components of the exhaust system or even the engine.
• Resale Value: Significantly reduces the resale value of the vehicle.

Do's and Don'ts / Best Practices (If Absolutely Necessary)

If, despite all warnings, you still intend to proceed (again, understanding the legal and environmental consequences), here are some ill-advised "best practices":

• DON'T: Hollow out the converter while it's still connected to the car if possible. Removing it makes the process much cleaner and safer.
• DO: Wear appropriate safety gear: gloves, safety glasses, and a high-quality dust mask (a respirator is better). The dust is extremely harmful.
• DON'T: Assume that hollowing out the converter will magically increase horsepower. The gains, if any, are usually negligible.
• DO: Consider aftermarket solutions for dealing with the check engine light, such as O2 sensor spacers or ECU tuning (but be aware of their legality and potential effectiveness).
• DON'T: Expect the vehicle to pass an emissions test.
• DO: Dispose of the removed honeycomb material properly. It contains harmful substances. Contact your local waste management facility for guidance.
• DON'T: Forget to weld the casing back together if you cut it open. An exhaust leak will cause further performance problems.
• DO: Thoroughly inspect the rest of the exhaust system for leaks or damage while you're working on it.
• DON'T: Attempt this if you are not comfortable with basic automotive repair procedures.

Conclusion

Hollowing out a catalytic converter is a highly discouraged practice due to its legal and environmental implications. The perceived benefits, such as increased exhaust flow, are often minimal and outweighed by the numerous drawbacks, including check engine lights, reduced fuel economy, failed emissions tests, and increased pollution. A much better solution is to properly diagnose and address any issues with the existing catalytic converter, or to replace it with a functioning unit. If you suspect a clogged catalytic converter, consult with a qualified mechanic to determine the root cause of the problem and explore legitimate repair options. Remember to always prioritize compliance with emissions regulations and consider the environmental impact of your actions.
