How To Hook Up Subs To A Stock Radio

So, you're looking to add some serious bass to your ride but want to keep that factory stereo? You're not alone! It's a common desire, and thankfully, it's absolutely possible. You can definitely hook up subwoofers to a stock radio. Doing so allows you to enhance the audio experience without the expense and potential complications of replacing the entire head unit. The key is understanding the limitations of your stock system and choosing the right equipment and installation method.

Symptoms of an Audio System Lacking Bass

Before diving in, let's confirm this is the right path. Here are some telltale signs you're craving that subwoofer thump:

Weak Bass Response: The most obvious symptom. You can barely hear the low frequencies, even with the bass turned up on your head unit.
Distorted Sound at Higher Volumes: As you crank up the volume, the factory speakers start to sound muddy and distorted, especially in the lower frequency range. They're simply not designed to handle those frequencies efficiently.
Overall Lack of Depth: The music sounds flat and lacks the fullness and richness that a subwoofer can provide.
Missing Low-End Frequencies: You're not hearing the rumble in movies or the punch in your favorite tracks. Important parts of the audio are simply absent.
Listening Fatigue: Ironically, the lack of proper bass can cause fatigue over long drives. Your ears are strained trying to compensate for the missing frequencies.

The Root of the Problem: Factory System Limitations

Stock car audio systems are designed to be adequate, not exceptional. Automakers prioritize cost-effectiveness and ease of integration, often resulting in the following limitations:

Low Amplifier Power: The built-in amplifier in your stock radio typically has very limited power output. It's barely sufficient to drive the factory speakers, let alone a power-hungry subwoofer.
Limited Frequency Response: Factory speakers are often designed to handle a limited frequency range. They may not be capable of reproducing the very low frequencies that subwoofers excel at.
High-Pass Crossovers: Many factory systems use high-pass crossovers to protect the factory speakers from damage. These crossovers block low-frequency signals from reaching the speakers, further reducing bass output.
Lack of Subwoofer Output: Most stock radios do not have a dedicated subwoofer output (RCA jacks) to connect to an aftermarket amplifier. This is the biggest hurdle we have to overcome.
Complex Integration: Modern vehicles often integrate the audio system with other vehicle functions, such as navigation, climate control, and vehicle settings. Replacing the head unit can compromise these features, requiring expensive and complex aftermarket integration solutions.

Ignoring the Need for Bass: Potential Consequences

While simply living with a bass-deficient audio system won't cause catastrophic damage to your vehicle, here's what you might experience if you choose to ignore the issue:

Continued Audio Disappointment: You'll never truly enjoy your music or movies in your car. The experience will always feel lacking and unsatisfying.
Increased Listening Fatigue: As mentioned earlier, straining to hear the missing bass frequencies can lead to fatigue and discomfort, especially on long drives.
Overdriving Factory Speakers: In an attempt to compensate for the lack of bass, you might crank up the volume, which can overload and eventually damage your factory speakers. This can lead to distortion, crackling, and ultimately, speaker failure.
Missed Audio Detail: You'll miss out on subtle nuances and details in your music and movies that are only revealed by a proper low-frequency response.
Reduced Resale Value (Slightly): While not a major factor, a poor-sounding audio system can slightly detract from the overall appeal of your vehicle to potential buyers.

Recommended Fixes: Adding a Subwoofer to Your Stock Radio

The good news is, there are several ways to successfully integrate a subwoofer with your factory audio system. Here's a breakdown of the most common methods:

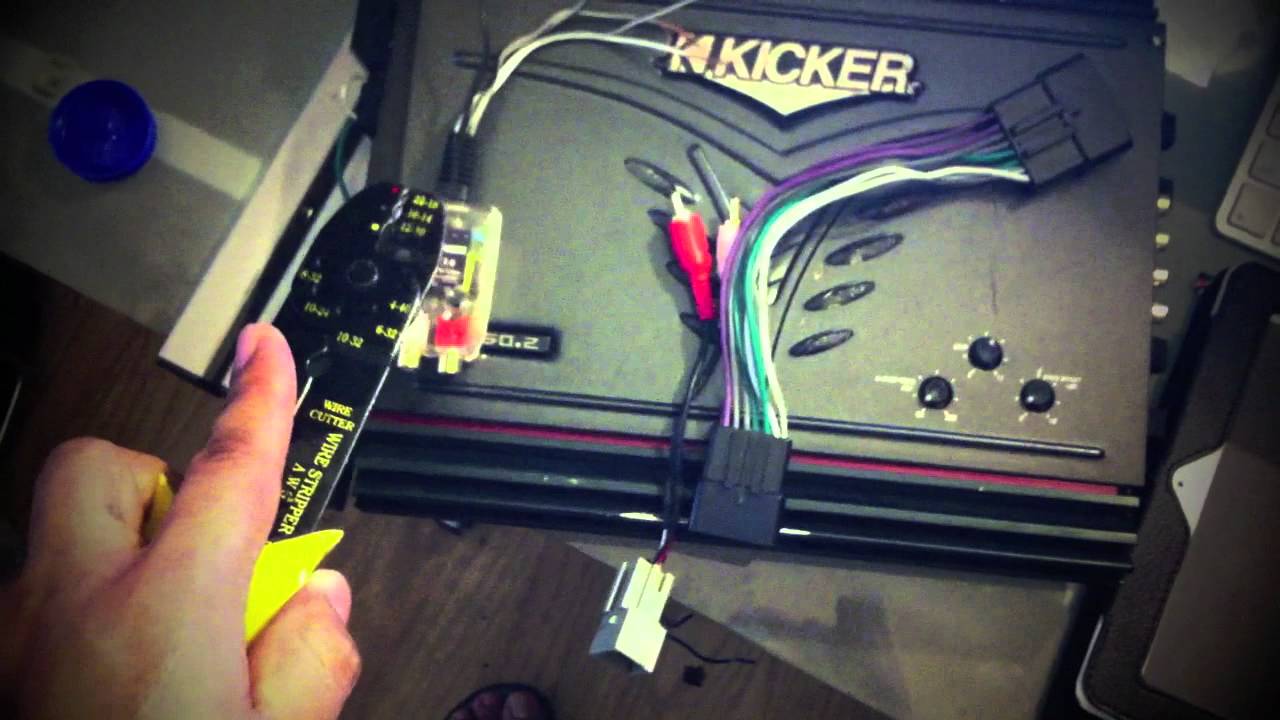

1. Line Output Converter (LOC)

This is the most common and cost-effective method. A LOC takes the high-level speaker output from your stock radio and converts it into a low-level RCA signal that can be connected to an aftermarket amplifier.

How it works: You tap into the speaker wires going to your rear (or front, if you prefer) speakers. The LOC reduces the voltage of these signals to a level that's compatible with the RCA inputs on your amplifier. The amplifier then powers your subwoofer.

Considerations:

Quality of the LOC: Invest in a high-quality LOC. Cheap LOCs can introduce noise and distortion into the signal. Look for LOCs with adjustable gain settings and ground loop isolation.
Signal Source: Choose the speaker wires that provide the cleanest and most full-range signal. Rear speaker wires are often used, but sometimes front speaker wires offer better sound quality. Experiment to see what works best for your vehicle.
Wiring: Ensure proper wiring connections to avoid noise and signal loss. Use crimp connectors or solder for secure and reliable connections.

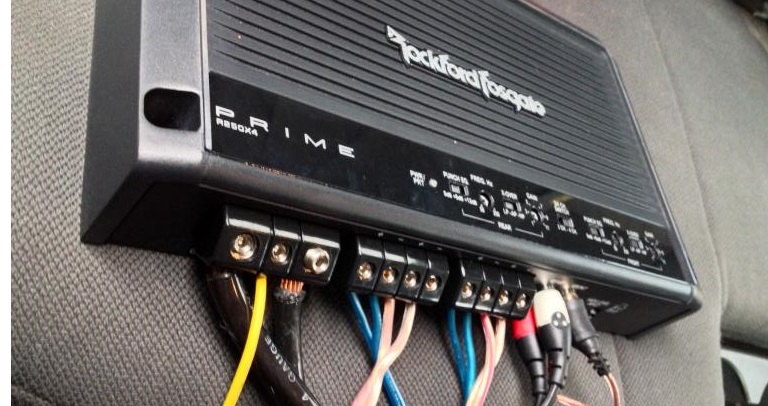

2. Amplifier with High-Level Inputs

Some aftermarket amplifiers have built-in high-level inputs. This eliminates the need for a separate LOC. You can connect the speaker wires directly to the amplifier's high-level inputs.

How it works: Similar to the LOC method, you tap into the speaker wires and connect them directly to the amplifier's high-level inputs. The amplifier is designed to handle the high-voltage signal and convert it internally.

Considerations:

Amplifier Quality: The quality of the amplifier is crucial. Choose a reputable brand with a clean and powerful output.
Input Sensitivity: Adjust the amplifier's input sensitivity to match the output level of your stock radio. This will prevent distortion and optimize the signal-to-noise ratio.
Compatibility: Ensure that the amplifier's high-level inputs are compatible with your stock radio's output voltage.

3. Signal Processor with Summing Capabilities

This is the most advanced and often the most expensive method. Signal processors are designed to improve the overall sound quality of your audio system. Some signal processors have a feature called "summing," which allows you to combine multiple speaker signals into a single, full-range signal.

How it works: Modern factory systems sometimes split the audio signal, sending different frequency ranges to different speakers (e.g., tweeters, door speakers, rear deck speakers). A signal processor with summing capabilities combines these signals to create a full-range signal that can be used to drive an aftermarket amplifier and subwoofer.

Considerations:

Complexity: This method is more complex and may require professional installation and tuning.
Cost: Signal processors are typically more expensive than LOCs or amplifiers with high-level inputs.
Tuning: Proper tuning is essential to achieve optimal sound quality. This may involve using a real-time analyzer (RTA) and adjusting the processor's settings to compensate for any deficiencies in the factory system.

General Considerations for All Methods

Power Wiring: Run a dedicated power wire from your vehicle's battery to the amplifier. Use a fuse near the battery to protect the wiring from shorts. Ground the amplifier securely to the vehicle's chassis.
Remote Turn-On Wire: Connect a remote turn-on wire from your stock radio (if available) or use an "add-a-fuse" to tap into a switched 12V source. This will turn the amplifier on and off with the ignition. Some LOCs also offer remote out functionality.
Subwoofer Enclosure: Choose a subwoofer enclosure that is appropriately sized for your subwoofer and vehicle. Consider sealed, ported, or bandpass enclosures depending on your desired sound quality and space constraints.
Speaker Wire: Use high-quality speaker wire to connect the amplifier to the subwoofer.

Cost Estimates and Shop Advice

The cost of adding a subwoofer to your stock radio can vary widely depending on the method you choose, the quality of the equipment, and whether you install it yourself or hire a professional.

DIY Installation: If you're comfortable with basic wiring and have some experience working on cars, you can save money by installing the subwoofer yourself. Expect to spend anywhere from $150 to $500 or more, depending on the subwoofer, amplifier, LOC (if needed), and wiring kit you choose.
Professional Installation: If you're not comfortable installing the subwoofer yourself, it's best to hire a professional installer. Expect to pay anywhere from $200 to $500 or more for installation, depending on the complexity of the job and the hourly rate of the installer.

Shop Advice:

Get Quotes from Multiple Shops: Before hiring an installer, get quotes from several shops. Compare their prices and services to find the best value.
Read Reviews: Check online reviews to see what other customers have to say about the shops you're considering.
Ask Questions: Don't be afraid to ask questions about the installation process, the equipment they use, and their warranty policy.
Discuss Your Goals: Clearly communicate your goals and expectations to the installer. This will help them recommend the best solution for your needs and budget.

Regarding TSBs and Common Failures: While there aren't specific TSBs (Technical Service Bulletins) directly related to adding subwoofers to stock radios, some vehicles have known issues with their factory audio systems, such as poor sound quality or amplifier failures. Research your specific vehicle model and year to see if there are any known issues that might affect your installation. Online forums and communities dedicated to car audio can be invaluable resources for information and advice.
